PathWay® Model 4527 Single Channel RJ45 Cat5 (COS) Code Operated A/B Switch with Contact Closure Remote Control

Overview

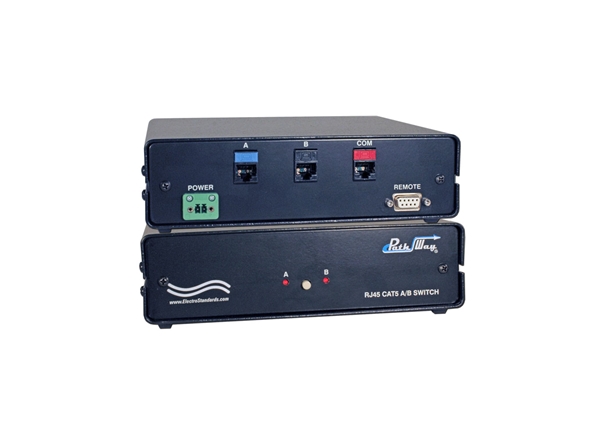

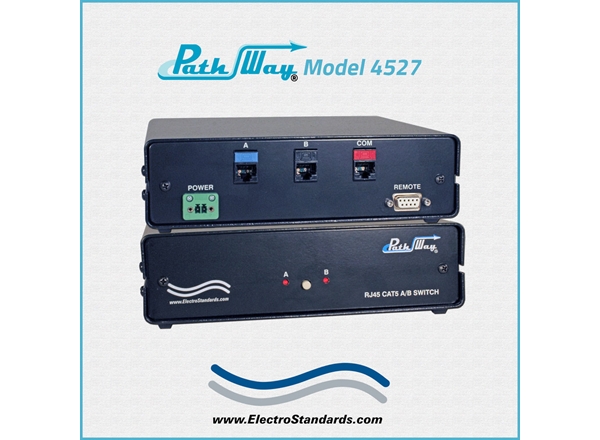

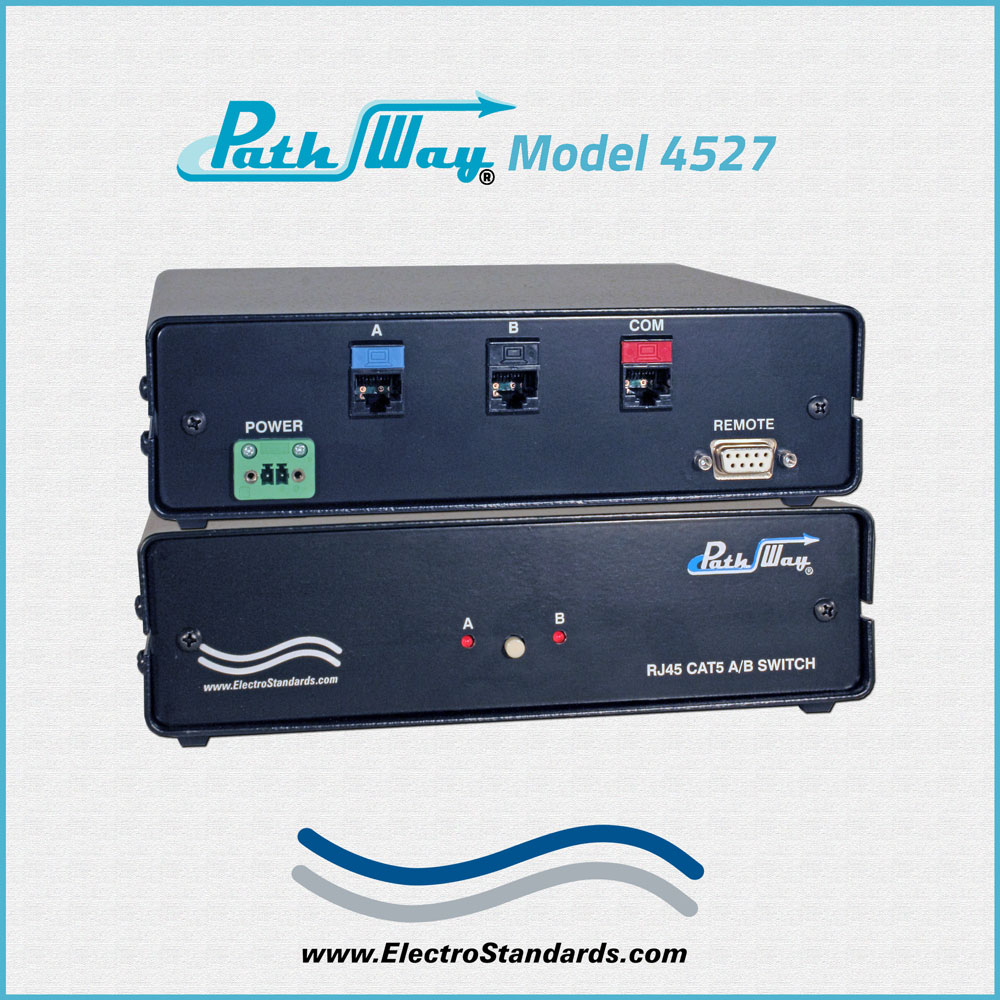

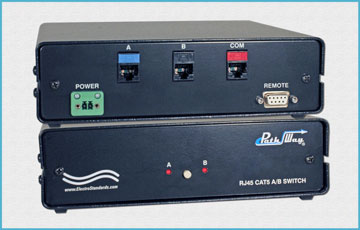

The PathWay® Model 4527 Single Channel Cat5 RJ45 A/B Switch with Contact Closure Remote allows the user the capability of sharing a single port interface device, connected to the “COMMON” port, among two other devices, connected to the “A” and “B” ports, with remote access functionality. The Model 4527 is packaged in a slim desktop style enclosure. The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Remote Control port located on the rear of the unit. The DB9 Remote port provides contact closure control. The front panel LED display indicates the switch position and unit power status.

Cat 5 Compliant

FEATURES OF THE MODEL 4527 CONTACT CLOSURE COS SWITCH:

All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
The switch ports are transparent to all data.
Front panel pushbutton control.
Remote Contact Closure Control provides dry contact logic to allow the control of the switch position.
Front panel LED's display present position and power status.
Switch maintains position on power loss and continues to pass data.
Upon power up, the unit will switch based on Remote contact closure state.
Requires customer supplied 24 VDC to its Power Input connector.
Power input mating connector kit supplied with the unit.
Certified for Cat 5 Compliance.
Municipalities, schools, government: On GSA Schedule!
Certitied Cat5e patchcords, ideal for use with this Model 4527 Switch. Call for custom lengths.

The PathWay® Model 4527 A/B Switch Operation:

Allows the user the capability of sharing a single port interface device, connected to the "COMMON" port, among two other devices, connected to the "A" and "B" ports, with remote access functionality.
The switch may be controlled locally by manually operating the front panel pushbutton or remotely from the DB9 Remote Control port located on the rear of the unit.
The DB9 Remote port provides contact closure control.
The front panel LED display indicates the switch position and unit power status.
The PathWay® Model 4527 is packaged in a slim desktop style enclosure

TECHNICAL SPECIFICATIONS:

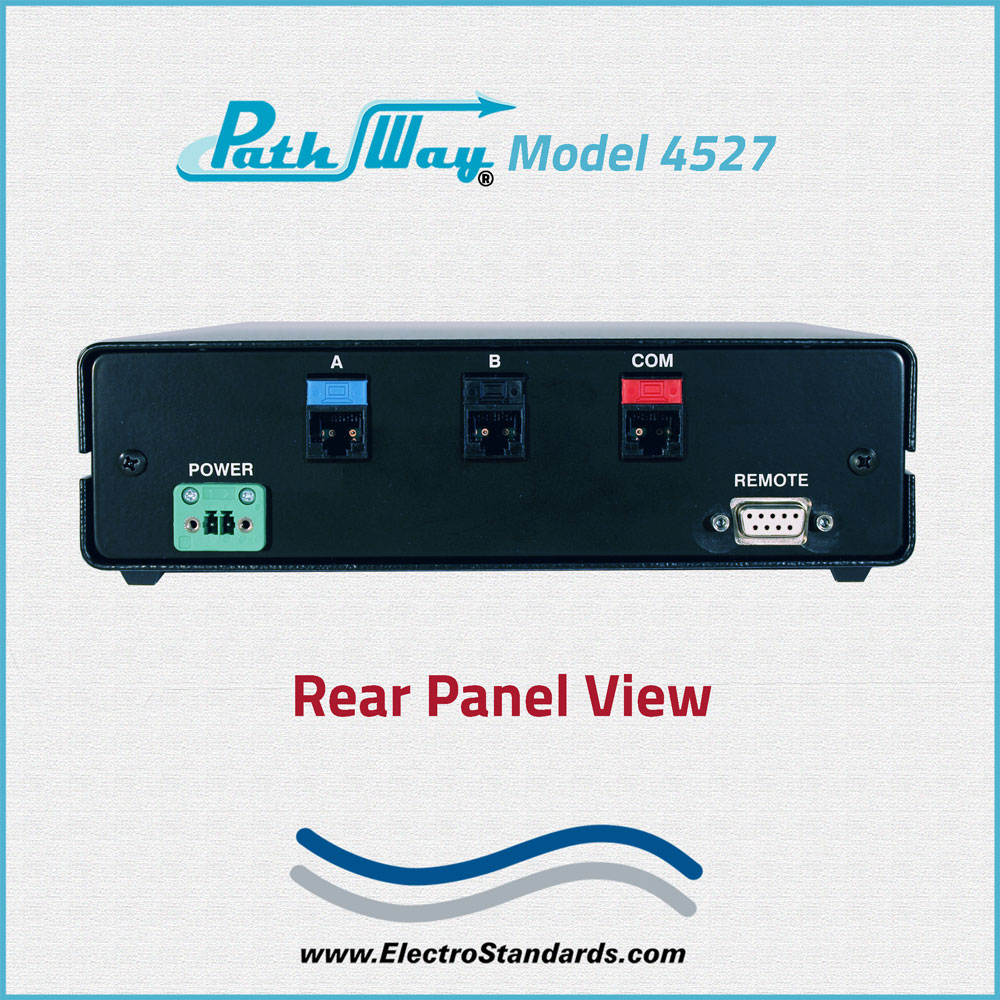

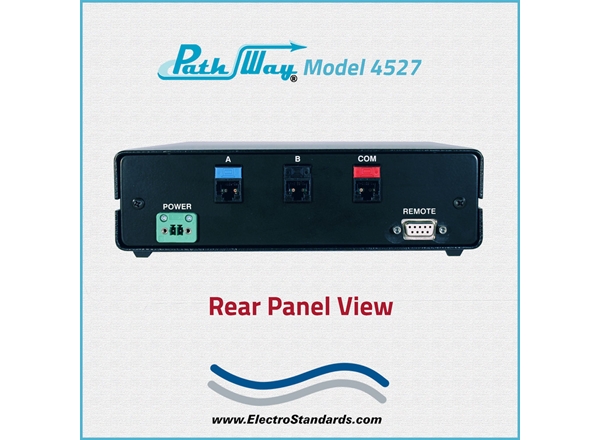

PORT CONNECTORS: (3) RJ45 female connectors labeled A, B, and Common.

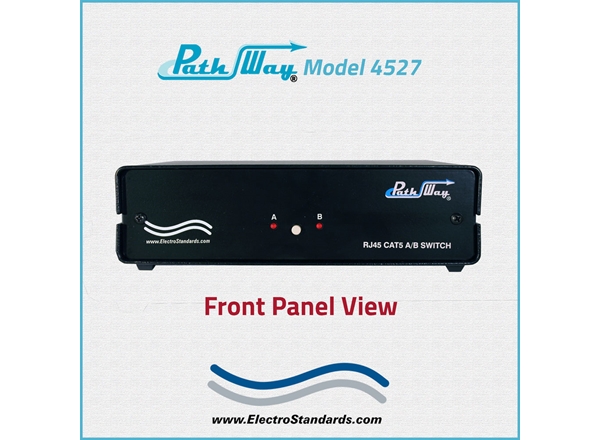

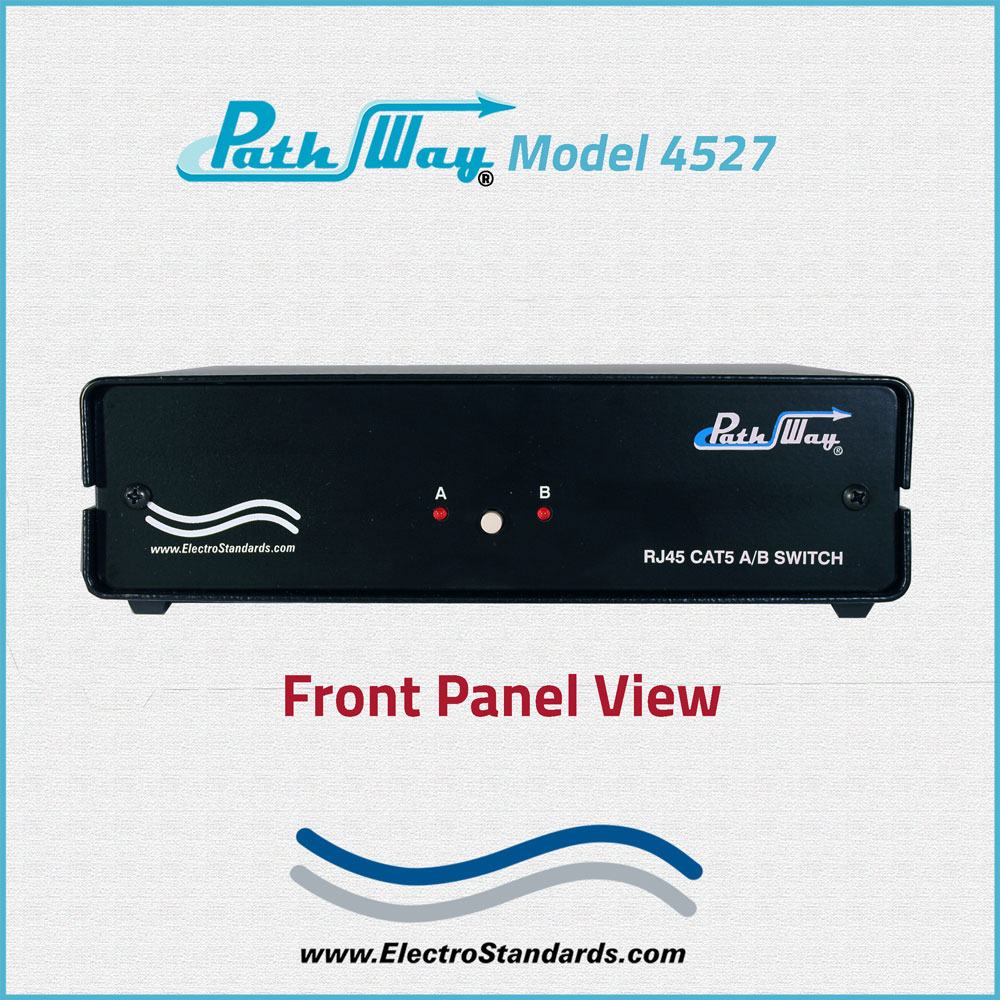

FRONT PANEL CONTROL: (1) Manual pushbutton allows for local switching.
DISPLAY: (2) front panel LED's display switch position and power status.
REMOTE: (1) DB9 female connector on rear panel accepts contact closure switch commands for remote control operation.
POWER: 24 VDC must be supplied to the unit. It has a 2-pin Input Power jack on its rear panel.
DIMENSIONS: Desktop, 8.15" W x 7.27" D x 2.38" H. (20.8 X 18.5 X 6.1 cm)
WEIGHT: Approximately 1.7 lbs. (0.8 kg)

PathWay® Model 4527 Cat5 Code Operated Switch Application with Contact Closure Remote:

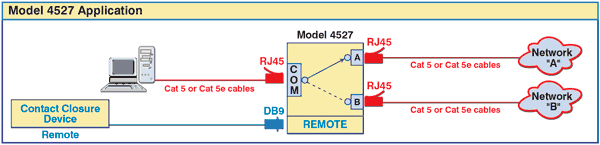

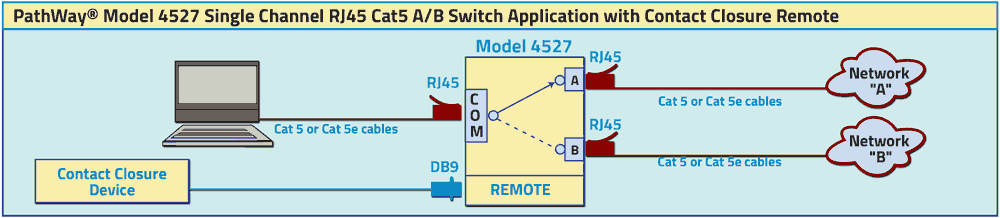

The diagram illustrates a workstation connected to the Cat5 RJ45 COMMON port accessing two networks connected to the Cat5 RJ45 A and B ports. A Contact closure device is connected to the DB9 REMOTE port for Remote operation via Contact Closure switch commands.

PathWay Model 4527 Single Channel RJ45 Cat5 A/B Switch Application, Code Operated Switch

Ordering Information

Catalog Number: 304527
Model Number: 4527
Base Price: See website or contact us for current pricing and availability.

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.
Model 4527 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
