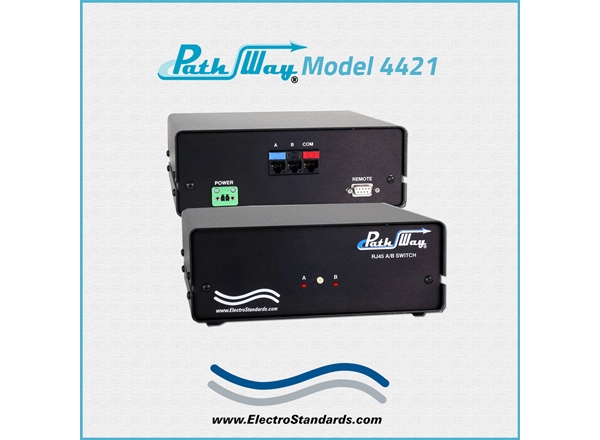

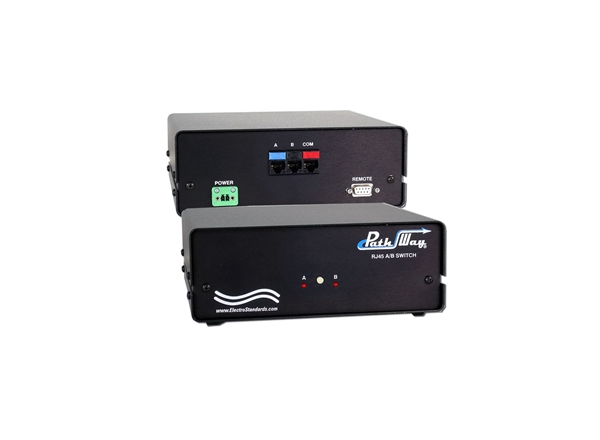

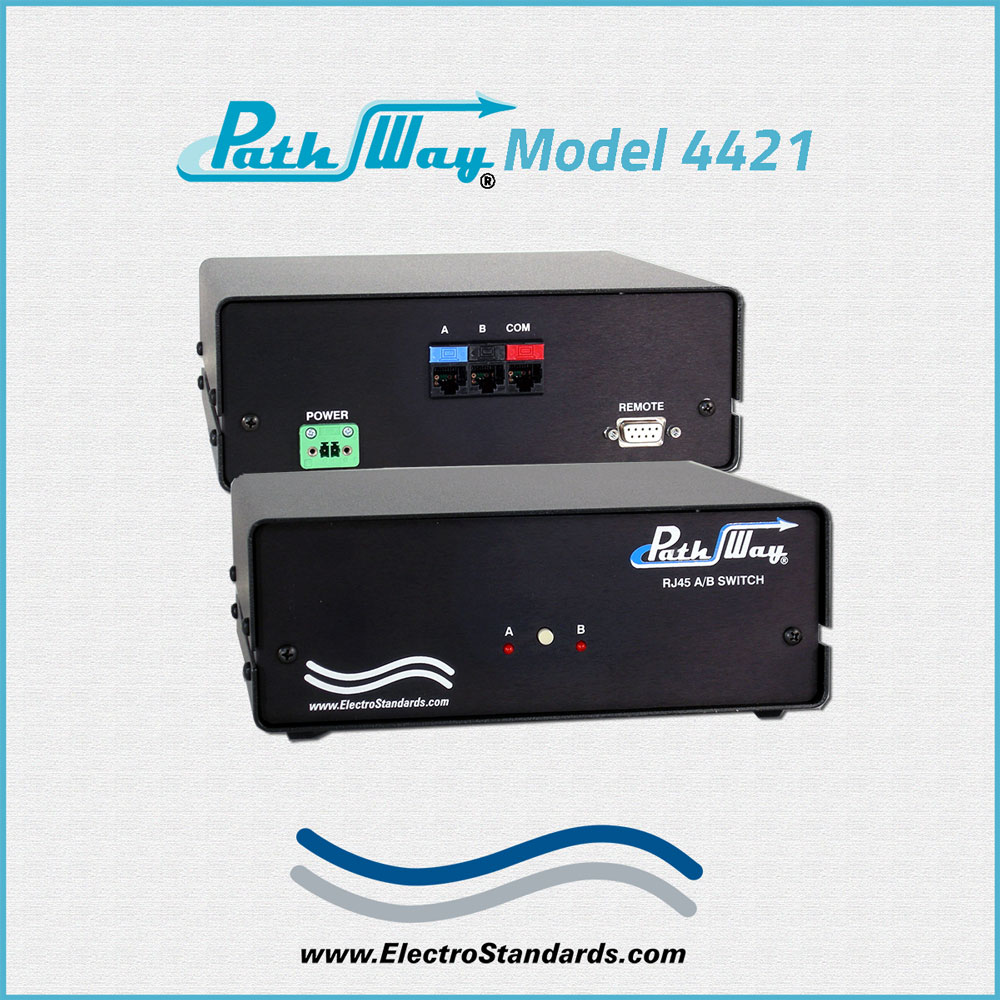

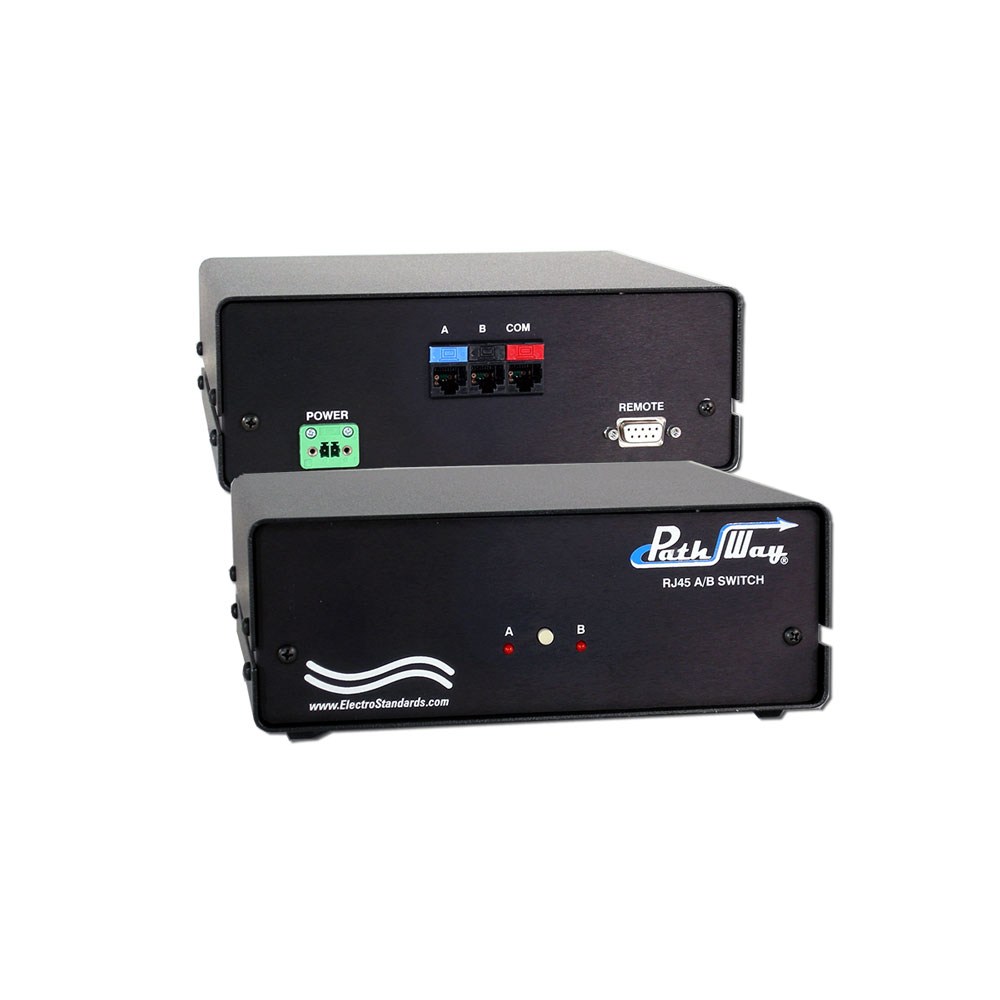

Model 4421 RJ45 CAT5 A/B Switch with Password Serial Remote, Catalog # 304421

    RJ45 CAT5 A/B SwitchRJ45 CAT5 A/B SwitchRJ45 CAT5 A/B SwitchRJ45 CAT5 A/B Switch
Click image to enlarge
    • RJ45 CAT5 A/B Switch
    • RJ45 CAT5 A/B Switch
    • RJ45 CAT5 A/B Switch
    • RJ45 CAT5 A/B Switch
Base Price:
$1,006.00
Catalog No: 304421
Model No: 4421
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:RJ45
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Security:Password Protection
Compliance/Standards:Cat5
Configuration:Desktop
Pins Switched:8 pins
Remote Port:DB9
Local Control:Pushbutton
Protocol:ASCII

Add to Cart

PathWay® Model 4421 Cat5 RJ45 A/B Switch

  • Password Protected Remote
  • Desktop Configuration
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

PathWay® Model 4421 Cat5 RJ45 A/B Switch with Password Serial Remote

Overview

The PathWay® Model 4421 Single Channel RJ45 Cat5 A/B Switch with RS232 Remote allows the user the capability of sharing a single port interface device connected to the “COMMON” port among two other devices connected to the “A” and “B” ports. Remote access can be accomplished using a DB9 RS232 connection and ASCII serial commands. The Model 4421 is packaged in a slim desktop style enclosure.

  • Provides Cat5 Performance

  • Password Protected Remote Control function avoids unauthorized user access.

FEATURES OF THE MODEL 4421 CAT5 A/B SWITCH:

  • Allows quick connection to any one of two RJ45 devices from one COMMON device.
  • The switch ports are transparent to all data.
  • All (8) pins of the RJ45 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.

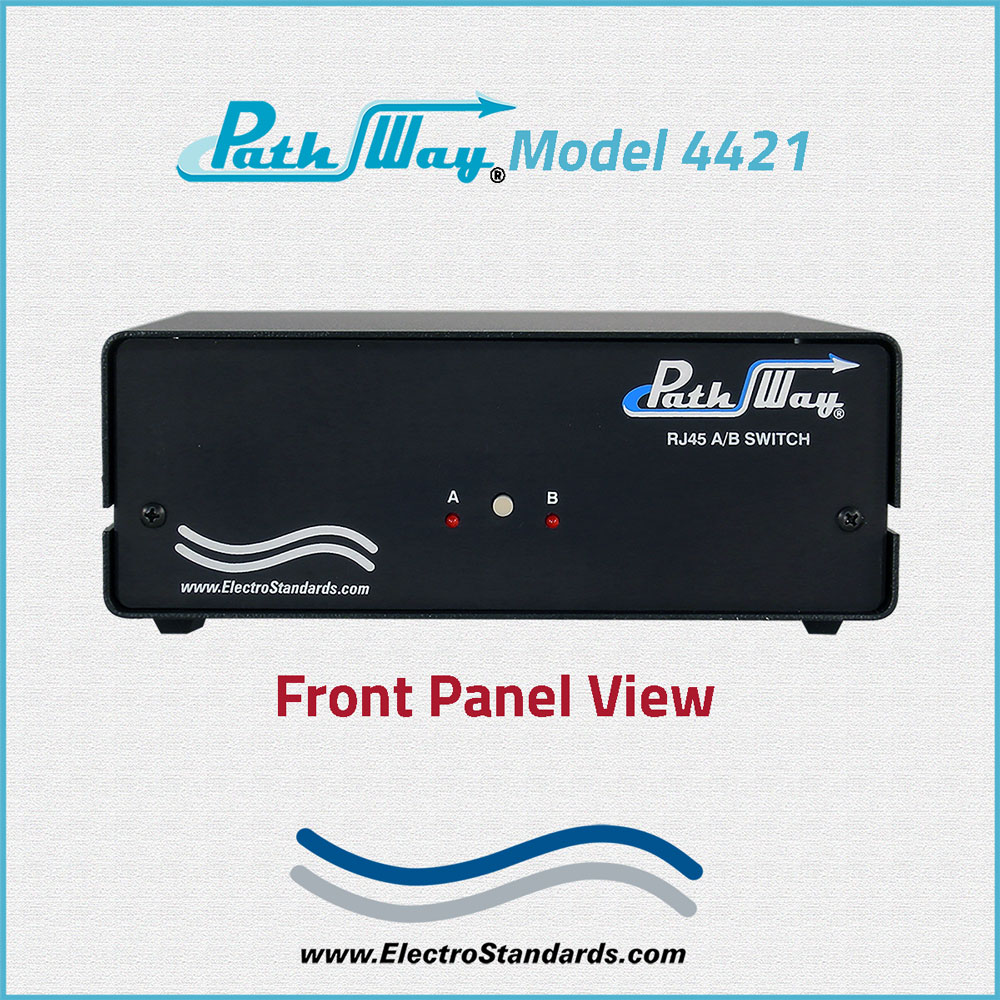

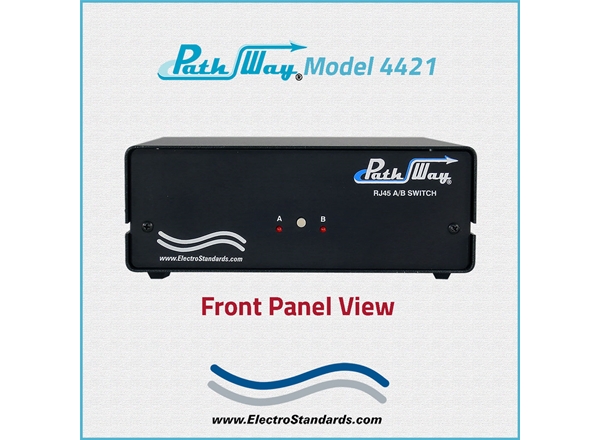

  • Front panel pushbutton control.
  • Remote RS-232 ASCII commands that allow the user to control switch position, lockout front panel operations, obtain switch status, as well as query serial number and version number.
  • Remote control of the switch is password protected, where the password protection can be disabled.
  • Front panel LED’s display present position and power status.
  • Certified for Cat5 compliance.
  • Rated for 10/100 Base-T networks (up to Cat5).
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length RJ45 cables available for your switch installation.
  • Municipalities, schools, government: This product is on GSA Schedule!

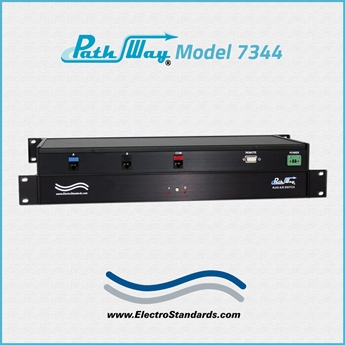

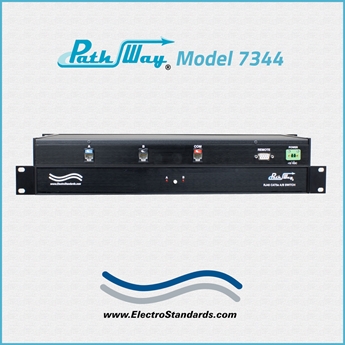

  • For Rackmount Configuration, See Model 7344, Cat. No. 307344.

TECHNICAL SPECIFICATIONS:

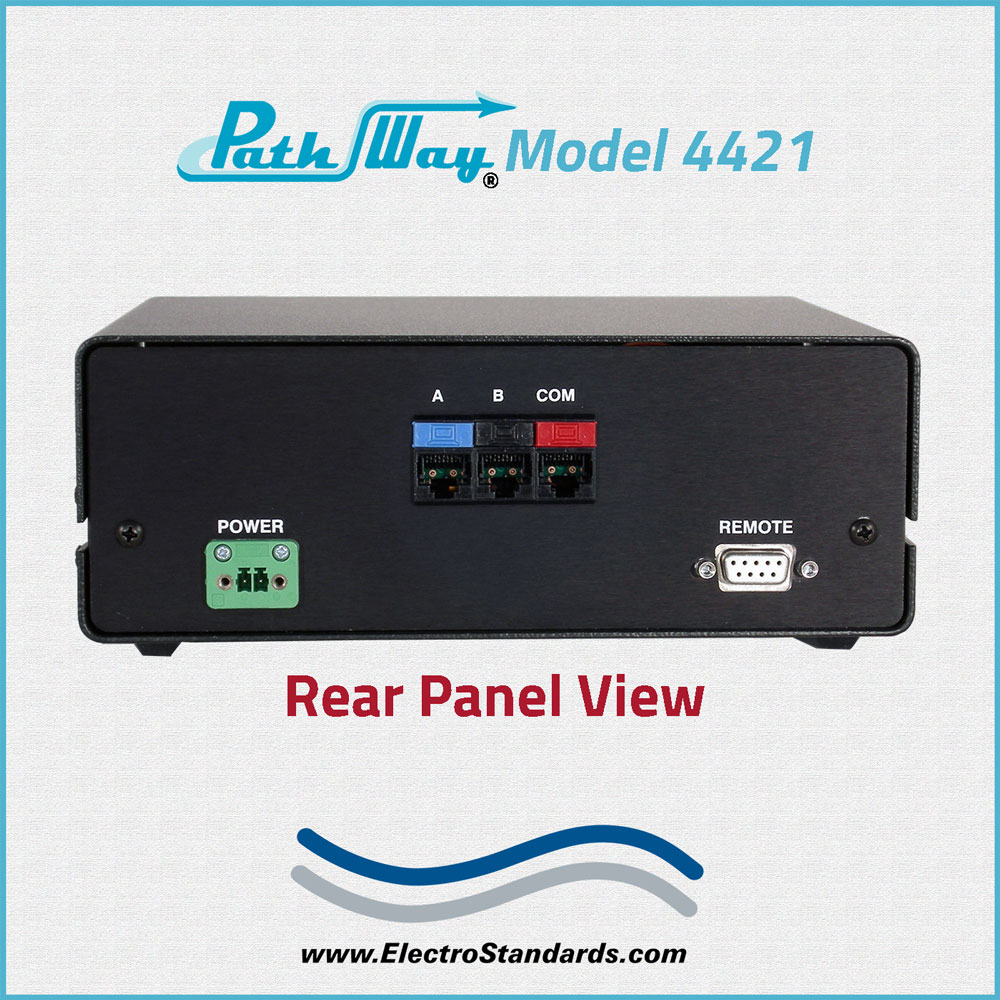

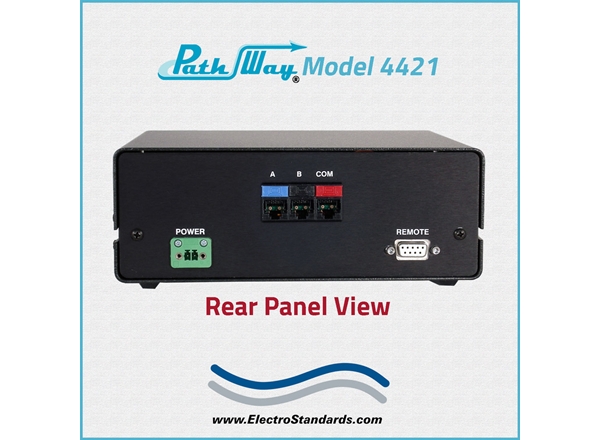

  • PORT CONNECTORS: (3) RJ45 female connectors are labeled A, B, and COMMON.
  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED’s display switch position and power status.
  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC-240VAC, 50Hz-60Hz wall mount power module supplies 12 VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 8.11” W x 3.10” H x 7.26” D. (20.6 x 7.9 x 18.5 cm).
  • WEIGHT: Approximately 1.8 lbs. (0.9 kg)

PathWay® Model 4421 RJ45 Cat5 A/B Network Switch Application with Password Protected Remote:

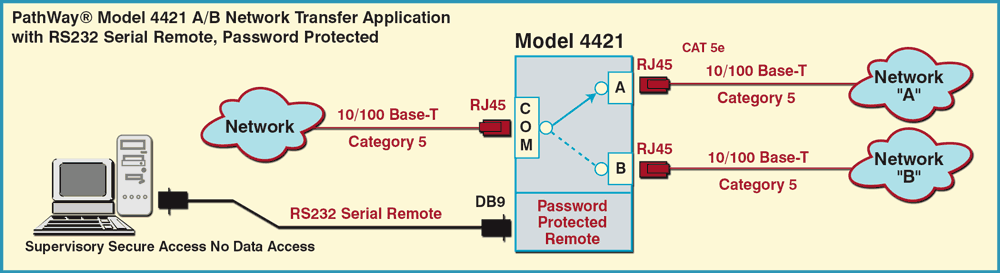

The drawing illustrates an RJ45 Cat5 A/B switch with a device connected to the RJ45 COMMON port sharing between two devices connected to the RJ45 A, and B ports. The DB9 Remote is Password protected.  Upon proper authentification , the switch may be remotely controlled using ASCII RS232 Serial Data commands.

PathWay Model 4421 RJ45 A/B Network Switch Application

Ordering Information

  • Catalog Number: 304421
  • Model Number: 4421
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE

(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

PathWay4 Model 4421 RJ45 A/B Switch w/Password Remote is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
