Model 9457 RJ45 Switch Provides 2-Channels of ABC Switching and 1-Channel of AB Switching with Cat5e Compliance

January 4, 2012

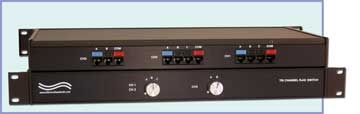

Model 9457 RJ45 Cat5e Switch with 2-Channels ABC Switching and 1-Channel of AB Switching

The Model 9457 RJ45 Network Switch from Electro Standards Laboratories is a unique device comprised of a 2-Channel RJ45 Switch with 3 switch positions of A, B, C and a 1-Channel RJ45 Switch with two switch positions of A/B all in one slim, 1U rackmount package.   This unit allows the user to manually switch 2 channels of A/B/C ports simultaneously via one knob and 1-Channel of A/B ports via another knob both located on the front panel.


The Model 9457 Cat5e Switch fits conveniently in a slim 1U package with an all aluminum case.  The dimensions of the Model 9457 are 19”W x 1.75”H x 8”D with an approximate weight of 3 lbs. The Model 9457 is rated for 10/100/1000 networks and tested for Cat5e compliance.  Each channel switches all (8) leads with no power required.  All (11) of the RJ45 female ports are located on the rear panel and custom length cat5e cables can be ordered for optimum performance.


To view more about Model 9457, visit: http://www.electrostandards.com/ProductDetail/?productid=1865


For more information about other Network Switches or cables from Electro Standards Laboratories, call 401-943-1164, eslab@ElectroStandards.com, or www.ElectroStandards.com.  All ESL products are available for export.  Government Agencies contact Electro Standards for GSA pricing on COTS (Commercial-Off-The-Shelf) network switches.
