Model 7371 Supports 3 Positions of Network Switching with Certified Cat6A Compliance

November 29, 2011

FOR IMMEDIATE RELEASE

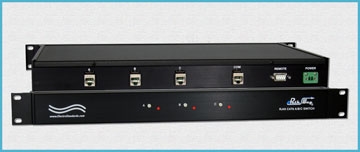

Model 7371 3-Position Cat6A RJ45 Switch with Serial Remote Control Port



The Model 7371 is a Single Channel Cat6A RJ45 Switch with 3 positions of A/B/C switching and Serial Remote Control.  This network switch, manufactured by Electro Standards Laboratories in Cranston, RI, utilizes high performance shielded RJ45 connectors and is certified for Cat6a compliance.



The Model 7371 switches all 8 pins of the RJ45 interface. The switch is transparent to data speed and format allowing seamless network switching.  Switch position can be controlled manually via front panel pushbutton or remotely via ASCII RS232 Serial Data commands.  The remote control port allows total off-site monitoring and switch management including the ability to lockout the front-panel pushbutton control. The Model 7371 retains its last switch position in the event of a power loss and continues to pass data.



A CE and UL listed wide range power module (item #517277) with 100VAC/240VAC, 50Hz/60Hz operation can be ordered in place of the standard power module to accommodate switching applications worldwide. Custom length RJ45 CAT6A cables are also available from Electro Standards Laboratories for the switch installation.



To view more about the Model 7371, visit: http://www.electrostandards.com/ProductDetail/?productid=2246



For more information contact Electro Standards Laboratories at 401-943-1164, eslab@electrostandards.com, www.ElectroStandards.com.  All Electro Standards Network Switches are available for export.  Government Agencies contact Electro Standards for GSA pricing on COTS (Commercial-Off-The-Shelf) network switches.
