Model 7316 16-Channel RJ45/CAT5e A/B Switch, Telnet Remote Control

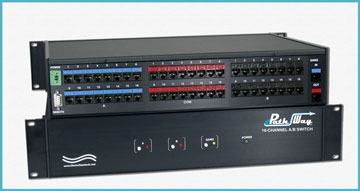

Electro Standards Laboratories, Cranston, RI, announces the new Model 7316 16-Channel RJ45/CAT5e compliant A/B switch. This switch features Telnet access and IP addressable remote control methods. The Model 7316 accesses, on each channel, one of two separate devices via a device connected to the channel’s COMMON port. All 16 channels are switched simultaneously. This switch fits neatly into a standard 19” rack. The switch dimensions are 19” W x 3.5” H x 14” D (48.3 x 8.9 x 35.6 cm) and the weight is 9.0 lbs. (4.0 kg).


The switch may be controlled manually via the front-panel pushbuttons. The RJ45 Ethernet REMOTE port accepts Telnet commands to control switch position, lockout front-panel operation, and obtain switch status.  Multiple units can be ganged to simultaneously control 32 channels, 48 channels, 64 channels and more. Gang operation, when enabled, allows all units in the gang to stay synchronized in the same position.


Switch position, operating mode, and power status are displayed by the front panel LED indicators and can be queried remotely. The display includes (2) red LED’s to indicate switch position, (1) yellow LED to indicate the gang mode, and (1) green LED to indicate the present power status. The front-panel controls include: (2) manual pushbuttons to select A or B and (1) gang pushbutton that allows the gang mode of the unit to be changed to include or exclude the unit from the gang control. The Gang In/Out connectors include (1) RJ45 female IN connector (gang control cabled in from previous unit); and (1) RJ45 female OUT connector (gang control cabled out to the next unit). The port connectors include (48) RJ45 female connectors with (16) labeled 1-16 in each of the groups A, B and COMMON. The Model 7316 switches all 8 pins of the RJ45 interface and is transparent to data speed and format. For reliability, the switch retains the last switch position in the event of a power loss and continues to pass data.


The Model 7316 is housed in an attractive all metal black box packaging that provides EMI/RFI shielding. The rackmount configuration is standard. Customization of this switch is available. The Model 7316 comes complete with a UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module that supplies 12 VDC, 500mA to the unit. The supply features a 2-prong, US, non-polarized plug.


An optional wide range power option is available for the Model 7316. This unit, Catalog No. 517277, is a CE, RoHS, and UL listed table mount module that provides 100VAC/240VAC, 50Hz/60Hz. This module features an IEC 60320 C14 inlet that is ideal for international applications. The Model 7316 paired with this module creates a powerful switching system for applications worldwide.


For detailed information on the Model 7316, including a full-color application diagram and a link to the product spec sheet, visit the company Website at http://www.electrostandards.com/ProductDetail/?productid=2443/. Electro Standards has a knowledgeable staff of sales engineers available to answer product and application questions, contact at 401-943-1164 or via email at eslab@electrostandards.com.
