Model 7296 Switches Multiple MDR and MXR Ports Simultaneously via Pushbutton or via USB RS232 Serial Remote

February 14, 2012

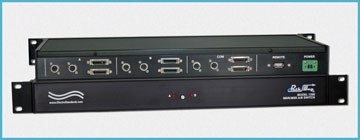

Model 7296 2-Channel MDR/MXR A/B Switch with RS232 Serial Remote




The PathWay┬« Model 7296 Dual MDR/MXR A/B Switch from Electro Standards Laboratories allows the user the capability of sharing 2 single port MDR interface devices and 2 single port MXR interface devices among two other devices for each channel.   All four channels are switched simultaneously via front panel pushbutton or via RS232 serial remote control operation.


The Model 7296 features a USB Type-A connector on rear panel that accepts ASCII RS232 Serial Data commands to allow the user to control switch position, lockout front panel operations and obtain switch status from a remote location.  The switch ports of the unit are transparent to all data speed and format with all 6 pins of the MXR interface and pins 1 through 20 of the MDR interface switched.  The switch also maintains position on power loss and continues to pass data.  The Model 7296 also has an optional CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz/60Hz in place of standard, available as Cat.No.517277.


To view more about Model 7296, visit: http://www.electrostandards.com/ProductDetail/?productid=2261


For more information about other Network Switches or cables from Electro Standards Laboratories, call 401-943-1164, eslab@ElectroStandards.com, or www.ElectroStandards.com.  All ESL products are available for export.  Government Agencies contact Electro Standards for GSA pricing on COTS (Commercial-Off-The-Shelf) network switches.
