Model 7180 2-Channel BNC 50 Ohm Switch with Simultaneous ONLINE/OFFLINE Switching with a Push of a Button

October 28, 2014

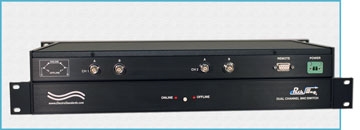

Model 7180 2-Channel BNC ONLINE/OFFLINE Switch Supports 50 Ohm Impedance
Electro Standards Laboratories introduces Model 7180 BNC 50 Ohm Switch featuring simultaneous switching to Online or Offline positions via a Manual Pushbutton and Contact Closure Remote Control. DB9 Remote port allows offsite monitoring and Switch management via Contact Closure Signals.
The Model 7180 is designed to support the switching of Audio applications by sharing a single BNC interface device among 2 other devices via an Online or Offline connection. Both the Center and Shell of the BNC interface are switched via break-before-make electromechanical relays and the switch ports are transparent to all data. All BNC ports are impedance matched to support 50 Ohm equipment.
The Model 7180 features both local and remote control of the switch. A pushbutton on front panel can be used to simultaneously control the position of both channels from Offline to Online or visa versa. Remote control of the positions can be accomplished via the DB9 port with Contact Closure Signals. Upon power up, the unit switches based on state of Contact Closure.
To view more about Model 7180, visit: http://www.electrostandards.com/ProductDetail/?productid=2488
For more information about other Network Switches or cables from Electro Standards Laboratories, call 401-943-1164, eslab@ElectroStandards.com, or www.ElectroStandards.com. All ESL products are available for export. Government Agencies contact Electro Standards for GSA pricing on COTS (Commercial-Off-The-Shelf) network switches.
