Model 4423 Power Supply Distribution Switch Provides Control of 4 Separate DC Voltage Lines
October 12, 2016
FOR IMMEDIATE RELEASE
Cranston, RI, USA, adds Model 4423 4-Channel Power Supply Distribution Switch to their product line. The Model 4423 allows the user the capability of providing power to any or all of the four outputs from its internal power supply.

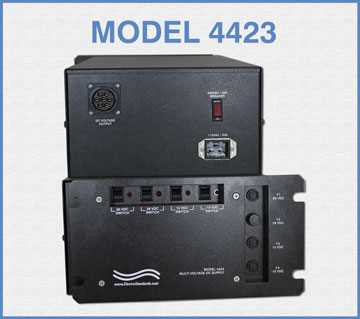

The Model 4423 is enclosed in a custom all metal black chassis designed to provide EMI/RFI shielding. Each channel has an ON/OFF rocker switch that controls each of the power outputs. Each of the (4) DC supply voltage lines are protected by a fuse.
- (1) 15 Amp Fuse is used for the +60VDC Power Supply
- (1) 30 Amp Fuse is used for the +28VDC Power Supply
- (1) 10 Amp Fuse is used for the +15VDC Power Supply
- (1) 10 Amp Fuse is used for the -15VDC Power Supply
The voltages are supplied to the rear panel Circular 7-Pin CDC Connector. The Model 4423 connects to 115VAC / 60Hz to provide power to its internal supply using a dedicated 20Amp AC Circuit. The rear panel has a lighted ON/OFF 20Amp Circuit Breaker. This is the main switch that controls power to the internal supply. Each channel has a red LED that lights when the voltage of the selected power supply is enabled.
The dimensions of Model 4423 are 12.3” W x 6.26” H x 21.39” D (31.3 x 16.0 x 54.4 cm) with a weight of 25.5 lbs (11.6 kg). For more information on the Model 4423 including a detailed specification sheet with an application diagram visit the product webpage at http://www.electrostandards.com/ProductDetail/?productid=2551 or the company website. For product or application questions, call 401-943-1164 to speak with one of ESL’s knowledgeable sales engineers.
