ESL528255 - Master Module Controller (JSR NA102)

Click image to enlarge

Base Price:

Call for Price

Catalog No:

ESL528255

Model No:

NA102

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

ULITMO Lithium Ion Supercapcitors for Super Energy and Power

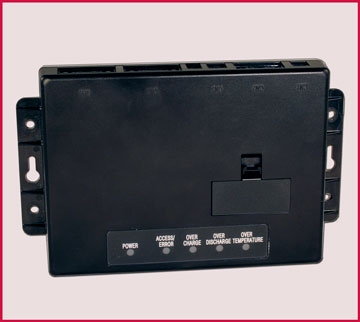

NA102, Master Module Controller
ESL Part# 528255

Master Controllers are used for balance when five or more modules are used together.

Master Controller Features
ITEM			DESCRIPTION
Power Supply	Rated Voltage		DC24V
Functions	Inter-module balancing		Acquire cell voltage data from modules and balance between modules
	Manage alarm signals		- Gather alarm information - Activate alarm signal to the host (Overcharge, over-discharge, high temperature alarms)
	Sleep function		In sleep mode unless receiving wake-up signal

LED Display	Power		Turn on when the power is on
	Error		Turn on when communication errors are detected
	Overcharge Alarm		Turn on when Overcharge alam is active
	Over-discharge Alarm		Turn on when Over-discharge alam is active
	High Temperature Alarm		Turn on when High Temperature Alarm is on

Control Signals between Modules	Input Signals	Overcharge Alarm	Receive Overcharge Alarm from modules
		Over-discharge Alarm	Receive Over-discharge Alarm from modules
		High-Temp. Alarm	Receive High Temperature Alarm from modules
	Output Signals	Wake-up Request	Signal to activate modules
		Sleep Request	Signal to shift modules
	Communications	RS485	Communicate between master controller and each module

Master Controller Features (continued)
ITEM			DESCRIPTION
Control Signals to the host	Input Signals	Master Sleep Request	Transfer into sleep mode upon receipt
		Module Wake-up Request	Wake-up modules upon receipt
		Disable Balance Request	Disable balancing function upon request
		Error Cancel Request	Cancel error signal upong receipt
	Output Signals	Overcharge Alarm	Active when Overcharge Alarm is received from slave modules
		Over-discharge Alarm	Active when Over-discharge Alarm is received from slave modules
		High Temperature Alarm	Active when High Temperature Alarm is received from slave modules
		Error Alarm	Active when communicating errors occur
	Communication Ports	RS485	Communicate between master controller and the host
		CAN

Switches	DIP SW1		Determine master ID (4 bit)
	DIP SW2		Determine the number of modules connected to the master (4 bit)
	DIP SW3		Determine master controller mode (4 bit)

Outer Dimensions			155 x 120 x 25 (tentative)
Operational Conditions	Temperature Range		-30 ~ 70°C
	Storage Temperature Range		-40 ~ 80°C
	Humidty Range		20 ~ 90%RH

Electro Standards Labs can design and build your power electronic systems, converters, and cables. Hybrid Energy Storage Systems (HESS) can be designed to combine batteries and ultra-caps together for energy density and power density. Call 401-943-1164 to speak to a sales engineer or email: eslab@electrostandards.com.
