ESL Expands Energy ActionSystem Lithium Ion Capacitor Development Shelf Series to Include Air Cooling

April 1, 2015

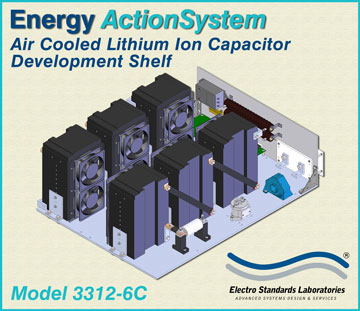

Model 3312-C, Air Cooled Energy ActionSystem Lithium Ion Capacitor Development Shelf


Electro Standards Laboratories has expanded its series of Energy ActionSystem Lithium Ion Capacitor Development Shelves to include units with air cooling. Model 3312-6C, Cat. No. 331206C, Air-Cooled Lithium Ion Super Capacitor (LiC) Development Shelf, as shown below, includes active cooling fans for each of six LiC Modules. The LiC modules can be connected in series and the shelf can include a protection fuse, contactor for computer controlled isolation, current sensor, voltage sensor, and over/under voltage board for monitoring faults from the Master Controller and aiding in protecting the LiC stack.  This shelf can be stacked with additional LiC shelves connected in series for higher voltages and/or parallel for higher currents. The shelf is designed to fit into a commercially available vented rack or a vented enclosure can be added to it for bench top applications.

The LiC Development Shelf series includes a wide variety of variations such as:

  • Number of Modules per Shelf
  • Total Capacitance per Shelf
  • Number of Cells per Module
  • Total Shelf Voltage

The shelf product series is designed to save time, effort, and development costs associated with operating and testing LiC energy systems. Click here to learn more about the Energy ActionSystem Lithium Ion Capacitor Development Shelf series .

LiC Supercapacitor systems are ideal for applications that require bidirectional high power pulses, very low leakage, very high cycle life, and exceptional energy density.

Custom Lithium Ion Capacitor Development Shelf Configurations are available to meet your application requirements.

To learn more about Lithium Ion Capacitors, visit our webpage at http://www.electrostandards.com/Research-Development/25/Default.asp or call 401-943-1164.
