DB15 Transceiver A/B Switch Module with Open Frame Design for Rackmount Installation

October 25, 2016

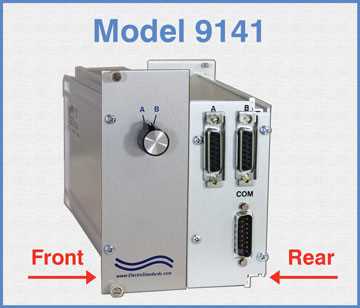

Model 9141 DB15 Transceiver A/B Switch Module with Open Fram Design for Rackmount Installation

Electro Standards Laboratories, Cranston, RI, introduces Model 9141 DB15 Transceiver A/B Switch Module with Slide Latch.  This compact DB15 Switch Module provides quick connection to any one of two devices from one COMMON device without having to plug and unplug cables.  This unit is also designed with an open frame to allow convenient installation into a Model 9025 Rack.  This modular approach to switch system requirements allows expansion to more channels on an as-needed basis. The Model 9025 Rack can accommodate up to (8) of the Model 9141.

The Model 9141 requires no power and is a manually operated by a rotary switch on front panel to select position A or B.  The unit is comprised of (2) DB15 female connectors with slide latches labeled A and B and (1) DB15 male connector labeled COMMON.  All 15 pins of the DB15 interface are switched via a break-before-make rotary switch. The ports are transparent to all data.  The switch is encased in a rugged aluminum enclosure for EMI/RFI shielding with a lifetime warranty against manufacturing defects.

For more information on the Model 9141, visit http://www.electrostandards.com/ProductDetail/?productid=179.  Electro Standards’ staff of sales engineers can be reached at 401-943-1164 or via email at eslab@electrostandards.com.
