CellMite M4336 Intelligent Digital Signal Conditioner is Ideal for Geotechnical Apps

March 20, 2008

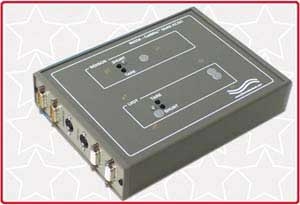

The CellMiteĀ® Quad AC/DC Intelligent Digital Signal Conditioner, Model 4336, with two LVDT channels and two strain gage channels is designed for geotechnical test applications. The CellMite Quad provides direct digital data input into the serial port of a standard PC. CellView also allows data logging to a disc.


Geotechnical engineering includes soil, rock and subsurface testing and analysis for site feasibility, foundations, embankments, pavements, retention structures, and other earthworks projects.


To facilitate soil testing, the software allows a test to be divided into 8 segments, each of which can be run at different logging rates. The software was designed so that masses could be applied to the soil under test and the masses of soil movement could be monitored. The user can pause the test, change the masses, and resume the test with the same or with different logging rates.


Statistics for each logging segment are summarized, comments are shown, and all data is marked indicating which logging segment it is associated with. The data can be monitored in real time by up to eight numeric displays on the GUI panel. These eight displays can be set to monitor any channel, and they have selectable units conversion, peak and valley data.



For more information on CellMite Quad, contact Electro Standards Laboratories at 401-943-1164, email: eslab@electrostandards.com, or visit our Web site: www.ElectroStandards.com.
