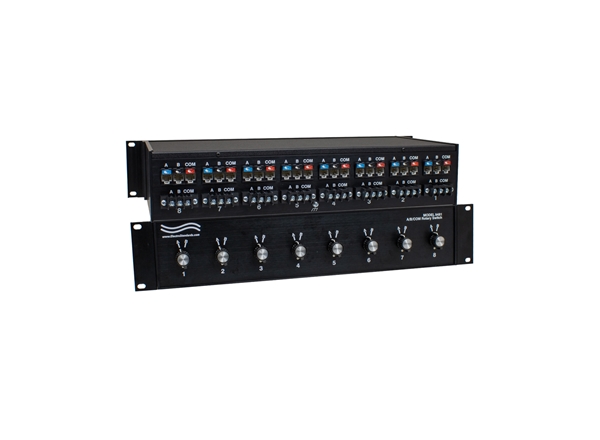

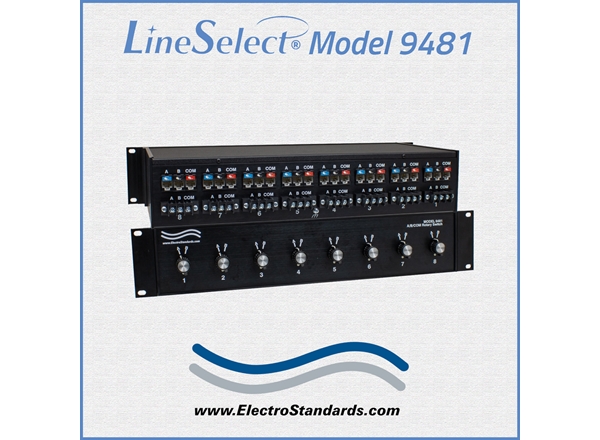

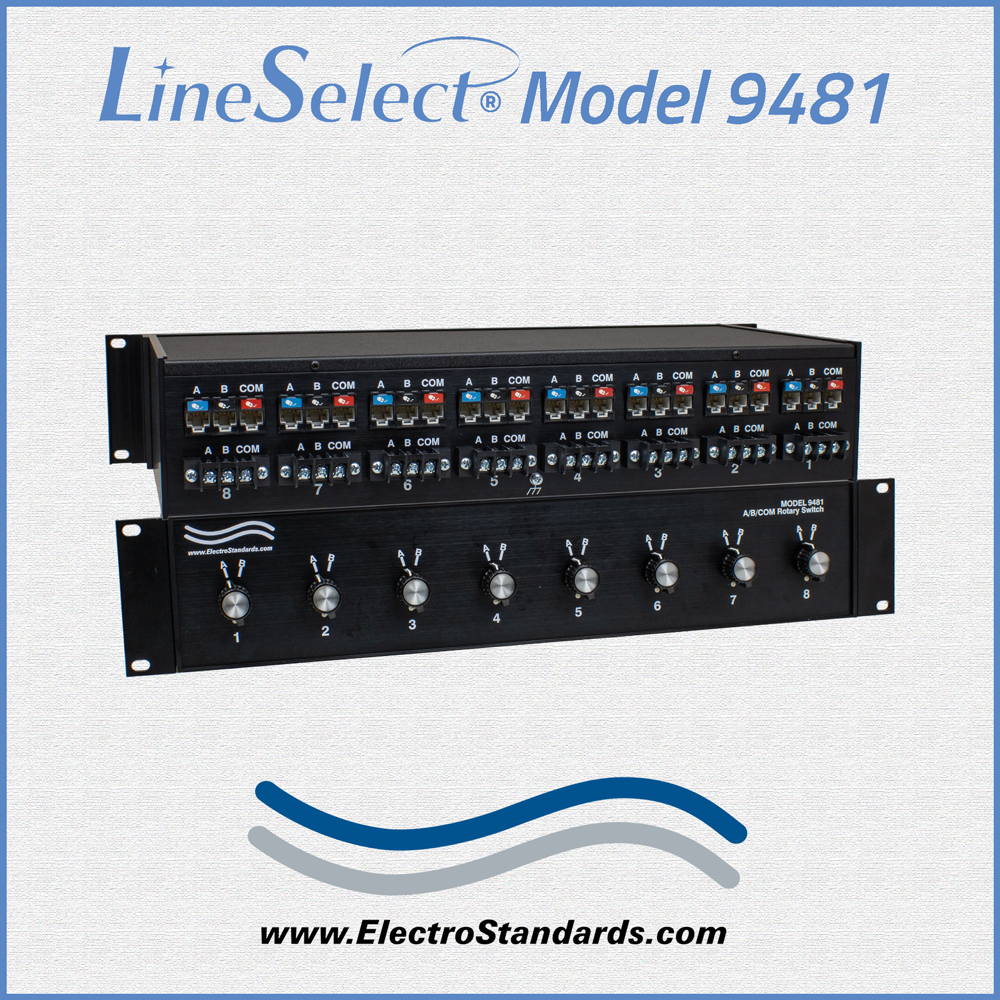

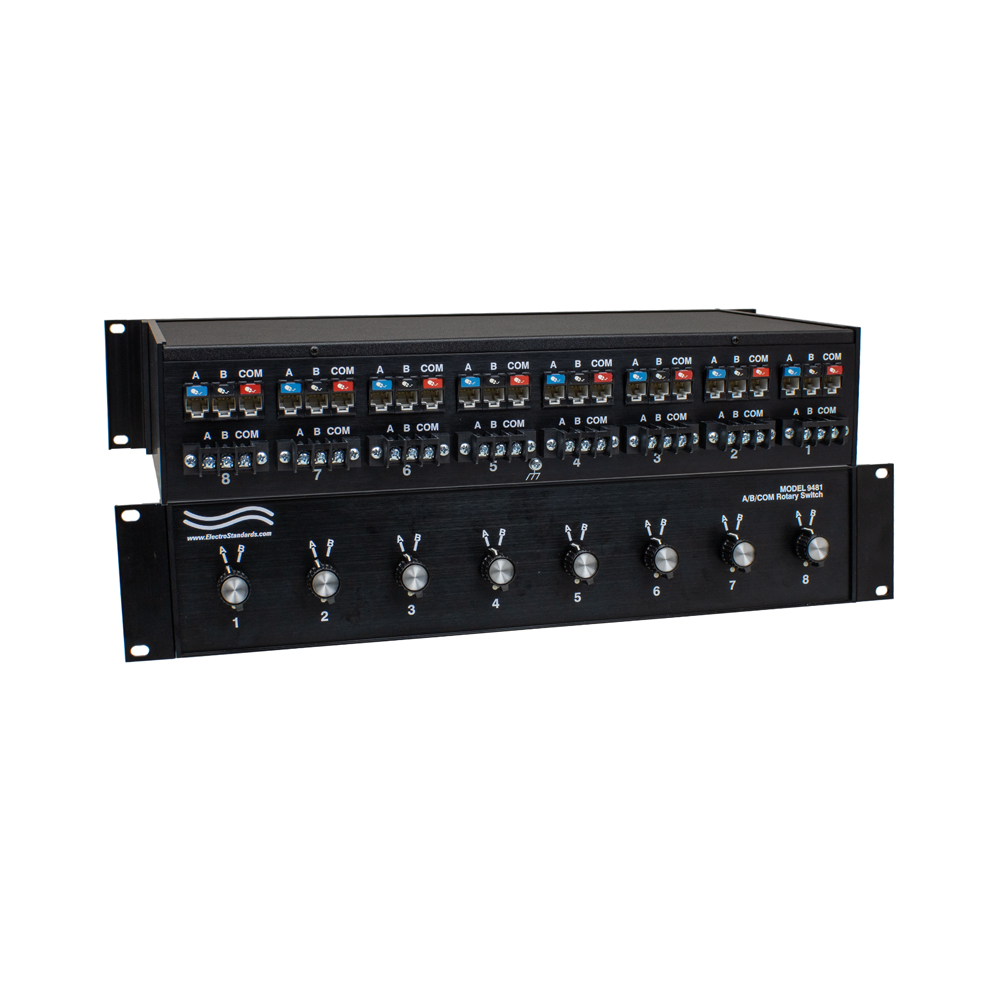

Model 9481 8-Channel RJ45 Cat5e Compliant A/B Switch, Manual, Individual Channel Control, Rackmount

Overview

The LineSelect® Model 9481 enables access to two 10/100/1000 Base-T networks for each of the eight channels with individual control of each channel via eight knobs on the front panel. The Model 9481 Cat5e A/B Switch allows the user to manually reroute data between two networks on the A and B ports for each of the eight channels with no power required.
The unit supports all 8 pins of the RJ45 Cat5e interface. No need to plug and unplug cables thereby eliminating connector wear. The Model LineSelect® 9481 is enclosed in a 2U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

Convenient DIN rail mounting, ideal for use in process control systems.

FEATURES OF THE MODEL 9481 8-CHANNEL A/B SWITCH:

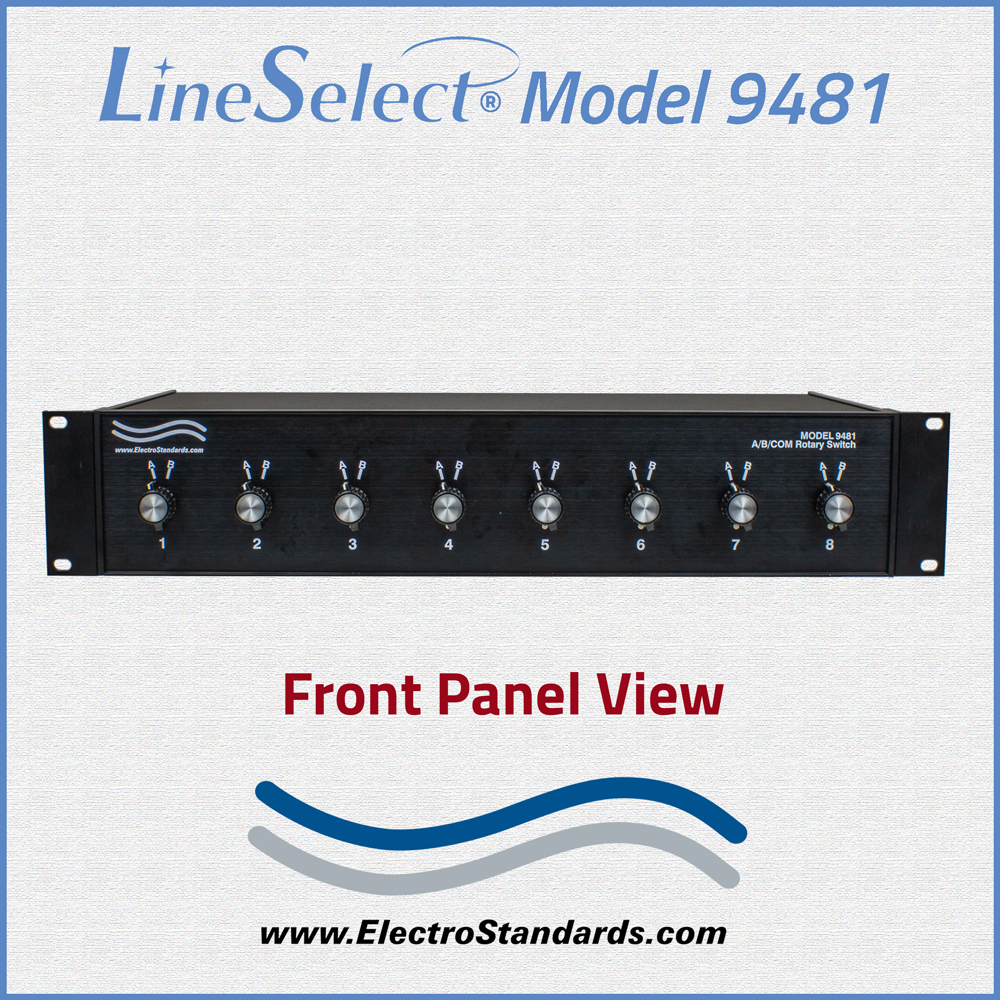

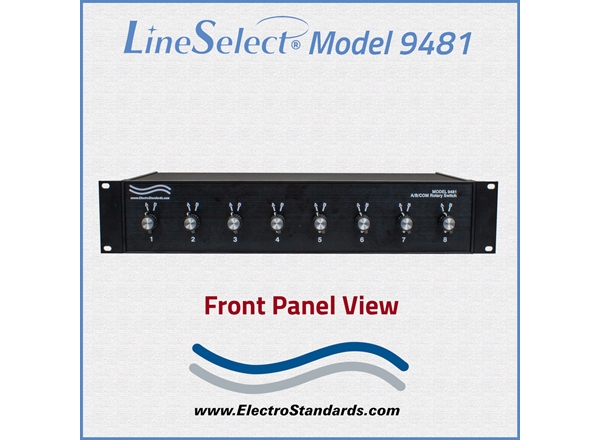

•Manually control each channel separately via eight knobs located on the front panel, one knob per channel.
•Monitor switch position of each channel via three contacts on a mini barrier strip port, one barrier strip port per channel.
•Tested for Cat5e compliance.
•All eight pins of the RJ45 interface are switched.

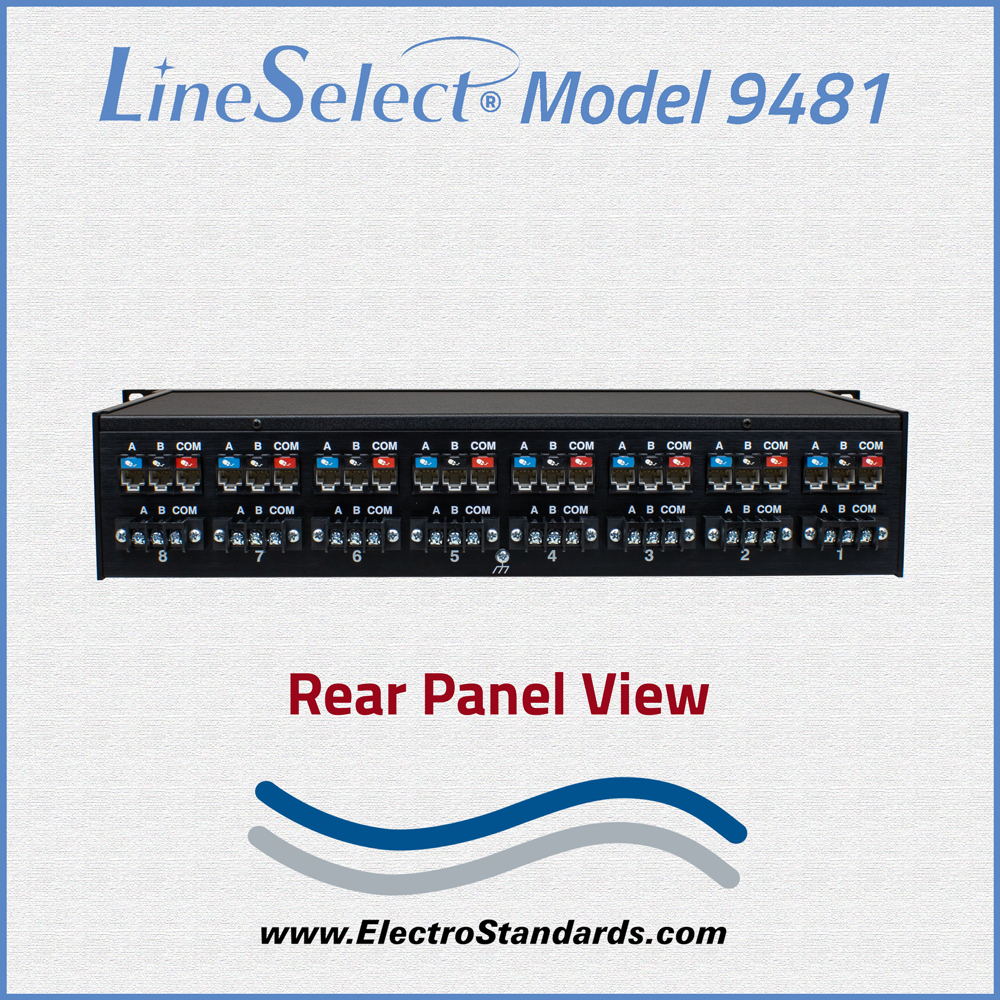

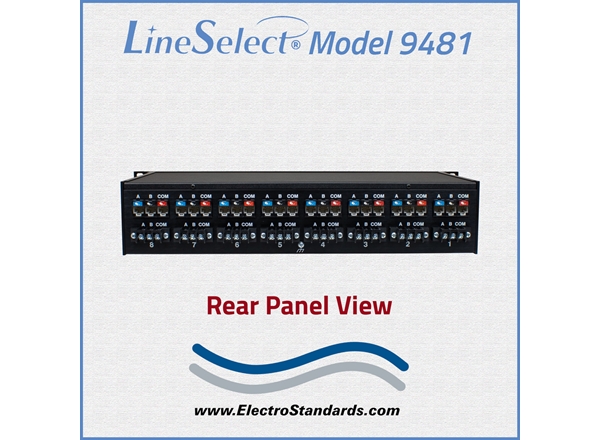

•All ports are located on the rear panel:
(24) RJ45 female ports: (8) A, (8) B, and (8) COMMON
(8) Mini Barrier Strip.
•Rack mount chassis, 19” Wide x 3.5” (2U) High x 8” Deep.
•Grounding screw is mounted on the rear panel
•No power required.
•Lifetime warranty against defects on manufacturer parts and labor.

TECHNICAL SPECIFICATIONS:

PORT CONNECTORS: (24) RJ45 female connectors labeled A, B, and COMMON, (8) Mini Barrier Strips.
FRONT PANEL CONTROL: (8) Rotary switches on front panel selects A or B for each channel.
PINS SWITCHED: All 8 pins siwtched
POWER: No power required. Manually operated.
ENCLOSURE: Shielded Aluminum Enclosure.
DIMENSIONS: Rackmount: 19.0" W x 3.5" H x 9.5" D. [48.3 x 8.9 x 24.2 cm] (2U)
WEIGHT: Approximately 6.4 lbs. (2.9 kg)

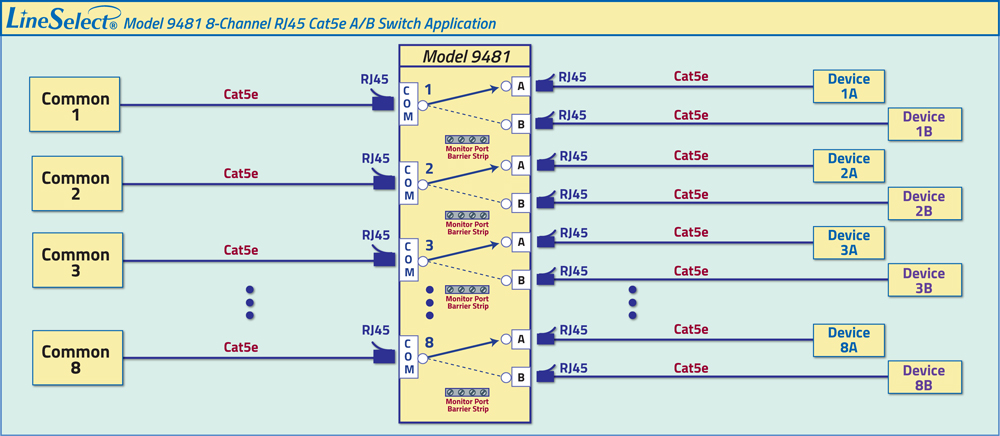

The diagram illustrates up to 8 COMMON devices connected to each channel's RJ45 COMMON port with access to Device A and Device B connected to the RJ45 A and B ports. The MONITOR Port Barrier Strip has three contacts to monitor the switch position.

LineSelect®Model 9481 RJ45 A/B Switch Application

Ordering Information

Catalog Number: 309481
Model Number: 9481
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
