Catalog # 308426 - Model 8426 GPIB 3-Channel IEEE488 Interface A/B Switch, Desktop, Manual Operation

    LineSelect® Model 8426 IEEE488 A/B SwitchLineSelect® Model 8426 IEEE488 A/B SwitchLineSelect® Model 8426 IEEE488 A/B SwitchLineSelect® Model 8426 IEEE488 A/B Switch
Click image to enlarge
    • LineSelect® Model 8426 IEEE488 A/B Switch
    • LineSelect® Model 8426 IEEE488 A/B Switch
    • LineSelect® Model 8426 IEEE488 A/B Switch
    • LineSelect® Model 8426 IEEE488 A/B Switch
Base Price:
$1,145.00
Catalog No: 308426
Model No: 8426
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:GPIB IEEE488
Channels per Switch Chassis:3
Manual Control/No Power Required:LineSelect® Manual Operation
Channel Control:Simultaneous Channel Control
Configuration:Desktop
Pins Switched:All pins switched
Local Control:Rotary Knob

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Overview

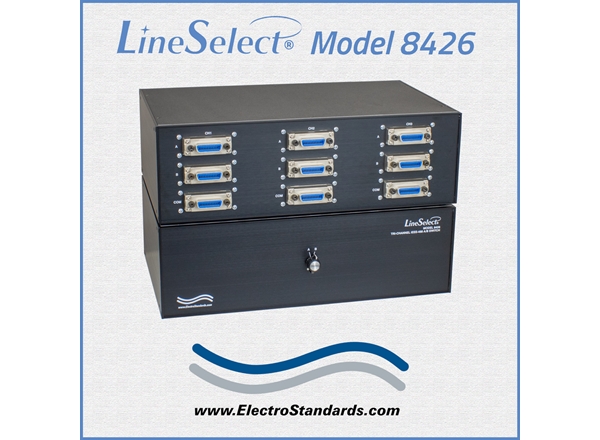

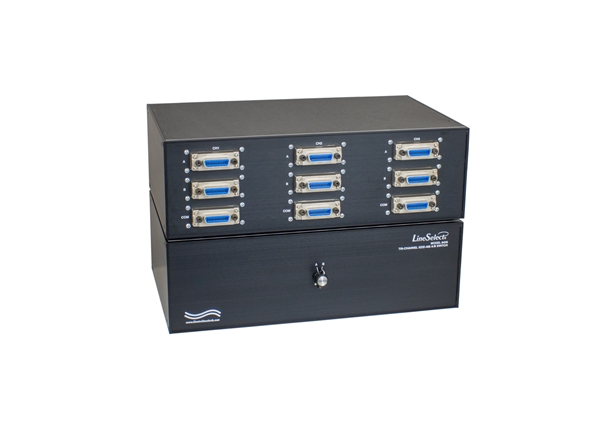

Model 8426 GPIB IEEE488 Interface A/B Switch, Desktop, Manual Operation

  • Quickly easily switch three channels simultaneously!

  • Application to switching ANY GPIB IEEE488 Interface, quickly and reliably.

SPECIFICATIONS:

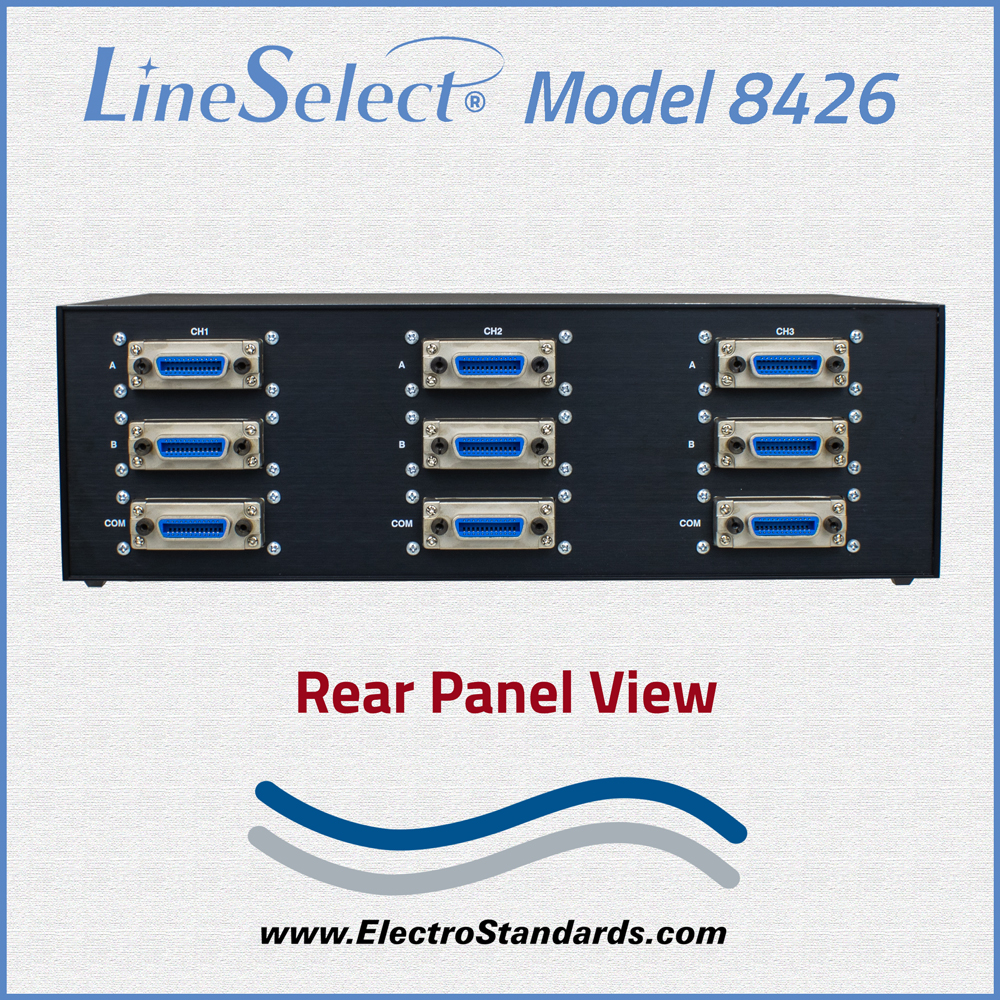

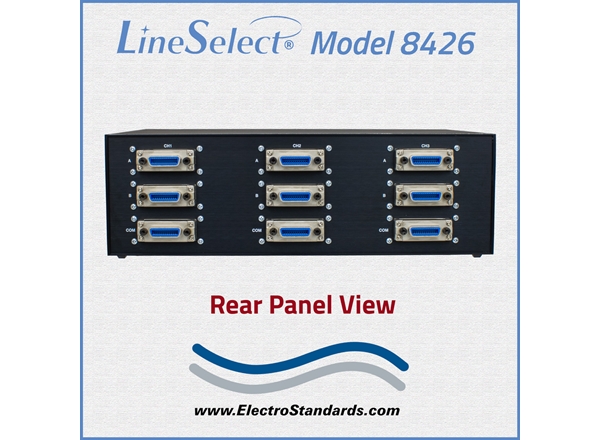

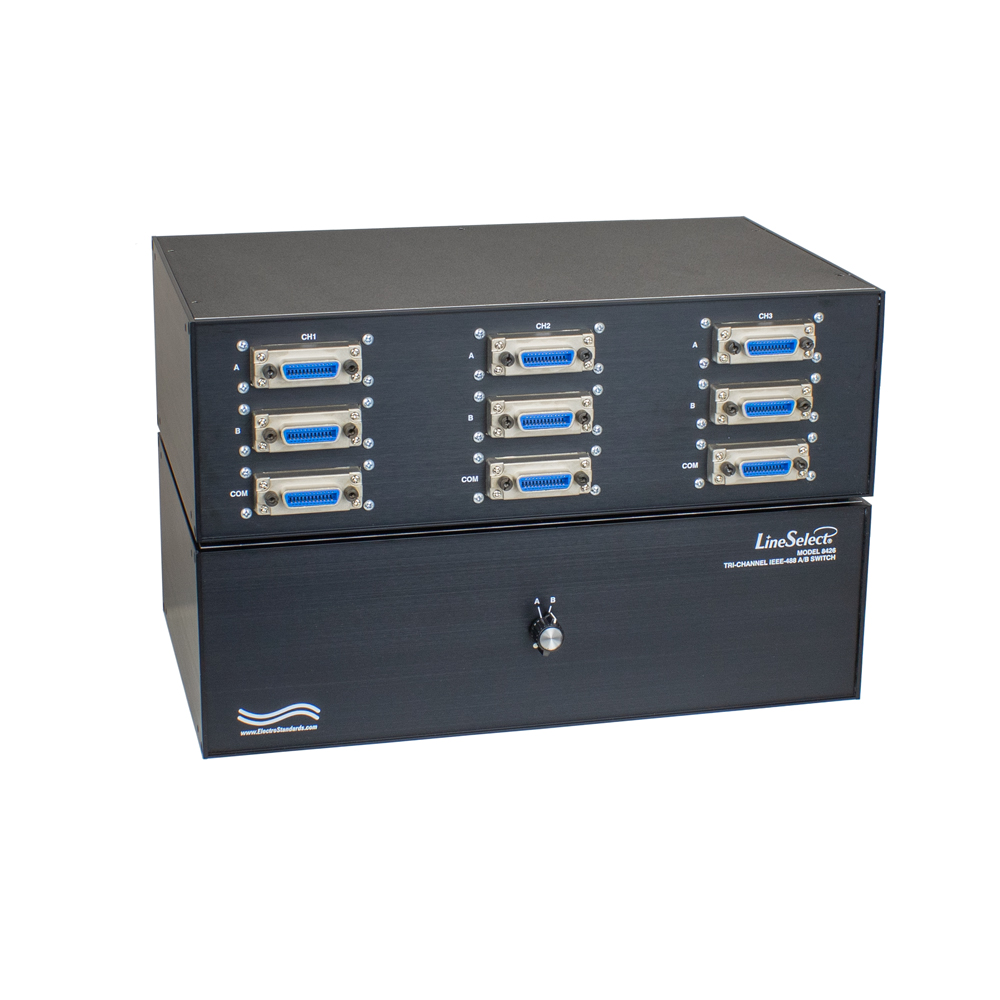

  • PORT CONNECTORS: (9) GPIB IEEE488 (F) ports on rear panel; (3) "A" ports, (3) "B" ports, (3) COMMON ports.

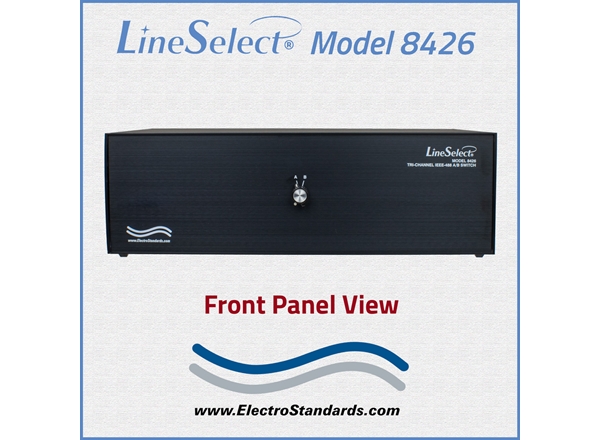

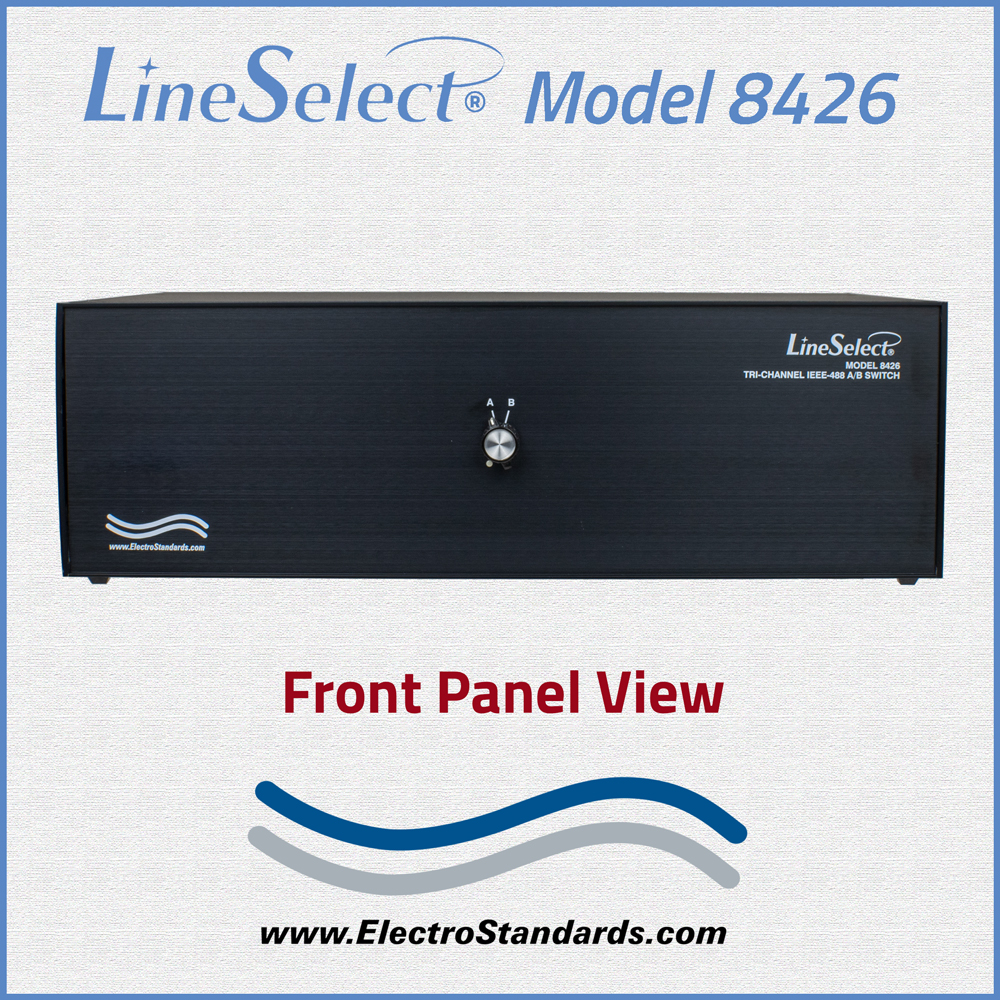

  • FRONT PANEL CONTROL: (1) Rotary Switch on front panel allows for simultaneous switching of the A/B positions.
  • POWER: No power required. Manually Operated.
  • DIMENSIONS: 16.7" W x 5.46"H x 11.3"D (42.5 x 13.9 x 28.7 cm).
  • WEIGHT: Approximately 7.7 lbs. (3.5 kg).

LineSelect® Model 8426 GPID IEEE488 Interface A/B Manual Network Application:

The LineSelect® Model 8426 3-Channel A/B Switch allows devices connected to "COMMON" ports of each channel to access the "A" and "B" port of each channel:

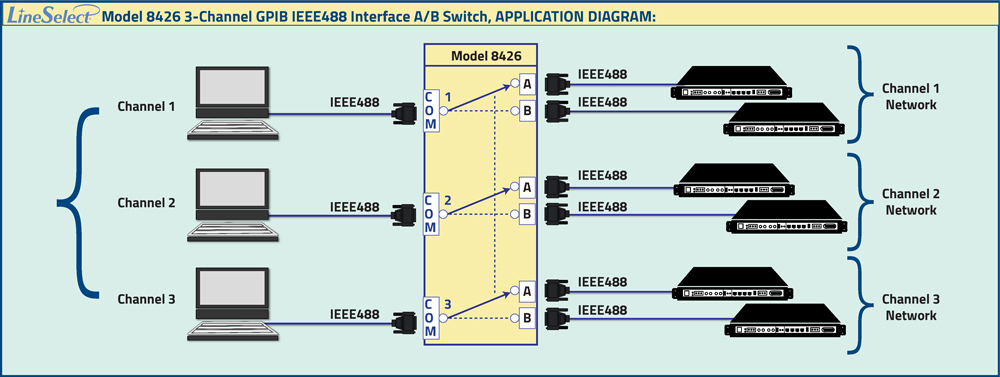

LineSelect® Model 8426 3-Channel GPIB IEEE488 Interface A/B Switch Application Diagram

FEATURES:

  • GPIB IEEE488 Interface.
  • LineSelect® Model 8426 manual data network switch allows access to two IEEE488 networks from one computer or workstation.
  • Manual operation via front-panel rotary switch.
  • Simultaneously switch all three channels locally via one front panel knob.
  • The unit switches 21 signals simultaneously per channel:
    • Pins 1 thru 17 and 24 are switched.
    • Pins 18/19 are shorted together and switched as one signal.
    • Pins 20/21 are shorted together and switched as one signal.
    • Pins 22/23 are shorted together and switches as one signal.

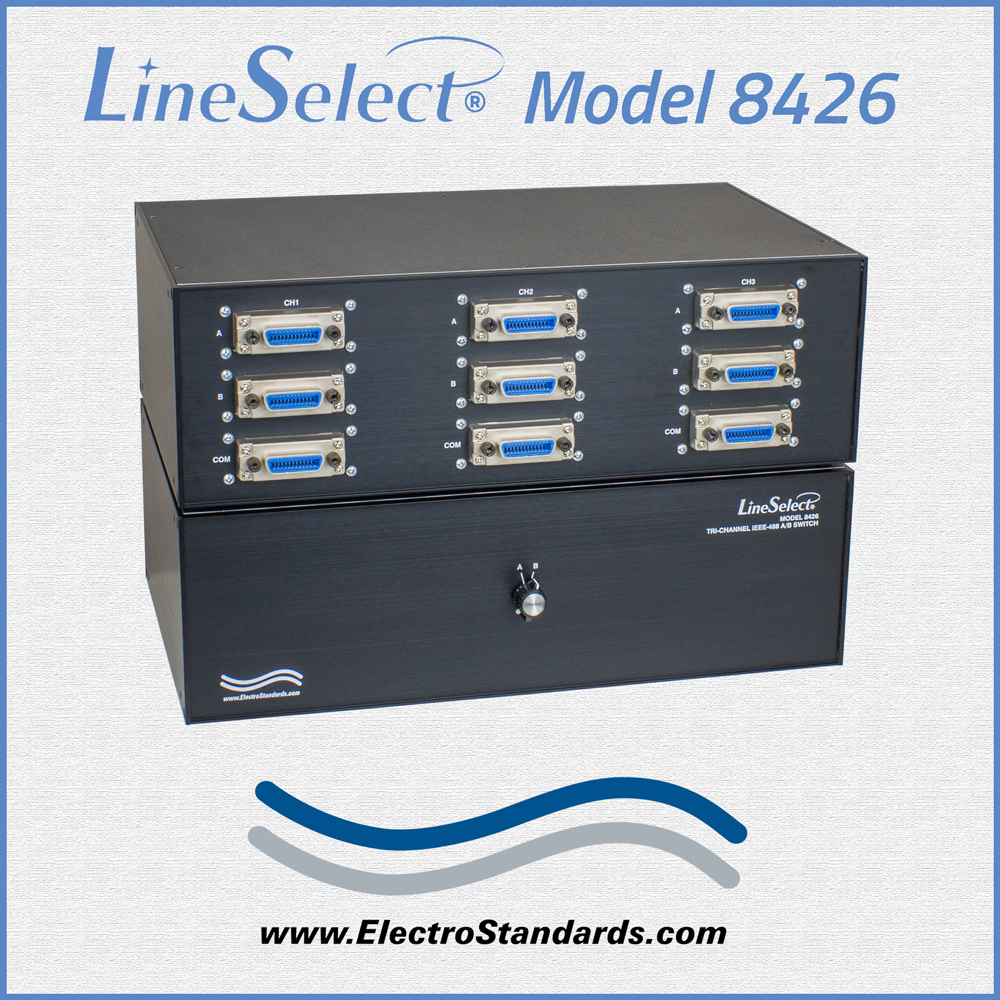

  • Connectors are mounted horizontally in 3 rows of 3 connectors (A, B, and COMMON). All connectors are located on the rear panel.
  • Manually operated, no power required.
  • Lifetime warranty against manufacturing defects.

The LineSelect® Model 8426 3-Channel A/B Switch allows devices connected to “COMMON” port of each channel to access the “A” and “B” port of each channel. All channels are switched simultaneously. The LineSelect® Model 8426 switch is enclosed in a desktop, all metal black chassis designed to provide EMI/EFI shielding.

GPIB (GPIB (General Purpose Interface Bus) was developed as an interface between computers and measuring instruments. It is commonly used to connect PCs and measuring devices. Many current measuring instruments support the GPIB interface as standard, and it is widely used in measurement systems using PCs and measurement instruments.

Custom length GPIB IEEE488 cables available for your switch installation for improved system performance!

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
