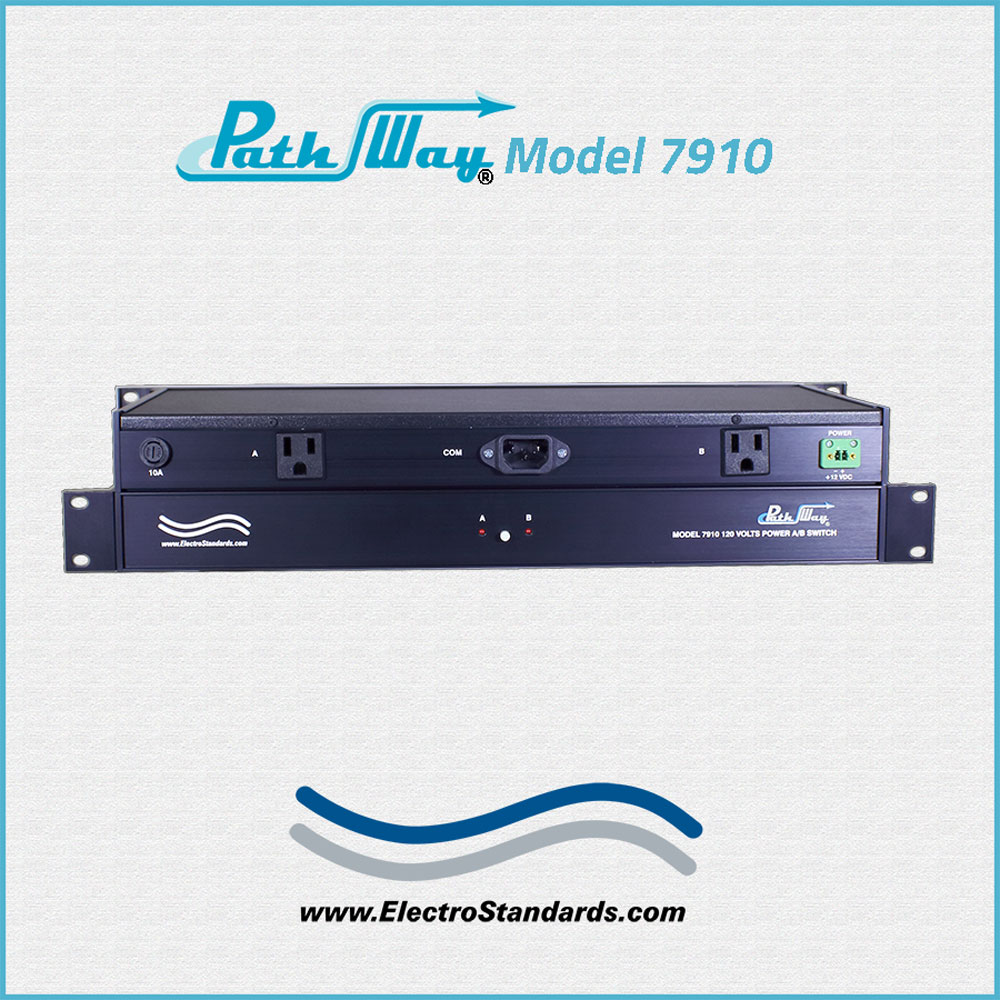

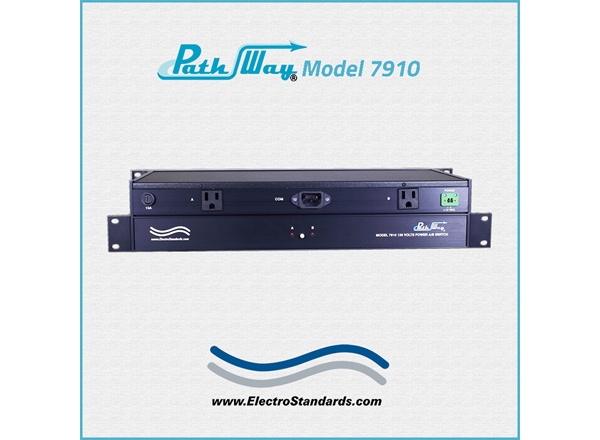

Model 7910 Single Channel 120 Volts Power A/B Switch
- Signal Port Ratings
- Max Voltage: 120VAC
- Max Current: 10A

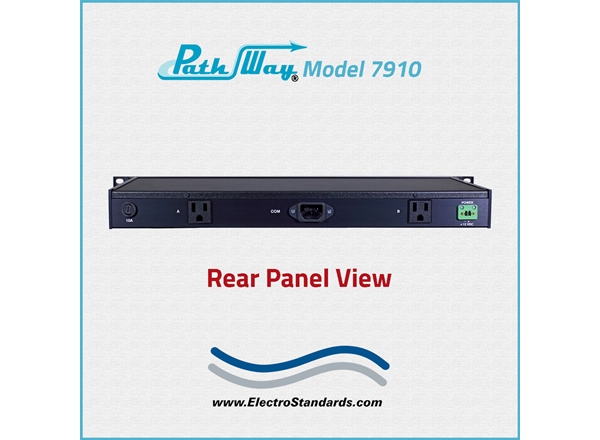

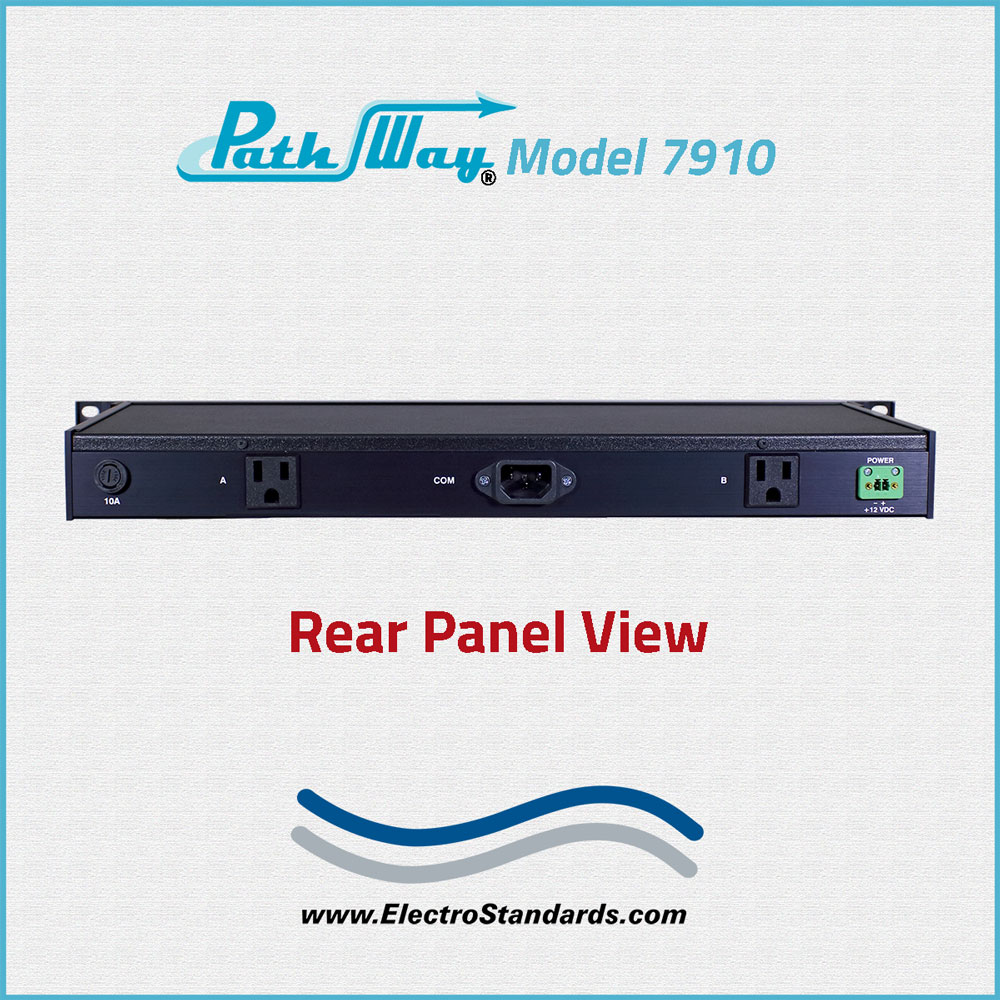

- Signal Port Interfaces
- (2) AC Socket (F) A/B Signal ports
- (1) IEC C14 (M) Common Signal port
- Signal Port Channels
- (1) Channel of AC Socket A/B;
- (1) IEC C14(M) COM port
- Signal Port Pins Switched
- COMMON: Hot Neutral (IEC C14 Male)

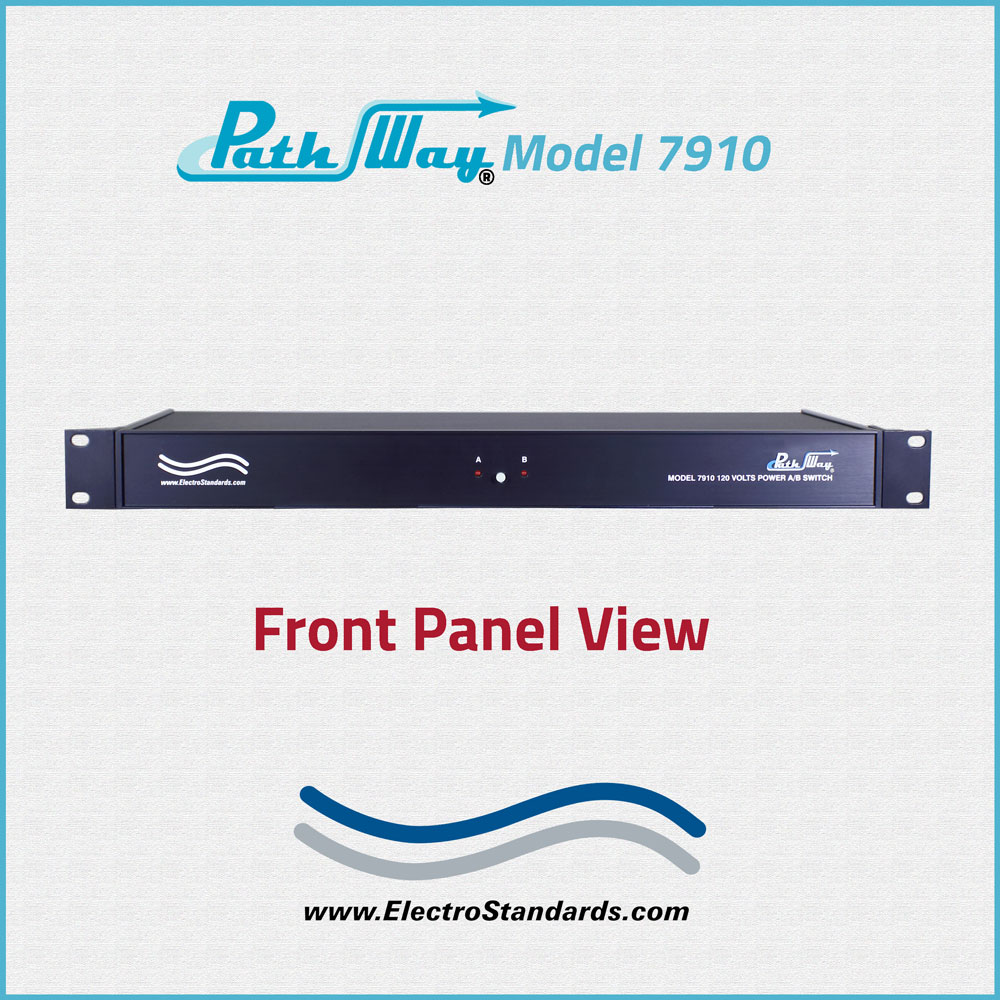

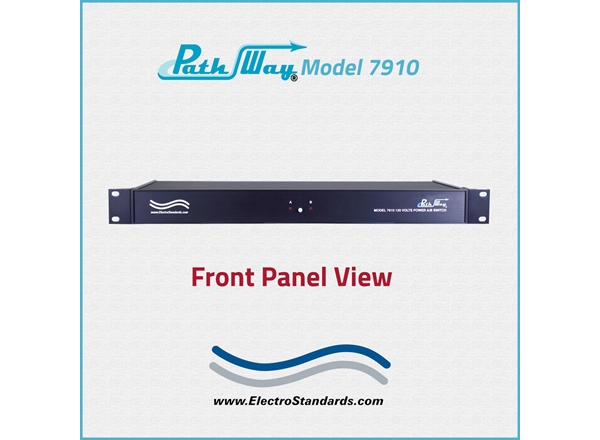

- Front Panel Control and Indicators
- (2) Red LED's
- (1) Pushbutton
- Power Supply 516682 included with the unit.
- Input: 100-240VAC, 50/60Hz, 0.2A
- Output: 12VDC (regulated), 0.5A
Network Application Diagram of Model 7910 120 Volts Power A/B Switch

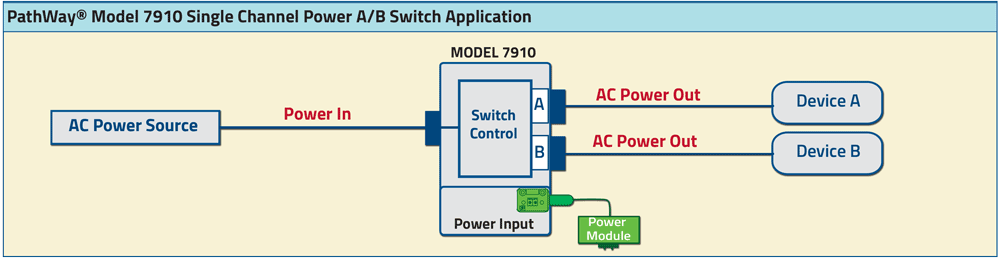

The diagram illustrates an AC Power Source (Power In) connected COM port with access to two AC Power Out connectors A, B connected to Device A and Device B.

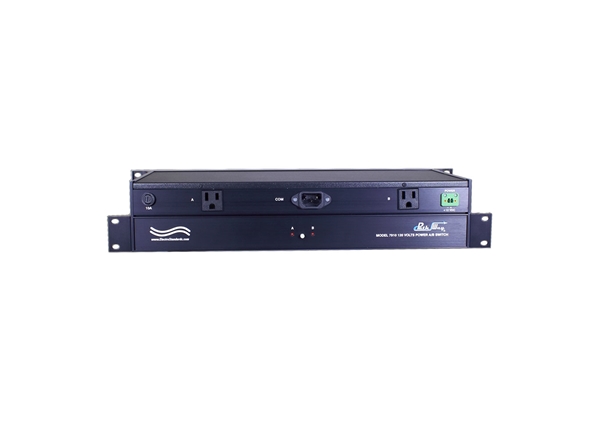

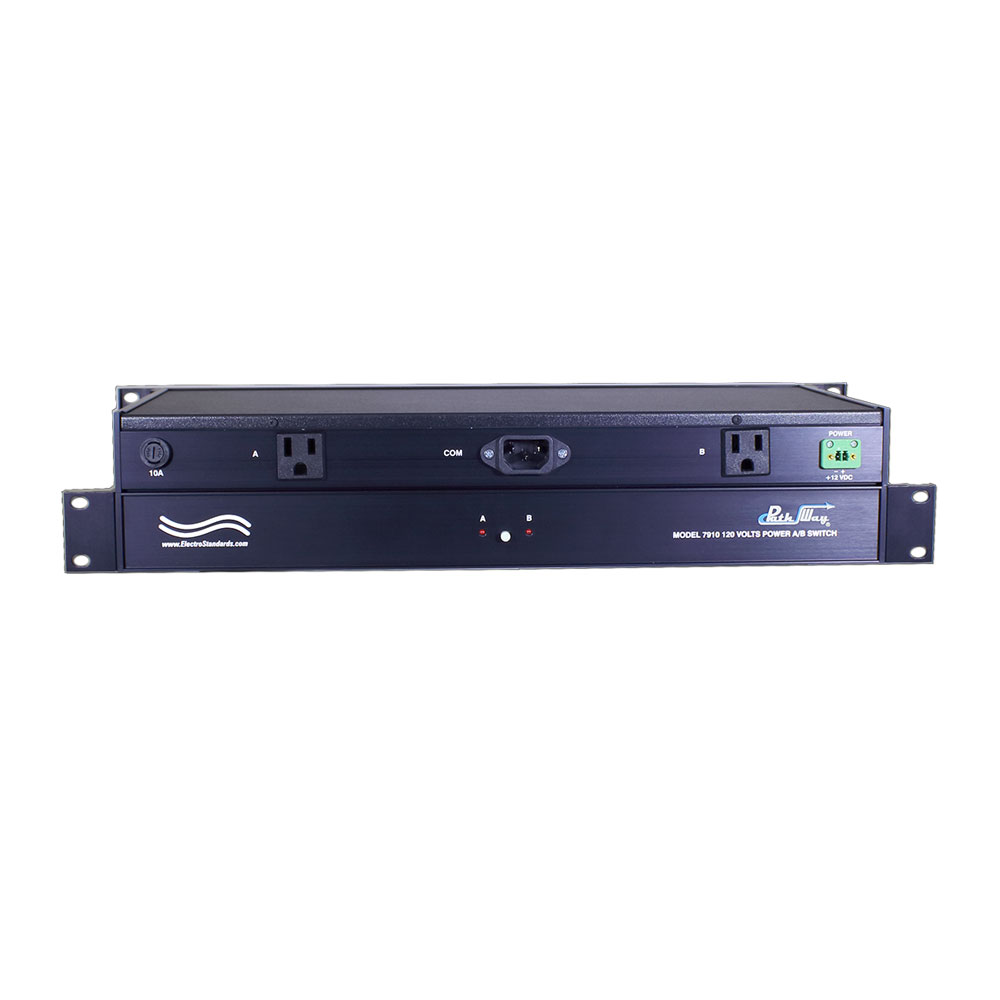

The Model 7910 Single Channel 120 Volts Power A/B Switch allows the user the capability of powering two separate devices, connected to ports A and B, via connection through a device connected to the Common port. The Model 7910 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.
Switch position state may be attained via the front panel LED's.
- IEC C14 male connector for the COMMON port.
- COMMON port is power in.
- AC sockets for A and B power out ports.
- Power only on the port selected, with no power going to the non-selected port..
- Contacts rated for 120VAC 10A current (Non-inductive load).
- Not designed for inductive load.
- The unit maintains last set position on power loss.
- Front panel pushbutton control.
- Front panel LED's display present position and power status.
- Local control only. No Remote control.
- Operation Temperature: 0°C to 50°C
- Storage Temperature: -40°C to 85°C
- Humidity: 10% to 90% without condensation
- Width: 19" (19" full rack size) (48.3 cm)
- Height: 1.75" (1U) (4.5 cm)
- Depth: 8.27" (21.1 cm)
- Weight: 4.4 lbs (2.0 kg)
OPTION: WIDE RANGE POWER MODULE
(Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC / 240 VAC, 50Hz/60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.
