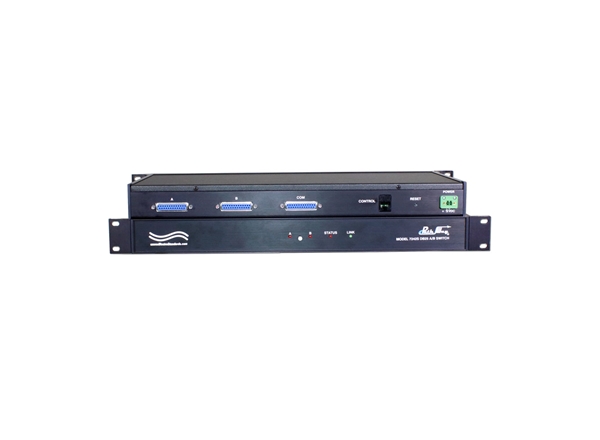

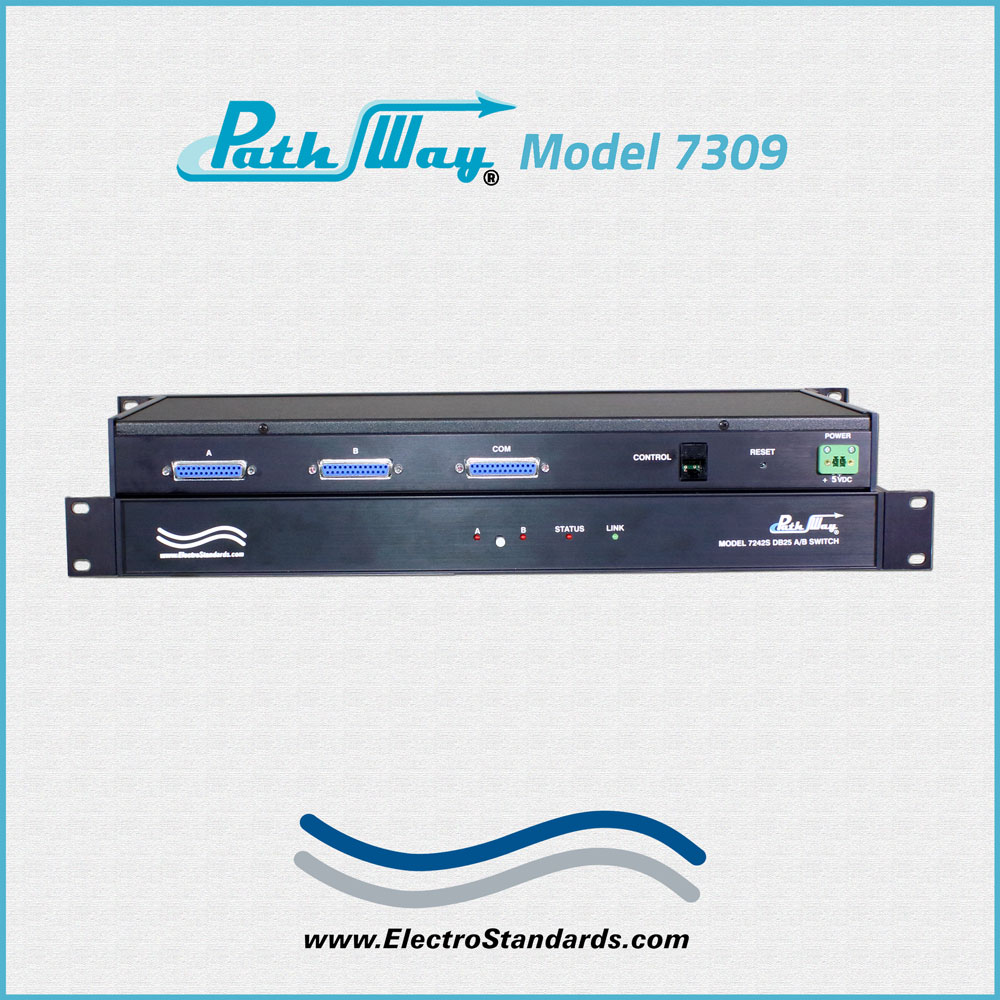

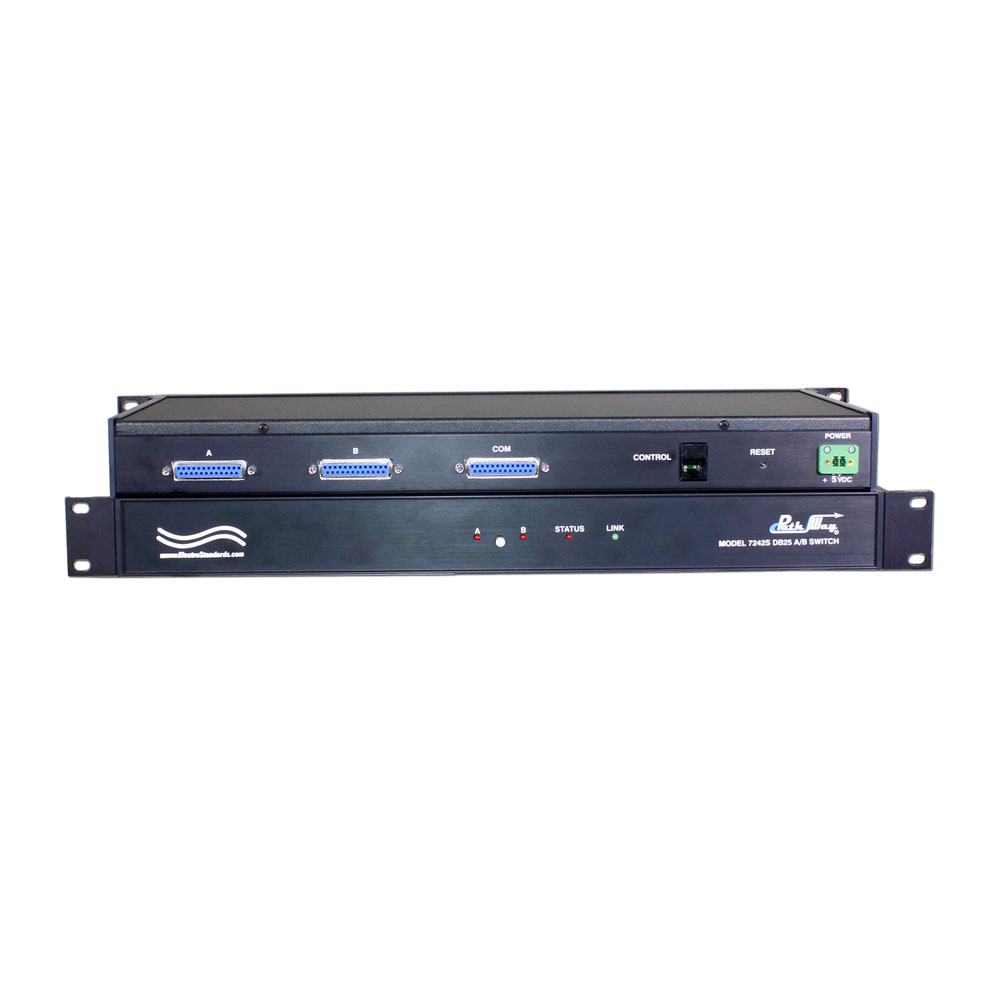

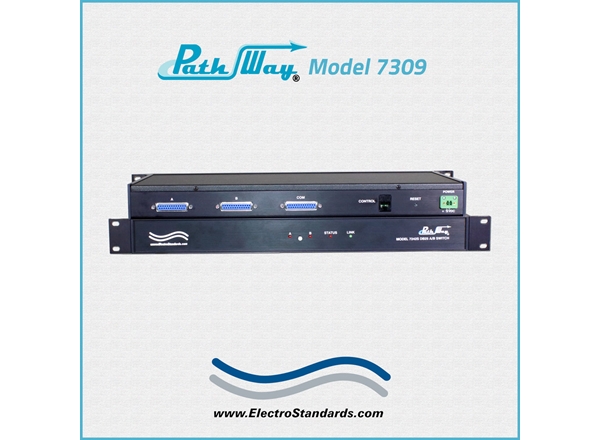

Path Way® Model 7309 Secure Single Channel DB25 A/OFFLINE/B Switch with Telnet, Remote Control and Password Protected Remote

Overview

The PathWay® Model 7309 Secure Single Channel DB25 A/OFFLINE/B Switch with Telnet allows the user the capability of sharing a single port interface device connected to the “COMMON” port among two other devices connected to the “A” and “B” ports, with remote access functionality.  The Model 7309 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19” rack.

Remote access can be accomplished using an Ethernet 10Base-T connection and Telnet.

Proper authentication is required for remote access via the 10Base-T connection. Users can then monitor status, lockout front panel pushbutton control, and control switch position.

  • 10Base-T Remote Interface, Password Protected.

  • IP Addressable

FEATURES OF THE MODEL 7309 DB25 A/B/OFFLINE SWITCH:

  • Allows secure access to two networks from one computer or workstation.
  • The switch ports are transparent to all data.
  • All (25) pins of the DB25 interface are switched via break-before-make electromechanical relays.
  • Unit switches to Offline position before switching to “A” or “B” position.
  • The unit maintains last set position on power loss and continues to pass data.
  • If the Model 7309 powers down in the OFFLINE position, upon power restore, the unit will flash both LEDs to indicate the OFFLINE position.
  • Front panel pushbutton control.
  • Control of the switch position from a 10Base-T LAN Ethernet environment. IP Addressable.
  • Remote Control Telnet command interface that allows the user to control switch position, lockout front panel operations, and obtain switch status.
  • Remote control of the switch is password protected.

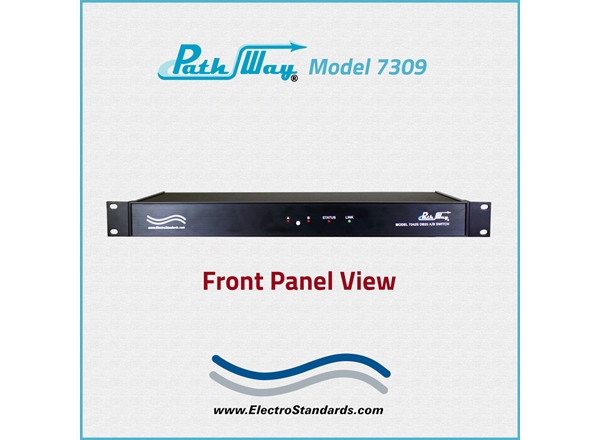

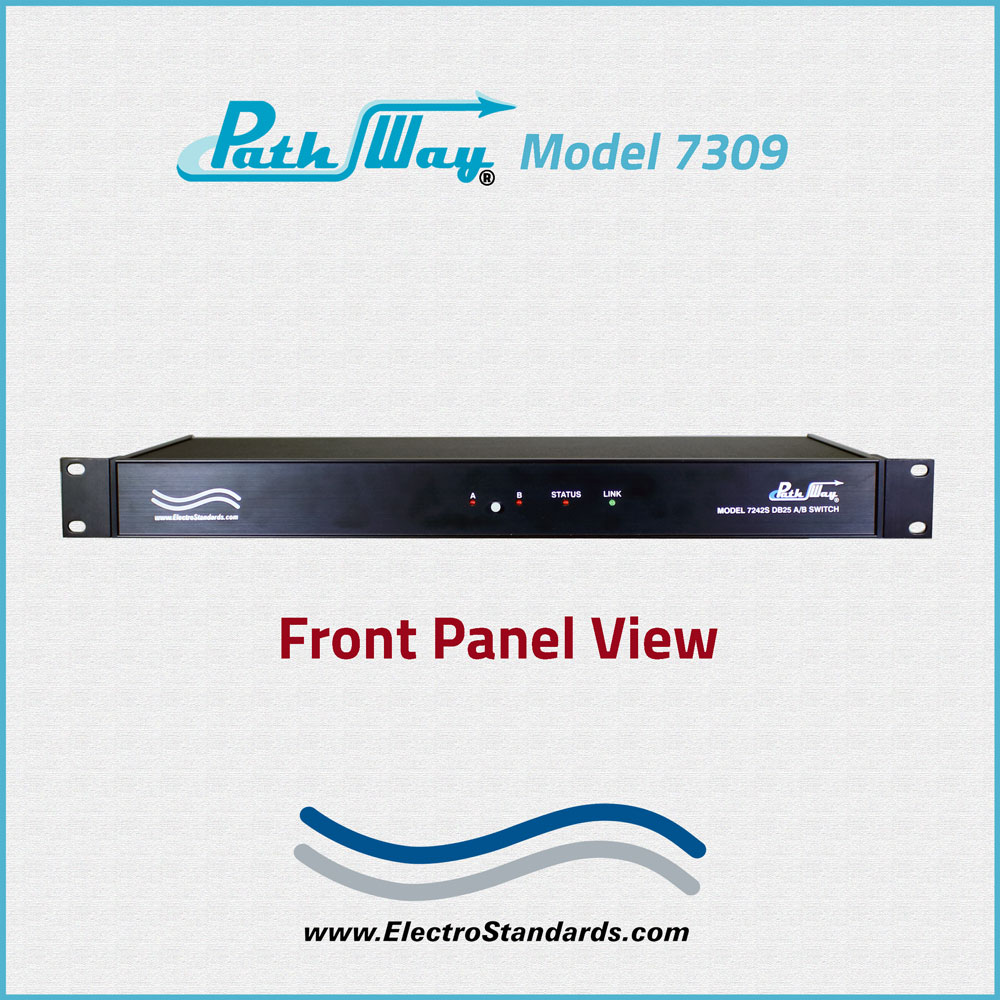

  • Front panel LED’s display present position and power status.
  • Front panel “STATUS” and “LINK” Led’s display the 10Base-T Control port connected to the network.
  • Custom length DB25 cables are available for your installation.

TECHNICAL SPECIFICATIONS:

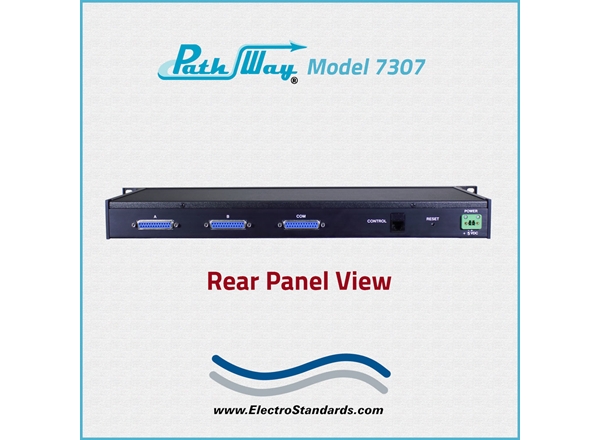

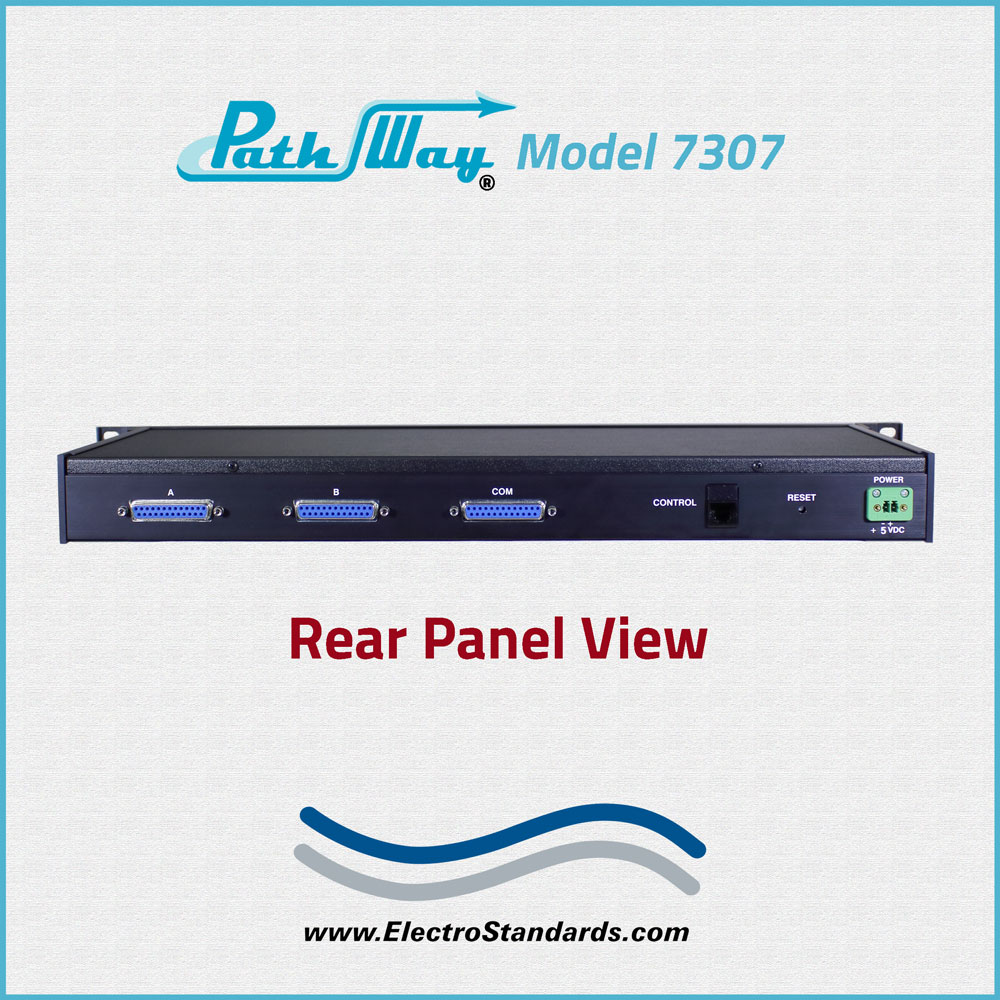

  • PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and COMMON
  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (4) Front panel LED's display switch position, power status, and network status.
  • REMOTE: (1) RJ45 female connector on rear panel accepts 10Base-T LAN access Ethernet for Remote Control operation. Secure Setup.
  • POWER: "WIDE RANGE" CE and UL listed table mount power module (Cat. No. 521895) 100VAC/240VAC, 50Hz/60Hz. Ideal for international applications.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.17" D. (48.3 x 4.5 x 20.8 cm)
  • WEIGHT: 4.6 lbs. (2.1 kg)

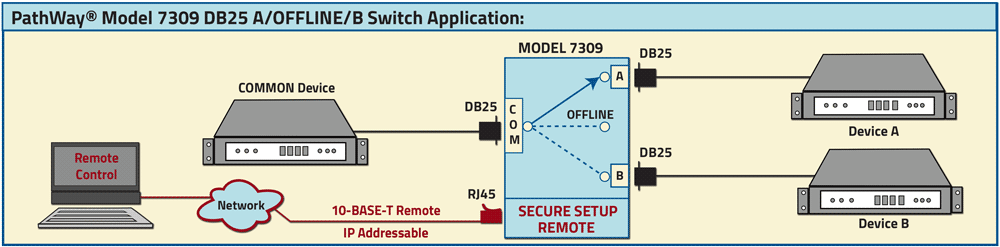

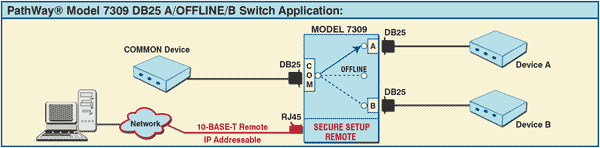

PathWay Model 7309 DB25 A/OFFLINE/B Switch application with Telnet Commands, Password Protected:

 A COMMON Device connected to the DB25 COMMON port has access to Device A or Device B connected to the DB25 "A" and "B" ports, respectively. The Unit switches to OFFLINE position before switching to "A" or "B" position. RJ45 10Base-T Remote port accepts Telnet Commands for Remote Operation. Remote is Password Protected for Secure Access.

PathWay Model 7309 DB25 A/Offline/B Switch application

Ask about our popular Model 700 RS-232 Breakout Box.

Tri-State LED's monitor the data interface for fault isolation.

Model 700 RS232 Breakout Box

  • Tri-State LED's monitor the data interface for fault isolation.

  • Model 700 RS-232 Breakout Box with Tri-State LED's.

Ordering Information

  • Catalog Number: 307309
  • Model Number: 7309
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
