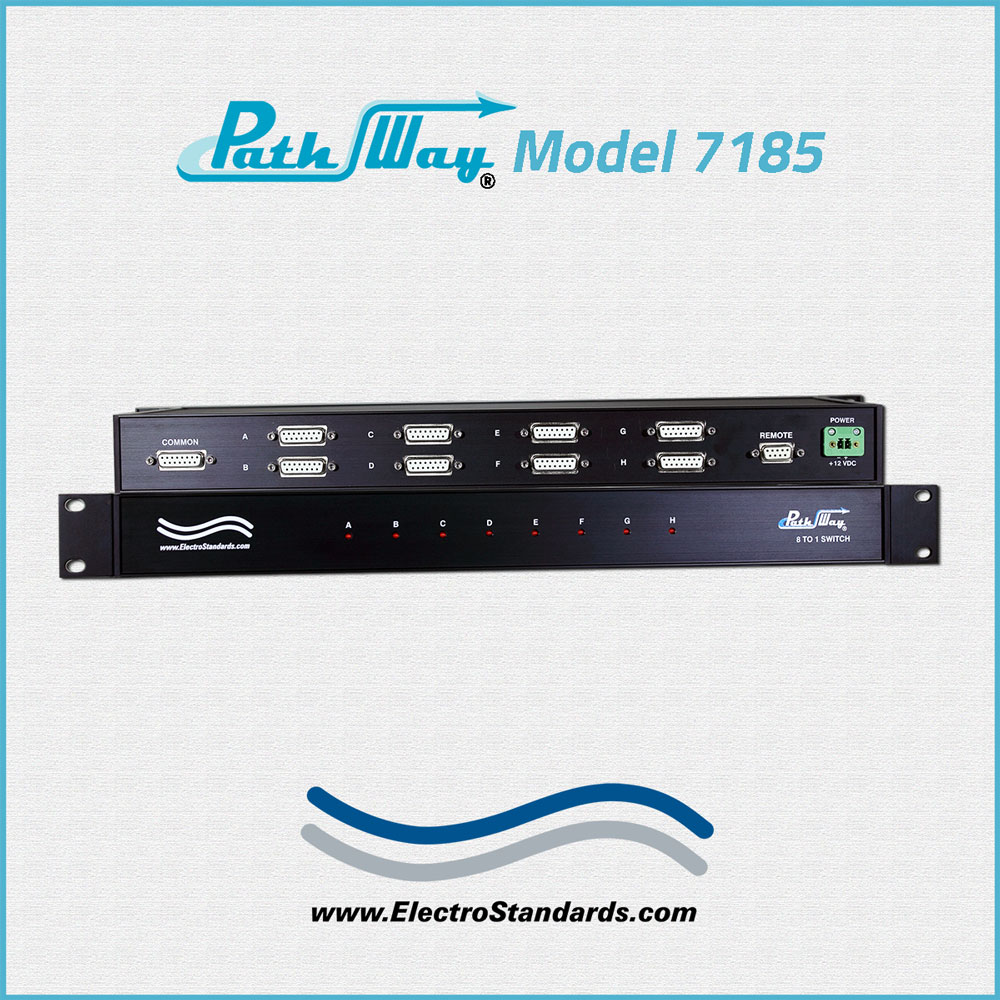

PathWay® Model 7185 DB15 8-to-1 Switch with RS232 Remote

Overview

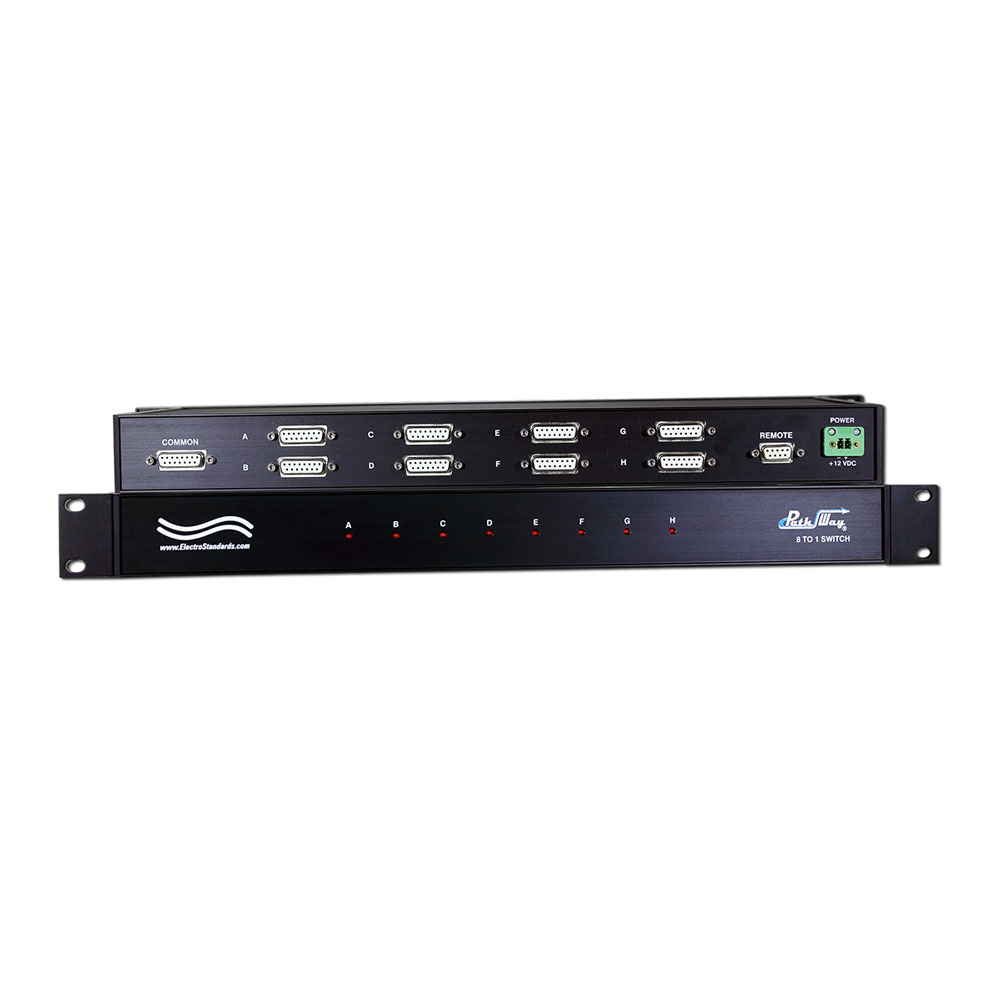

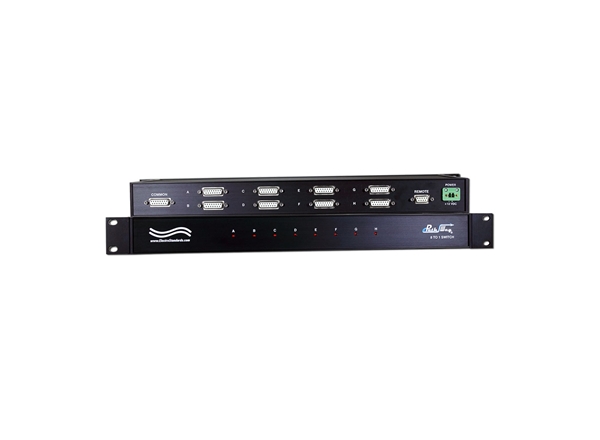

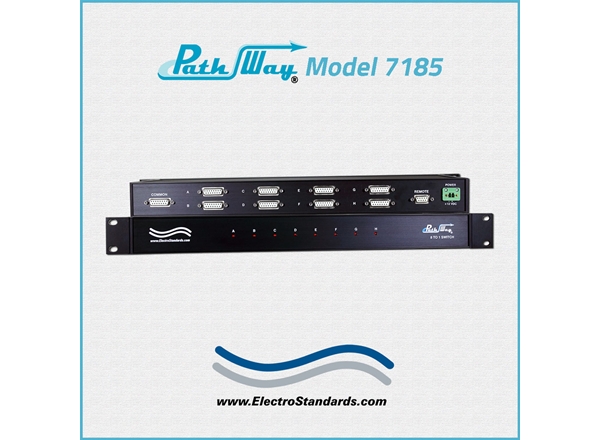

The PathWay® Model 7185 DB15 8-to-1 Switch with RS232 Remote allows the user the capability of sharing a single DB15 interface device connected to the Common port among eight other devices connected to the "A", "B", "C", "D", "E", "F", "G" and "H" ports. The Model 7185 is enclosed in a 1U, full rack size, all metal black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

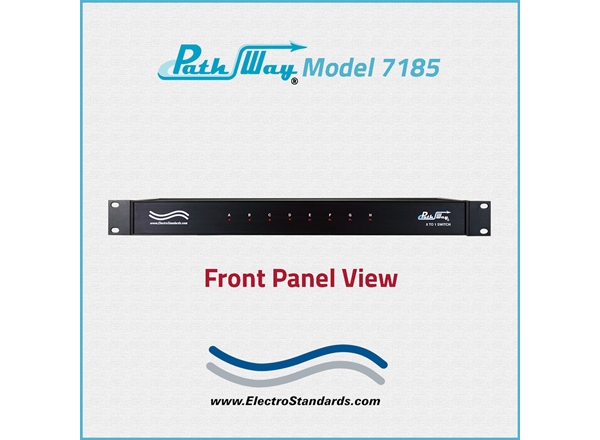

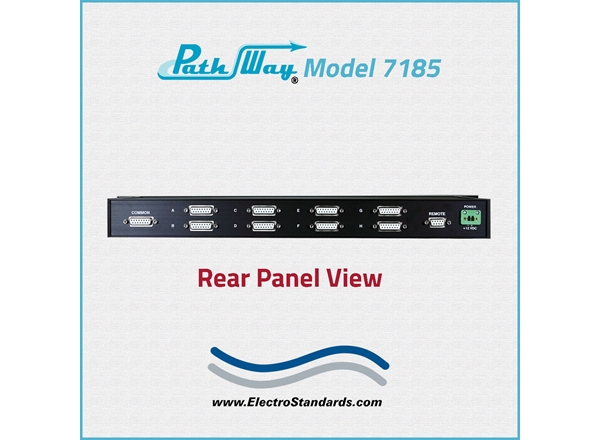

There is no "local" or front panel switch control on this network switch. The Model 7185 can ONLY be switched remotely from the DB9 female serial interface remote port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

  • Switching exclusively controlled by remote port.

FEATURES OF THE MODEL 7185 8-TO-1 REMOTE SWITCH:

  • Allows quick connection to any one of eight devices from one COMMON device.
  • The ports are transparent to all data.
  • All (15) pins of the DB15 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • No front panel control.
  • Remote RS232 ASCII commands that allow the user to control switch position, obtain switch status, query firmware version number, and query serial number.
  • The ASCII command set is as follows:
  • "CTRL-A" created by holding down the [CTRL] and [A] key on the keyboard, changes the switch position to "A";
  • "CTRL-B" changes the switch position to "B";
  • "CTRL-C" changes the switch position to "C";
  • "CTRL-D" changes the switch position to "D";
  • "CTRL-E" changes the switch position to "E";
  • "CTRL-F" changes the switch position to "F";
  • "CTRL-G" changes the switch position to "G";
  • "CTRL-H" changes the switch position to "H";
  • "CTRL-P" queries the switch position status;
  • "CTRL-N" query serial number;
  • "CTRL-V" query hardware version number.
  • Front panel LED's display the present position and power status.
  • Attractive all metal black box packaging provides EMI/RFI shielding.
  • Custom length DB15 cables available for your switch installation.

TECHNICAL SPECIFICATIONS:

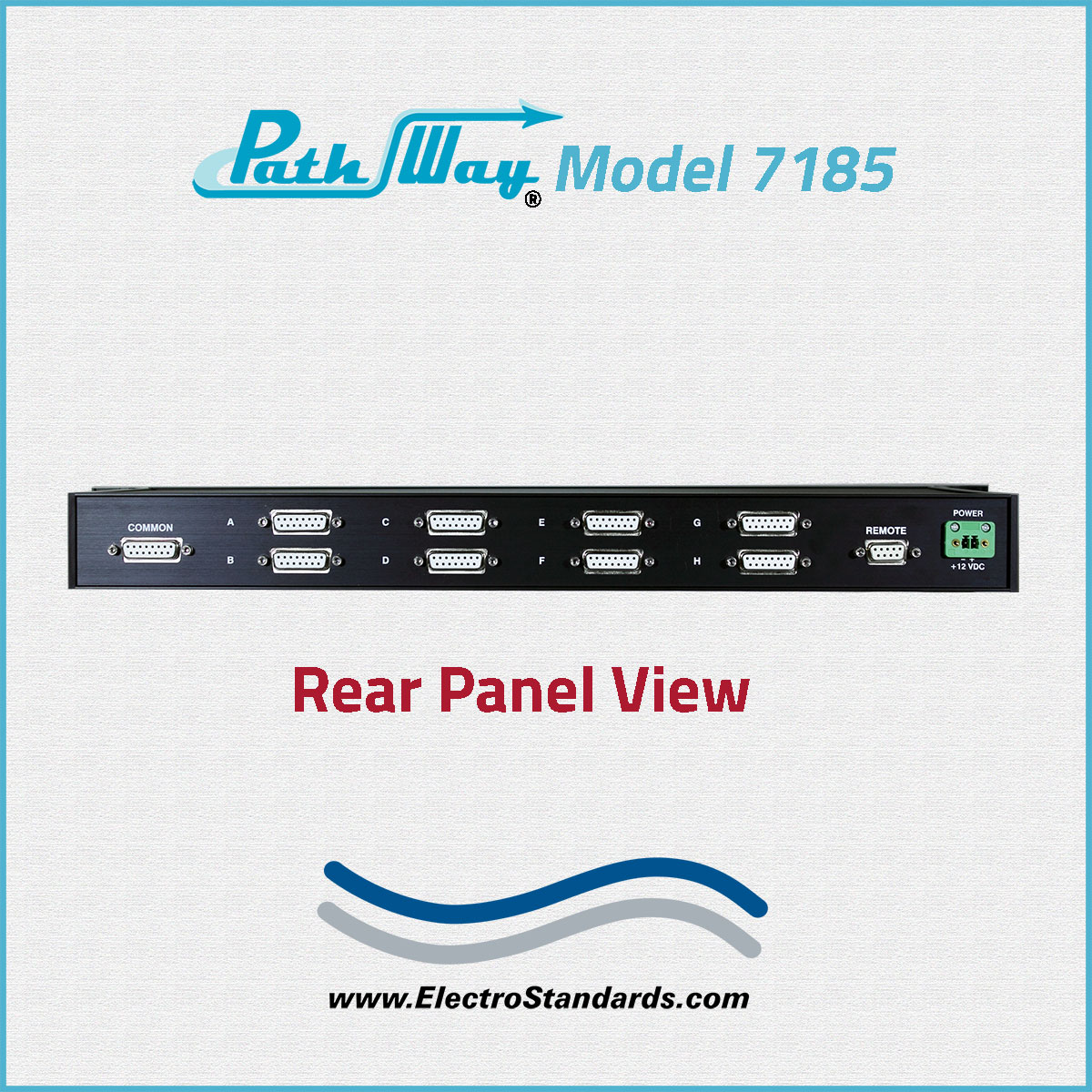

  • PORT CONNECTORS: (9) DB15 female connectors labeled A, B, C, D, E, F, G, H and COMMON.

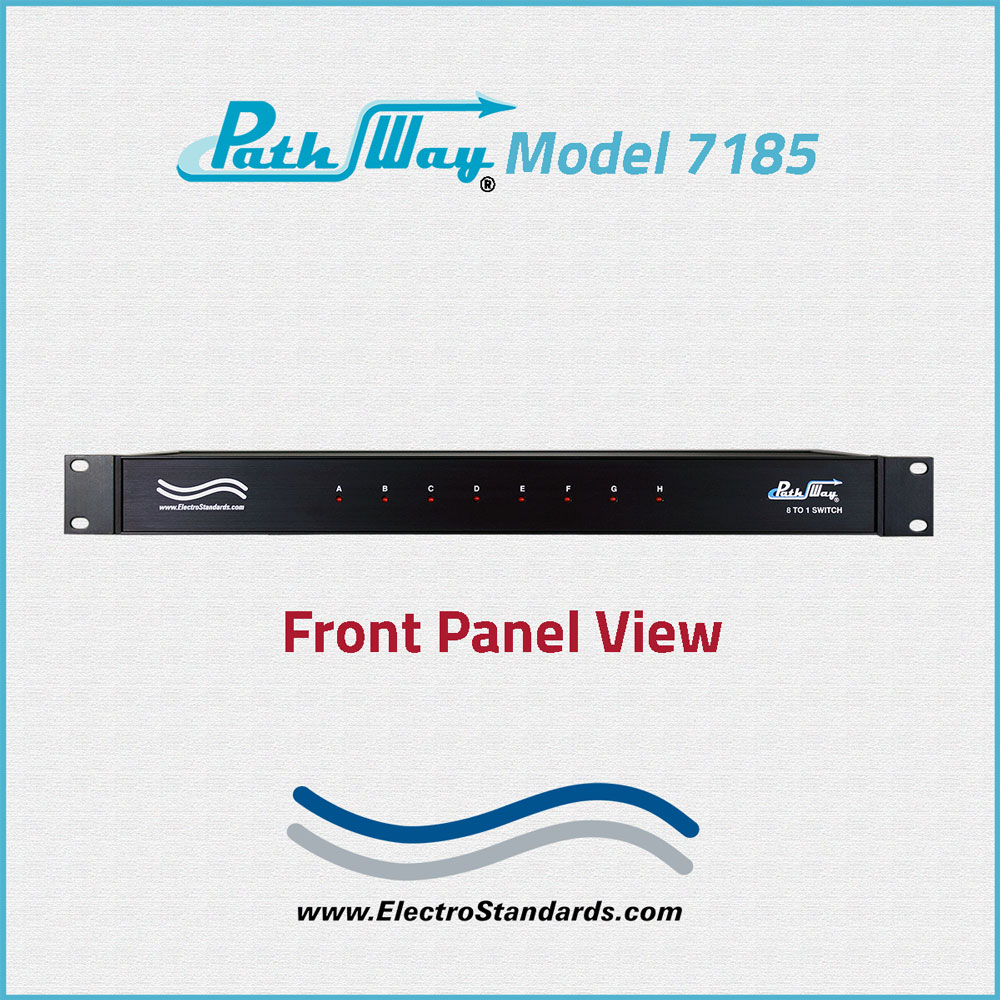

  • DISPLAY: (8) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9 female connector on rear panel accepts RS232 Serial Data for Remote Control operation.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount Configuration, 19.0" W x 1.75" H x 8.11" D (48.3 x 4.5 x 20.6 cm).
  • WEIGHT: Approximately 5.6 lbs. (2.6 kg)

PathWay®  DB15 8-TO-1 SWITCH WITH EXCLUSIVE RS232 REMOTE:

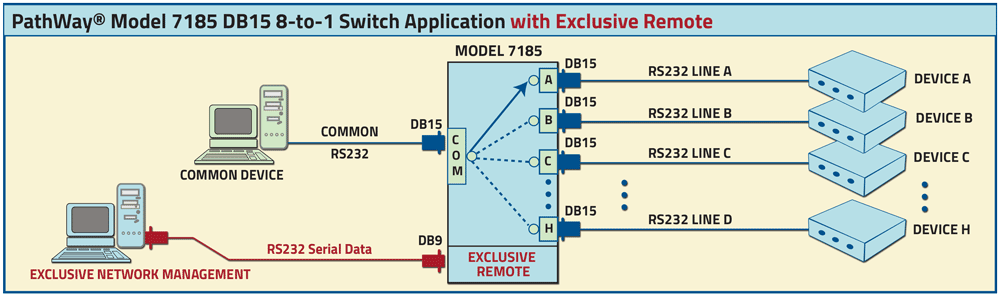

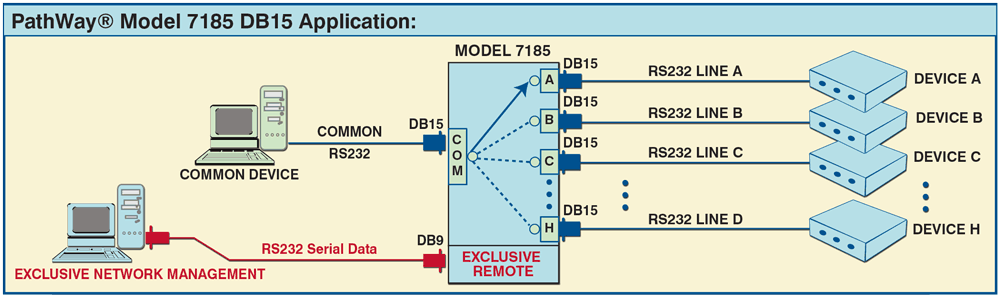

The drawing illustrates a COMMON device connected to the DB15 COMMON port with access to eight DB15 interface devices connected to the DB15 ports A, B, C, D, E, F, G, and H. The COMMON Device has access to connect to one Device at a time. The DB9 Remote port is used exclusiviely to control the switch remotely via ASCII RS232 Serial data commands.

PathWay MOdel 7185 DB15 8-to-1 Switch w/Exclusive Remote Control

Ordering Information

  • Catalog Number: 307185
  • Model Number: 7185
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
