Catalog # 306254-MIB Model 6254-MIB LC Duplex 4-Channel A/B Fiber Optic Switch with MIB SNMP Management of the Security Protocol

    Model 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUIModel 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUIModel 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUIModel 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUI
Click image to enlarge
    • Model 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUI
    • Model 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUI
    • Model 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUI
    • Model 6254-MIB LC Duplex 4-Channel A/B FiberSwitch with MIB and HTTPS GUI
Base Price:
$13,928.00
Catalog No: 306254MIB
Model No: 6254MIB
Product Type:Switches: Fiber Optic
Positions:2
Cable Type/Port Connector:LC
Channels per Switch Chassis:4
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Independent Channel Control, Gang Channel Control
Remote Control:Ethernet
Compliance/Standards:RoHS
Fiber Mode:Multimode
Fiber Size:50/125
Fiber Type:LC Duplex
Remote Port:RJ45

Add to Cart
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



QuickSwitch® 6254-MIB 4 Channel LC Duplex A/B Fiber Optic Switch with MIB  SNMP Mangement of the Security Protocol

Overview

The QuickSwitch® 6254-MIB is a 4 Channel LC Duplex A/B Fiber Optic Switch with MIB SNMP management of the Security Protocol designed for remote and local control of fiber connections for switching or sharing A/B positions for up to 4 fiber optic networks or devices. The Model 6254-MIB fiber optic switcher provides both independent and simultaneous remote control of 4 LC Duplex channels utilizing MIB SNMP management and HTTPS Graphical User Interface requiring password authentication.

  • IP Addressable for Critical Network Alternate-Path Switching!

  • MIB SNMP Management of the Security Protocol

  • GUI Software Features Independent and Gang Control of Channels.

FEATURES OF THE MODEL 6254-MIB QUAD CHANNEL LC DUPLEX FIBER SWITCH WITH MIB & HTTPS GUI:

  • Each of four channels allows quick connection to any one of two LC interface devices from one COMMON device.
  • The switch ports are transparent to all data.
  • Switch maintains position on power loss and continues to pass data.
  • When power is restored, unit maintains its position and continues to pass data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.

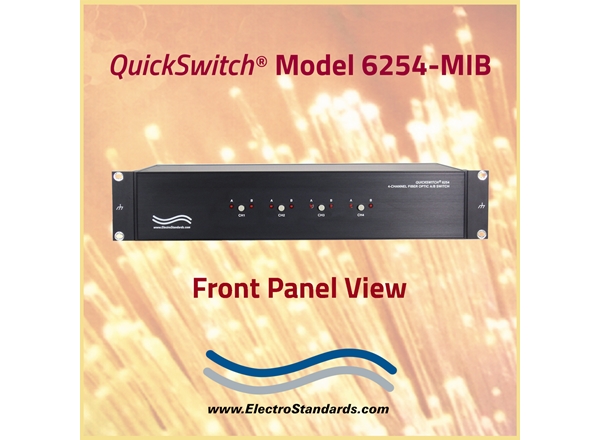

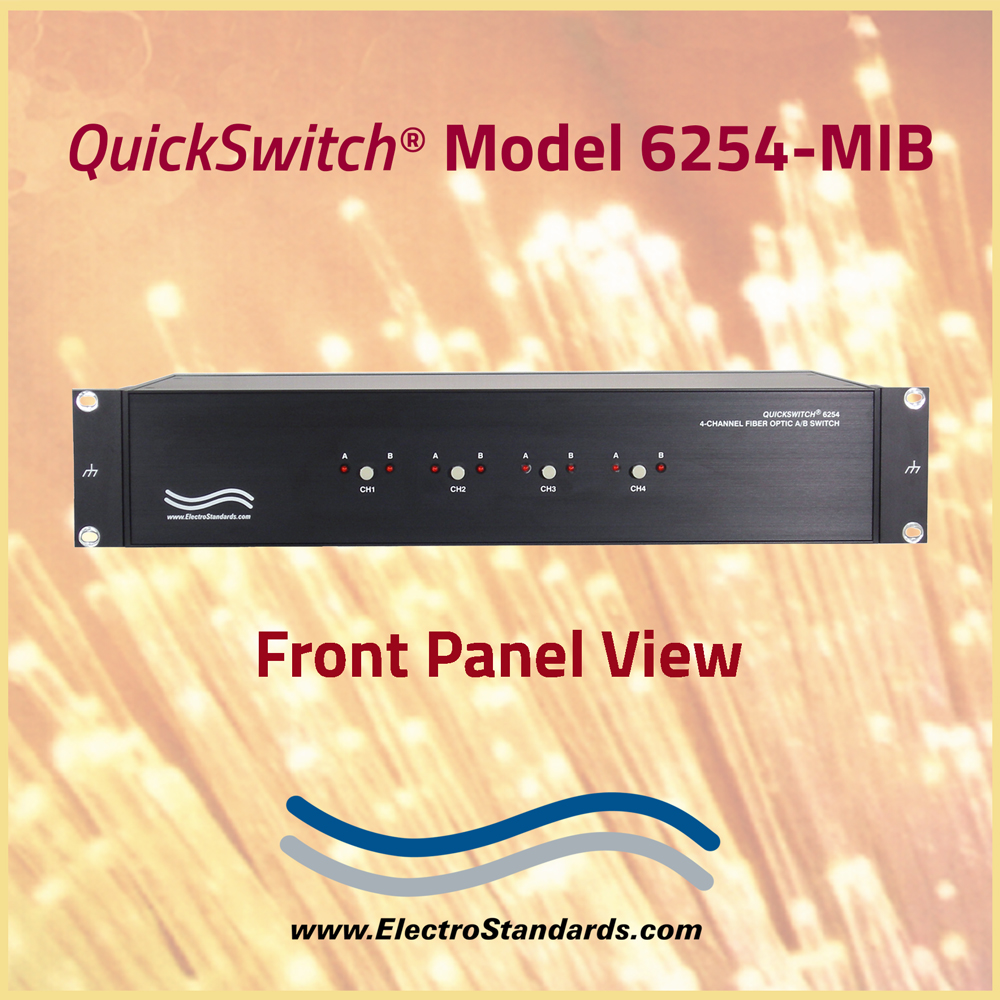

  • Independent control via four front panel pushbuttons.
  • Control of the switch position from a 10/100-Base-T LAN Ethernet environment.  IP Addressable!
  • Remote also includes an MIB (Management Information Base) file, which is a structured, text based file used with the Simple Network Management Protocol (SNMP) to define managed objects (data and services) available on a network device.
  • Front panel LED's display the present position for each channel as well as power status.

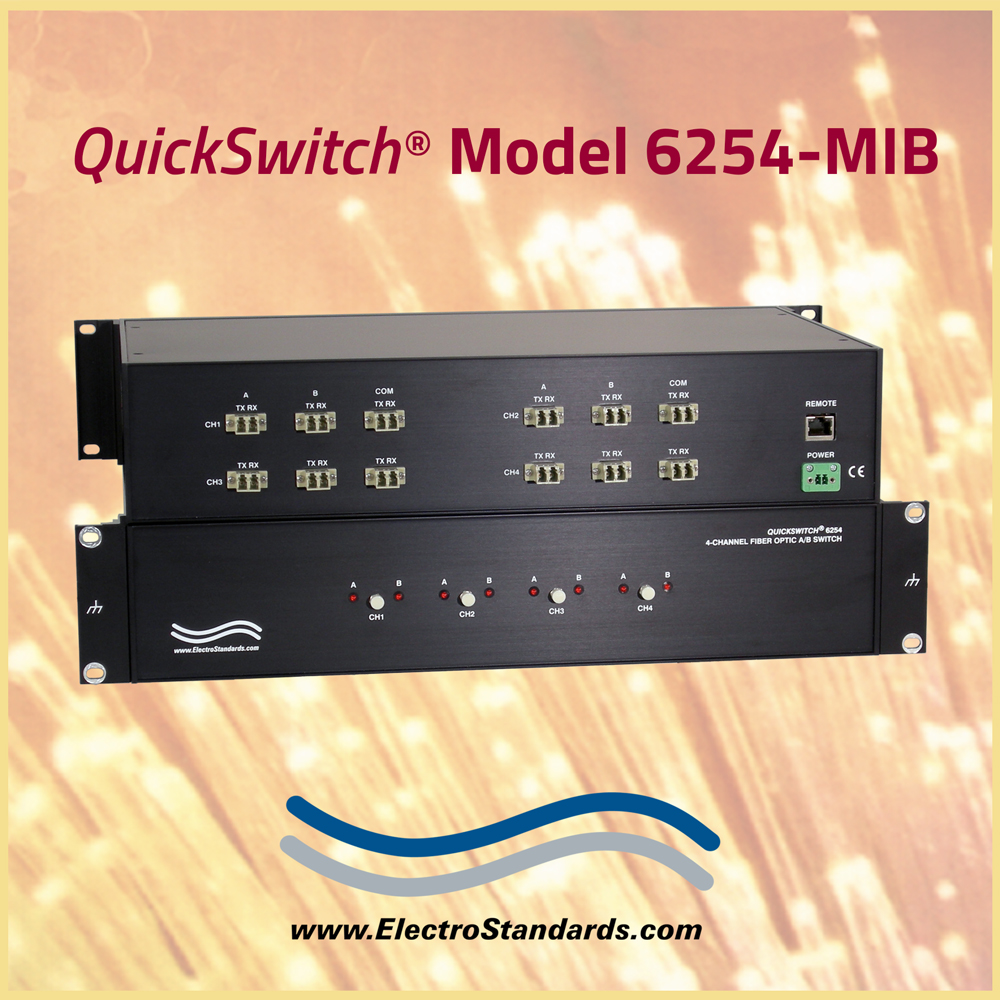

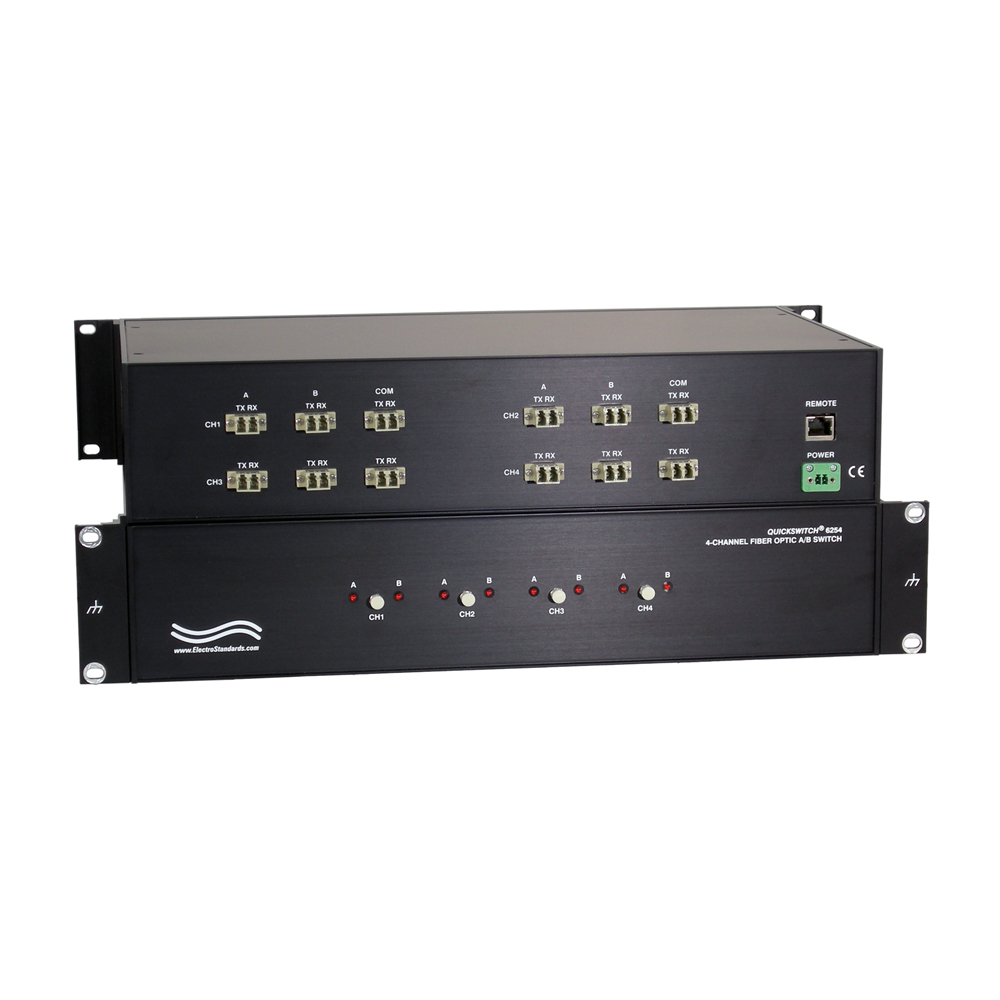

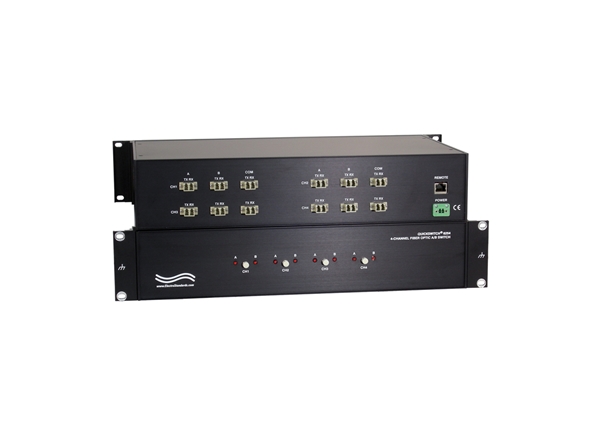

  • All A, B, and COM ports are LC, Multimode, 50.0/125 micron, and support a wavelength of 850nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
  • Users can change the login password and/or the switch's IP address.
  • Access User Interface via standard web browser.
  • Login password authentication required.
  • Easy to use, simple point and click operation.
  • RoHS Compliant.
  • Remote control of the switch is secured by user login with password protection via HTTPS GUI
