516532 - 1050 Current Sensor Board, Three Channel

    oard, Three Channel
Click image to enlarge
Base Price:
$275.00
Catalog No: 516532
Model No: 1050
Current Range:0,+/-70A
Resistance:12V - 91 Ohms
Supply Voltage:(+/-5%) +/-12V, +/-15V
Amps:50A

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

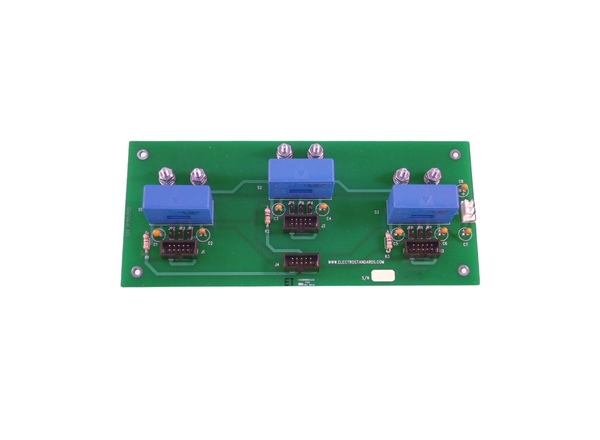

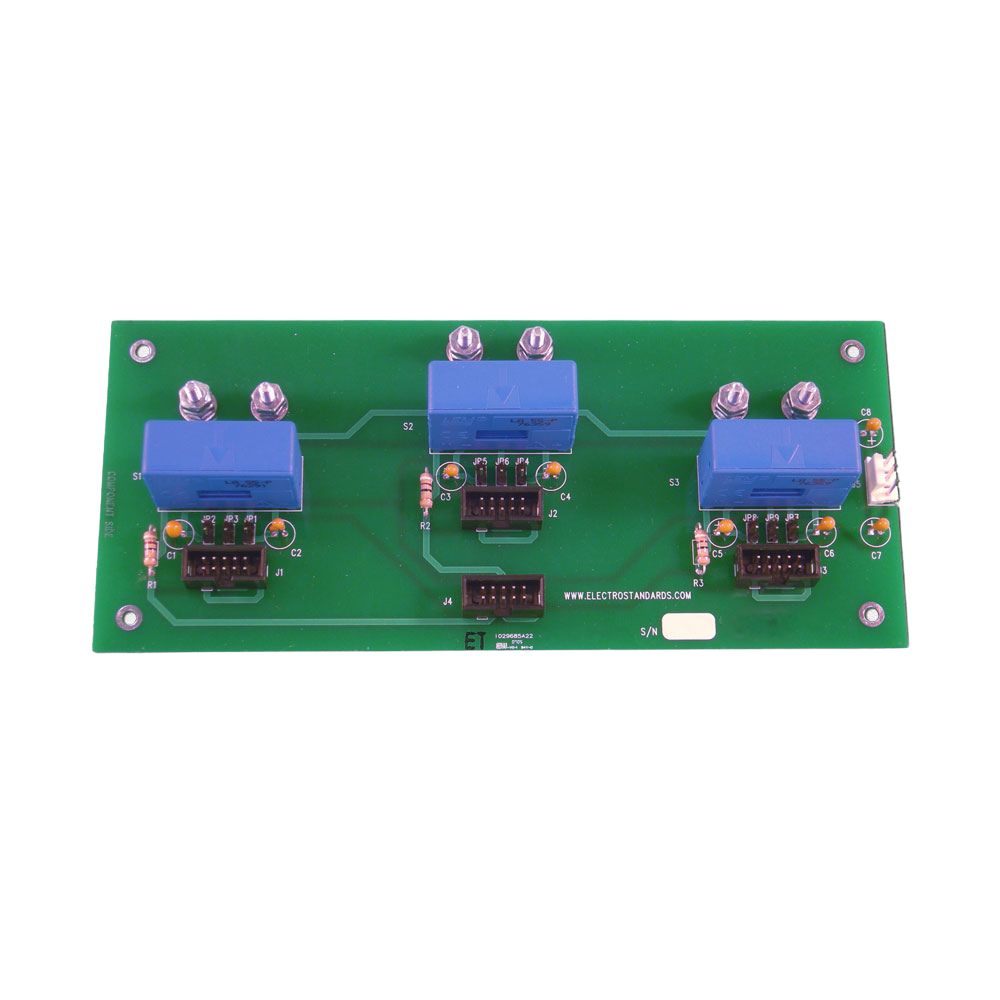

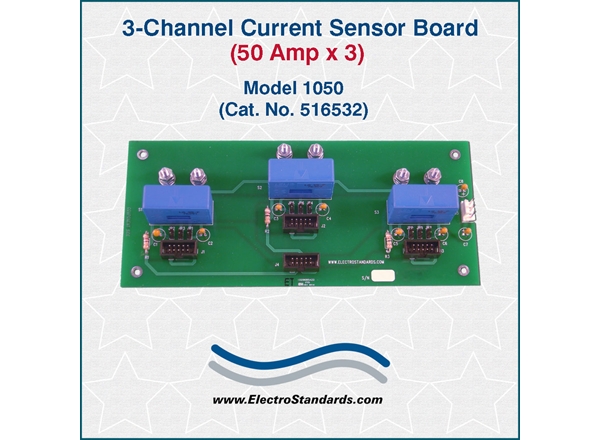

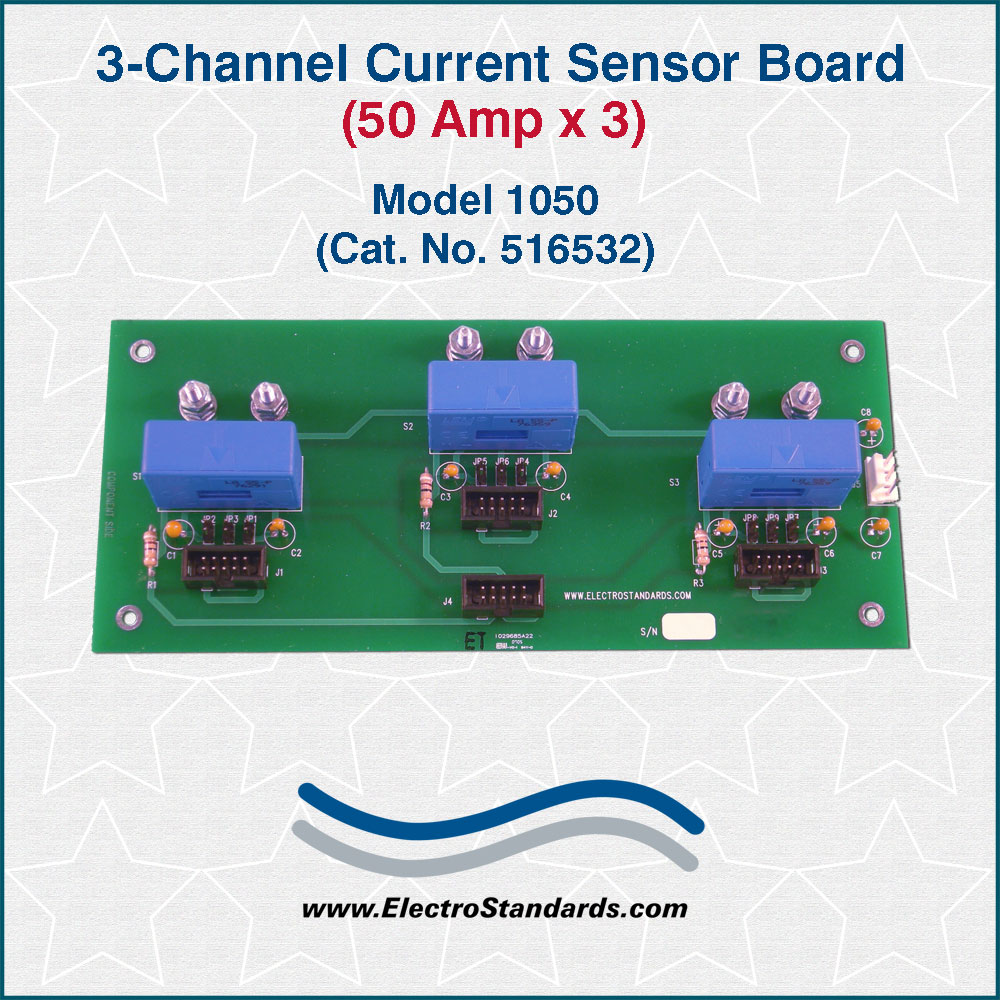

Three Channel Current Sensor Board (50 Amp x 3)

Model 1050 Three Channel Closed Loop (compensated) Current Sensor Board uses Hall effect

The Model 1050 is a three channel closed loop (compensated) current sensor board which uses the Hall effect.  The board contains three independent 50 amp current sensors, which can either be independently powered or bussed together by means of jumper settings.  Sensor full scale can be scaled by applying wire turns through the sensor body.

Application diagram of three channel closed loop (compensated) current sensor board using Hall effect.

SPECIFICATIONS:

General Data:
Primary Nominal RMS current 50A
Primary Current Measurement Range 0, /-70A
Supply Voltage ( /-5%) /-12V, /-15V
Measuring resistance @ 12 V - 91 Ohms
Secondary nominal RMS current 50mA
Conversion Ratio 1:1000

Accuracy (@ /-15V) /-0.45%
               (@ /-12V) /-0.70%

Reaction Time @10% of IPN - <500ns
Response Time @90% of IPN - <1µs
Frequency Bandwidth (- dB) - DC, 200 kHz
Ambient operating temperature -41 to 85°C

Mechanical (Board Only):
Model / Cat No: 1050 / 516532
Size: 8.0" x 3.5" x 1.27" (20.3 x 8.9 x 3.2 cm)
Weight: 4.6 oz (130.41g)
Mounting: Four 0.15" Mounting Holes

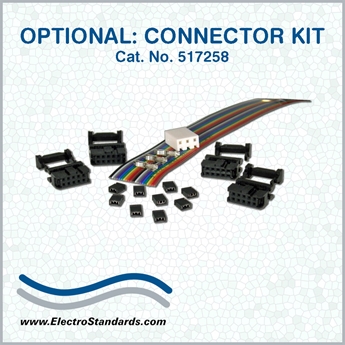

OPTIONAL: Mating Connector Kit
To Order use Cat No 517258

  • (4) 10-Position (5 x 2) IDC connector with strain relief.
  • (1) 20C, 28 AWG rainbow ribbon cable, 4 foot length.
  • (1) 3-Position 0.156" spacing, female connector housing.
  • (3) Female crimp contacts for 0.156" connector (for 12-18 AWG wire).
  • (9) 0.1" spacing, shunt clips.

Optional Mating Connector Kit Cat No 517258
