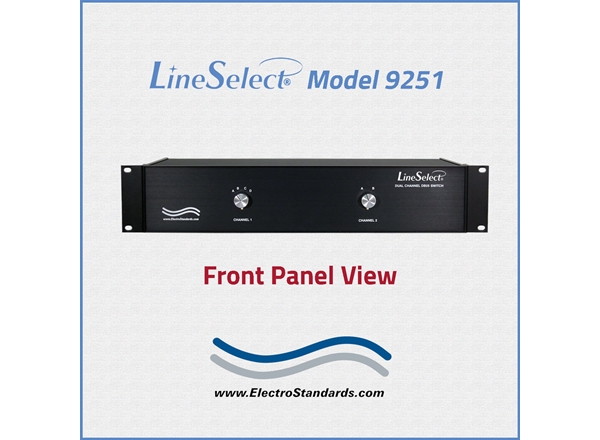

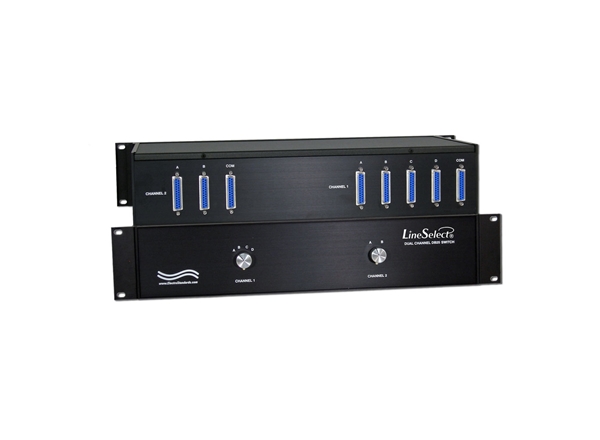

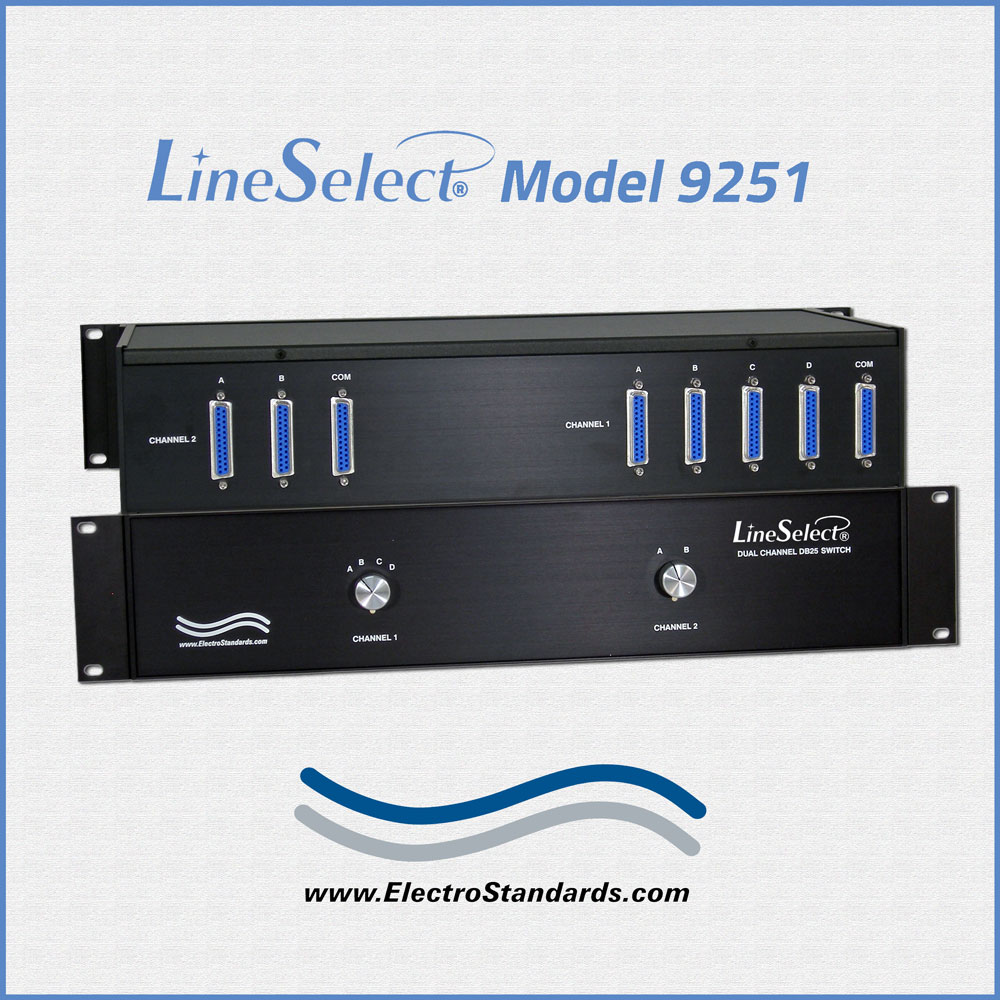

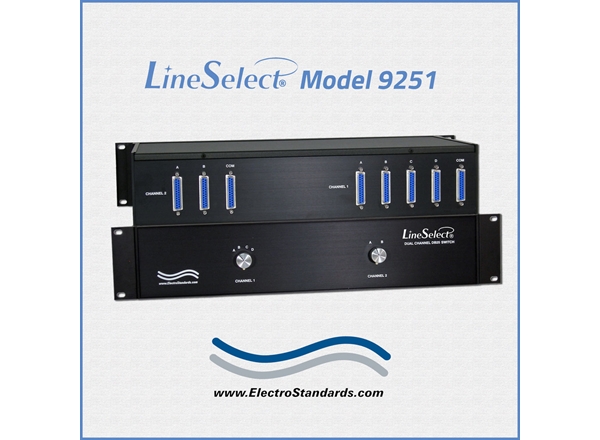

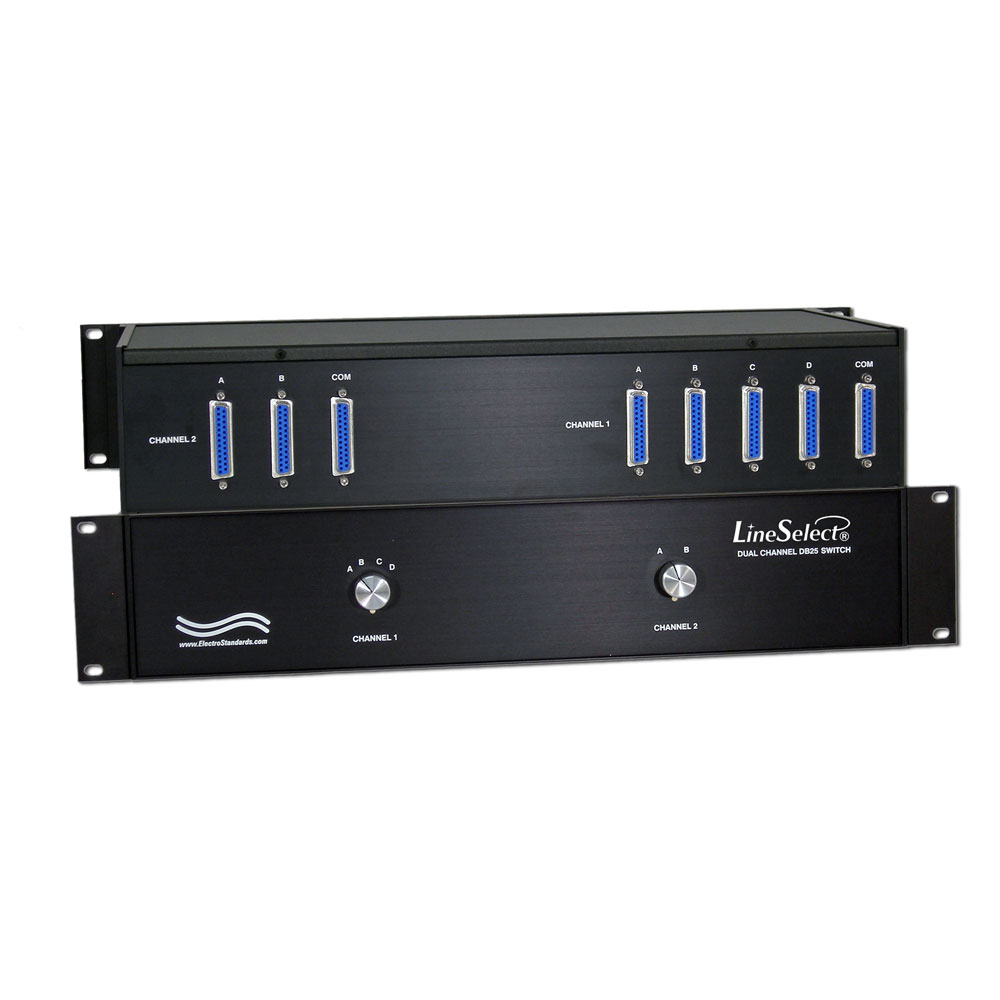

LineSelect® Model 9251 Dual-Channel Switch, RS530 DB25 A/B/C/D and DB25 A/B Switch, Manual, Rackmount

Overview

This independent dual-channel RS530 switch provides flexible multi-system access by enabling one computer to selectively communicate with up to four devices on Channel 1 and two additional devices on Channel 2 through fully independent DB25 switching paths.

  • Applicable to Switching ANY DB25 interface devices.

FEATURES OF THE MODEL 9251 DUAL-CHANNEL RS530 SWITCH:

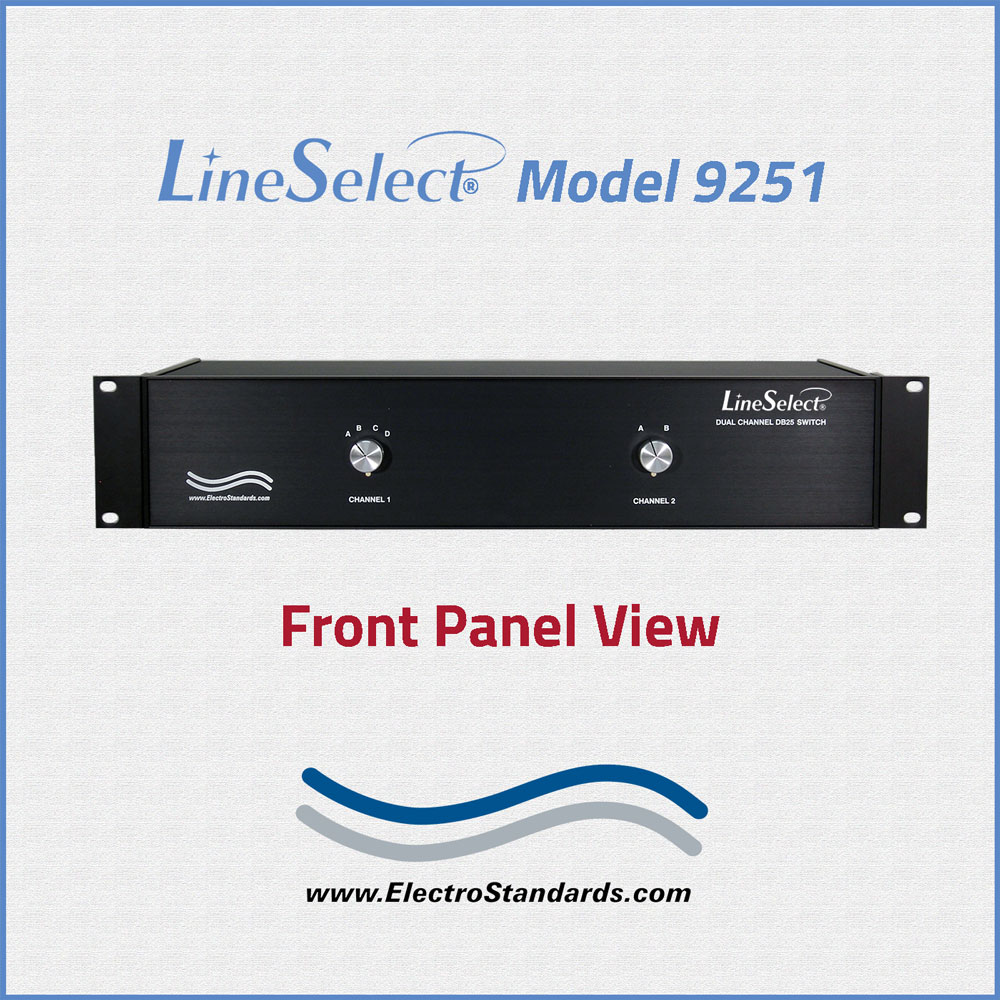

  • Independently switch each of the two channels manually via two knobs located on the front panel, one knob per channel.
  • Channel 1:  DB25 A/B/C/D with (5) DB25 female connectors for ports A, B, C, D, and Common.
  • Channel 2:  DB25 A/B Switch with (3) DB25 female connectors for ports A, B, and Common.
  • All 25 pins of the RS530 interface are switched via break-before-make rotary switch.
  • High reliability, precious metal, sealed switches.
  • Transparent to data speed and format.
  • Eliminates the need to plug and unplug cables.

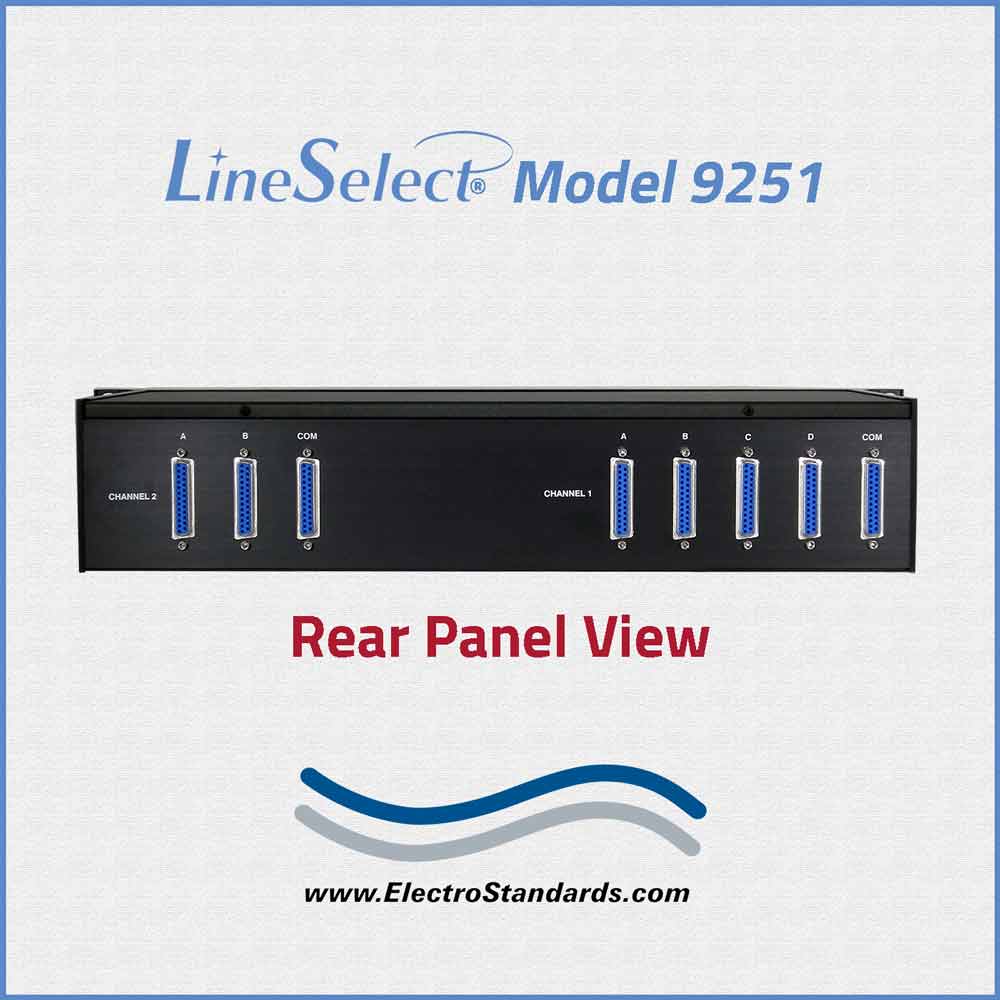

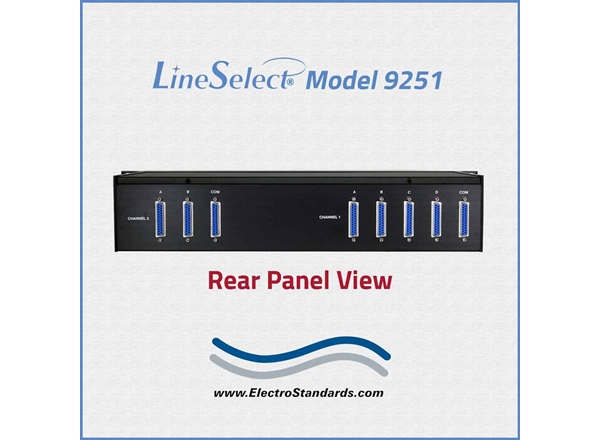

  • All ports located on rear panel.
  • Manual operation.  No power required.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables are available for your switch installation.
  • Lifetime warranty against manufacturing defects.

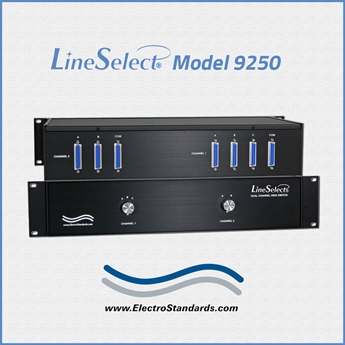

  • For a similar Dual-Channel Switch with DB25 A/B/C and DB25 A/B positions, See Model 9250, Cat No 309251.

TECHNICAL SPECIFICATIONS:

  • CHANNEL-1 PORT CONNECTORS: (5) DB25 female connectors labeled A, B, C, D, and Common.
  • CHANNEL-2 PORT CONNECTORS: (3) DB25 female connectors labeled A, B, and Common.
  • FRONT PANEL CONTROLS: (2) Manual rotary switches allow local switching.
  • DIMENSIONS: Rackmount 19.0" W x 3.5" H x 8.0" D. (48.3 x 8.9 x 20.3 cm)
  • WEIGHT:  Approximately 6.0 lbs. (2.72 kg)

The LineSelect® Model 9251 Switch system is comprised of two independent sharing switches efficiently packaged in a 19-inch wide 2U high (3.5") rackmount unit.  The network switch functions are described and illustrated below.

INDEPENDENT DUAL-CHANNEL RS530 SWITCHING APPLICATION:

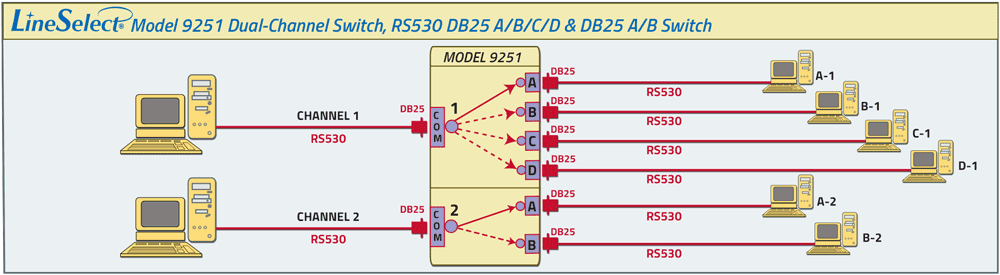

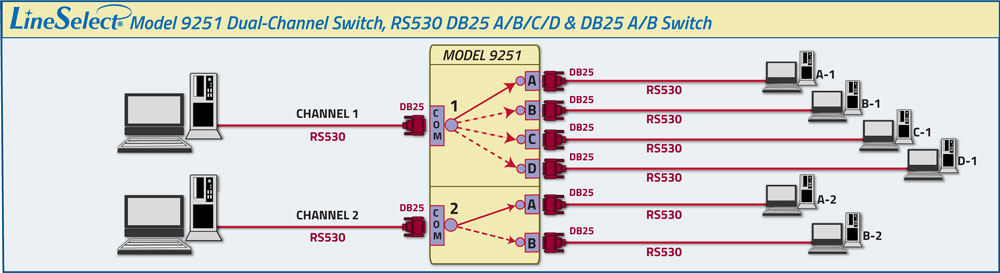

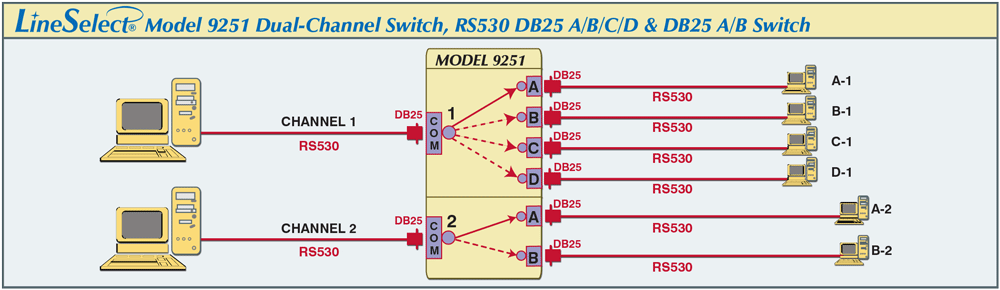

The drawing illustrates two independent switches.

  • Channel 1: DB25 A/B/C/D SWITCH
  • Channel 1 has a computer connected to the DB25 COMMON port with access to any one of four other computers labeled, A-1, B-1, C-1, and D-1.
  • Channel 2: DB25 A/B SWITCH.
  • Channel 2 has a computer connected to the DB25 COMMON port with access to two other computers labeled A-2, and B-2.

LineSelect® Model 9251 Dual-Channel DB25 RS530 application
