* N-Type, RX/TX Duplex * Catalog # 309225 - Model 9225 Coaxial A/B Manual Switch

    N-Type Coaxial A/B SwitchN-Type Coaxial A/B SwitchN-Type Coaxial A/B SwitchN-Type Coaxial A/B Switch
Click image to enlarge
    • N-Type Coaxial A/B Switch
    • N-Type Coaxial A/B Switch
    • N-Type Coaxial A/B Switch
    • N-Type Coaxial A/B Switch
Base Price:
Catalog No: 309225
Model No: 9225
Product Type:Switches: Copper
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Manual Control/No Power Required:LineSelect® Manual Operation
Pins Switched:Center Pin and Shell of each Coaxial Connector
Local Control:Rotary Knob
Feature:N-Type Bulkhead Coaxial Connectors, RX/TX Duplex

  • N-Type Bulkhead Coaxial Cable Mounted in a Duplex Configuration (RX, TX).

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request


Coaxial N-Type Network Switch, Rotary
Model 9225 Manual, Duplex, N-Type Coaxial, A/B Switch, Rackmount

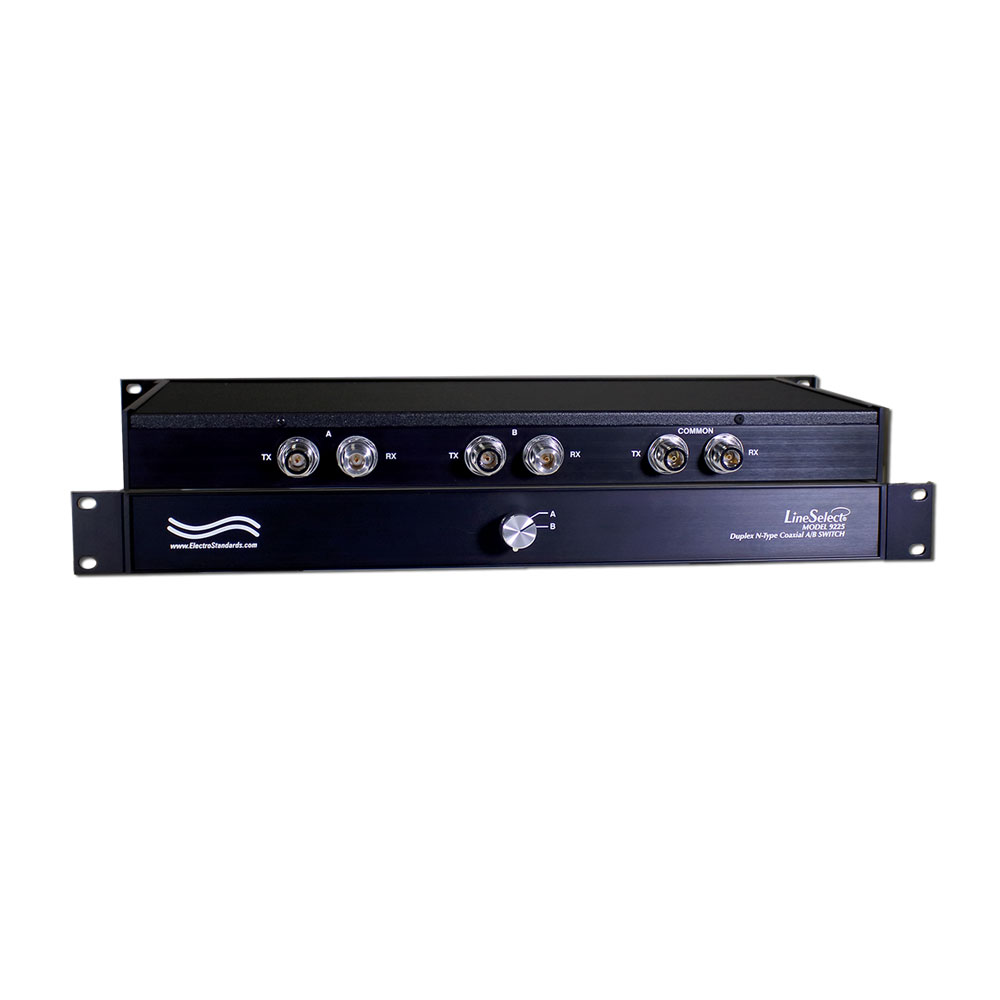

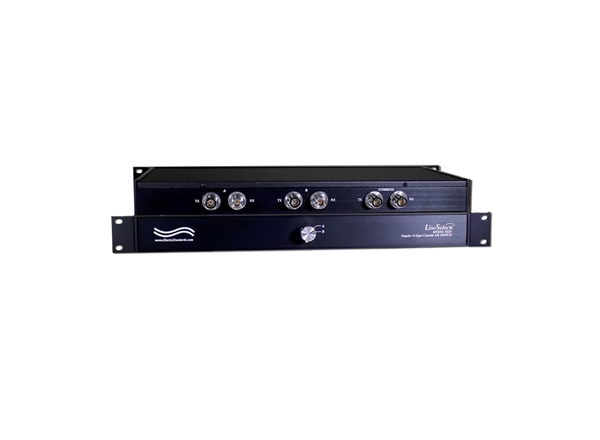

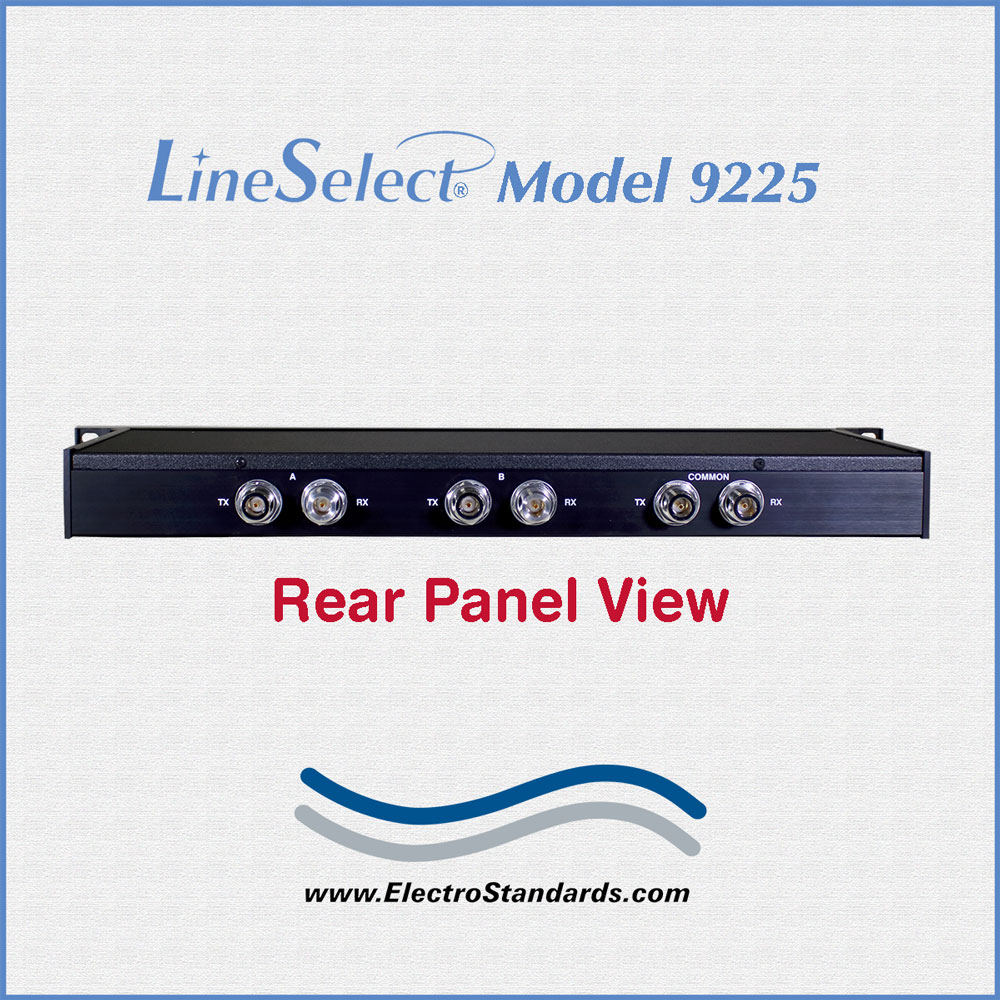

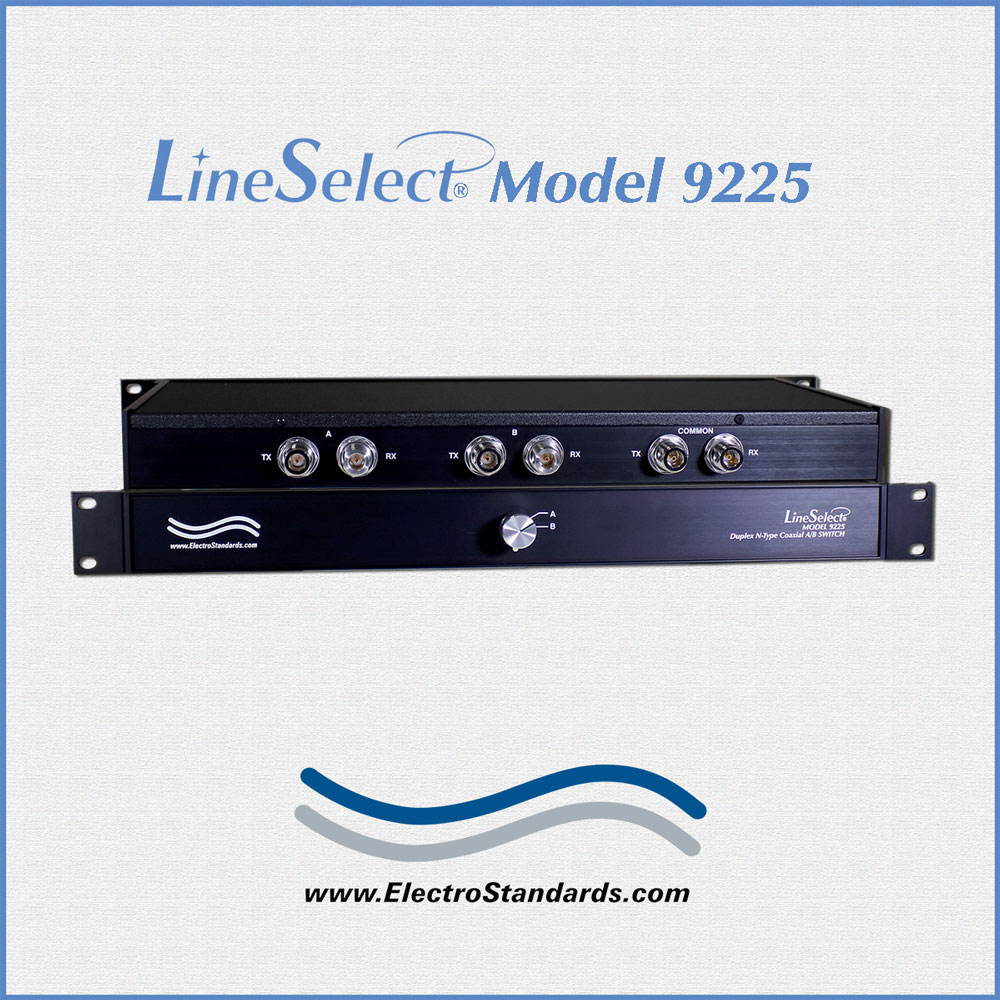

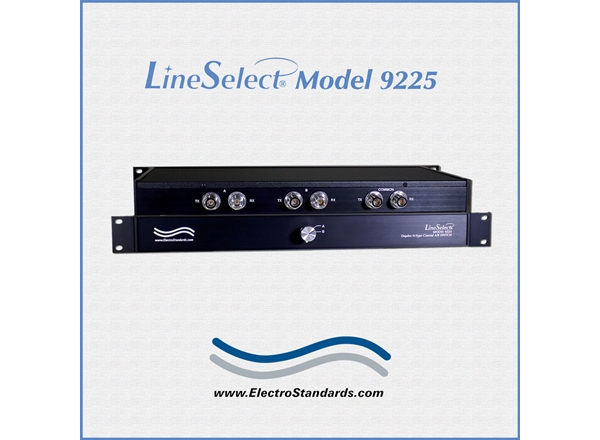

  • PORT CONNECTORS: (6) N-Type Coaxial Female connectors labeled A-TX, A-RX, B-TX, B-RX, and COMMON-TX, COMMON-RX.

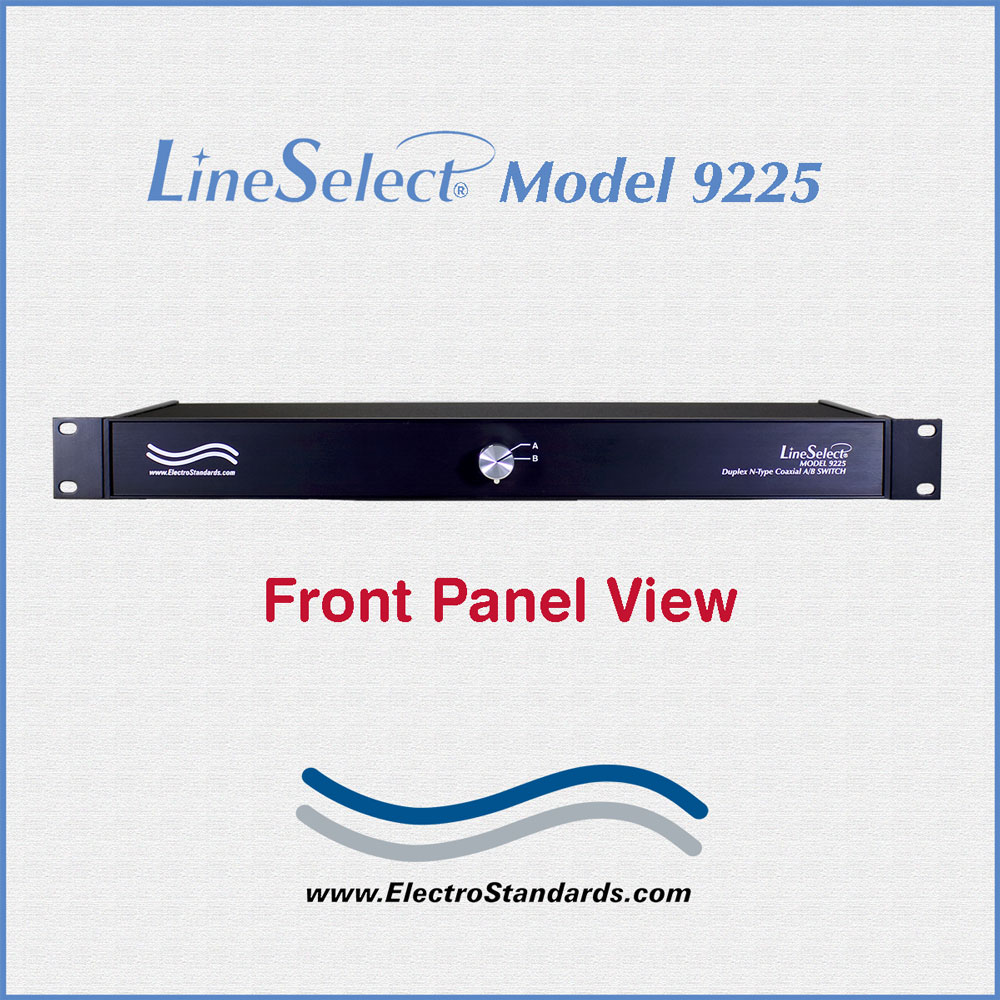

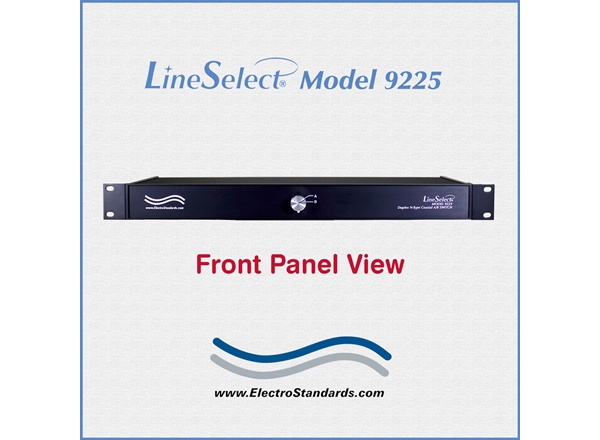

  • FRONT PANEL CONTROL: (1) Rotary Switch allows local switching to position A or B.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 9.34"D. [48.3 x 4.5 x 23.8 cm]
  • WEIGHT: Approximately 4.6 lbs. [2.1 kg]

LineSelect® Model 9225 Single Channel, Manual, Duplex, N-Type Coaxial A/B Switch Application:

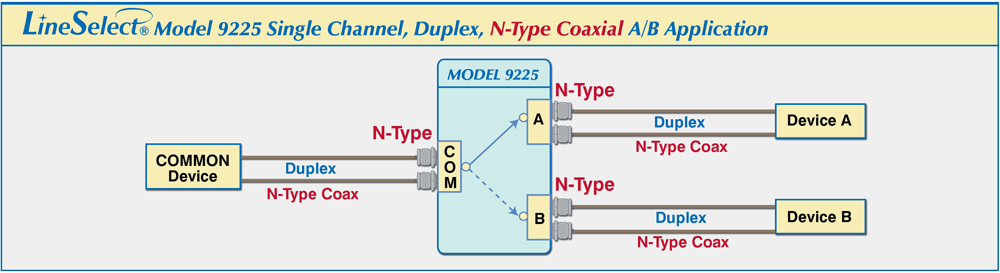

The drawing illustrates a Duplex N-Type Coaxial "A", "B" and "COMMON" ports for the Model 9925 A/B Switch. A COMMON device connected to the COMMON port has access to two other N-Type Coaxial Interface devices connected to the A and B ports, respectively.
