Catalog # 307298 - Model 7298 3-Channel XLR Audio A/B Switch, Contact Closure

    3-Channel XLR Audio A/B Switch, Contact Closure3-Channel XLR Audio A/B Switch, Contact Closure3-Channel XLR Audio A/B Switch, Contact Closure3-Channel XLR Audio A/B Switch, Contact Closure
Click image to enlarge
    • 3-Channel XLR Audio A/B Switch, Contact Closure
    • 3-Channel XLR Audio A/B Switch, Contact Closure
    • 3-Channel XLR Audio A/B Switch, Contact Closure
    • 3-Channel XLR Audio A/B Switch, Contact Closure
Base Price:
$1,152.00
Catalog No: 307298
Model No: 7298
Product Type:Switches: Copper
Positions:2
Switch Application:Audio/Video Switching
Cable Type/Port Connector:XLR
Channels per Switch Chassis:3
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Simultaneous Channel Control
Remote Control:Contact Closure
Configuration:Rackmount
Pins Switched:3
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Path Way® Remotely Controllable Network Switch, XLR

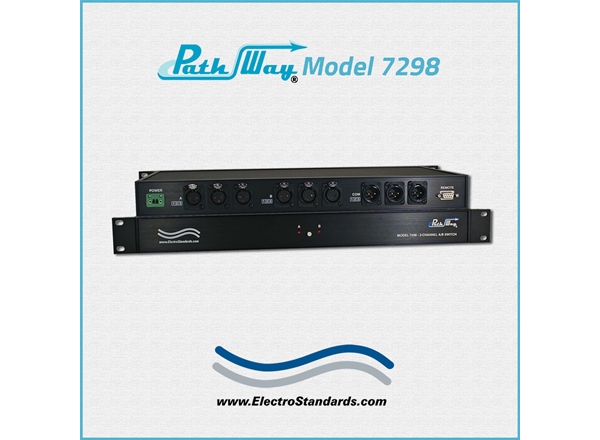

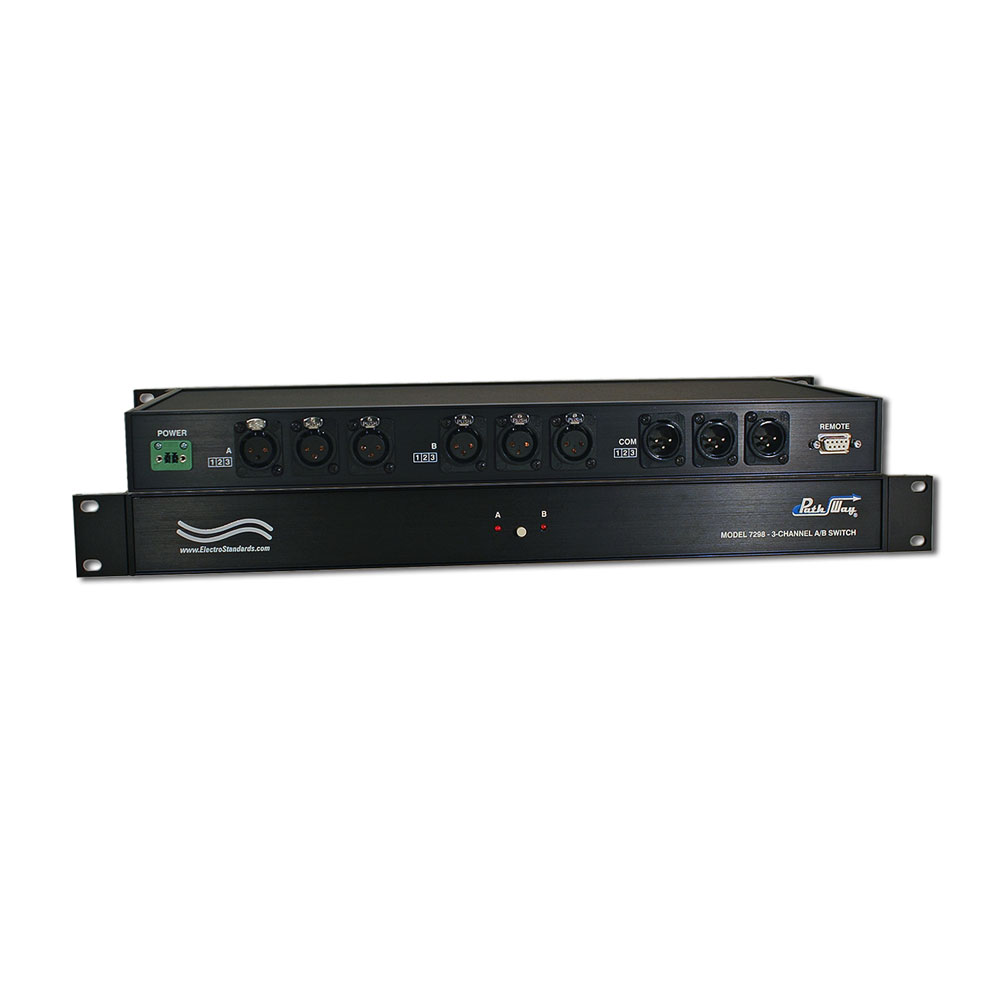

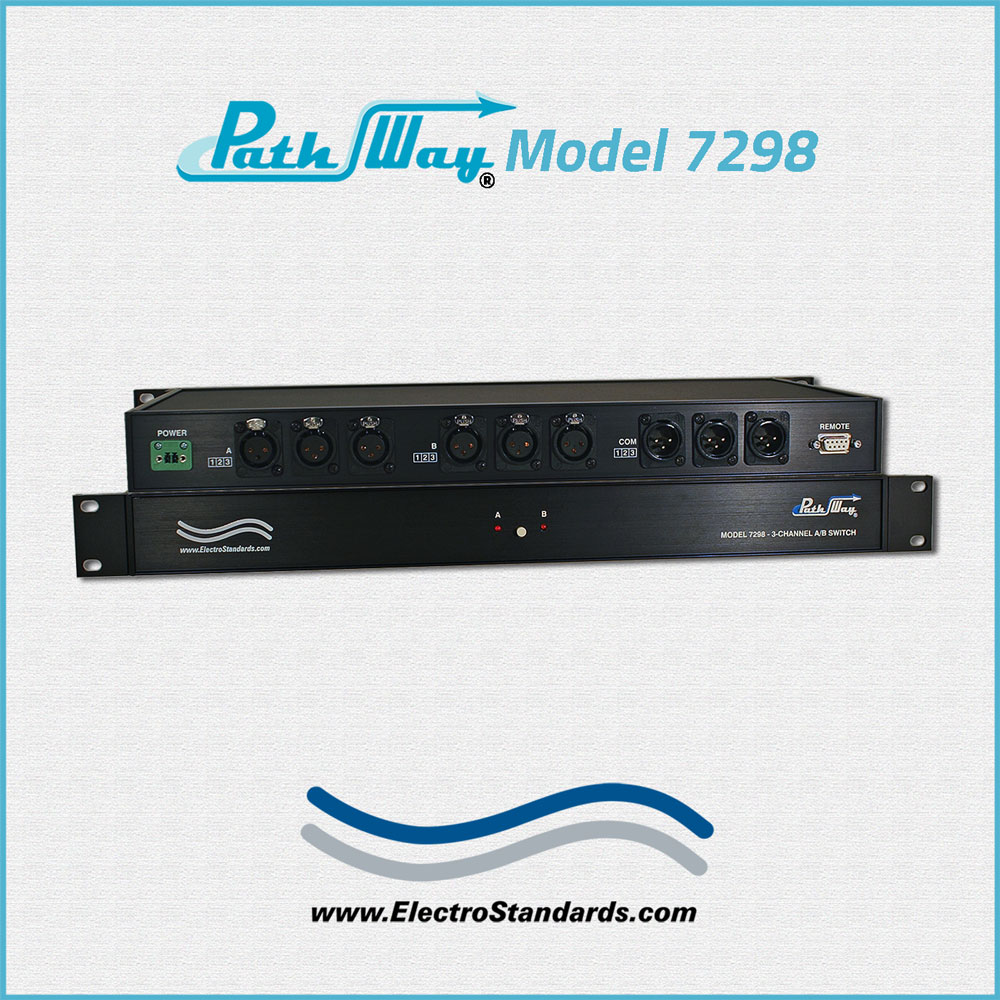

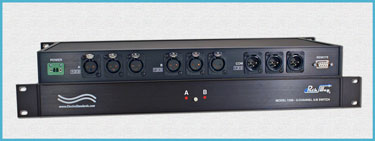

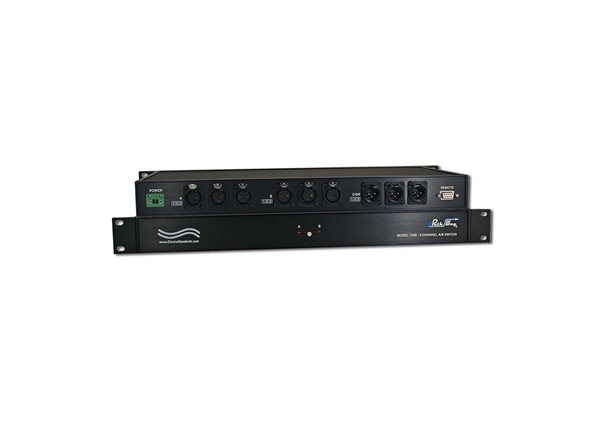

Model 7298 Tri-Channel XLR Audio A/B Switch, with Contact Closure Remote, 1U Rackmount

  • Ideal Network Switch for Radio and TV.

  • Applicable to switching professional Audio, Video, and Stage Lighting Equipment.

SPECIFICATIONS:

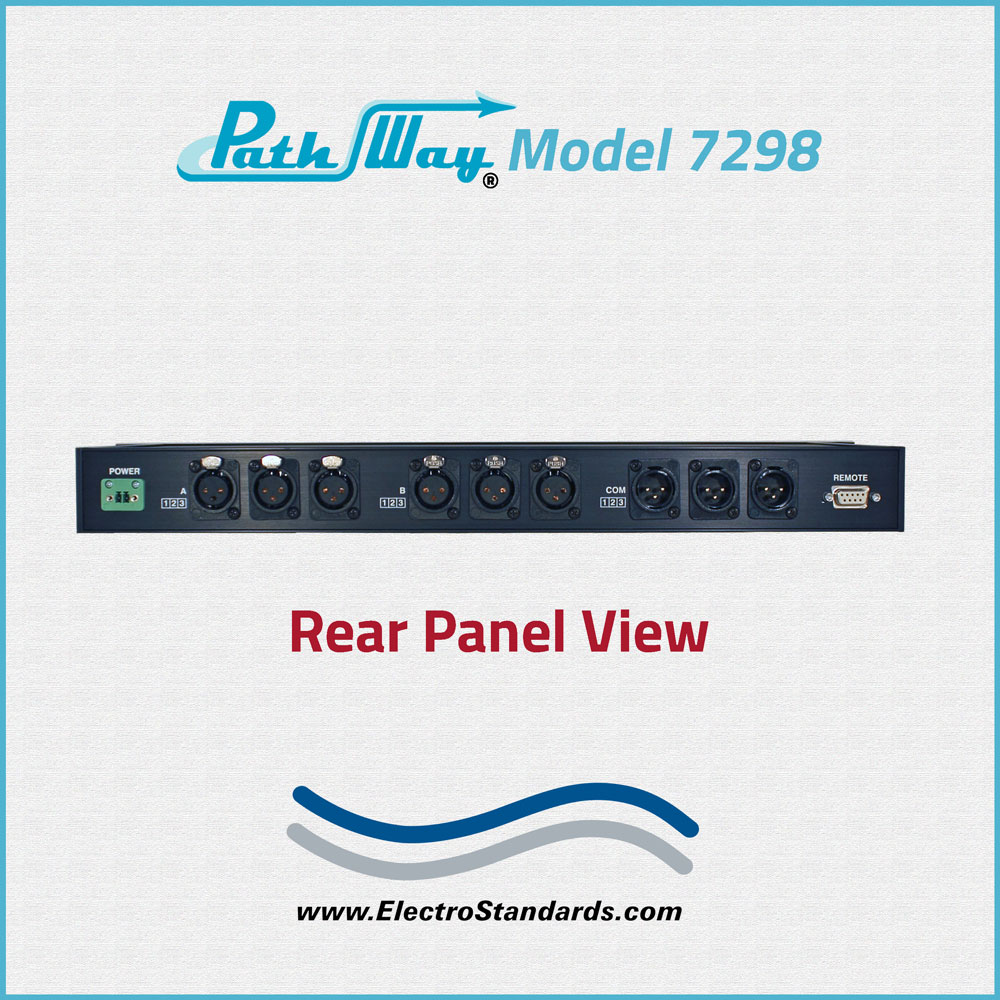

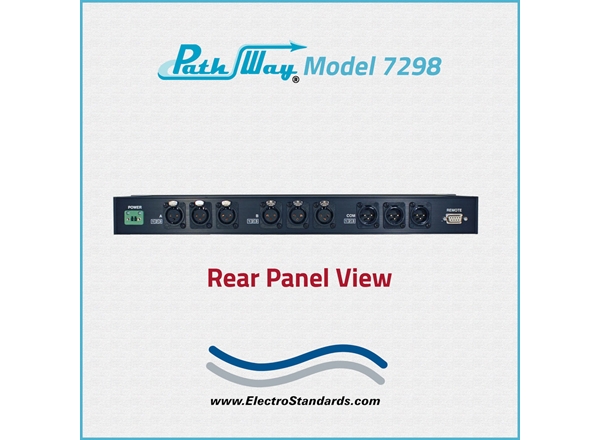

  • PORT CONNECTORS: (2) XLR female connectors labeled A and B for each of three channels. (1) XLR male connector labeled COMMON for each of three channels.

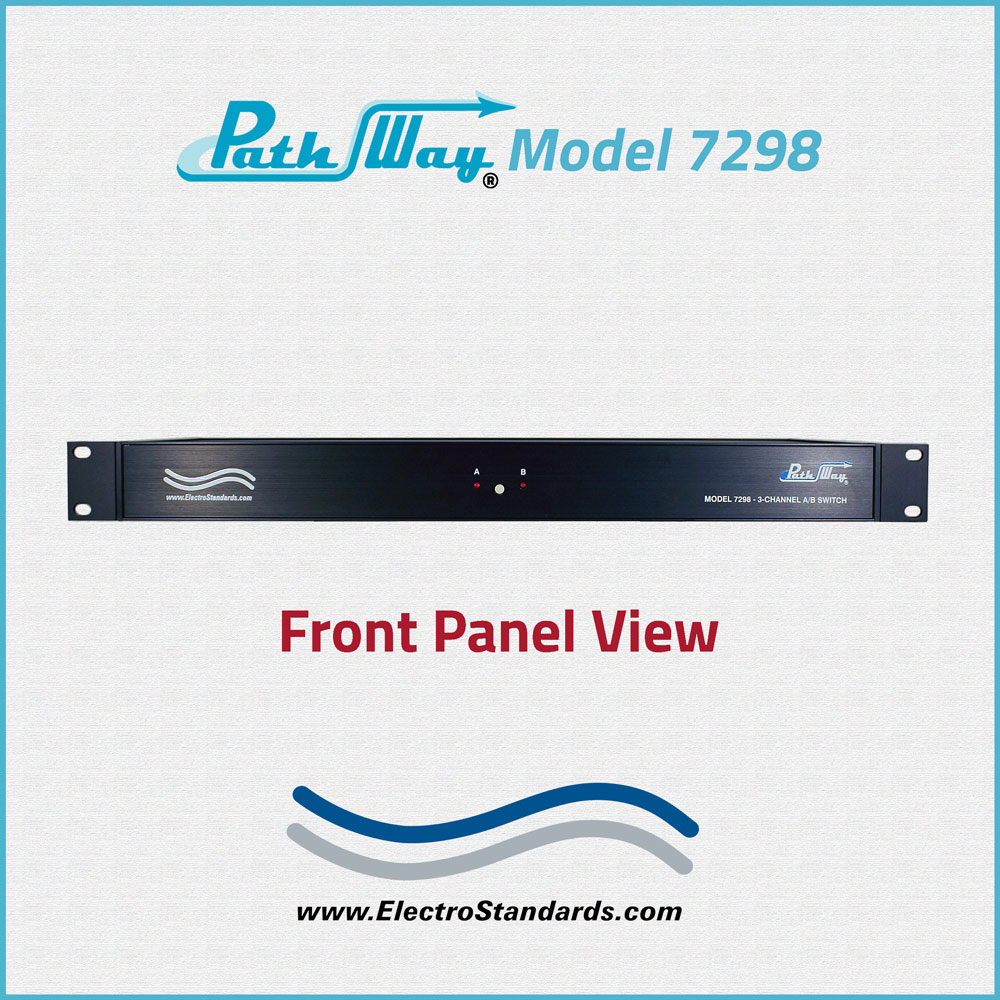

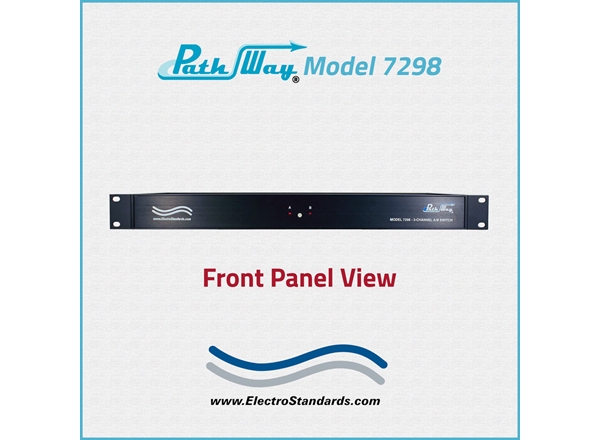

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (2) Front panel LED's display switch position and power status.
  • REMOTE: (1) DB9 (F) connector on rear panel accepts Contact Closure Signals for Remote Control operation.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit.  Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount configuration 19.0" W x 1.75" H x 8.30" D. (48.3 x 4.4 x 21.1 cm)
  • WEIGHT: Approximately 4.9 lbs. (2.3 kg)

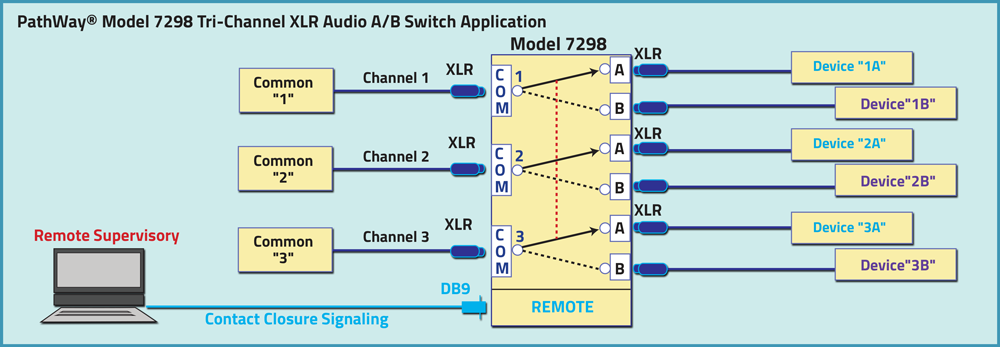

PathWay® Model 7298 3-Channel XLR A/B Switch Application:

The drawing illustrates three channels of XLR A/B Switching.  For each channel one device connected to the XLR COMMON port can access two other devices connected to the XLR A and B ports. The DB9 Remote port accepts contact closure transition signals allowing remote operation of the XLR switch. The application drawing also illustrates simultaneous switching of all three channels as denoted by the dotted red line.

PathWay Model 7298 3-Channel XLR A/B Switch Application

FEATURES:

  • Each of three channels allows access to two XLR interface devices from one COMMON XLR device.
  • The switch ports are transparent to all data.
  • All (3) pins of the XLR3 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, the unit will switch based on Remote Contact Closure state.
  • Front-panel pushbutton control.
  • Simultaneous control of all channels.
  • Remote Contact Closure Control provides dry contact logic to allow control of the switch position and lockout state.
  • Front panel LED's display switch position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length XLR cables available for your switch installation.

The PathWay Model 7298 Tri-Channel XLR A/B Switch with Contact Control Remote Port allows the user the capability of accessing three channels of two separate devices, ports A and B, via connection through a device connected to the COMMON port. The Model 7298 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled manually via the front panel pushbutton or remotely from a DB9 port located on the rear of the unit.  Switch position state may be attained via the front panel LED.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50/60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

PathWay® is a registered trademark of Electro Standards Laboratories.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All ESL products are available for export. Electro Standards welcomes business from International companies: commutateur de réseau, conmutador de red, switch di rete, przelacznik sieciowy , switch de rede, nätverksswitch.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
