Catalog #307208-CC Model 7208-CC DB15 A/B/C/D Network Switch with Exclusive Remote Control via Contact Closure

    7208-CC DB15 A/B/C/D Network Switch7208-CC DB15 A/B/C/D Network Switch7208-CC DB15 A/B/C/D Network Switch7208-CC DB15 A/B/C/D Network Switch
Click image to enlarge
    • 7208-CC DB15 A/B/C/D Network Switch
    • 7208-CC DB15 A/B/C/D Network Switch
    • 7208-CC DB15 A/B/C/D Network Switch
    • 7208-CC DB15 A/B/C/D Network Switch
Base Price:
$1,583.00
Catalog No: 307208-CC
Model No: 7208-CC
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:DB15 Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:Contact Closure
Security:Exclusive Remote Control
Configuration:Desktop
Pins Switched:15
Remote Port:HD15
Local Control:None

Add to Cart
Can ONLY be switched remotely from the HD-15 female Contact Closure Control port located on the rear panel.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

PathWay® Model 7208-CC DB15 A/B/C/D Switch with Contact Closure Remote Control Port

Overview

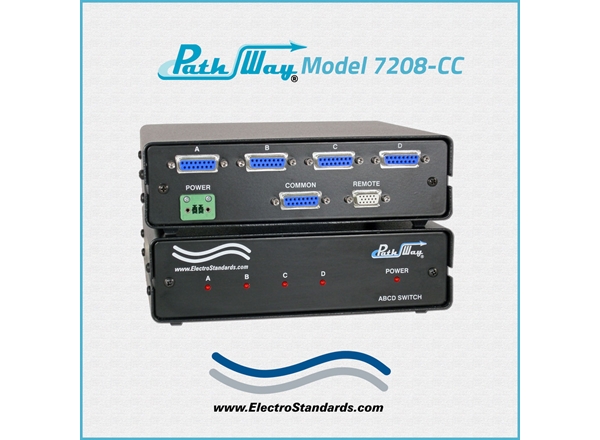

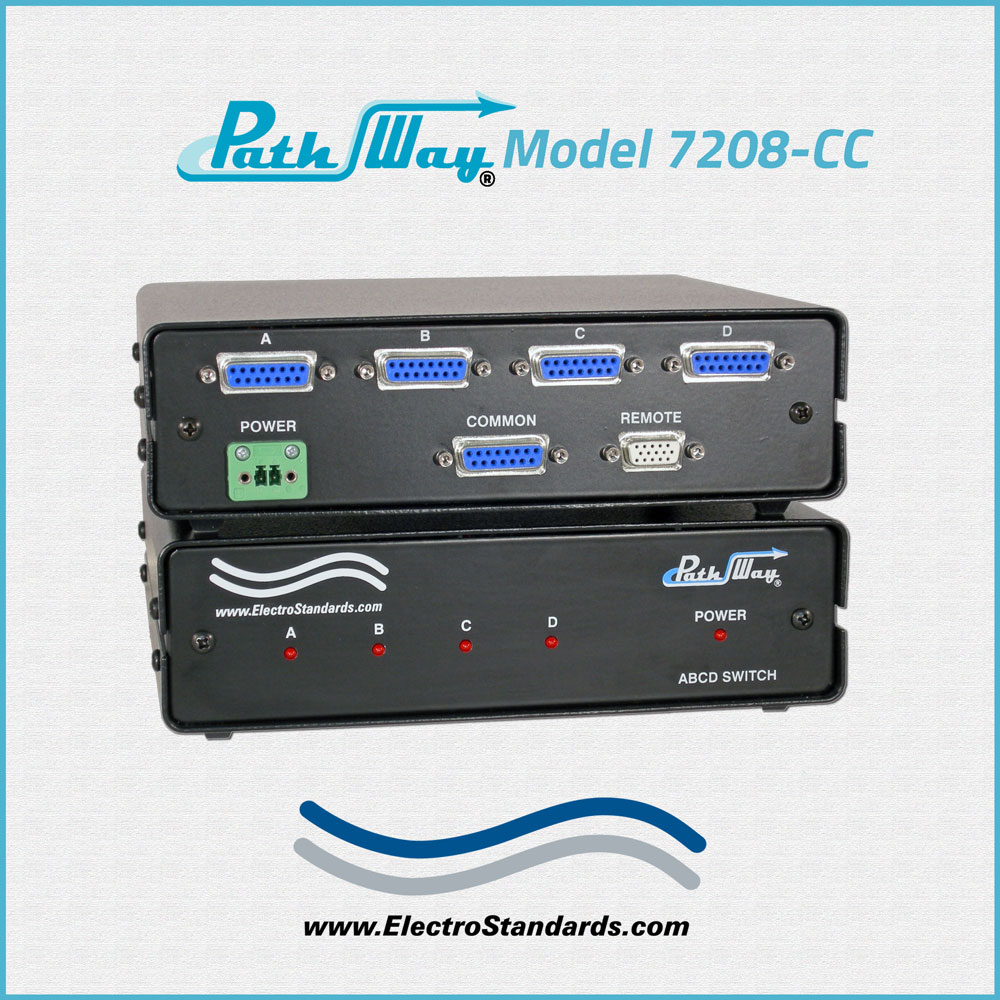

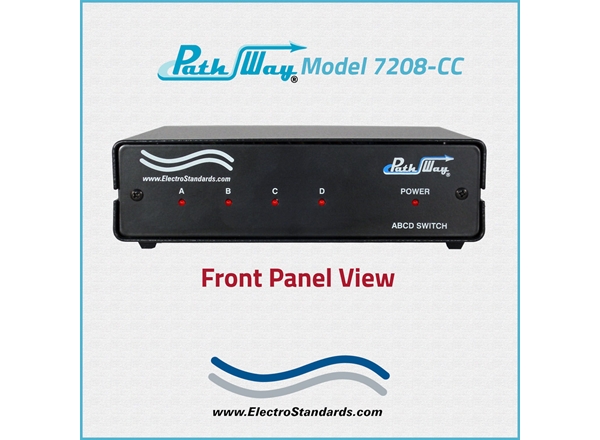

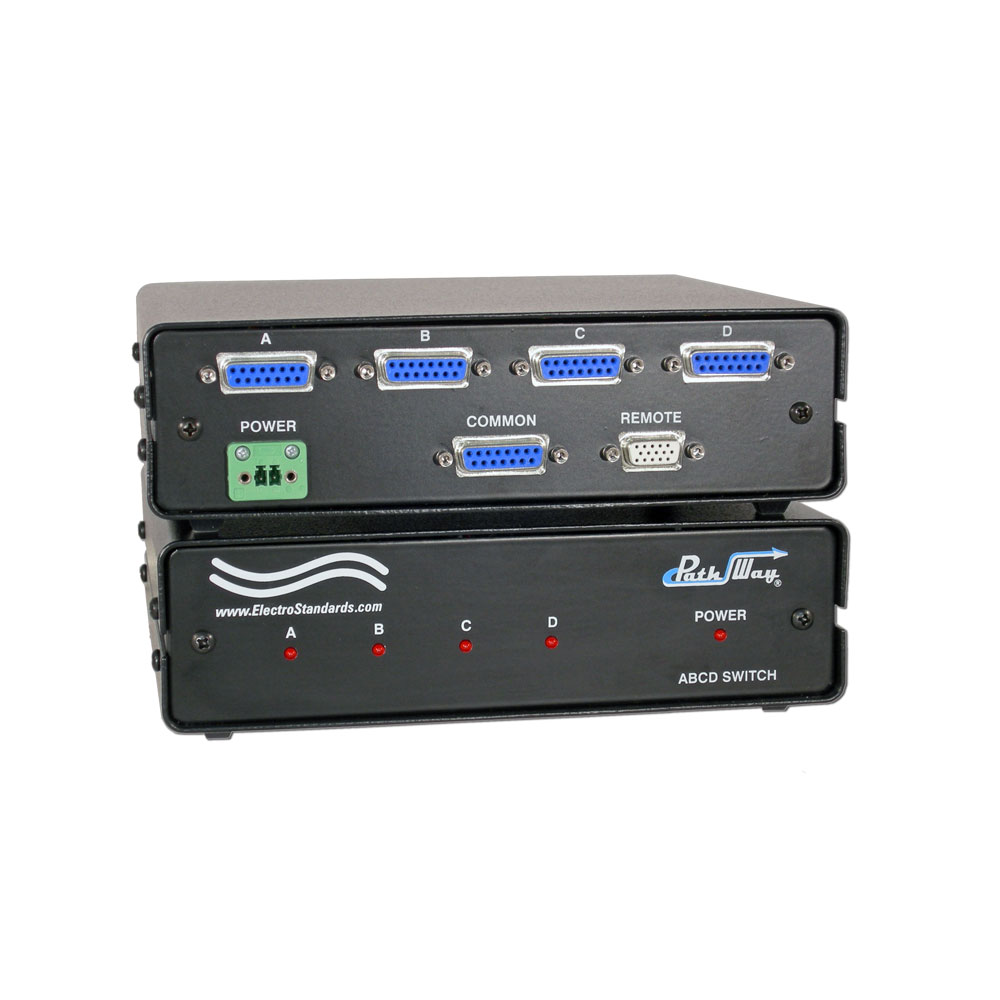

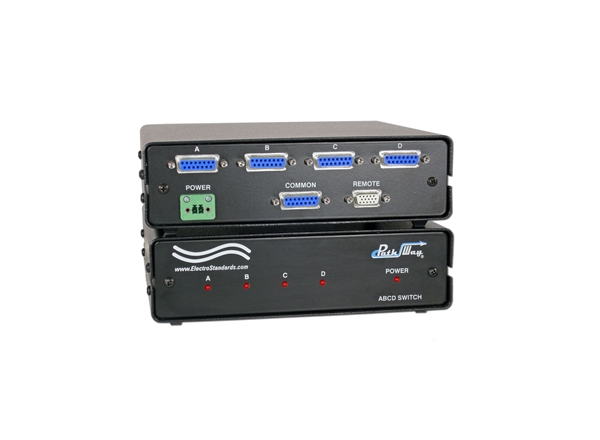

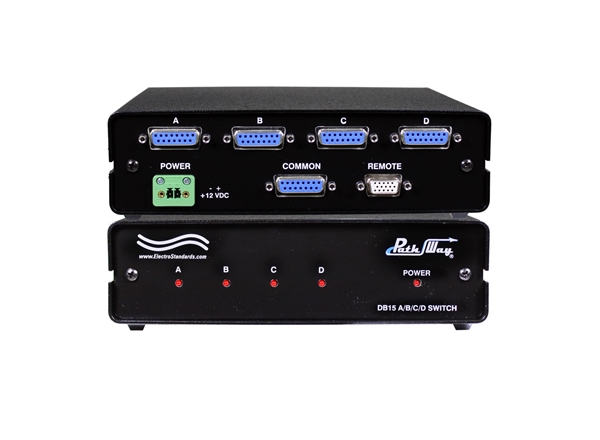

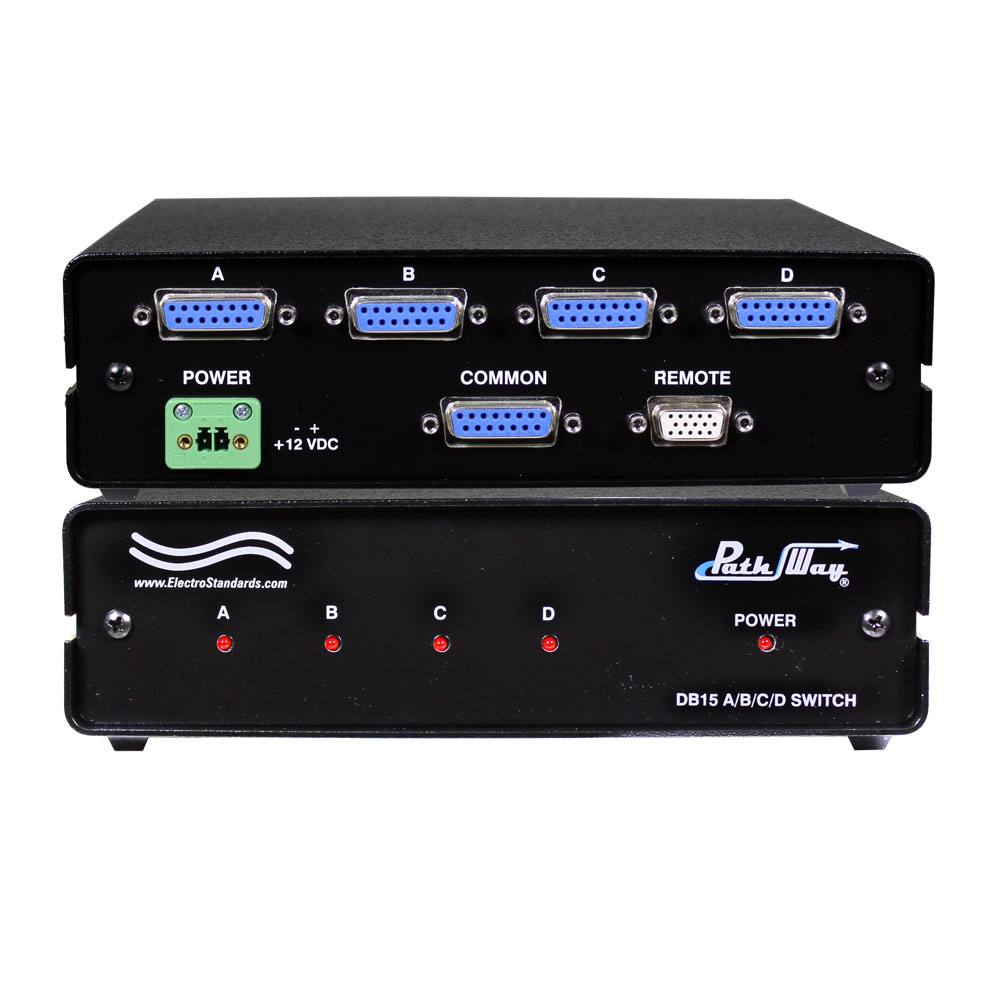

The PathWay® Model 7208-CC DB15 Interface A/B/C/D Switch allows the user the capability of sharing a single DB15 interface device connected to the Common port among four other devices connected to the “A”, “B”, “C”, and “D” ports. The Model 7208-CC is packaged in a slim desktop style enclosure. There is no “local” or front panel switch controls on the unit. The Model 7208-CC can ONLY be switched remotely from the HD15(F) Contact Closure Control port located on the rear of the unit.  The front panel LED display indicates the switch position and unit power status.

  • Switching exclusively controlled by remote port.

FEATURES OF THE MODEL 7208-CC DB15 CONTACT CLOSURE SWITCH:

  • Allows quick connection to any one of four devices from one COMMON device.
  • There is no “local” or front panel control.
  • HD15 (F) Remote Control port control unit via Contact Closure transition signals.
  • The switch ports are transparent to all data.
  • All (15) pins of the DB15 interface are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Upon power up, the unit switches based on the state of the Contact Closure.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position as well as obtain the present position.
  • Front panel LED’s display the present position and power status.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom length DB15 cables available for your switch installation.

TEHCNICAL SPECIFICATIONS:

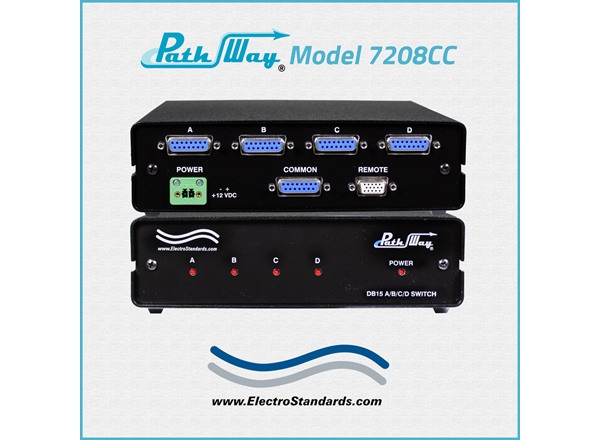

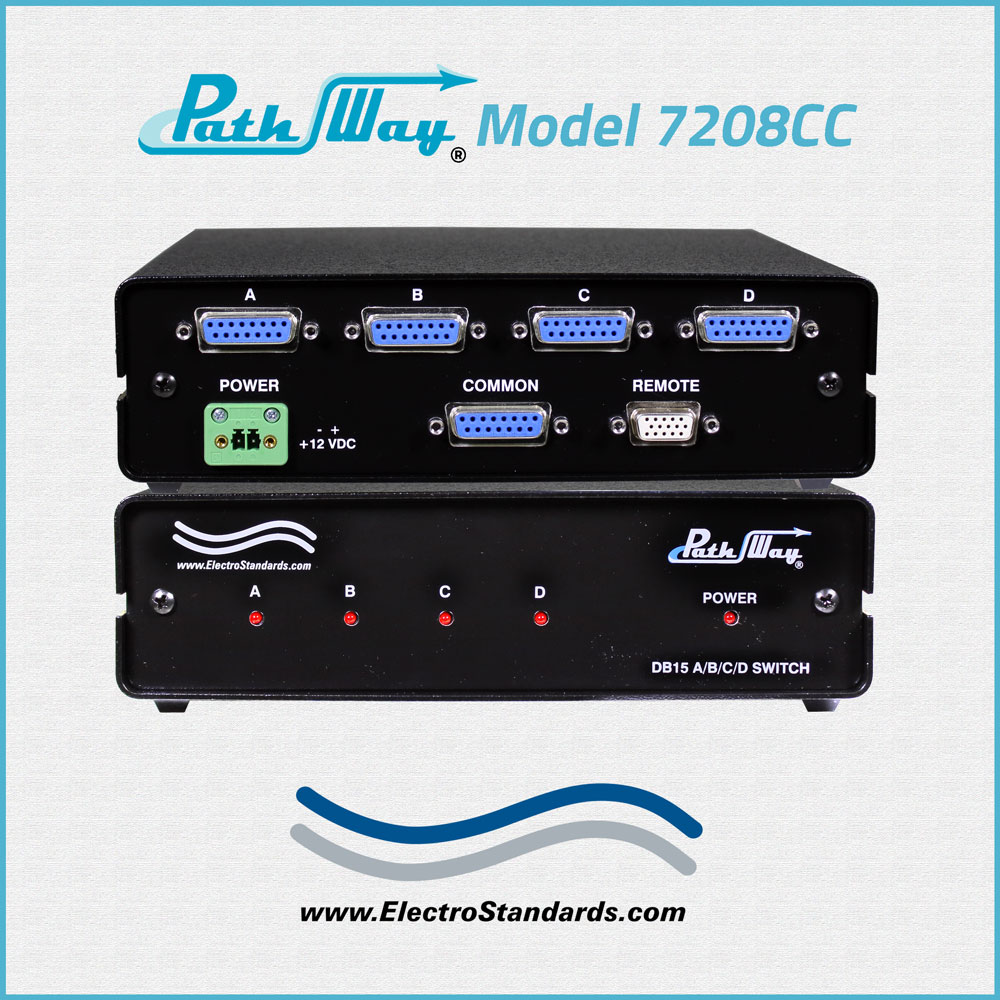

  • PORT CONNECTORS: (5) DB15 female connectors labeled A, B, C, D, and COMMON.

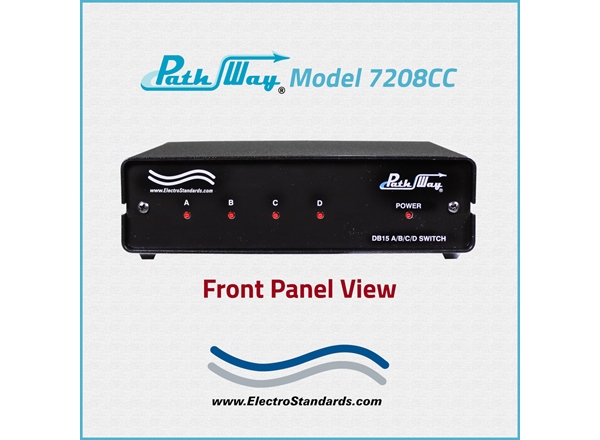

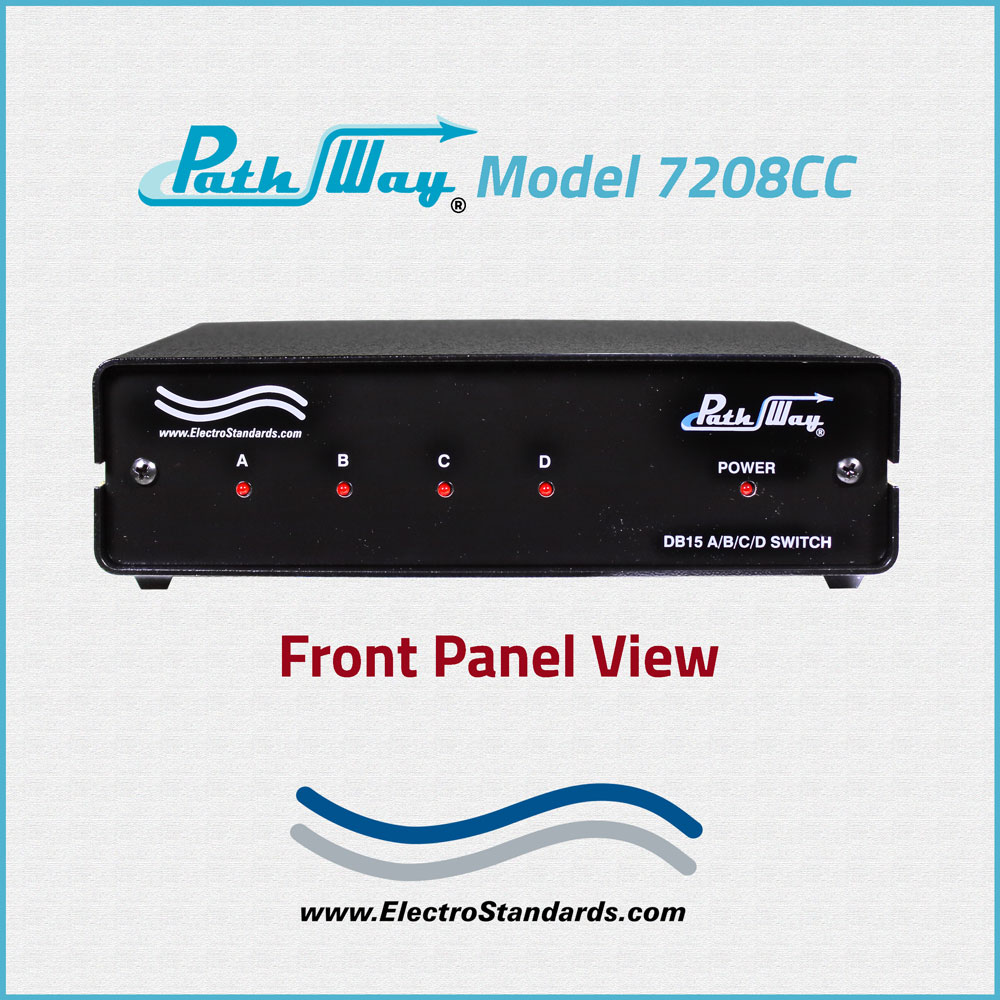

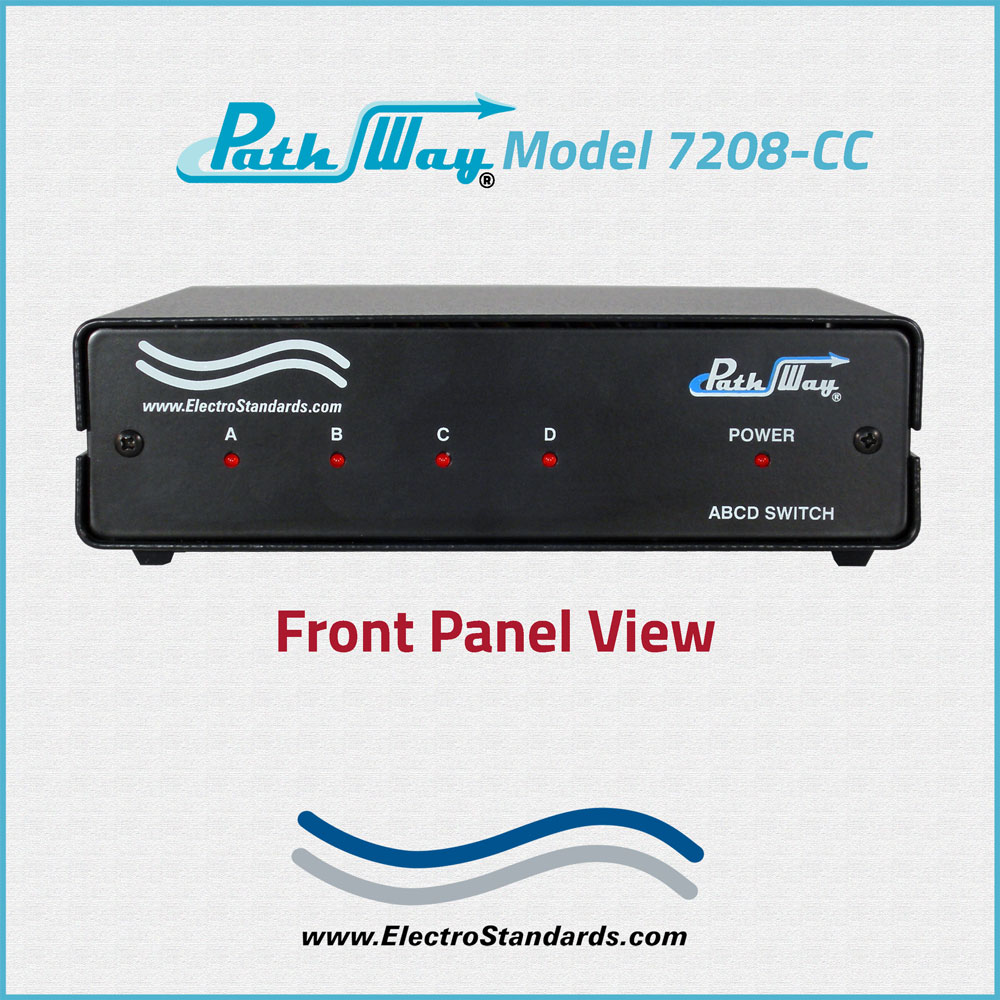

  • DISPLAY: (5) Front panel LED's display switch position and power status.

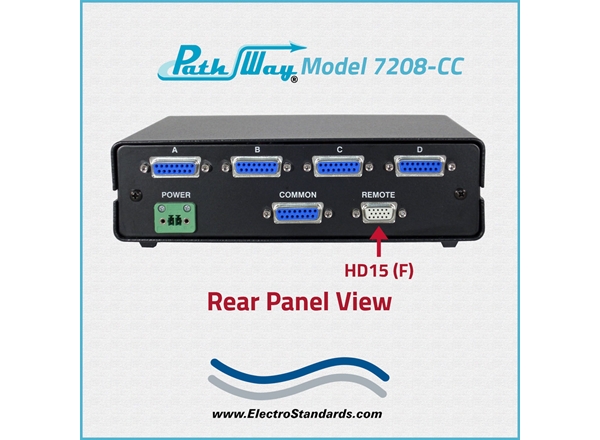

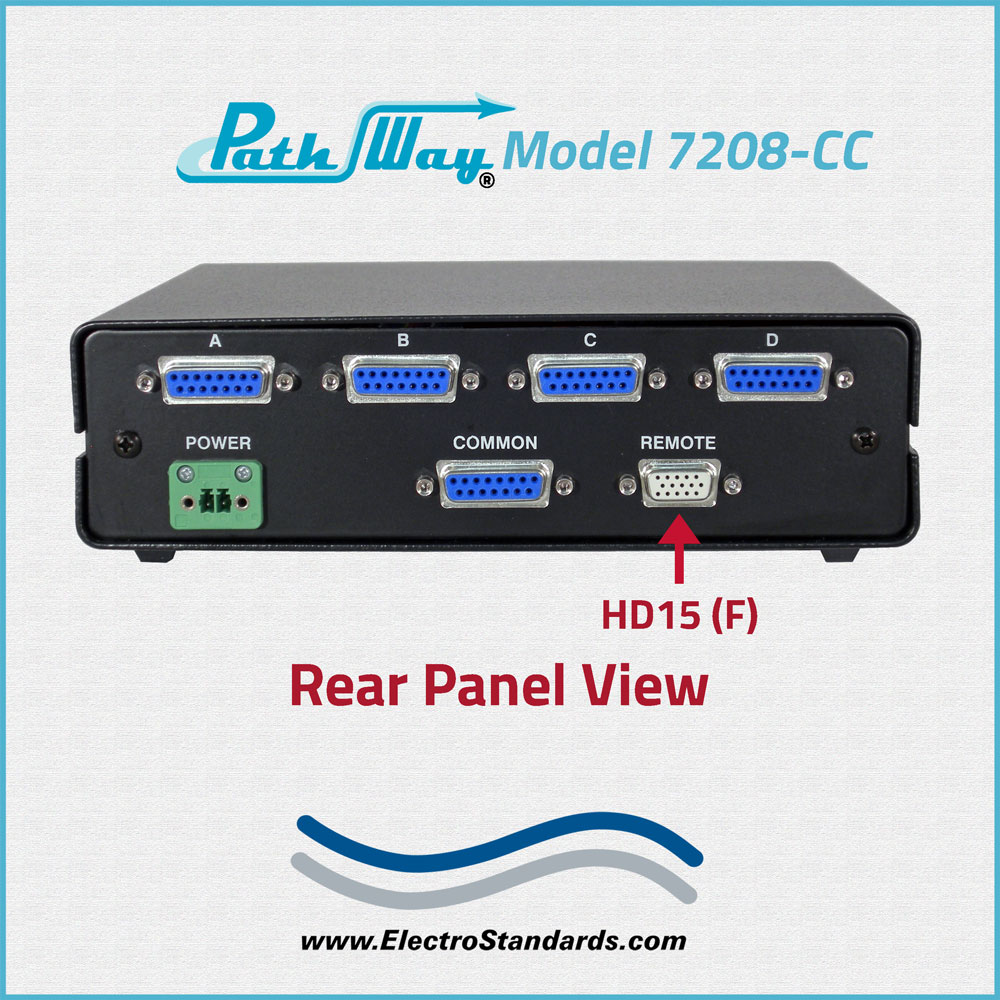

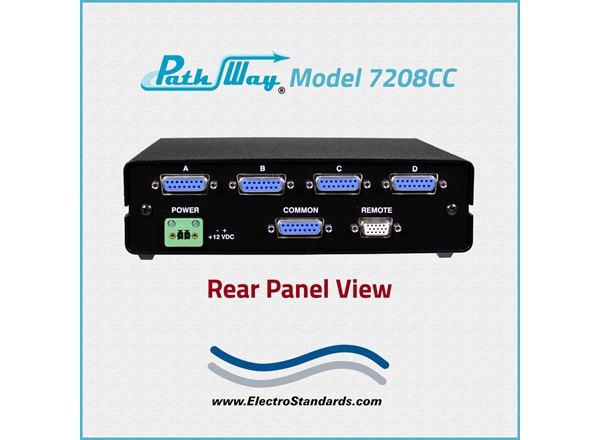

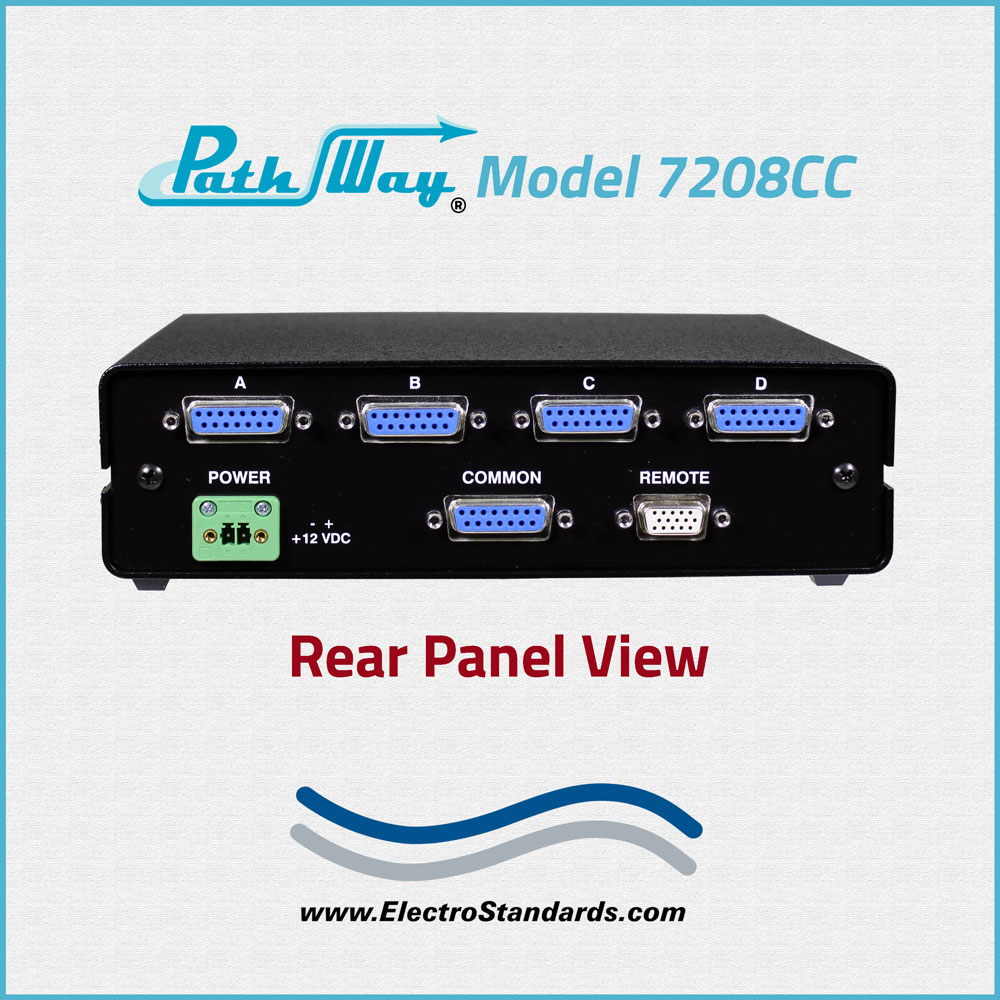

  • REMOTE CONTROL: (1) HD15 female connector on rear panel accepts Contact Closure transition signals for Remote Control operation.
  • POWER: UL approved wall mount 100VAC-240VAC, 50HZ-60Hz power module supplies 12VDC, 500mA to the unit. Has a 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop Configuration, 7.75" W x 2.0" H x 7.25" D.  (19.7 x 5.1 x 18.4 cm)
  • WEIGHT: Approximately 3.0 lbs. (1.0 kg)

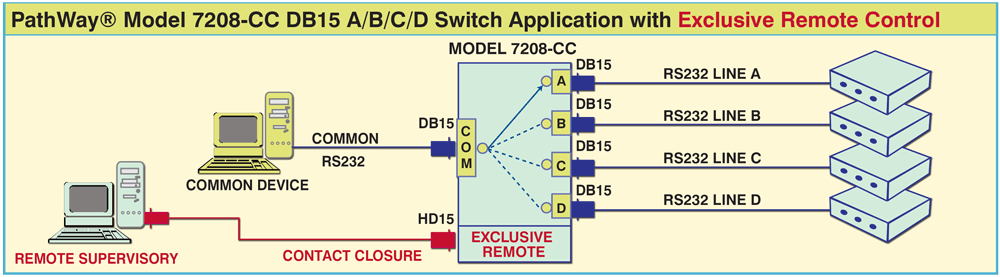

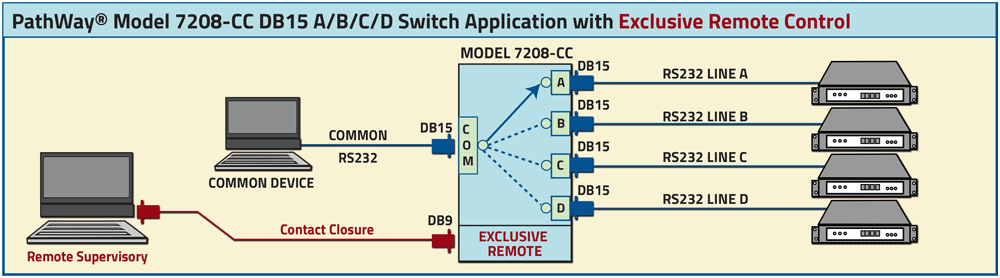

PathWay® Model 7208-CC A/B/C/D Switch with Exclusive Remote Control Application Drawing:

The PathWay® Model 7208-CC application drawing illustrates a DB15 interface device connected to the COMMON port with access to any one of four DB15 Interface Devices connected to the DB15 A, B, C or D port. The HD15 Remote port is an Exclusive Remote port that a user can control the Model 7208-CC A/B/C/D switch position & status via Contact Closure transition signals and status.

athWay® Model 7208-CC DB15 A/B/C/D Application

Ordering Information

  • Catalog Number: 307208-CC
  • Model Number: 7208-CC
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.

Shipping and Returns           UPS

  • Shipped via UPS ground (unless otherwise requested).
  • Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
  • Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION WIDE RANGE POWER OPTION: (Cat No 517277) CE, RoHS, and UL listed table mount power module, 100 VAC-240 VAC, 50Hz-60Hz for use in place of standard power module that is included with the unit. Has IEC 60320 C14 inlet.  Ideal for international applications.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateur d'ordinateur,  equipo interruptor, interruttore del calcolatore, interruptor do computador, dator switch.
