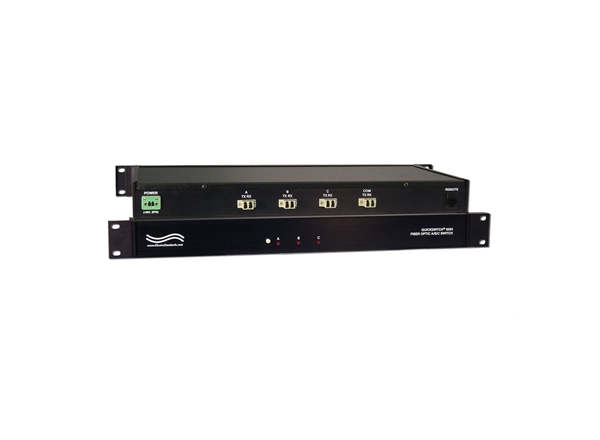

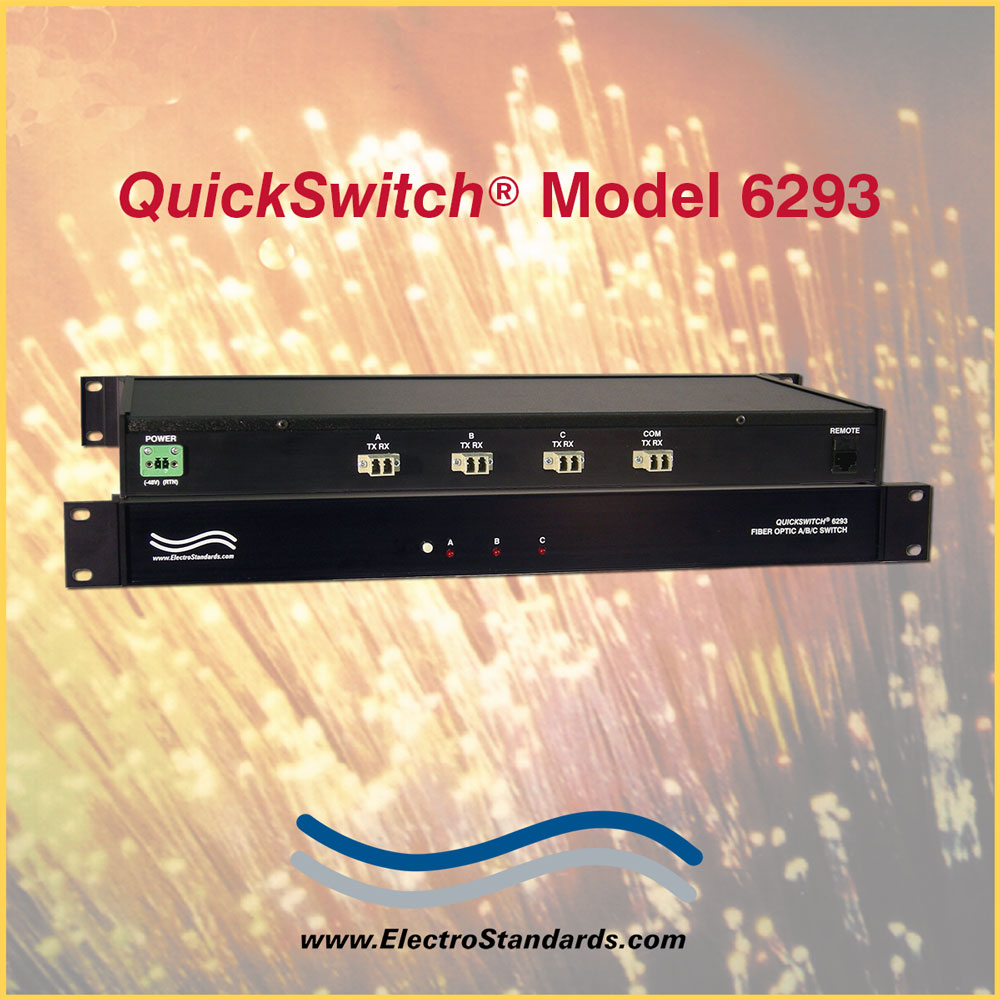

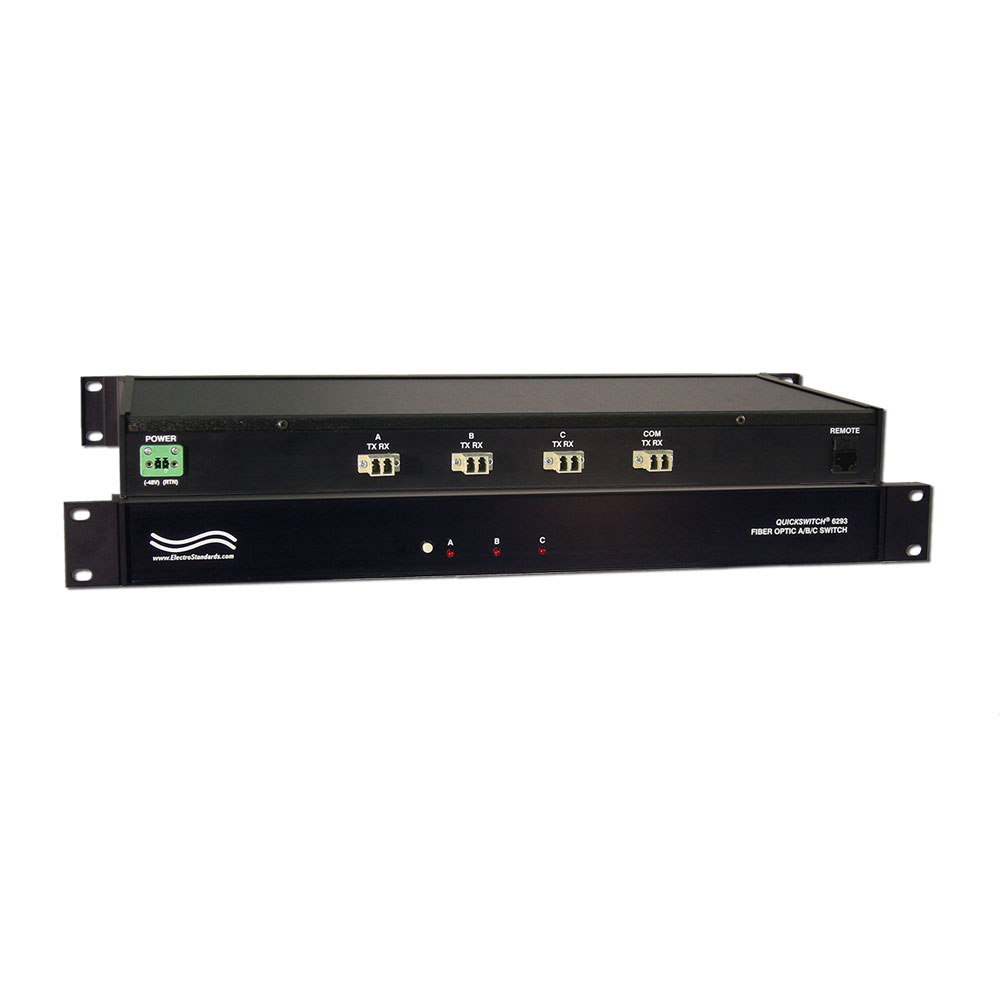

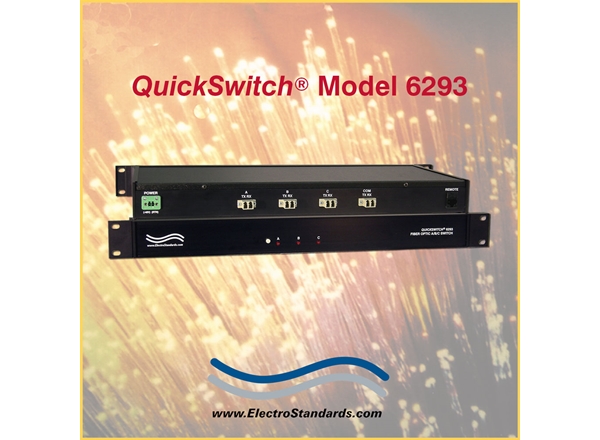

QuickSwitch® 6293 Fiber Optic Mirror A/B/C Switch, Single Mode LC Duplex, with Remote Serial Access

Overview

The QuickSwitch® Model 6293 Fiber Optic Mirror A/B/C LC Duplex Switch with Remote Serial Access allows the user the capability of sharing a Fiber Optic LC Duplex pair connected to the COMMON port among three other sets of LC Duplex pairs connected to the A, B, and C ports with local and remote access functionality. This Remote access can be accomplished using an RJ45 connection via ASCII RS232 Serial commands.

Remotely controllable from Terminal Server connection to switch serial CONTROL port.
Ideal for Dynamic Backup Applications!

FEATURES OF THE MODEL 6293 LC DUPLEX SWITCH:

The switch ports are transparent to all data.
All switched signals are passed via mirror relays that maintain their position and continuity even in the event of a power loss or failure.
Supports single mode fiber (SMF-28), 9/125 micron fiber with a wavelength of 1310 nm.
Front panel push button Control.
RJ45 Remote control port via RS232 ASCII Commands.
Remote RS232 ASCII commands that allow the user to control switch position, lock and unlock front panel operations, and obtain switch status, as well as, query firmware version number.
MEMS mirror switch supports OC12 speeds of 622 Mbps.
Requires customer supplied -48 VDC, 500 mA power input.
Municipalities, schools, government: This product is on GSA Schedule!

TECHNICAL SPECIFICATIONS:

WAVELENGTH: 1310 nm.

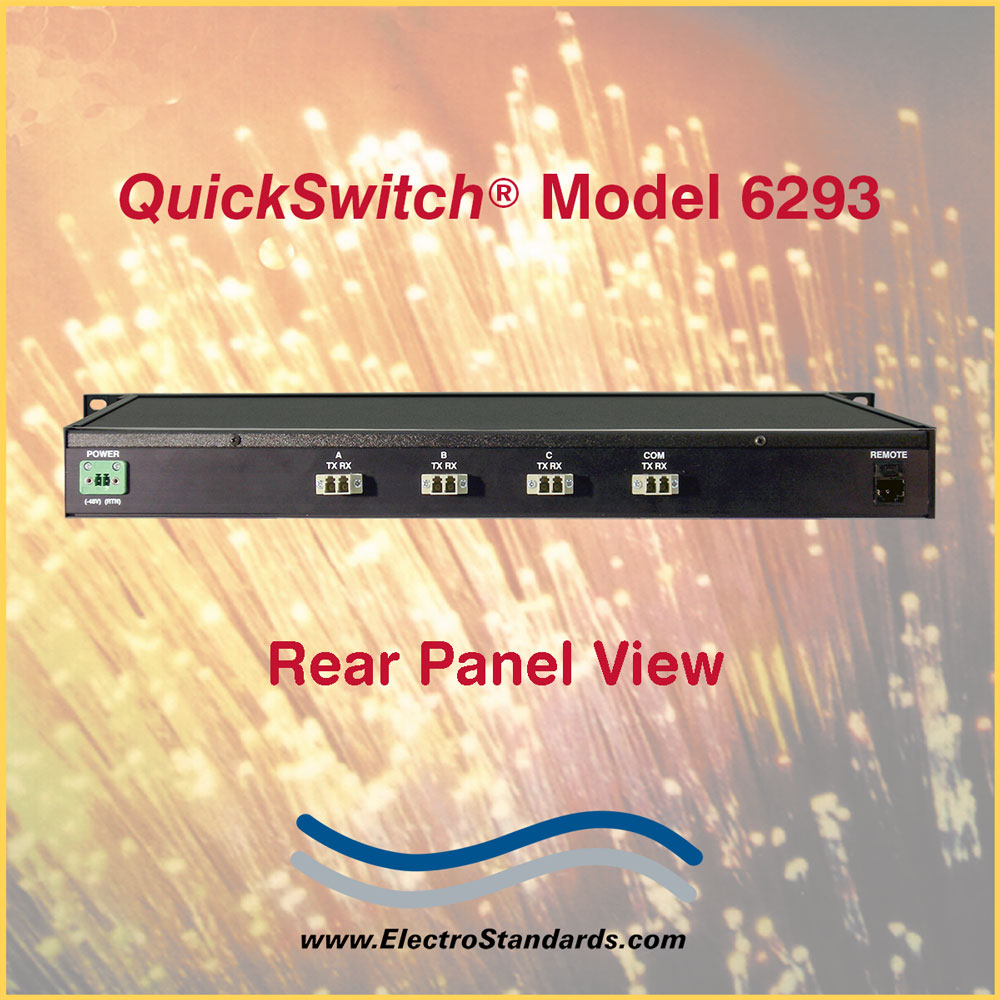

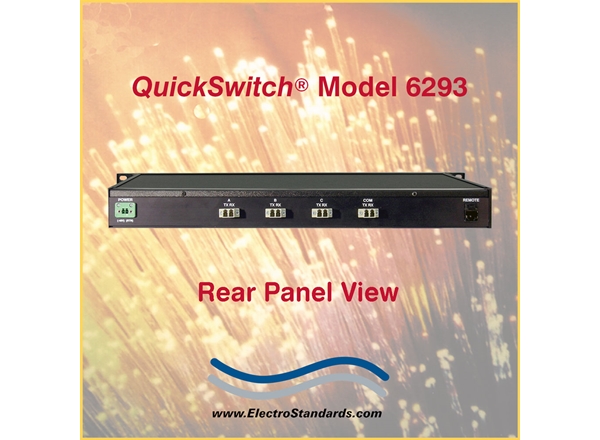

PORT CONNECTORS: (4) LC Duplex connectors labeled A, B, C, and COMMON.

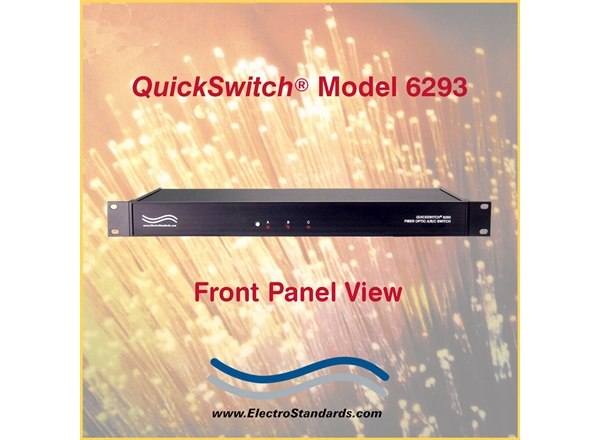

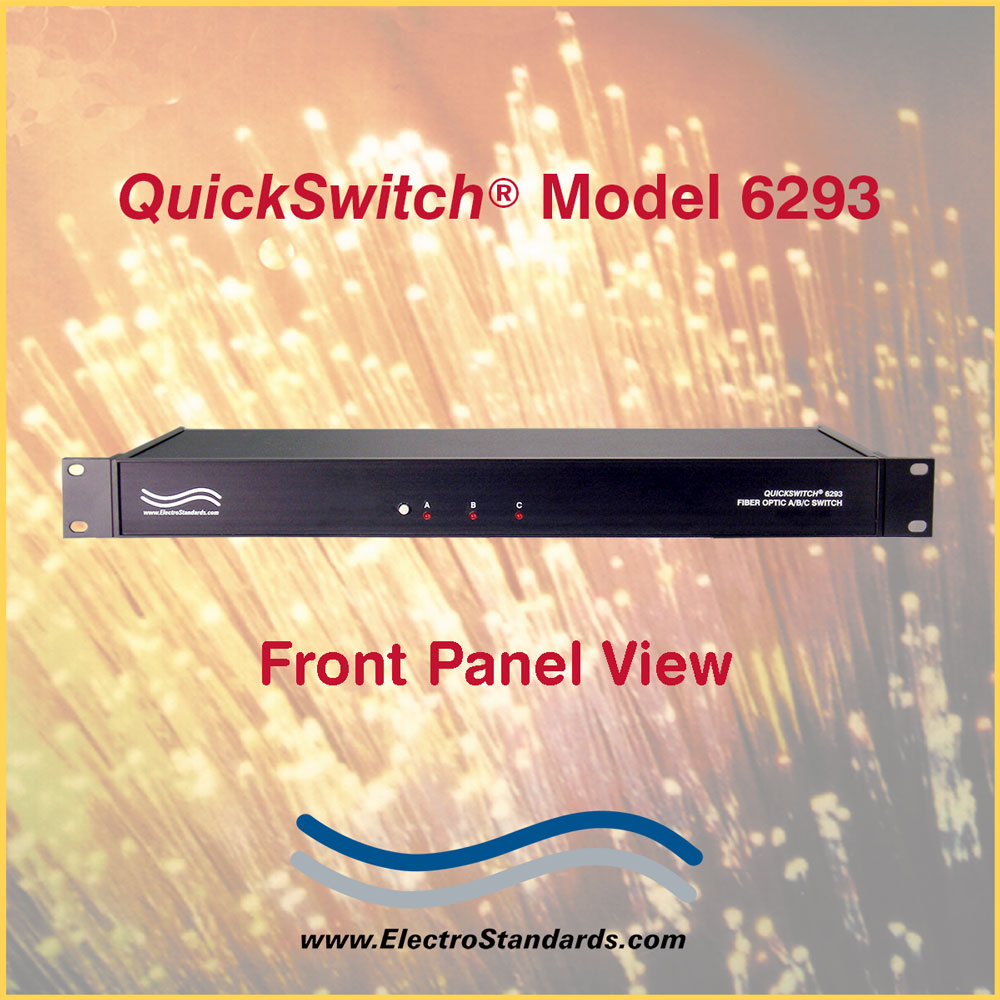

CONTROL: (1) Pushbutton allows selection of switch position.
DISPLAY: (3) Red LED's display switch position and power status.
SUPERVISORY REMOTE PORT: (1) RJ45 (F) connector accepts ASCII RS232 serial data.
POWER: Connector on rear panel accepts customer supplied -48 VDC, 500 mA power input. A mating connector is included along with wiring instructions.
DIMENSIONS: Standard rackmount, 19.0" W x 1.75" H x 8.0" D
WEIGHT: Approximately 4.5 lbs.

QuickSwitch® 6293 Fiber optic Mirror A/B/C switch, Single Mode LC Duplex application with RS232 Serial Remote :

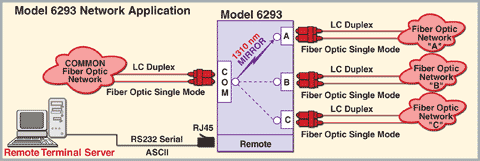

The QuickSwitch® 6293 illustrates an LC Duplex single mode COMMON Port with access to any one of three LC Duplex ports, labeled A , B and C, connected to Fiber Optic Networks A, B or C. The RJ45 Remote port accepts RS232 Serial ASCII commands for Remote Control operation.

QuickSwitch 6293 Single Mode LC Duplex A/B/C Switch application w/RJ45 RS232 Remote

Ordering Information

Catalog Number: 306293
Model Number: 6293
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
