306268 Model 6268 2-Channel SC Gigabit A/B/C Fiber Switch

    2-Channel SC Gigabit A/B/C Fiber Switch2-Channel SC Gigabit A/B/C Fiber Switch2-Channel SC Gigabit A/B/C Fiber Switch2-Channel SC Gigabit A/B/C Fiber Switch
Click image to enlarge
    • 2-Channel SC Gigabit A/B/C Fiber Switch
    • 2-Channel SC Gigabit A/B/C Fiber Switch
    • 2-Channel SC Gigabit A/B/C Fiber Switch
    • 2-Channel SC Gigabit A/B/C Fiber Switch
Base Price:
$8,479.00
Catalog No: 306268
Model No: 6268
Product Type:Switches: Fiber Optic
Positions:3
Cable Type/Port Connector:SC
Channels per Switch Chassis:2
Electronic Switches/Power Required:QuickSwitch® Fiber Optic
Channel Control:Independent Channel Control
Remote Control:Contact Closure
Configuration:Rackmount
Fiber Mode:Multimode
Fiber Size:50/125
Fiber Type:Duplex
Remote Port:DB9
Local Control:Pushbutton
Mirror Technology:OO
Wavelength Nano:850 nm

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

QuickSwitch® Fiber Optic Network Switch, SC Duplex

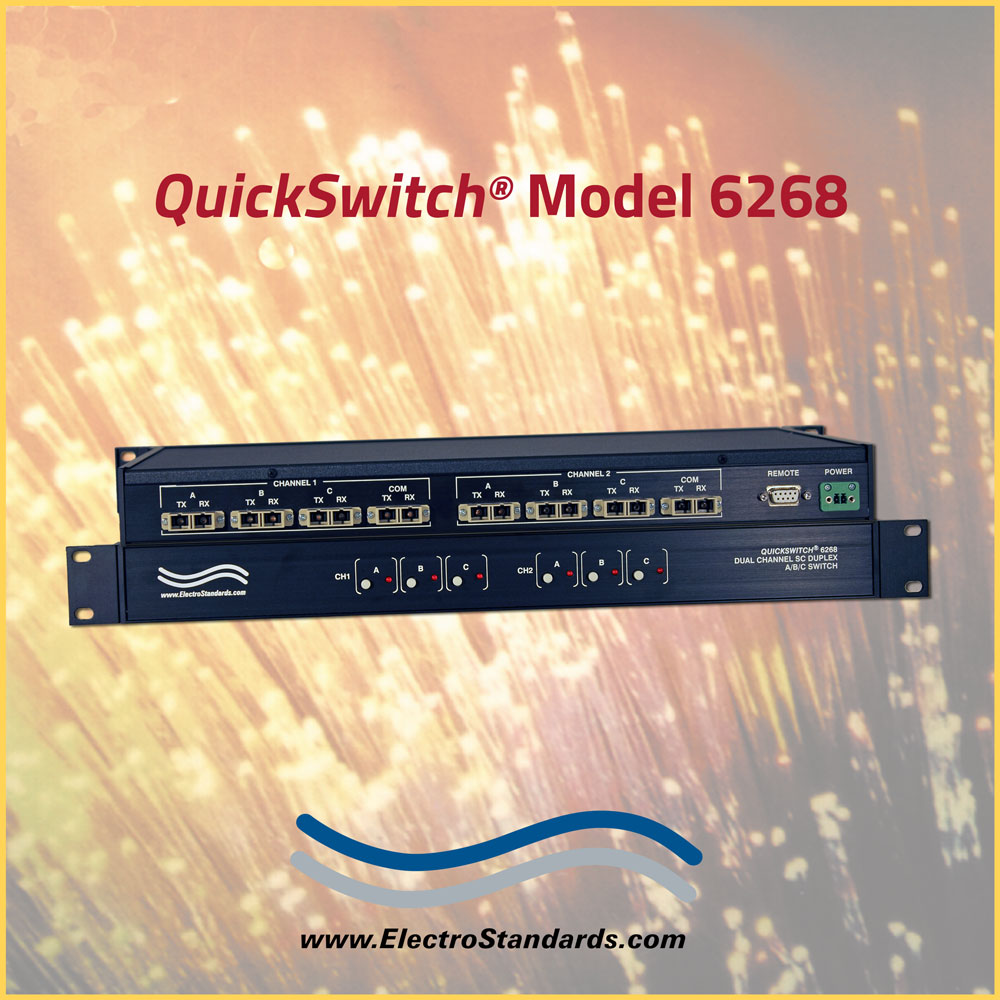

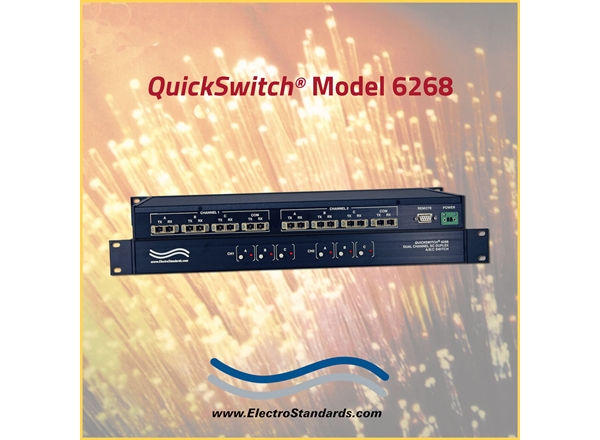

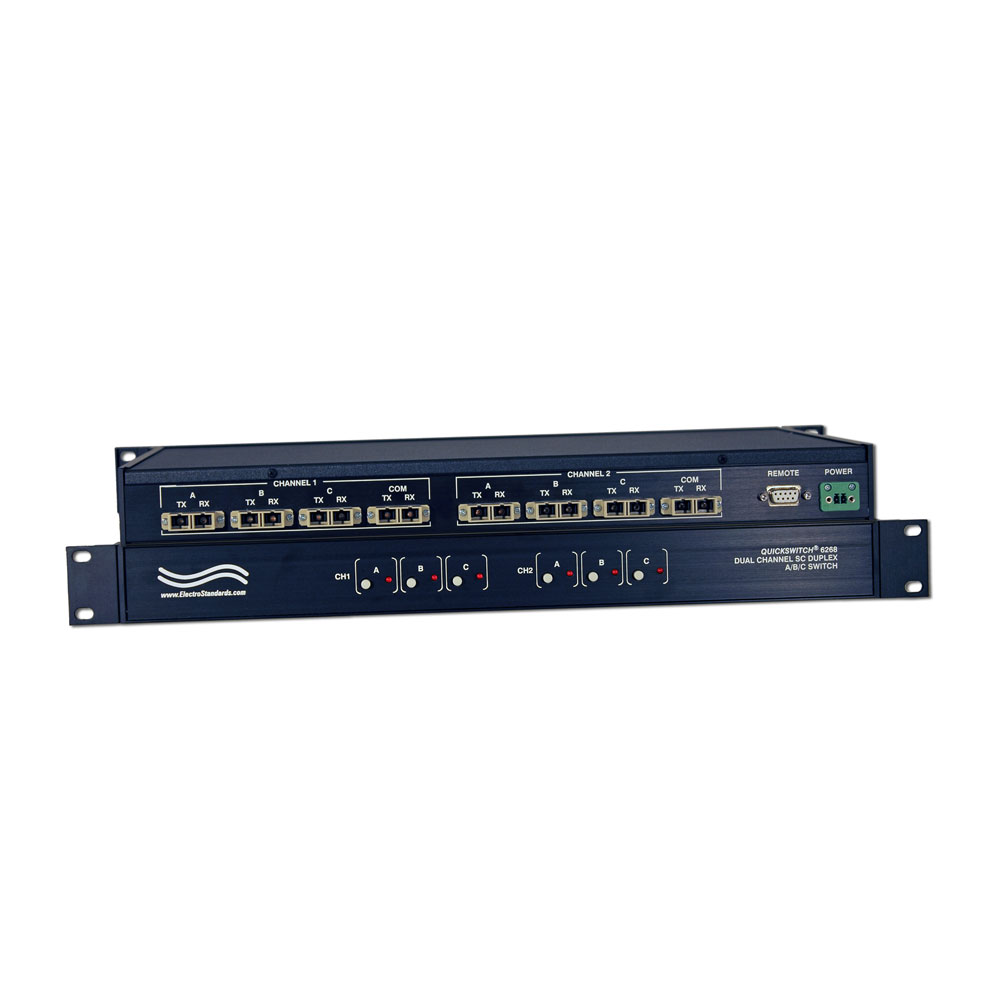

QuickSwitch® 6268 Dual Channel SC Duplex Fiber Optic A/B/C Switch with Contact Closure Remote

SPECIFICATIONS:

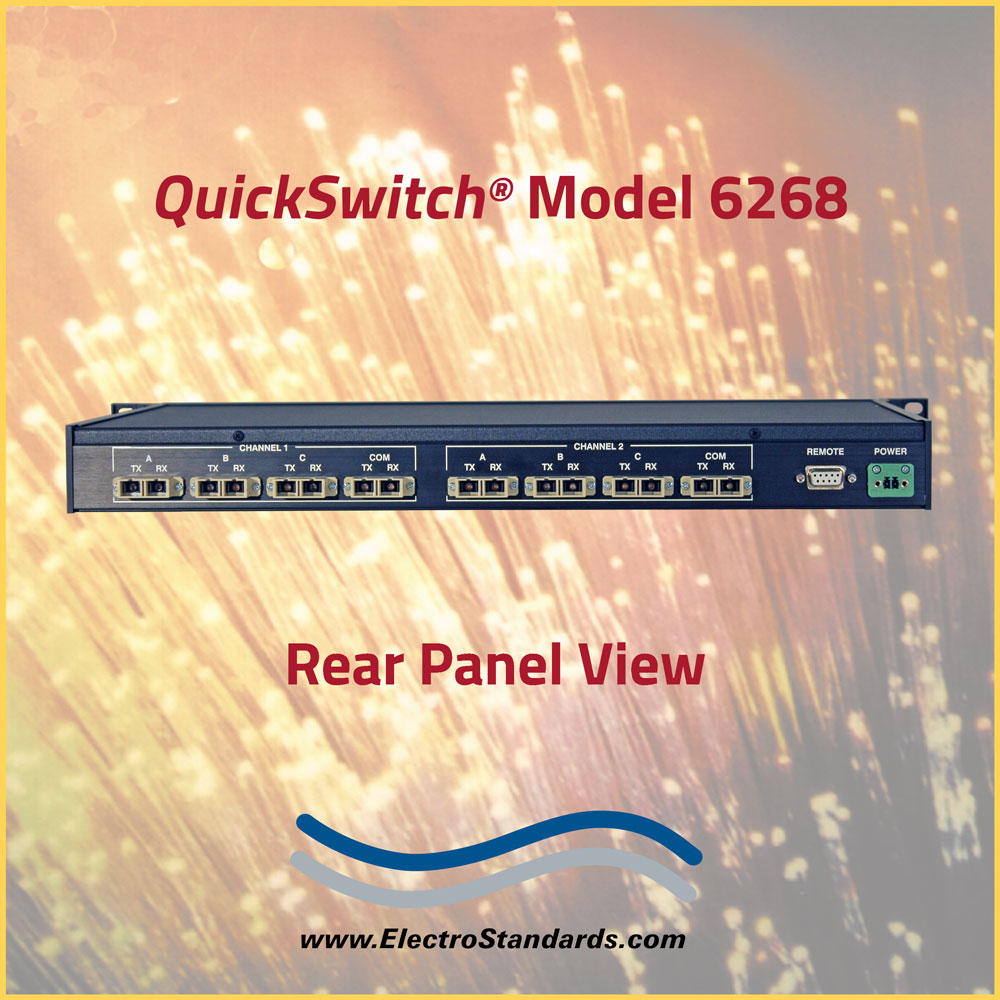

  • PORT CONNECTORS: (8) SC Duplex connectors. (A group of (4) labeled A, B, C and COMMON for each of the 2 channels.)
  • FIBER: 50/125 micron, 850 nm.

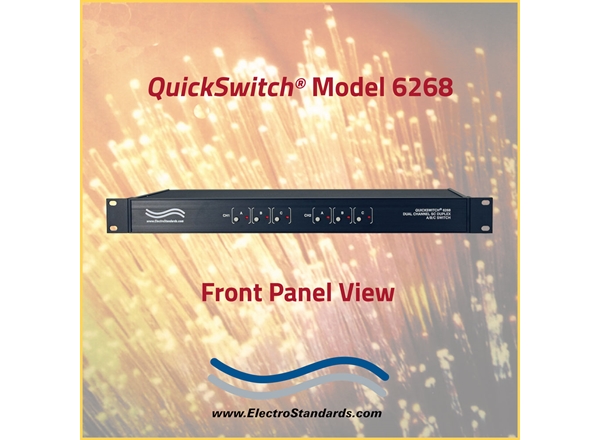

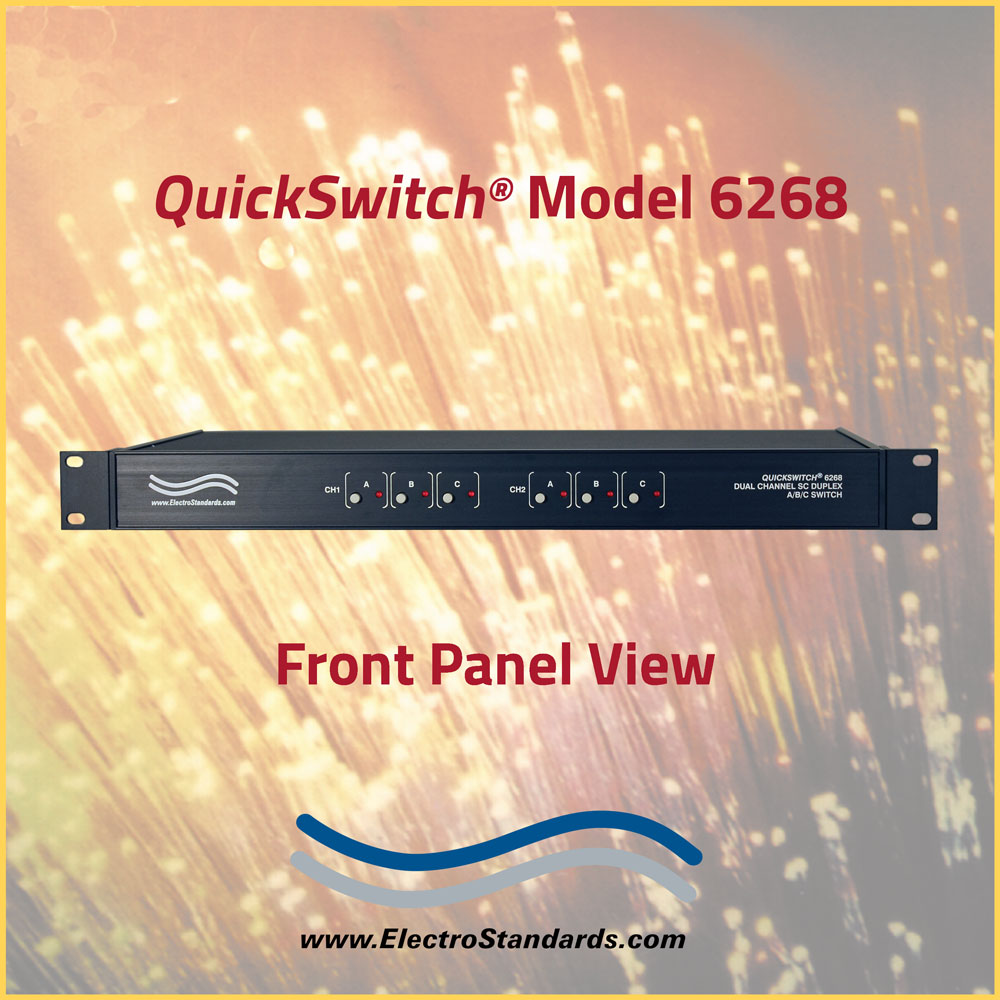

  • FRONT PANEL CONTROLS: (6) Manual pushbuttons allow local switching (3 for each channel).
  • DISPLAY: (6) Front panel LED's display switch position and power status.

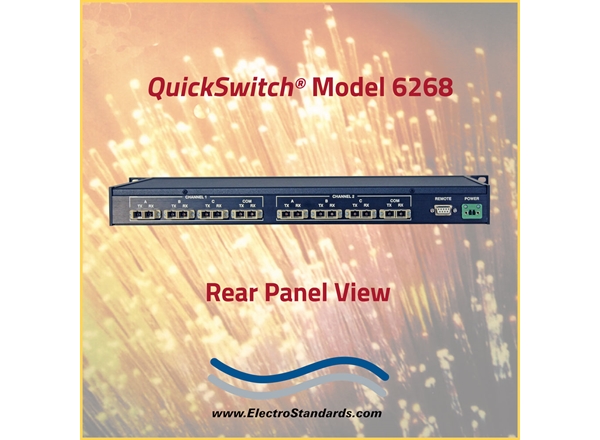

  • REMOTE: (1) DB9 female connector on rear panel accepts contact closure switch commands for Remote Control operation. Accepts Remote Pushbutton Cable Cat. No. 989205.
  • POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 10" D. (48.3 X 4.9 X 25.4 cm)
  • WEIGHT: 5.7 lbs. (2.6 kg)

DUAL CHANNEL SC DUPLEX A/B/C APPLICATION WITH CONTACT CLOSURE REMOTE:

The drawing illustrates two independent channels of SC Duplex fiber optic switching. For each channel, a COMMON device is connected to the COMMON port accessing three devices connected to the A, B, and C ports. There is a DB9 Remote port that accepts Remote Pushbutton Cable, Cat No 989205 for Contact Closure Signaling.

QuickSwitch® 6268 Dual Channle SC Duplex Fiber Optic A/B/C Switch Application

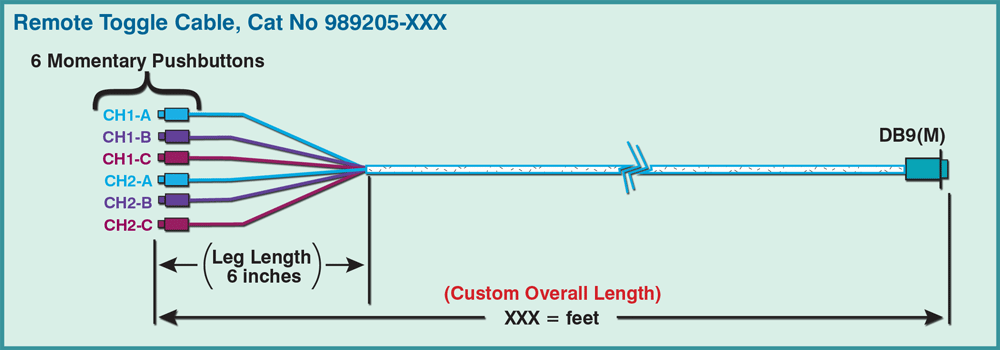

REMOTE TOGGLE CABLE DRAWING, Cat No 989205:

The Remote Toggle Cable, Cat. No. 989205 provides remote contact closure signaling when plugged into the DB9 (F) Remote Control Port of the Model 6268, Cat No 306268 Dual Channel SC Duplex Fiber Optic A/B/C Switch.

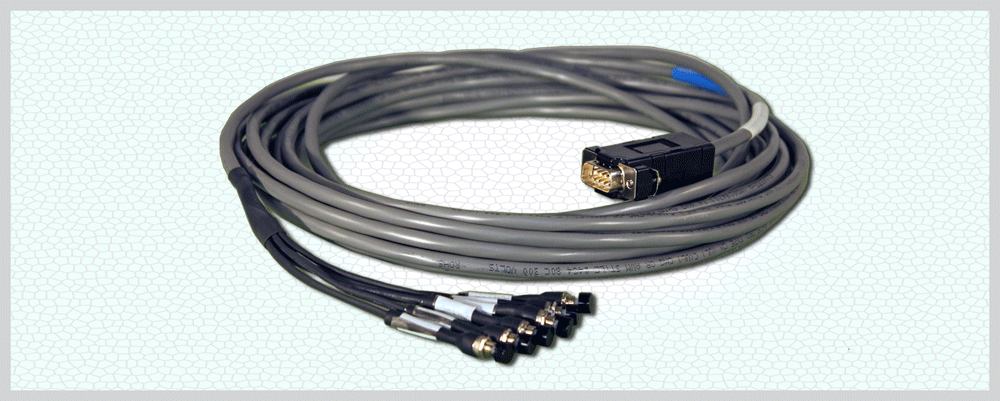

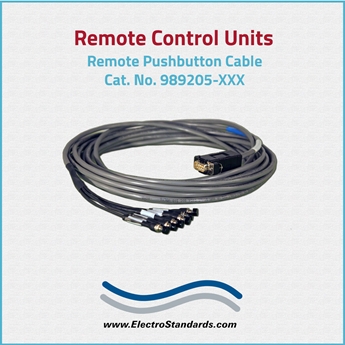

The cable has a DB9 (M) connector on one end and six (6) momentary pushbuttons on the remote end.  The six pushbuttons are on individual fanout cable legs and are labeled CH1-A, CH1-B, CH1-C, CH2-A, CH2-B, and CH2-C.

The cable fanout legs are 6 inches in length. The overall cable is custom length in feet, length to be specified when ordered.

Remote Toggle Cable, Cat No 989205

 FEATURES:

  • The switch ports are transparent to all data.
  • All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology.
  • Front panel pushbutton control.
  • Independent control of each channel, with gang controls.
  • Switch maintains position on power loss and continues to pass data.
  • Remote Contact Closure control provides dry contact logic to allow the control of the switch position.
  • Front panel LED's display present position and power status.
  • All A, B, C, and COM ports are SC Duplex, Multimode, 50/125 micron, and support a wavelength of 850nm.
  • The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX and A/B ports and vice versa.
  • Remote port compatible with Remote Pushbutton Cable Cat. No. 989205.
  • Custom length rigorously tested and certified SC duplex fiber optic cables available for your switch installation.

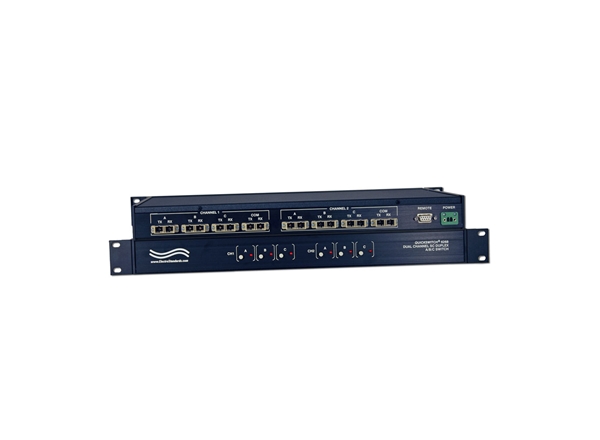

The QuickSwitch® Model 6268 Dual Channel SC Duplex A/B/C Switch with Contact Closure Remote allows the user the capability of sharing a single port interface device connected to the "COMMON" port among three other devices connected to the "A", "B", and "C" ports, for each channel, with remote access functionality.  Remote Control access can be accomplished using dry contact logic, or using the Remote Pushbutton Cable, Cat No 989205. The QuickSwitch® 6268 is enclosed in a 1U, full rack size, all metal, black chassis designed to fit in a standard 19" rack.

Option: Wide Range Power Supply: (Cat No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

TO READ THE ARTICLE EITHER CLICK THE LINK OR APPLICATION ICON AT TOP OF PAGE: "HOW TO DETERMINE THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf. You need Acrobat Reader to view the file.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our online Custom Product Request form.

Electro Standards can supply all your Fiber Optic Cable requirements.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export.

Electro Standards welcomes International inquiries: commutateurs à fibres optiques, interruptores de fibra óptica, switch in fibra ottica, switches de fibra óptica, fiberoptiska switcher.
