QuickSwitch® 6267 Dual Channel LC Duplex Fiber Optic A/B Switch

Overview

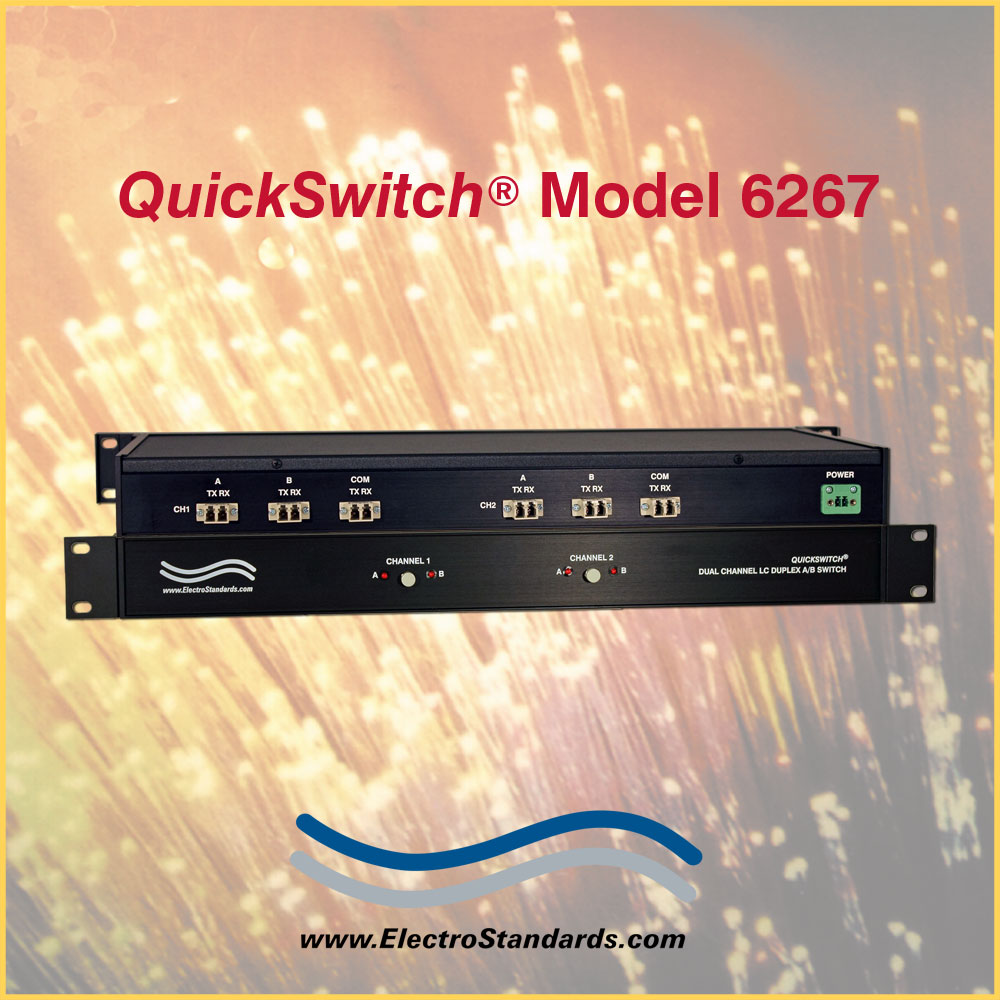

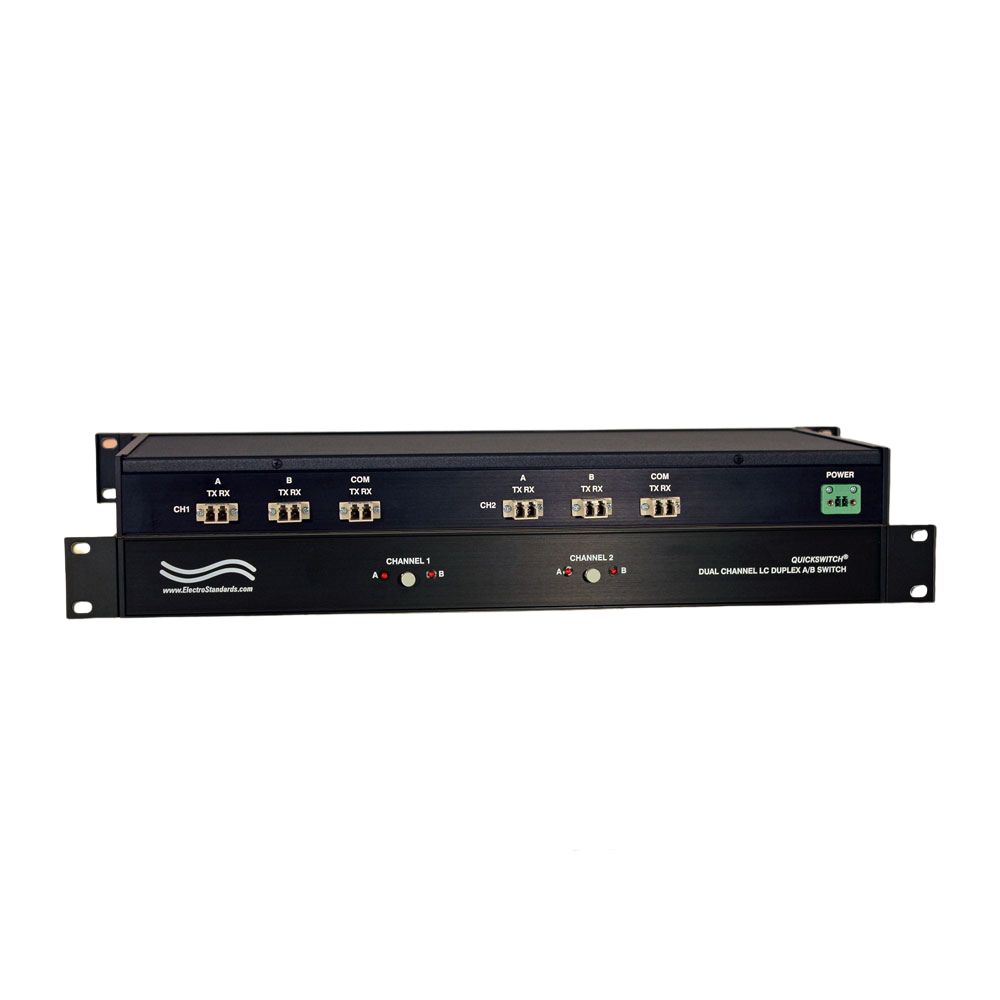

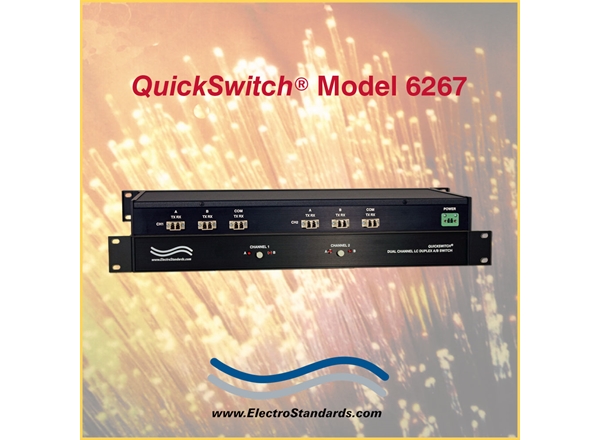

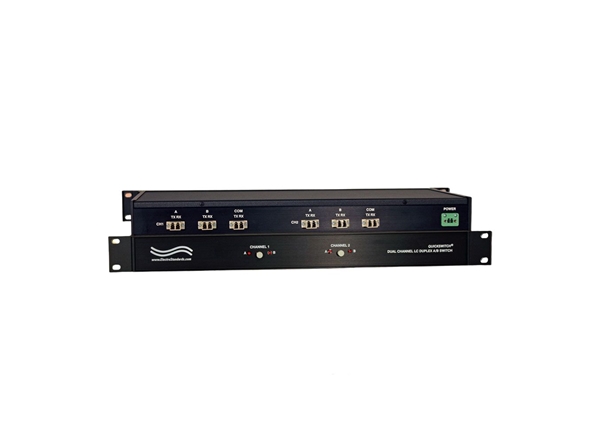

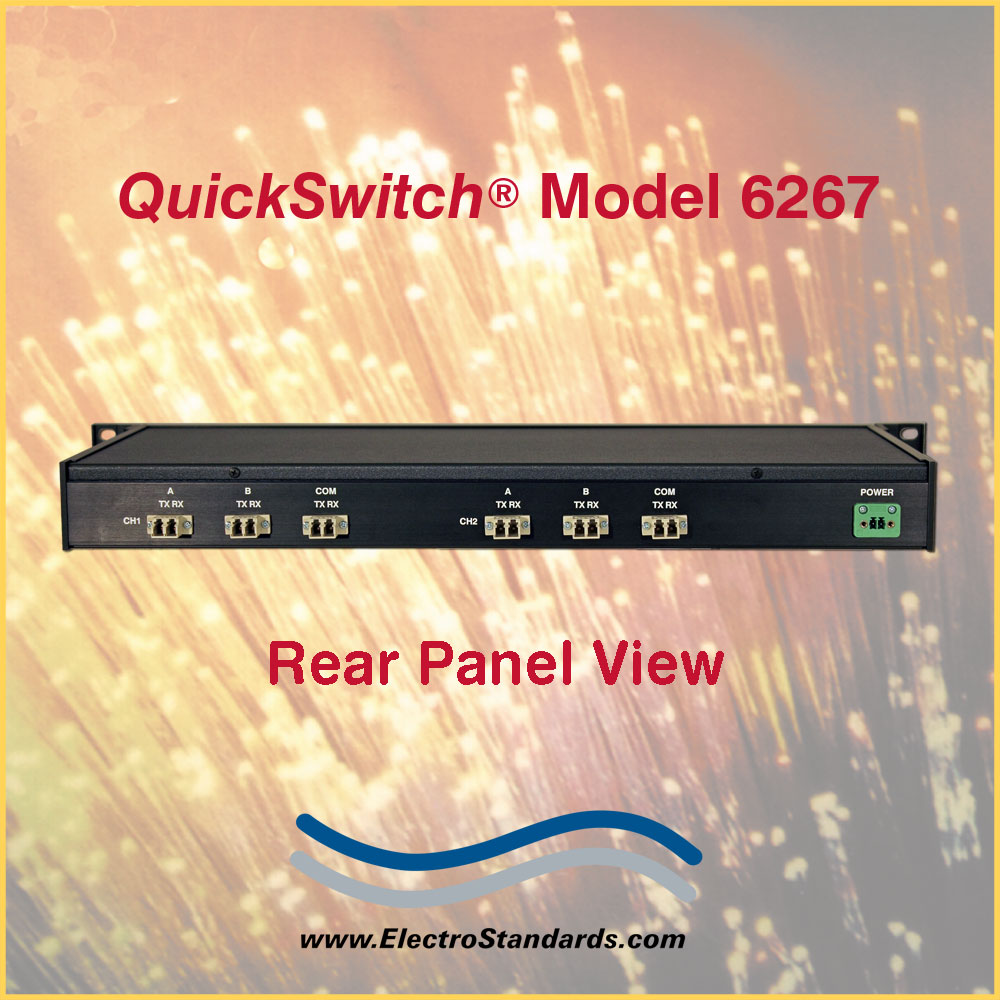

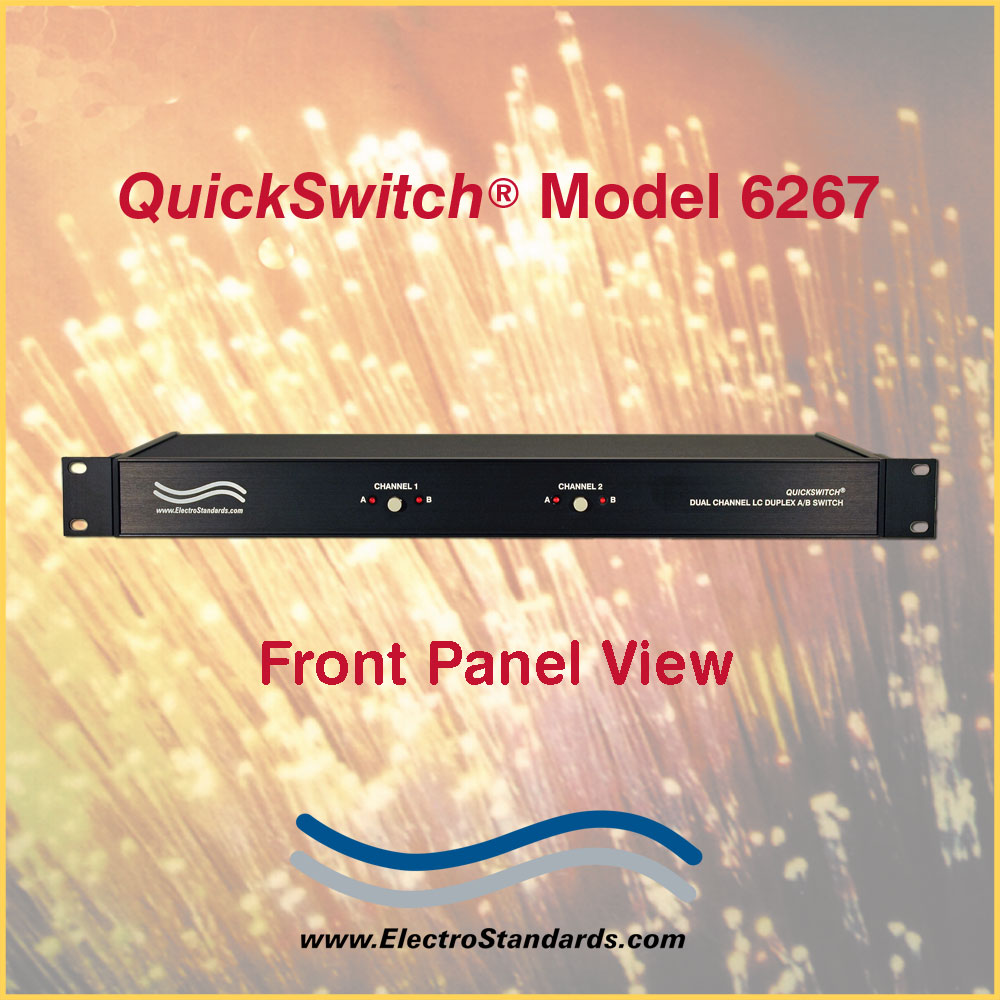

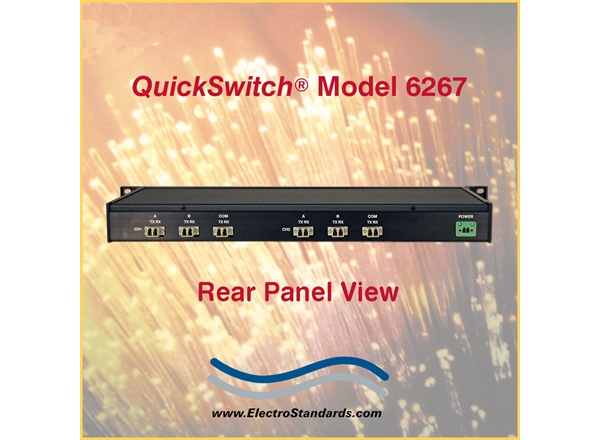

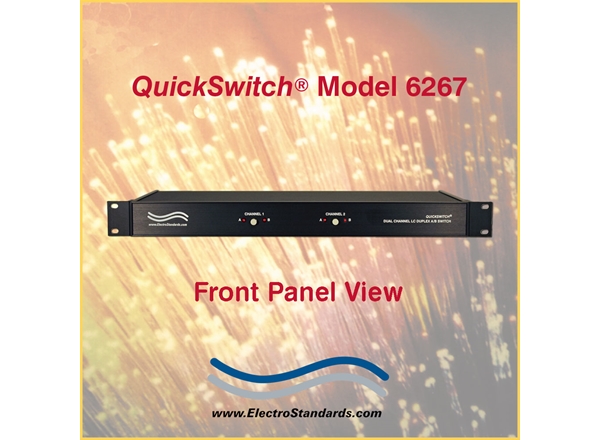

The QuickSwitch® Model 6267 Dual Channel LC Duplex A/B Switch allows the user the capability of sharing a single port interface device connected to the "COMMON" port among two other devices connected to the "A" and "B" ports, for each channel.

The QuickSwitch® Model 6267 is enclosed in a 1U, full rack size, all metal black chassis designed to fit in a standard 19" rack.

Two channels of "all fiber optic switching" supports Gigabit data rates!

FEATURES OF THE MODEL 6267 LC DUPLEX A/B SWITCH:

Each channel allows access to two LC duplex fiber optic networks from one computer or network.
The switch ports are transparent to all data.
All fiber signals are switched via break-before-make MEMS-based mirror/prism switch technology and support Gigabit data rates.
Front panel pushbutton control.
No remote control.
Independent control of each channel.
Switch maintains position on power loss and continues to pass data.
Front-panel LED's display switch position and power status.
All A, B, and COMMON ports are LC Duplex, multimode, 62.5/125 micron and support a wavelength of 850 nm.
The fiber ports are configured per TIA/EIA-568-B.3, where the TX of the COM port is routed to the RX of the A/B ports and vice versa.
Custom length rigorously tested and certified LC fiber optic cables available for your switch installation. Measure the lengths you require. Then call for a quote.

TECHNICAL SPECIFICATIONS:

FIBER SIZE & WAVELENGTH: 62.5/125 micron, 850 nm.
PORT CONNECTORS: (6) LC Duplex connectors. (Three connectors labeled A, B, and COMMON for each channel.)
FRONT PANEL CONTROL: (2) Manual pushbuttons allow local switching. No Remote Control.
DISPLAY: (4) Red, front-panel LEDs indicate switch position, and power status.
POWER: UL Approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
DIMENSIONS: Rackmount, 19.0" W x 1.75" H x 8.92" D. (48.3 X 4.4 X 22.7 cm)
WEIGHT: 4.3 lbs. (2.0 kg)

DUAL CHANNEL FIBER OPTIC LC DUPLEX A/B NETWORK APPLICATION:

The drawing illustrates a COMMON fiber optic network connected to the LC Duplex COMMON port with access to two other Fiber Optic Networks connected to the LC Duplex A and B ports, for each of two channels. Channel 1 and Channel 2 can be switched independently via front panel pushbuttons. The application drawing reflects that there is no remote control for the Model 6267.

QuickSwitch® 6267 Dual Channel LC Duplex Network Appliction

Ordering Information

Catalog Number: 306267
Model Number: 6267
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.
