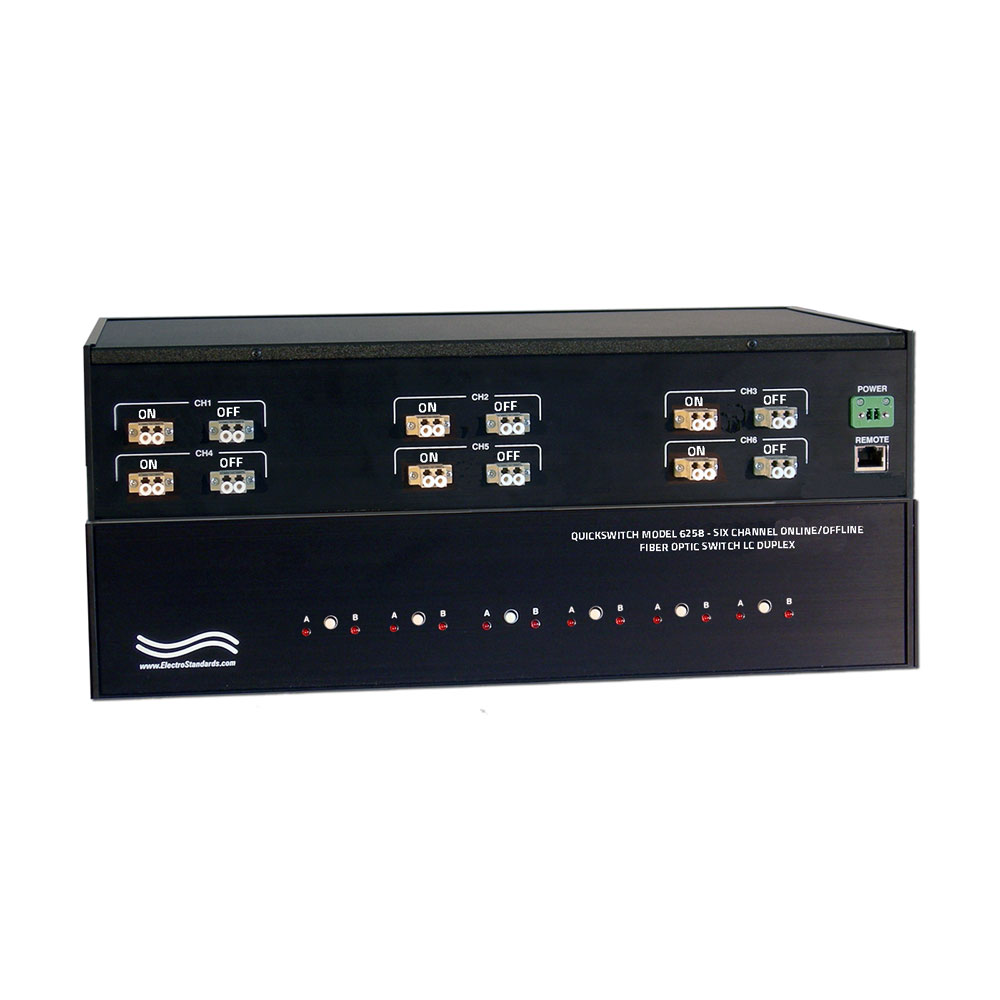

Model 6258 6-Channel LC Fiber Online/Offline Switch, Catalog # 306258

6-Channel Online/Offline SC Duplex Fiber Optic Switch

Click image to enlarge

Base Price:

$12,377.00

Catalog No:

306258

Model No:

6258

Product Type:

Switches: Fiber Optic

Positions:

2, Offline

Cable Type/Port Connector:

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Channel Control:

Independent Channel Control

Remote Control:

Ethernet

Security:

Offline Position

Configuration:

Rackmount

Fiber Mode:

Multimode

Fiber Size:

62.5/125

Fiber Type:

Duplex

Remote Port:

RJ45

Local Control:

Pushbutton

Mirror Technology:

Wavelength Nano:

1300

Qty

Add to Cart

SPECIFICATION SHEET

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

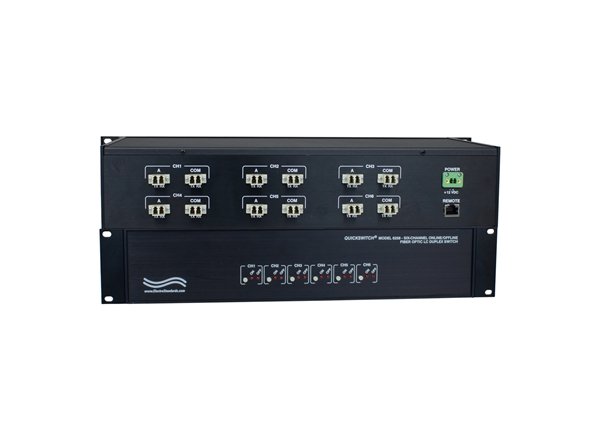

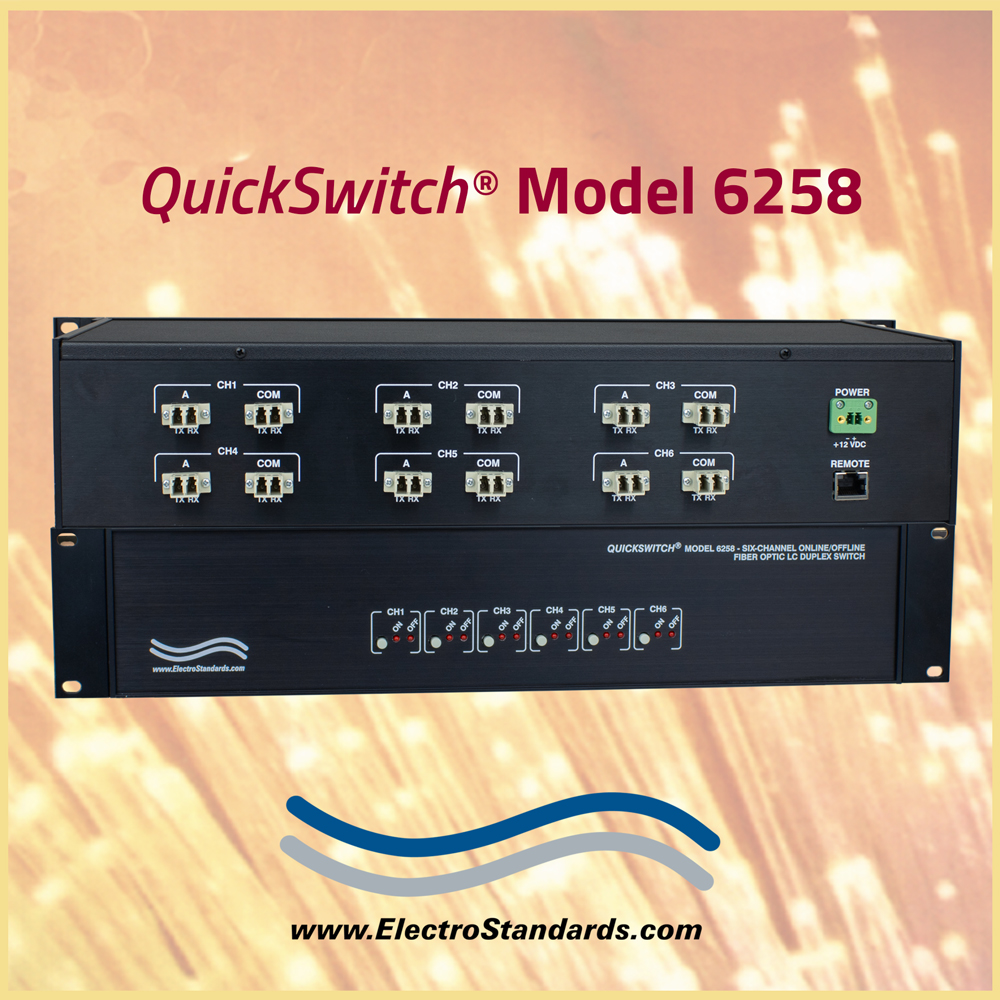

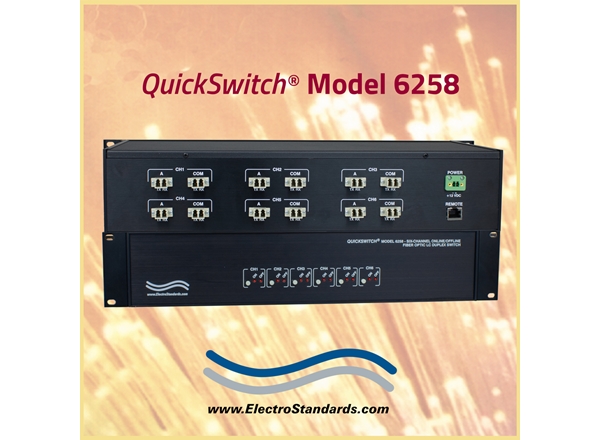

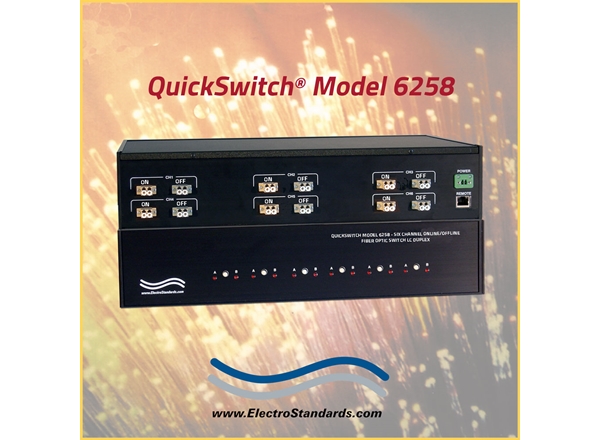

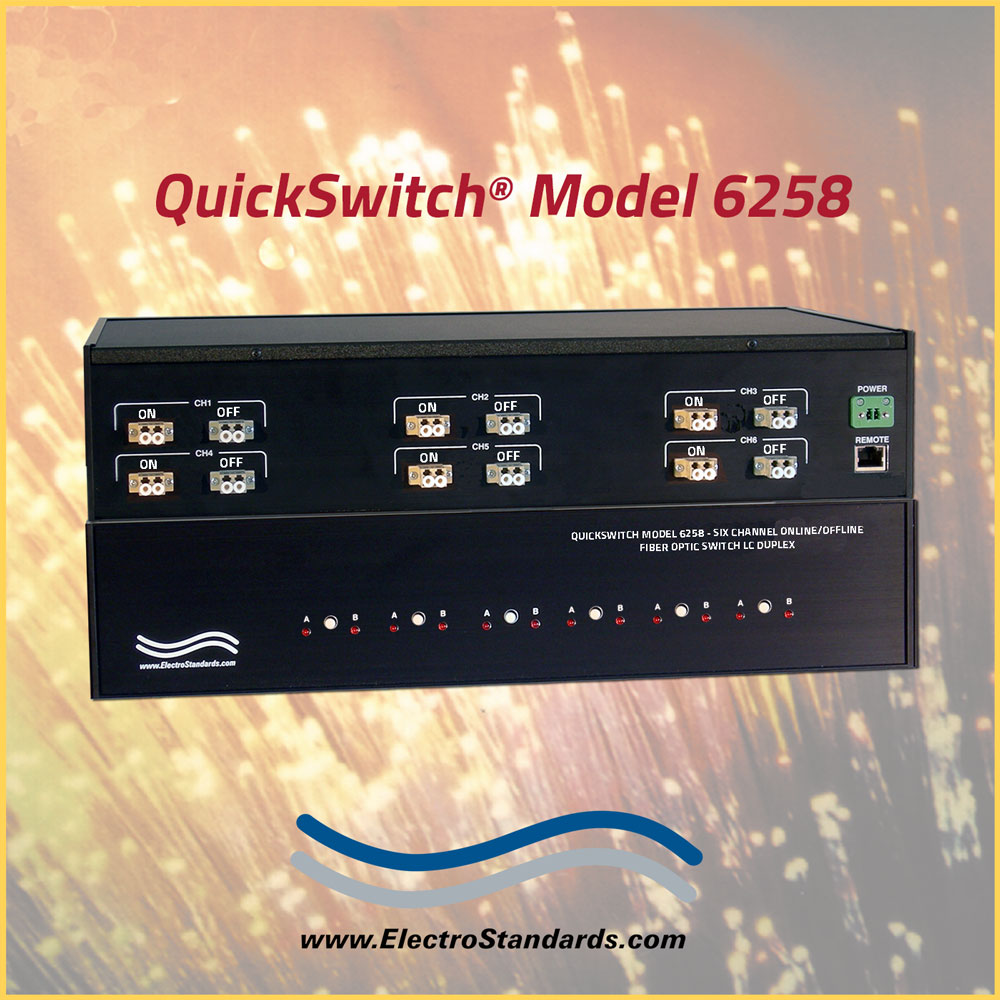

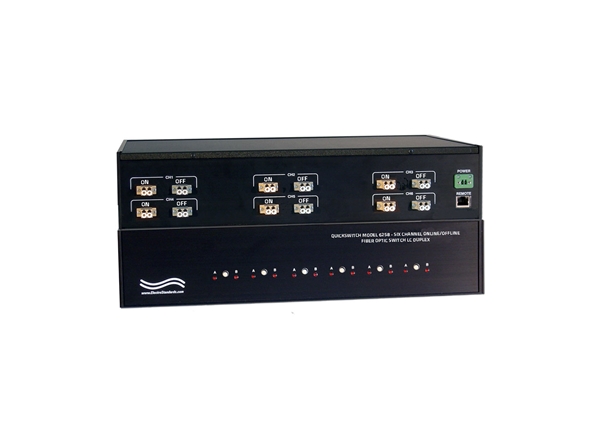

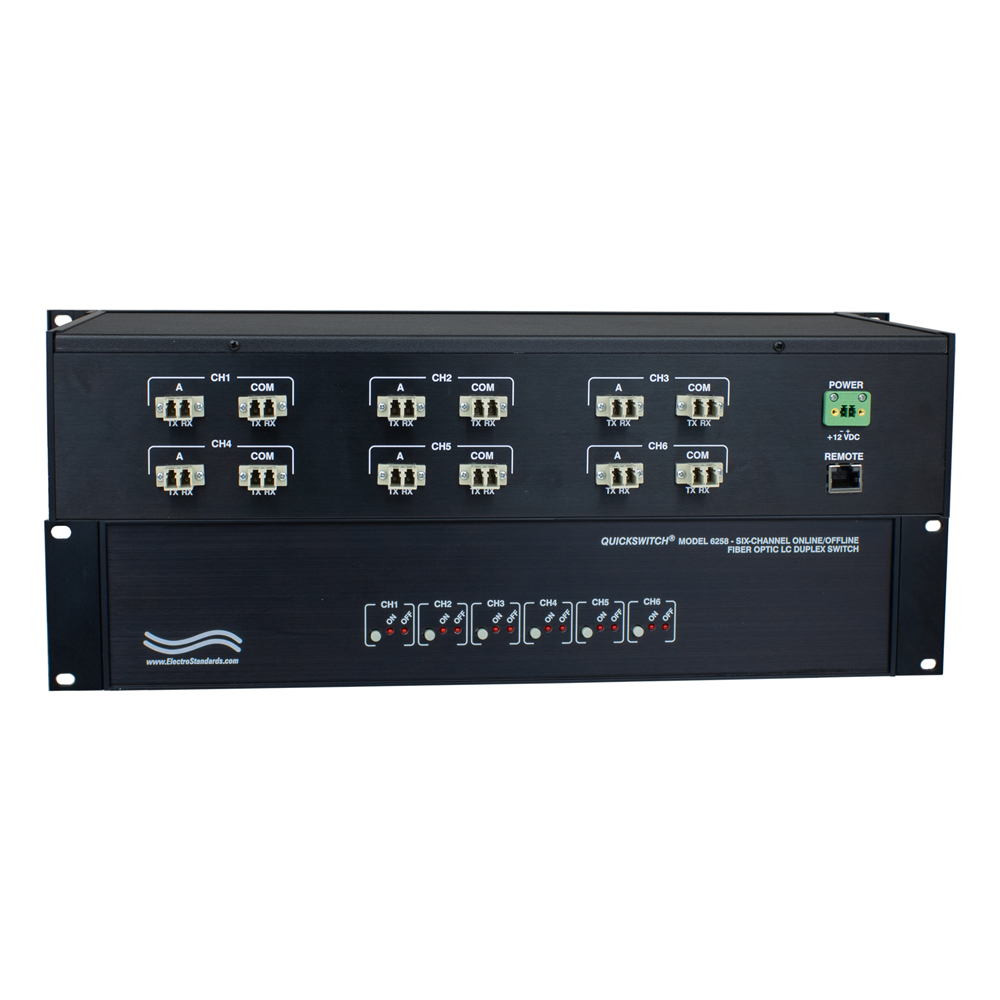

QuickSwitch® Model 6258 Six-Channel All Optic Online/Offline Switch, LC Duplex with 10 Base-T LAN TELNET Access

Overview

The QuickSwitch® Model 6258 Fiber Optic Online/Offline 6-Channel Switch allows the user to CONNECT each input fiber optic cable to its respective output fiber optic cable or, alternatively, to DISCONNECT the input fiber optic cable from its respective output fiber optic cable. All channels are switched, individually. Switching may be accomplished locally by front panel control or remotely using an Ethernet 10-Base-T connection and Telnet commands. The front panel LED's display switch position, status, and power.

FEATURES OF THE MODEL 6258 LC DUPLEX ONLINE/OFFLINE SWITCH:

Fiber Optic Switch employs mirror technology.
Wavelength is 1300 nm.
The switch ports are transparent to all data.
Switch maintains position on power loss and continues to pass data.
Control of the switch locally or via REMOTE input that accepts 10-Base-T LAN Ethernet connection.
Remote Telnet control allows switch status monitoring and front panel lockout.
All fiber ports are LC Duplex, multimode, 62.5/125 mm.
Front panel LED's display switch position and power status.

TECHNICAL PECFICATIONS:

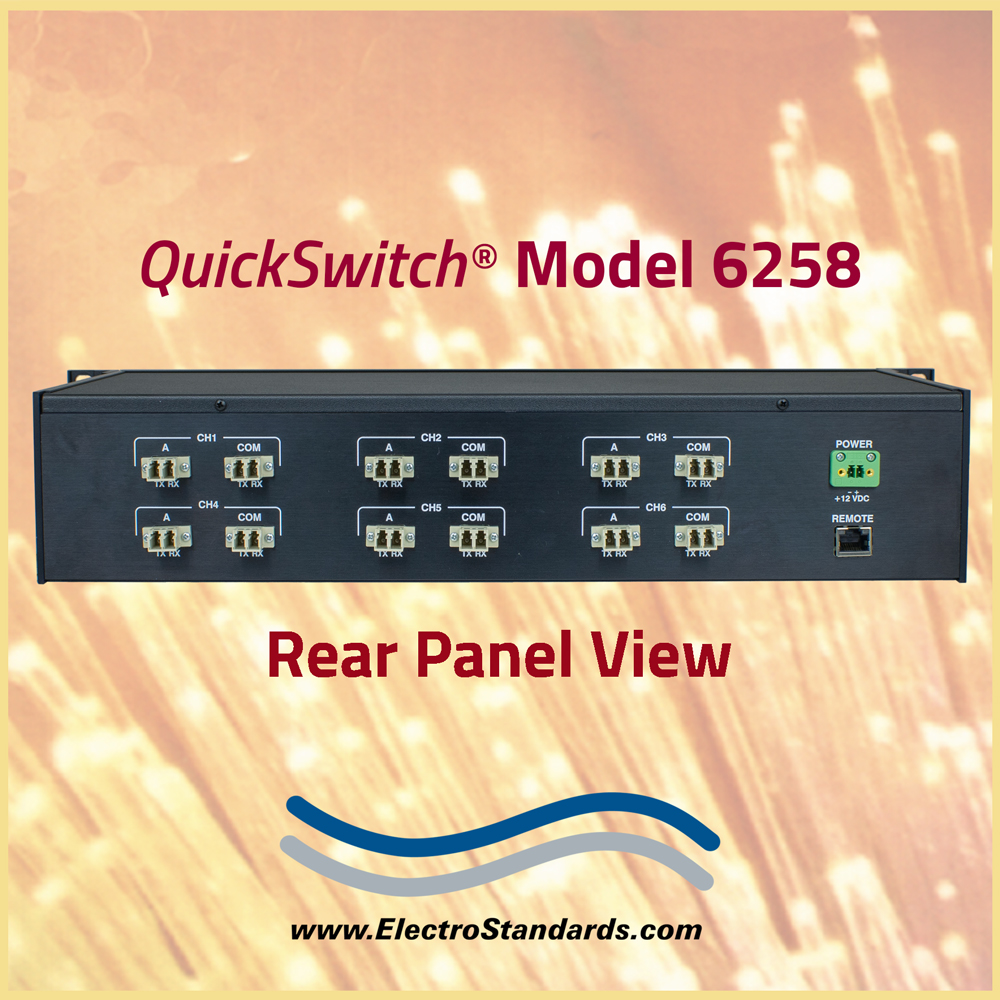

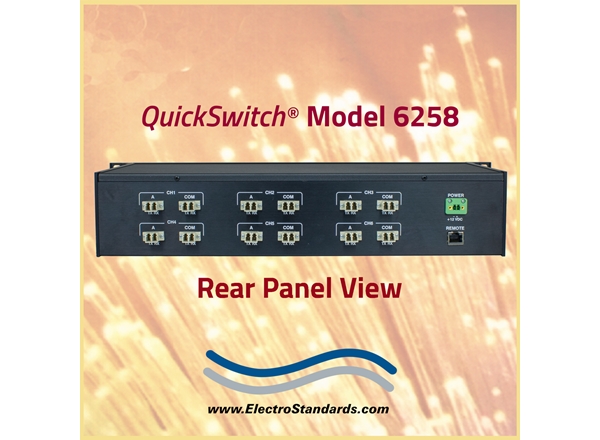

PORT CONNECTORS: (12) LC duplex fiber optic connectors labeled ON and OFF. (2 for each of the 6 channels).
WAVELENGTH: 1300 nanometers.
REMOTE PORT: (1) RJ45 female connector accepts 10-Base-T LAN connection for remote control switching.
POWER: UL Approved wall mount power module, 120 VAC, 60 Hz supplies 12 VDC, 500 mA.

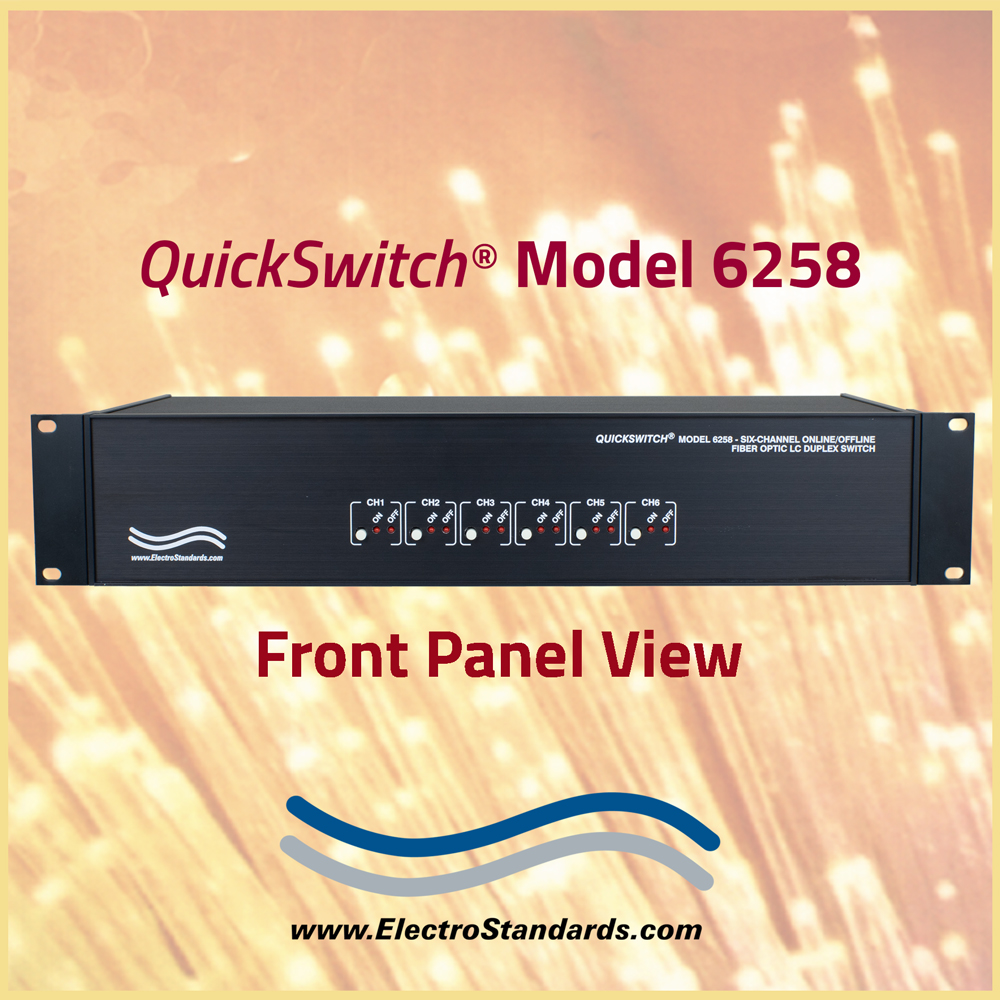

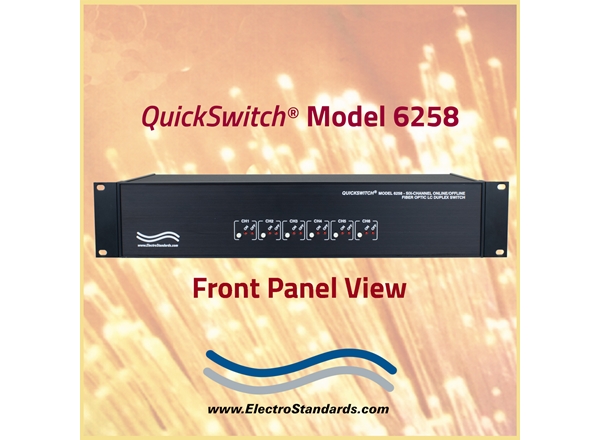

DISPLAY: (12) Red, front panel LEDs indicate switch position, status, and power.
CONTROL: (6) Pushbutton controls allow local switching.
DIMENSIONS: Rackmount Configuration, 19"W x 3.5"H x 8.8" D (48.2 x 8.9 x 22.4 cm)
WEIGHT: Approx. 5.1 lbs. (2.3 kg)

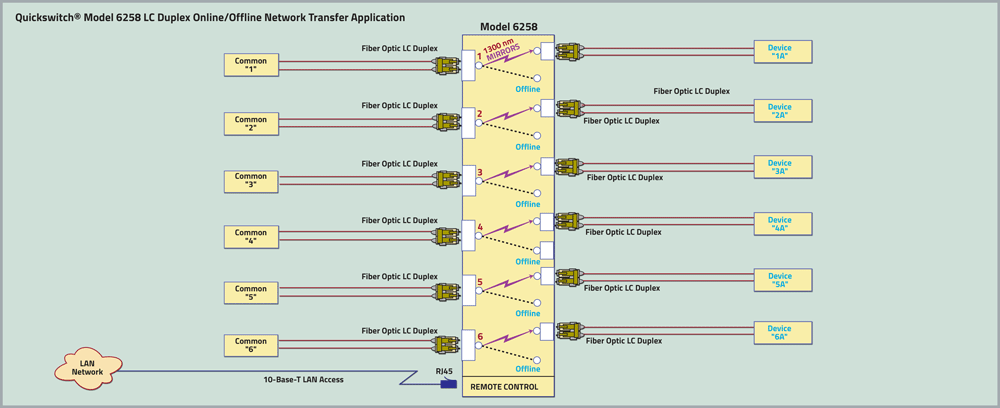

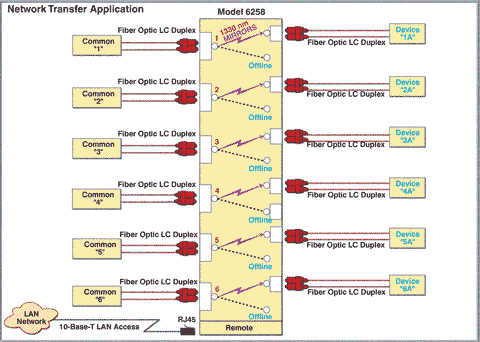

QuickSwitch® 6258 6-Channel LC Duplex Online/Offline Network Transfer Application drawing!

QuickSwitch® 6258 6-Channel LC Duplex, all fiber optic Online/Offline application allows user to “CONNECT” each input fiber optic cable to its respective output fiber optic cable, or “DISCONNECT” the input fiber optic cable from its respective output fiber optic cable. All six-channels are switched individually. The RJ45 REMOTE port accepts 10 Base-T LAN Telnet commands for Remote Control operation.

QuickSwitch 6258 6-Channels LC Duplex Online/Offline Network Transfer Application

Ordering Information

Catalog Number: 306258
Model Number: 6258
Base Price: See website or contact us for current pricing and availability.
Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

Specification Sheet (PDF) Download Available.
Product Manual available upon request.
For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
We welcome international inquiries and ship worldwide.

Shipping and Returns

Shipped via UPS ground (unless otherwise requested).
Freight Charges prepaid and added to invoice. We can estimate freight charges for you.
Return policy: contact us within 30 days of shipment for an RMA number. Items returned without RMA not accepted. Please refer to our full return policy in our Terms and Conditions found on our website.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC-240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit. Has IEC 60320 C14 inlet. Ideal for international applications.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here for GSA details.

Model 6258 is available to government purchasers on our GSA Schedule GS-35F-0286V. Call for discounted price and terms.

Electro Standards can supply all your Network Cable requirements. Click here to reach our FIBER OPTIC CABLE Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online custom product request form.

All data switches, data communication products, and data acquisition products are subject to a one-year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.
