Catalog # 306188 - Model 6288 ST Duplex Fiber Optic A/B Switch with RS232 Remote Control

Click image to enlarge

Base Price:

$1,650.00

Catalog No:

306188

Model No:

6288

Product Type:

Switches: Fiber Optic

Positions:

Cable Type/Port Connector:

Channels per Switch Chassis:

Electronic Switches/Power Required:

QuickSwitch® Fiber Optic

Remote Control:

RS232 Serial

Configuration:

Desktop

Fiber Mode:

Multimode

Fiber Size:

62.5/125

Fiber Type:

Duplex

Remote Port:

DB9

Local Control:

Pushbutton

Mirror Technology:

Speed:

Gigabyte

Wavelength Nano:

1300

Qty

Add to Cart

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Your Name *

Your Email Address *

Company Name

Address

City

Zip

Country

State

Phone

Fax

Your Question *

Send Question

Protected Document Request

Company Name

First Name

Last Name

Phone

Your Email Address

Cancel Download Product Manual

Overview

QuickSwitch® Fiber Optic Network Switch, ST Duplex

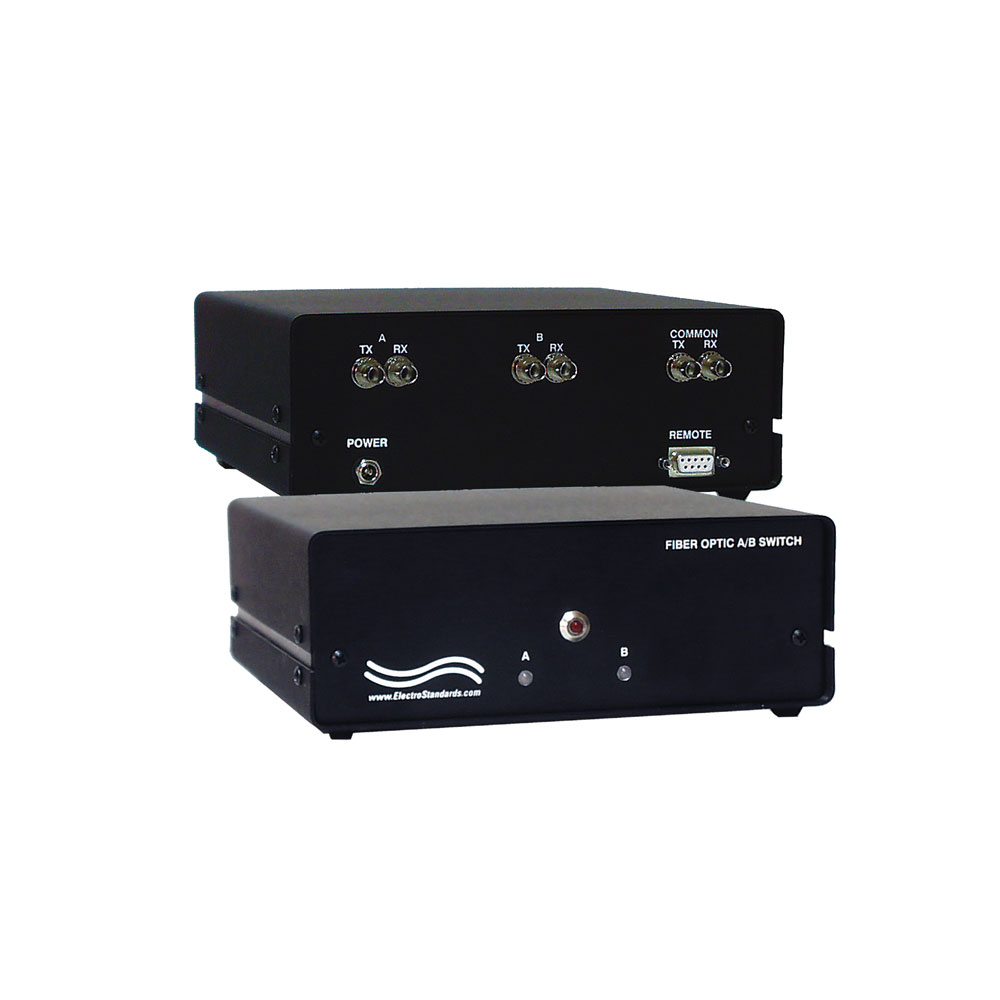

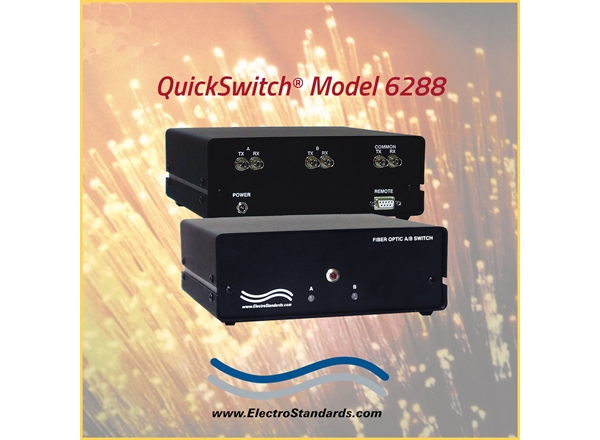

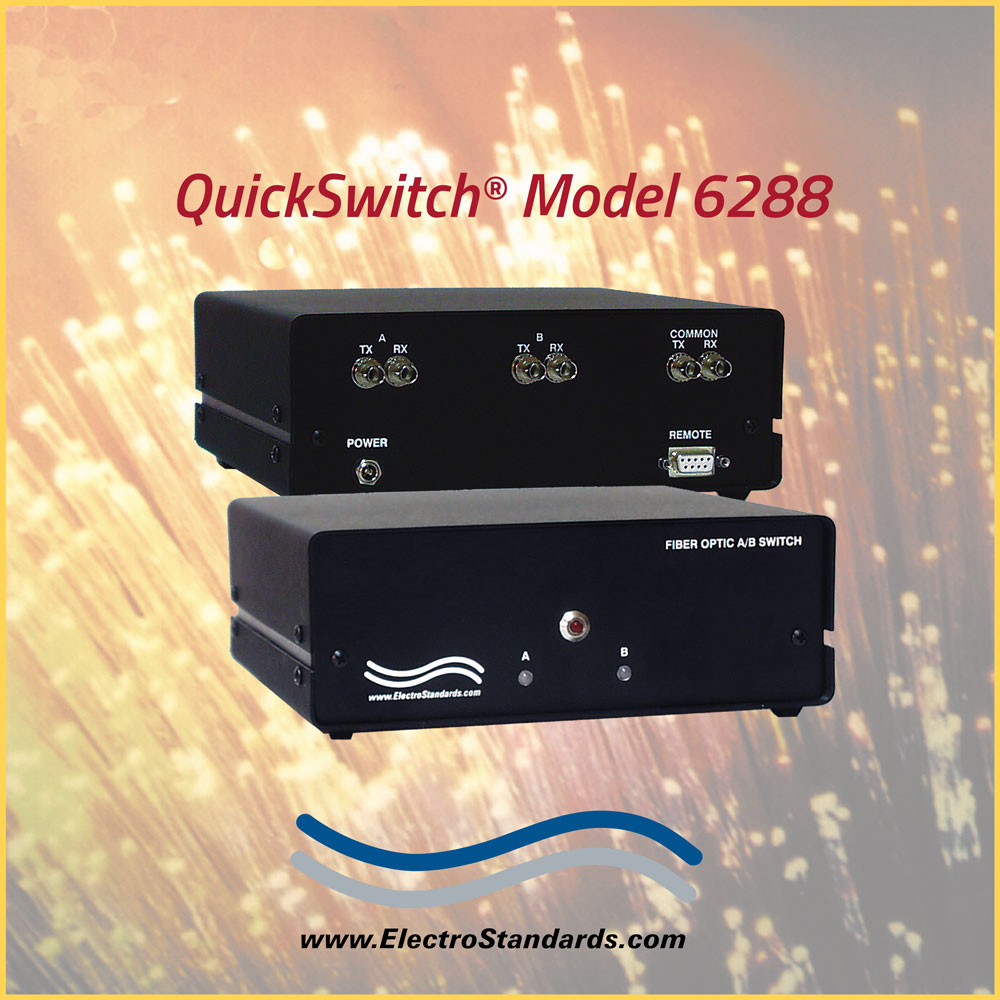

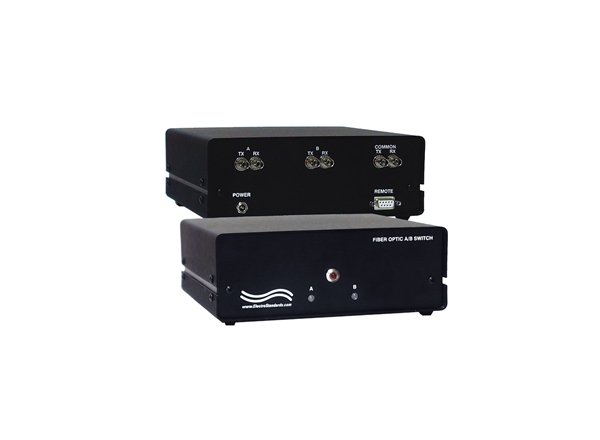

QuickSwitch® 6288 ST Fiber Optic Mirror A/B Switch with Remote

QuickSwitch Model 6288 ST Fiber Optic Mirror A/B Switch with Remote Control Port

QuickSwitch® Specifications:

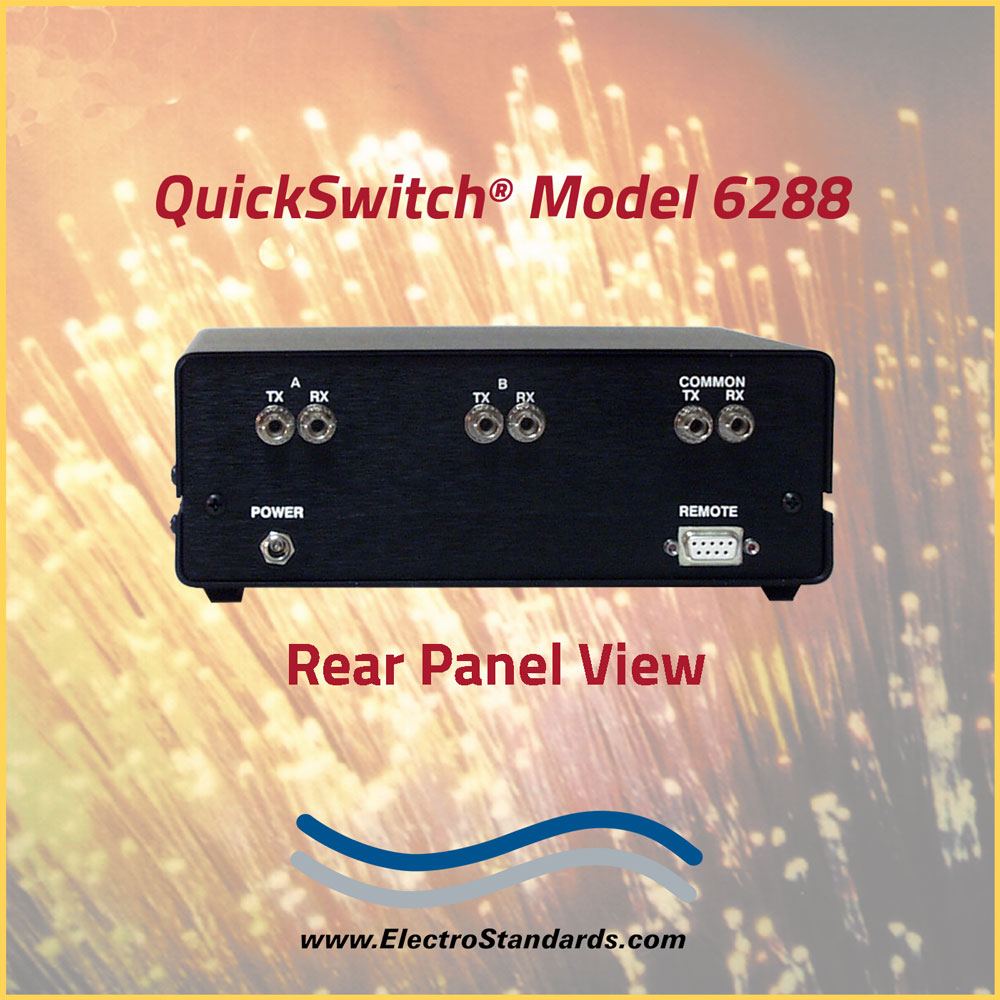

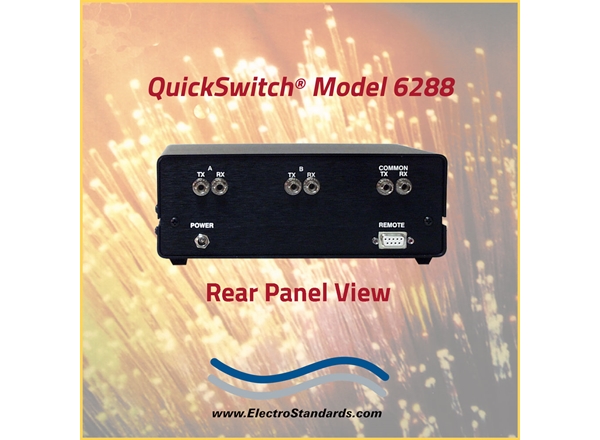

PORT CONNECTORS: (3) fiber optic ST duplex female connectors labeled A, B, and COMMON.

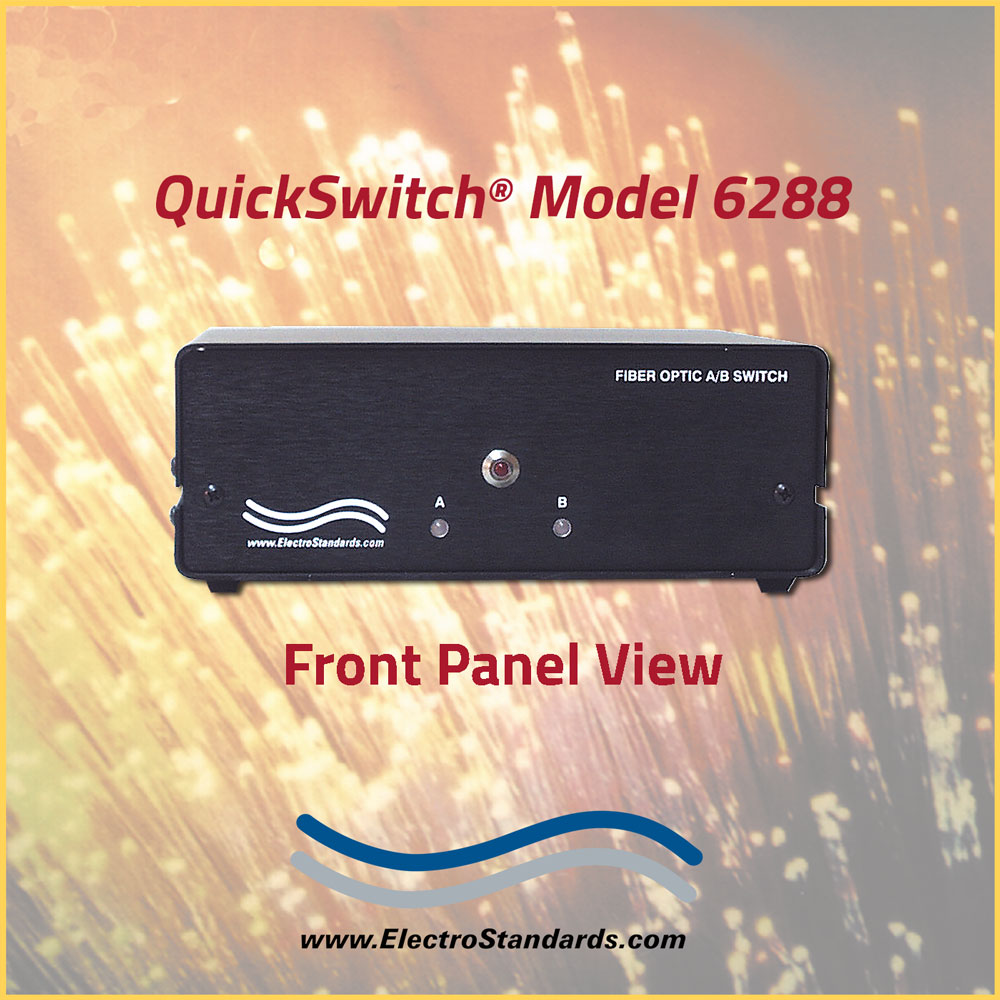

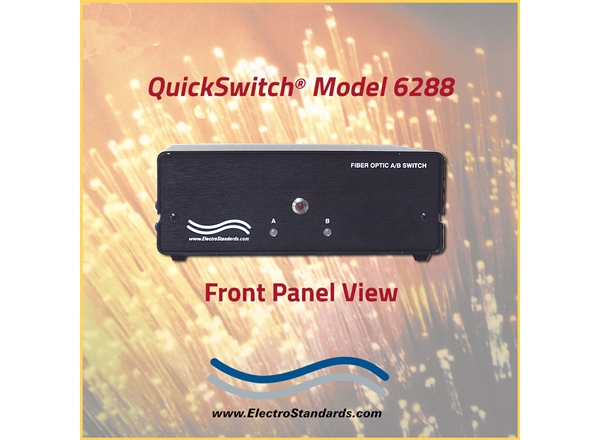

FRONT PANEL CONTROL: (1) Manual pushbutton allows for local switching.
DISPLAY: Front panel LED's display switch position and power status.
REMOTE: (1) DB9 female connector on rear panel accepts ASCII RS232 Serial Data for Remote Control operation.
WAVELENGTH: 1300 nm
POWER: UL approved 120 VAC, 60 Hz wall mount power module supplies 12VDC, 500mA to the unit.
DIMENSIONS: 7.25" W x 2.7" H x 7.75" D.
WEIGHT: 3.5 lbs

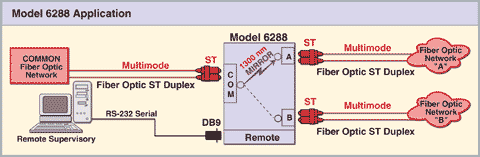

QuickSwitch 6288 ST Fiber Optic Mirror A/B Switch with Remote, Application Diagram

The QuickSwitch® 6288 ST Fiber Optic Mirror A/B Switch with Remote Serial Control allows the user the capability of accessing two separate devices, ports A & B, via connection through a device connected to the Common port of the switch. The system affords local and remote access functionality.

OPERATION:
The Model 6288 data switch position may be controlled manually via a front panel pushbutton, or remotely from an RS232 serial port located on the rear of the unit. To switch manually, simply depress the front panel pushbutton and the switch will change to the new selected position as indicated by the front panel LED's. Remote switching of this Fiber Optic Switch is done through an RS232 (DB9) serial port located on the rear of the QuickSwitch® 6288 which may be connected to any standard RS232 port on a computer. The computer, once connected to the remote port, may use any common terminal emulation software.

FEATURES:

Control via front panel pushbutton or over Remote port on rear panel.
Remote port is RS232, DB9/female port.
LED's display switch position and power status.
If power is lost, switch will default to A position (prime) and continue to pass data.
A and B ports are independent, and cannot be connected to each other at any time.
All fiber optic ports A, B, and Common are duplex, multimode ST ports. Fiber Size: 62.5/125 micron.
MEMS-Based 1300 nm Mirror Switch supports Gigabyte data rate.
Transparent to data format and speed.
Custom length data cables available.

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details. Electro Standards Laboratories provides fiber optic switches for all popular interfaces. Multiple channel switches and custom configurations are available on request. Call today to discuss your requirement.

QuickSwitch® is a registered trademark of Electro Standards Laboratories.

QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.

For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form: /Products-Custom/Fiber-Switch/

Electro Standards can supply all of your Fiber Optic Cable requirements. Please click here to reach our Fiber Optic Cable Categories Webpage:
/Products-By-Category/?catid=33&category=Cables, Fiber Optic Network&filter=

All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.*Prices online are subject to change and verification.
All ESL products are availabe for export.
