LineSelect® Model 4546 Quad Channel Phoenix Connector A/B Switch, Rackmount, Manual Operation

Overview

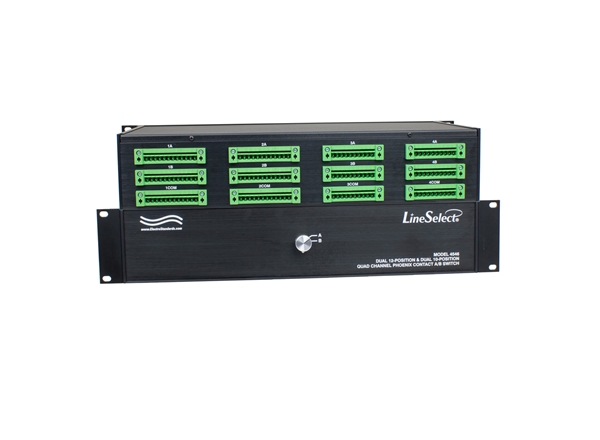

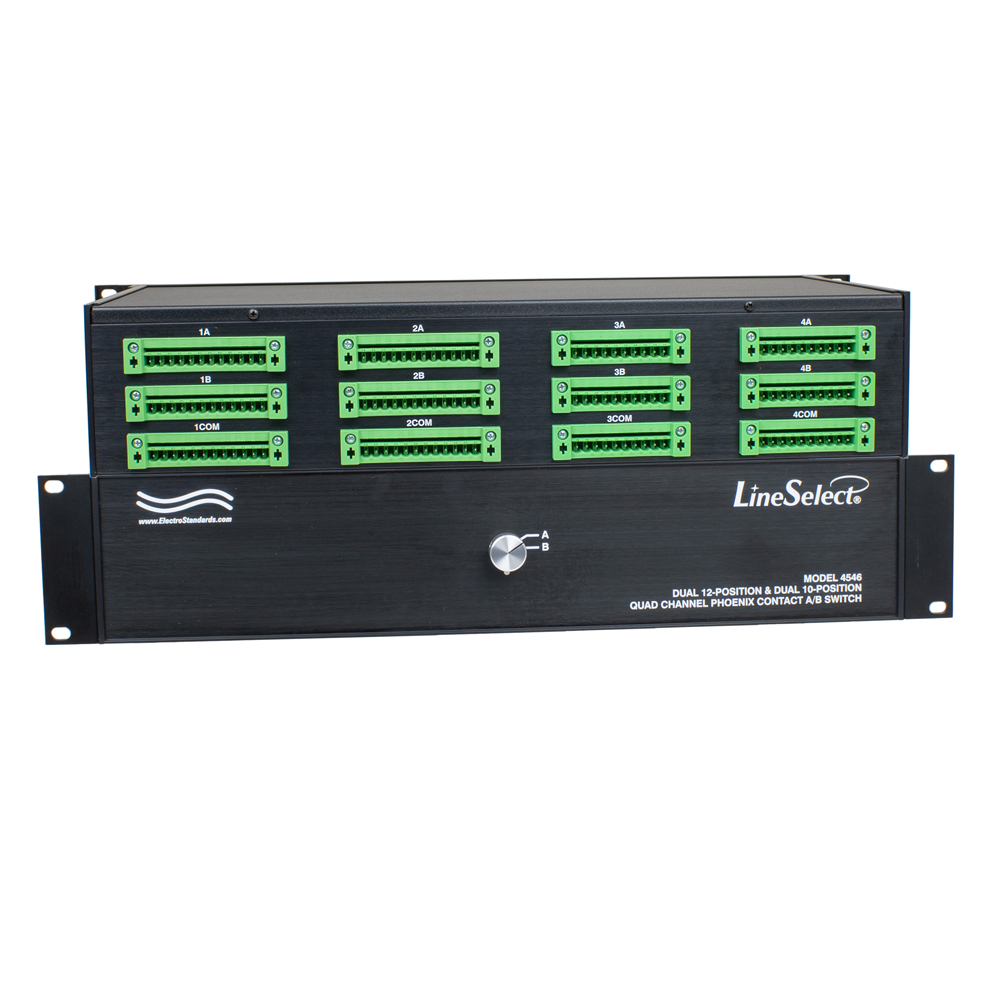

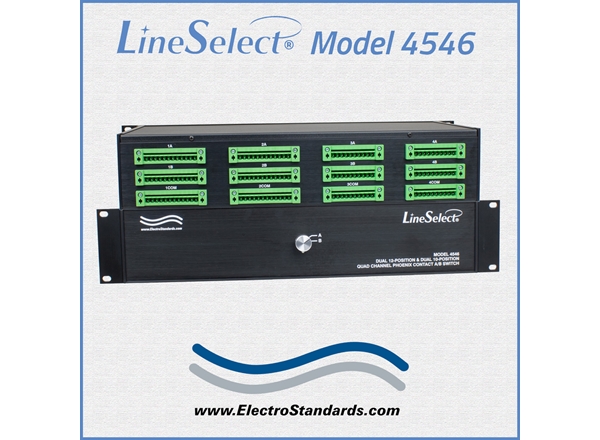

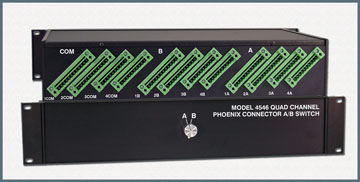

The LineSelect® Model 4546 Quad Channel Phoenix Connector A/B Switch enables access to two devices per each of its four channels. All ports of channels one and two utilize 12-Pin Phoenix connectors. All ports of channels three and four utilize 10-Pin Phoenix connectors. All four channels switch simultaneously.

 FEATURES OF THE MODEL 4546 QUAD CHANNEL A/B SWITCH:

  • Each of the four channels allows quick connection to any one of two devices from one COMMON device.
  • Manual operation via front-panel rotary switch.
  • Simultaneously switches all four channels.
  • All pins of the Phoenix interface are switched.
  • High quality sealed switch with self-wiping low impedance contacts.
  • Transparent to data speed and format.
  • Improves network efficiency by allowing sharing of peripherals.
  • Eliminates the need to plug and unplug cables.
  • No external power required.
  • Attractive anodized black box packaging provides EMI/RFI shielding.
  • Custom Length Phoenix cables available for your installation.
    •
  • Lifetime guarantee against manufacturing defects.

TECHNICAL SPECIFICATIONS:

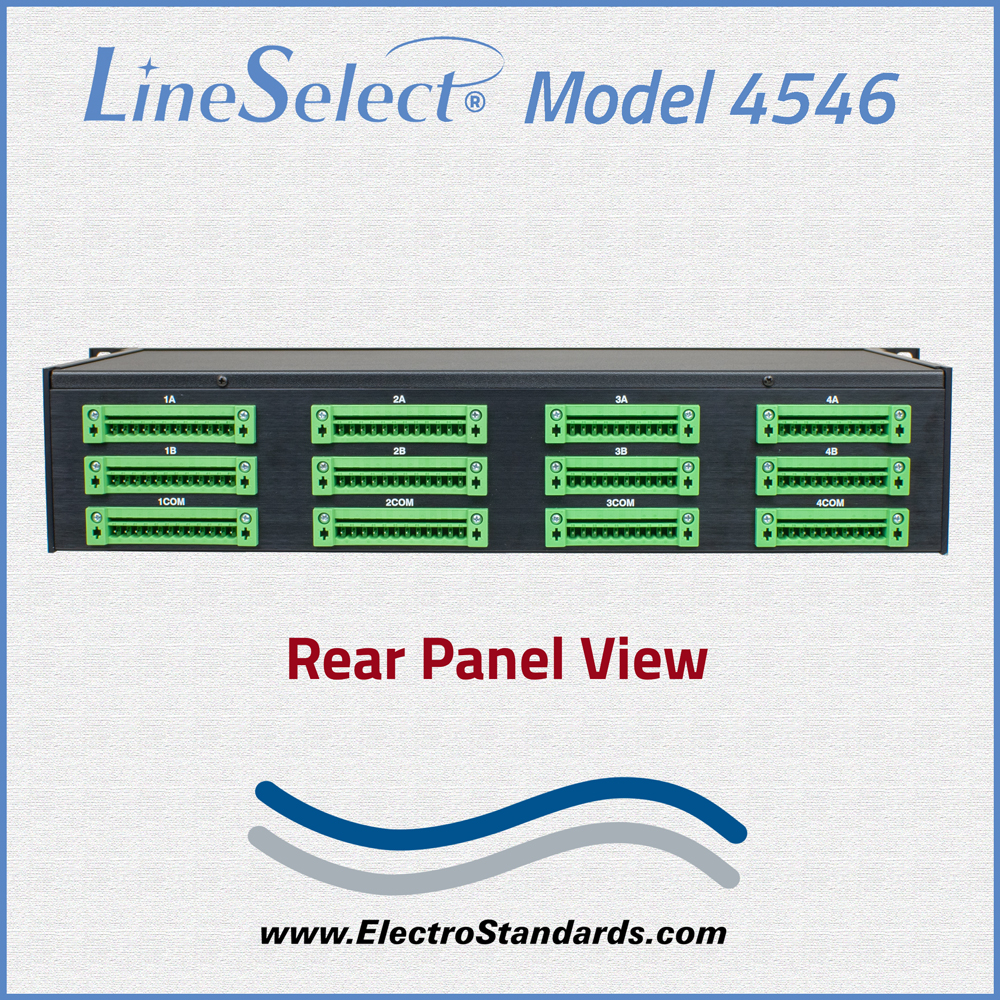

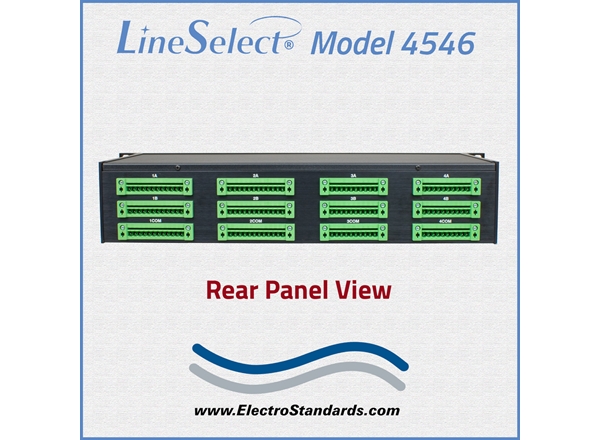

  • CHANNEL 1 and 2 PORT CONNECTORS: Channels one and two each have (3) female 12-pin Phoenix connectors labeled A, B, and COM.
  • CHANNEL 3 and 4 PORT CONNECTORS: Channels three and four each have (3) female 10-Pin Phoenix connectors labeled A, B, and COM.

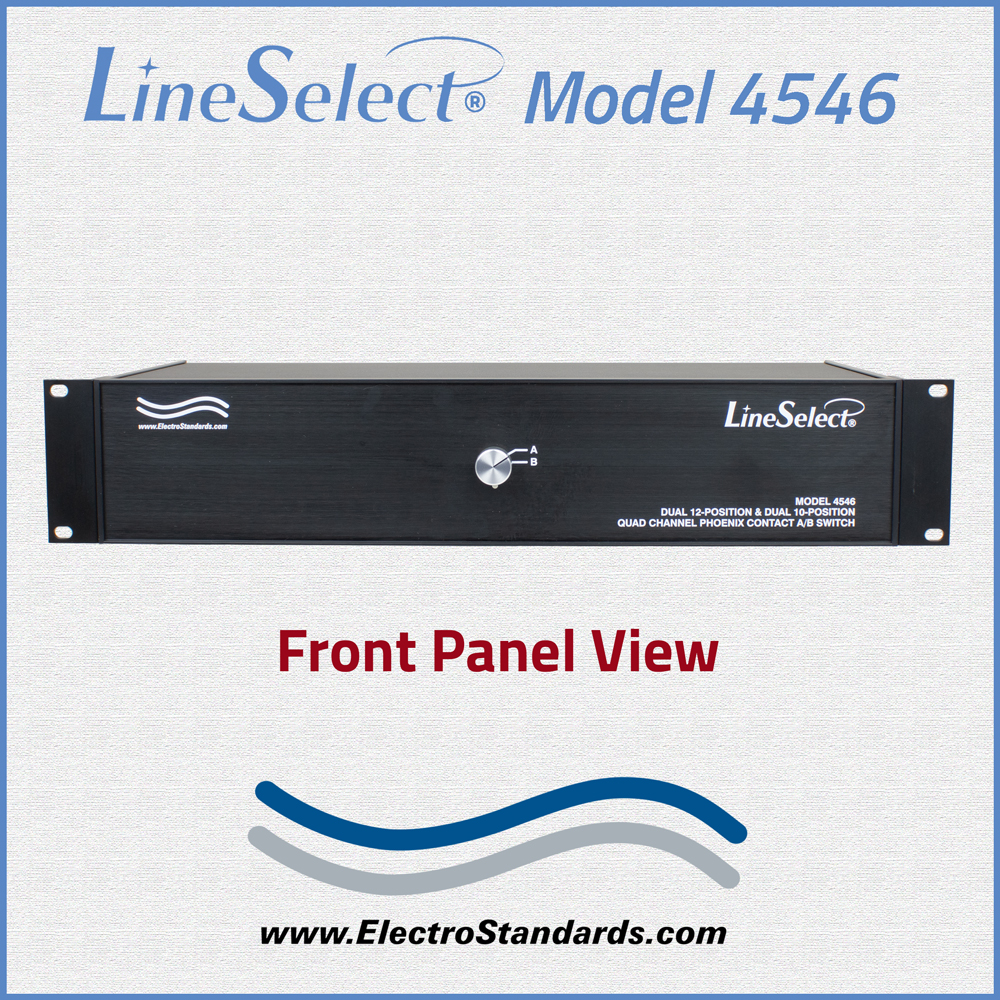

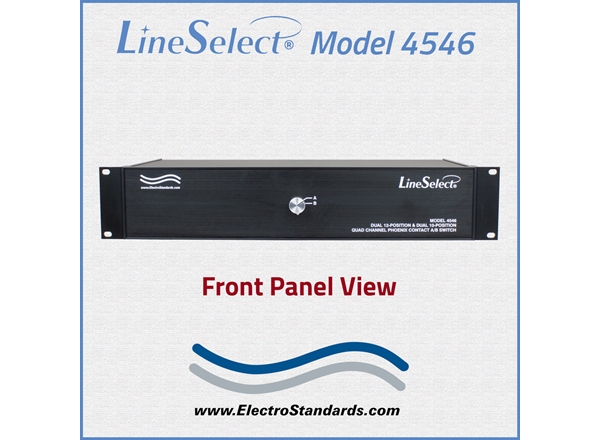

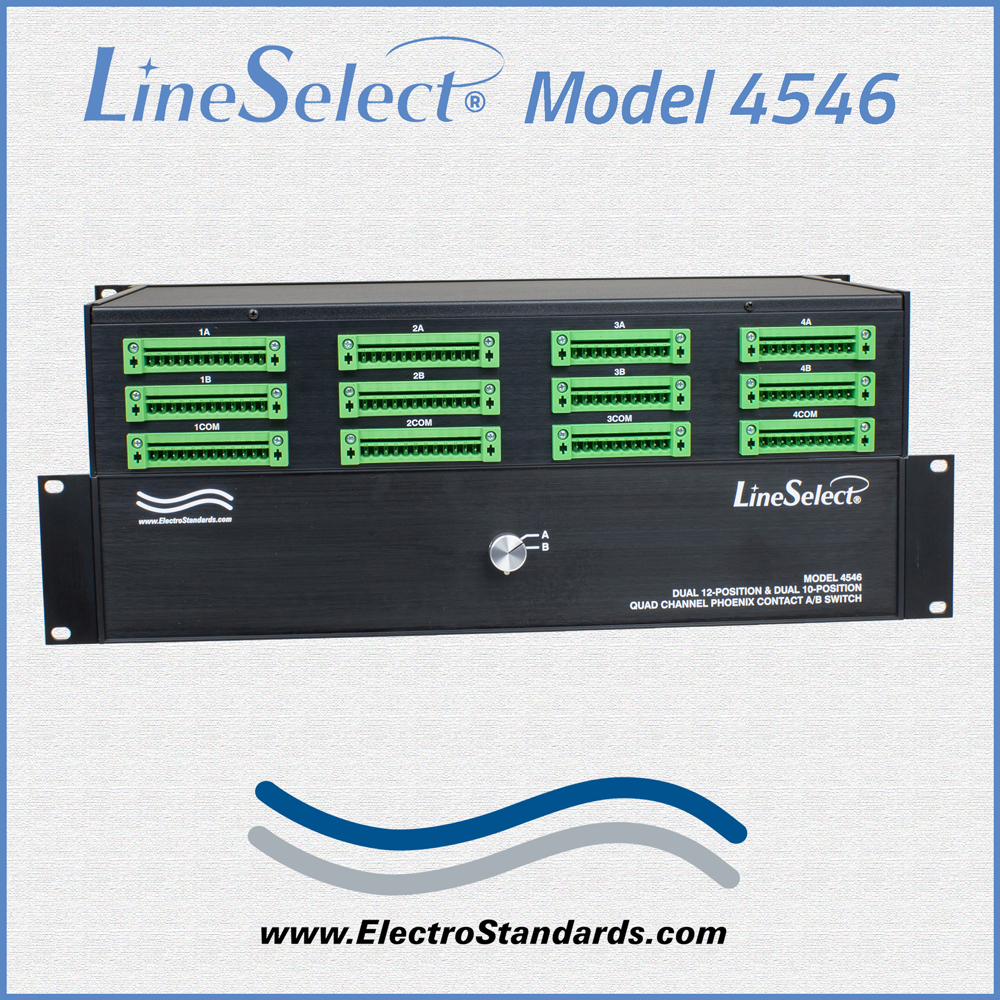

  • FRONT PANEL CONTROL: (1) Rotary switch on the front panel selects A or B.
  • POWER: No power required. Manually operated.
  • DIMENSIONS: Rackmount, 19.0" W x 3.5" H x 8.8" D. (48.3 x 8.9 x 20.3 cm)
  • WEIGHT:  Approximately 5.1 lbs. (2.3 Kg)

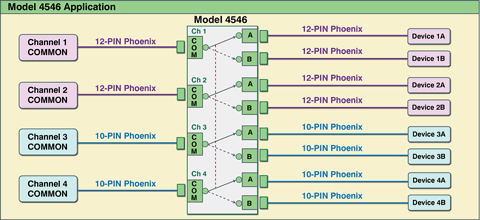

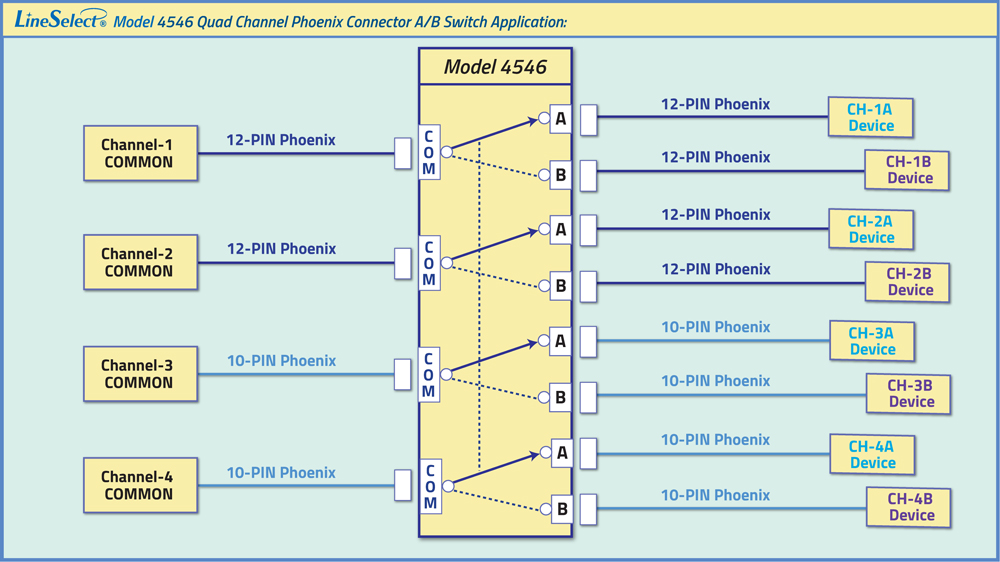

10-PIN PHOENIX AND 12 PIN PHOENIX CONNECTOR A/B APPLICATION: The diagram illustrates four channels of Phoenix connector simultaneous switching. Each channel has a COMMON device connected to the Phoenix Connector with access to two devices connected to Ports A and B. Channel 1 and Channel 2 are 12-Pin Phoenix connectors while Channel 3 and Channel 4 are 10-Pin Phoenix connectors.

Quad Channel Phoenix Connector A/B Switch, Manual Operation, Model 4546

Ordering Information

  • Catalog Number: 304546
  • Model Number: 4546
  • Base Price: See website or contact us for current pricing and availability.
  • Optional Wide-Range power supply: Catalog Number 517277 IEC C14 Inlet, 100-240VAC, 12 VDC

Documentation & Support

  • Specification Sheet (PDF) Download Available.
  • Product Manual available upon request.
  • For custom fiber optic network switch requirements contact our sales support team 401-943-1164 or email eslab@electrostandards.com
  • We welcome international inquiries and ship worldwide.
