Model 7265 Dual Channel DB25 RS232/RS530 A/B Switch, with Remote Control Port, Catalog # 304267

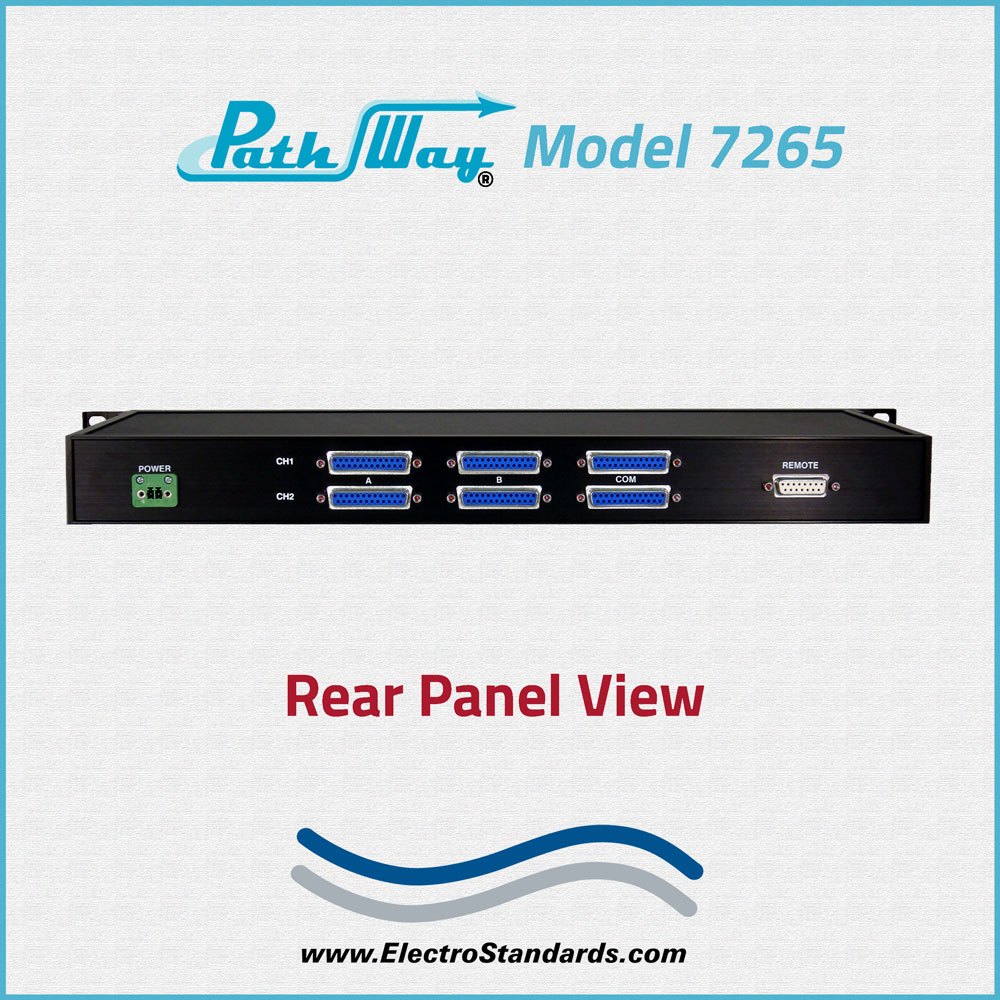

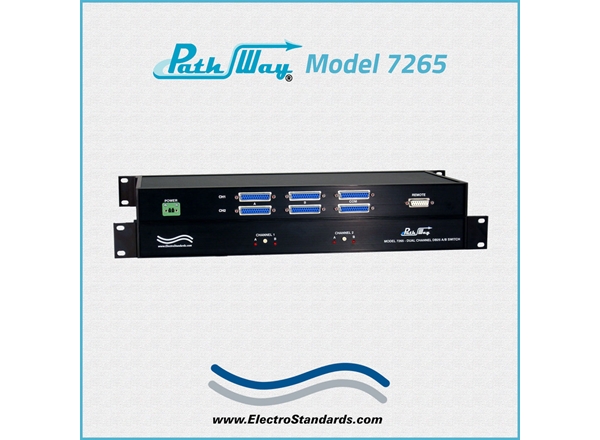

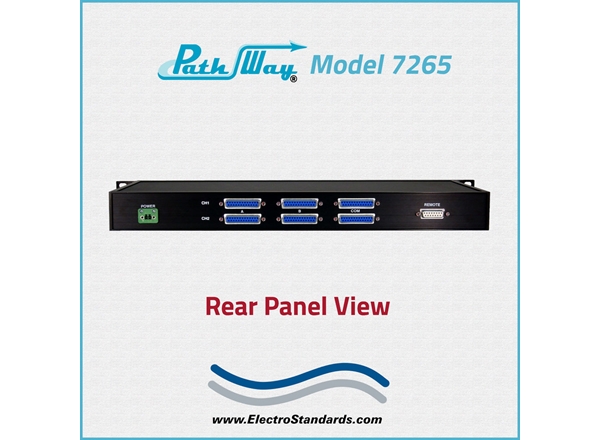

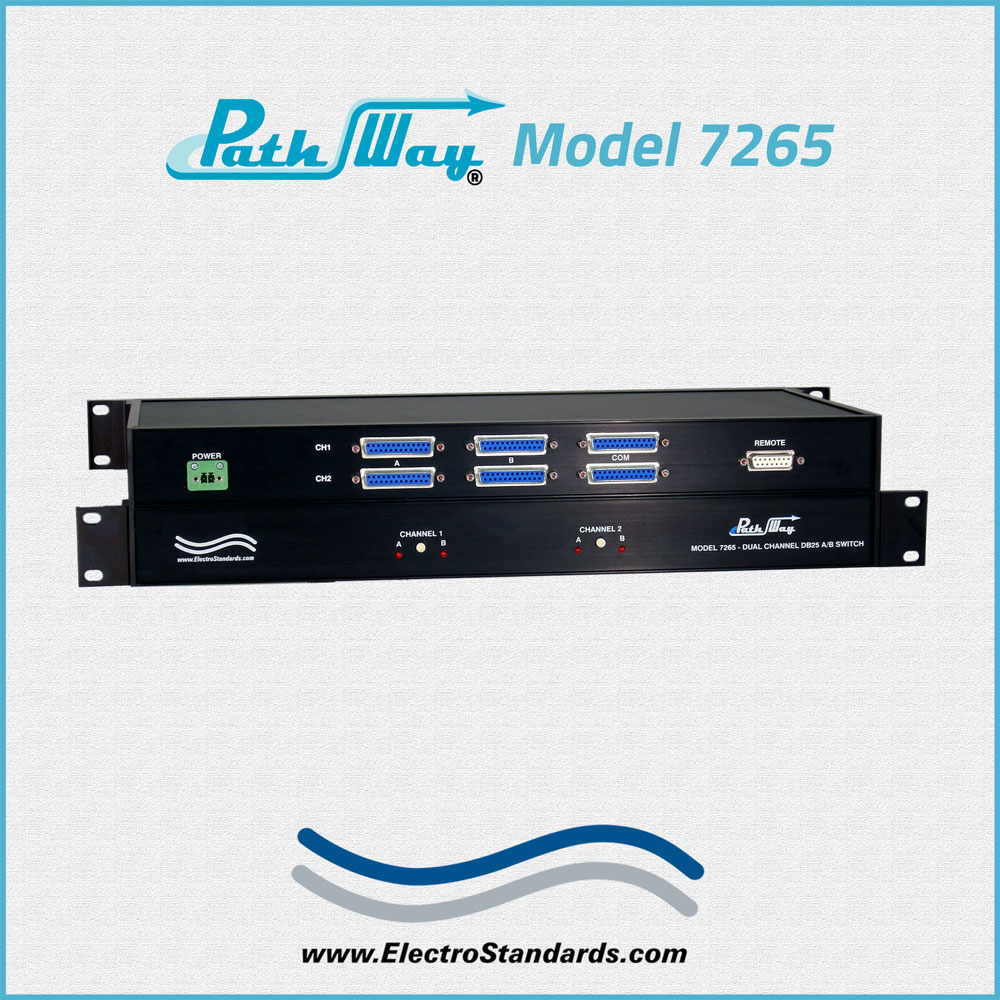

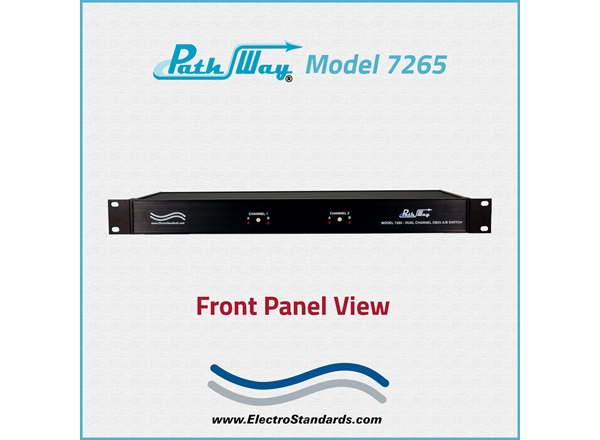

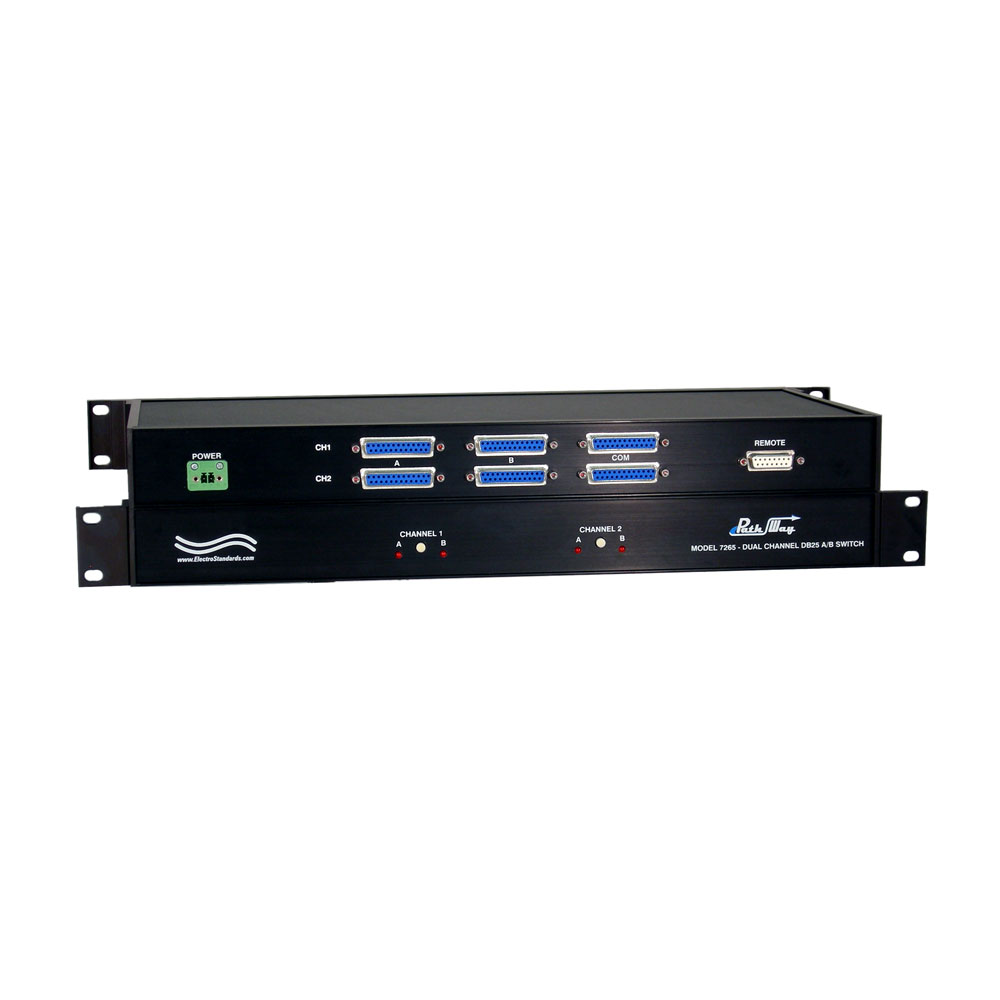

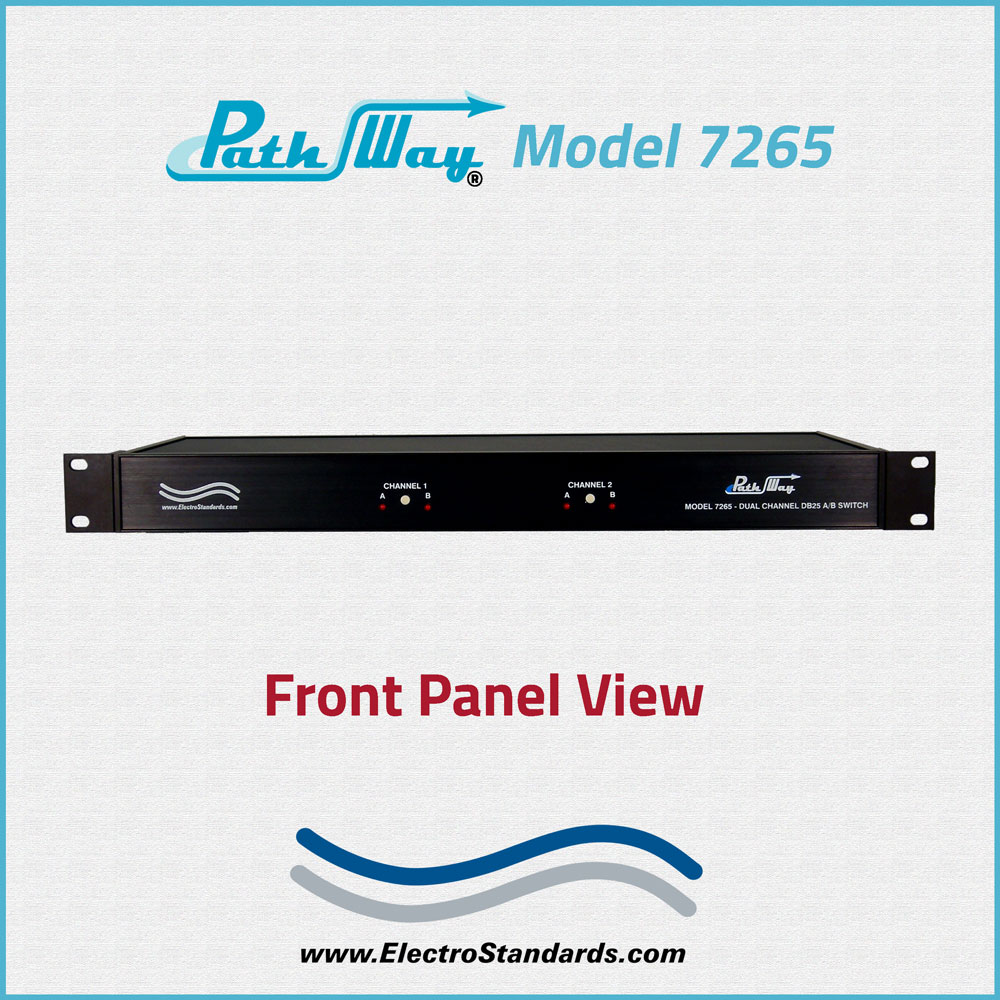

    DB25 RS232/RS530 A/B SwitchDB25 RS232/RS530 A/B SwitchDB25 RS232/RS530 A/B SwitchDB25 RS232/RS530 A/B Switch
Click image to enlarge

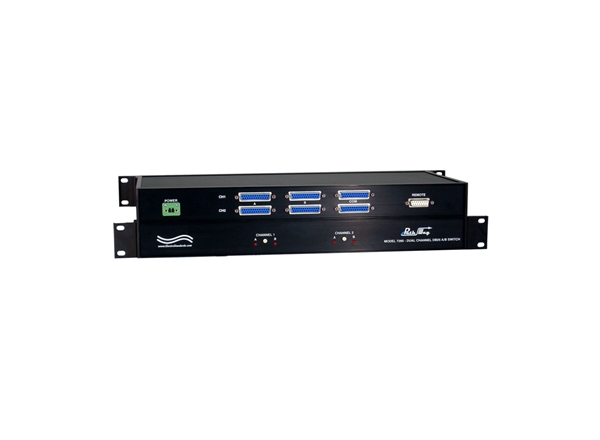

    • DB25 RS232/RS530 A/B Switch
    • DB25 RS232/RS530 A/B Switch
    • DB25 RS232/RS530 A/B Switch
    • DB25 RS232/RS530 A/B Switch
Base Price:
$1,582.00
Catalog No: 304267
Model No: 7265
Product Type:Switches: Copper
Positions:2
Cable Type/Port Connector:DB25 Switch Ports
Channels per Switch Chassis:2
Electronic Switches/Power Required:PathWay® Copper
Channel Control:Independent Channel Control
Remote Control:Contact Closure
Configuration:Rackmount
Pins Switched:2-6 and 8-25; Pins 1 & 7 are bussed thru
Remote Port:DB15
Local Control:Pushbutton
Feature:RS-232 / RS-530
Protocol:Contact Closure Signals

Add to Cart

Dual-Channel RS232/RS530 A/B Switch:

  • DB15 Remote Control Port, Contact Closure Signaling
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Send Question

Protected Document Request



Cancel Download Product Manual

Path Way® Model 7265 Dual Channel RS232 / RS530 A/B Switch with Remote Control Port

Overview

The PathWay® Model 7265 Dual Channel RS232 / RS530 A/B Switch allows the user the capability of sharing a single DB25 interface device connected to the Common port, among two other devices connected to the A and B ports for each channel. Pins 2-6 and 8-25 are switched. Pins 1 and 7 are bussed through. The Model 7265 is enclosed in a 1U, full rack size, all metal, black chassis designed to provide EMI/RFI shielding and fit in a standard 19" rack.

The switch may be controlled locally by manually operating the front panel push button or remotely from the DB15 Control port located on the rear of the unit.  The front panel LED display indicates the switch position and unit power status.

  • Two Remotely Controllable data switches in a slim 1U High Rackmount package.

  • Ideal for Traffic Flow Management Application.

 FEATURES OF THE MODEL 7265 RS232 / RS530 DUAL CHANNEL SWITCH:

  • Each channel allows quick connection to any one of two devices from one COMMON device.
  • The switch ports are transparent to all data.
  • Pins 2-6, 8-25 (All signal pins) of the DB25 interface are switched via break-before-make electromechanical relays.  Pins 1 (Shield) and 7 (Signal Ground) are bussed through.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control.
  • Remote Contact Closure control and status provides dry contact logic to allow the control of the switch position as well as obtain the present position.
  • Front panel LED's display present position and power status.
  • Attractive all metal, black box packaging provides EMI/RFI shielding.
  • Custom length DB25 cables available for your switch installation.
  • Municipalities, schools, government: On GSA Schedule!
  • A single channel unit is available. (See Model 7266 Catalog No. 304266)

TECHNICAL SPECIFICATION:

  • PORT CONNECTORS: (3) DB25 female connectors, labeled A, B, and COMMON for each of two channels.
  • FRONT PANEL CONTROLS: (2) Manual pushbuttons allow local switching.
  • DISPLAY: (4) Front panel LED's display channel switch position.
  • REMOTE: (1) DB15 female connector on rear panel accepts Contact Closure switch commands.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12 VDC, 500 mA to the unit. Has 2-prong, US, non-polarized plug.
  • DIMENSIONS: 19.0" W x1.75" H x 8.16" D. (48.3 x 4.4 x 20.8 cm)
  • WEIGHT: Approximately 4.6 lbs. (2.1 kg)

PathWay® Model 7265 Dual Channel RS232/RS530 A/B Switch Application w/CONTACT CLOSURE:

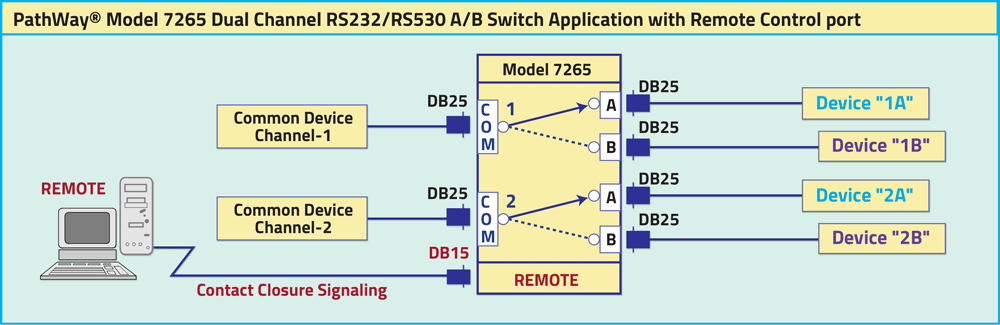

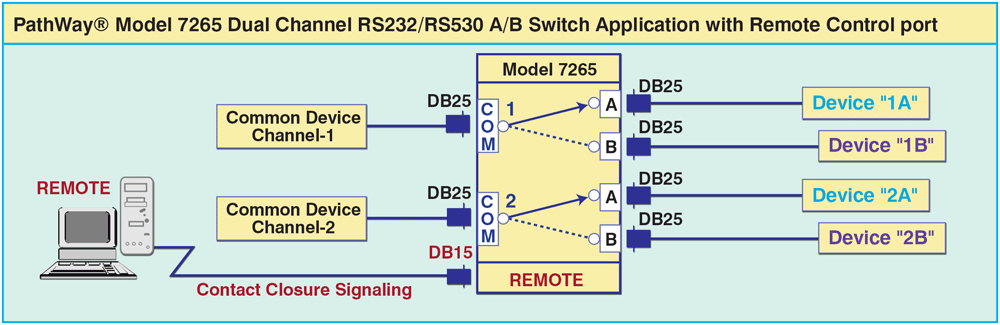

The drawing illustrates a COMMON Device connected to the DB25 COMMON port with access to two DB25 Devices connected to the DB25 ports (A and B) for each of two channels. The DB15 Remote Control port accepts Contact Closure signaling to remotely control the unit.
