Path Way® Remotely Controllable Network Switch, RS530, ST Duplex

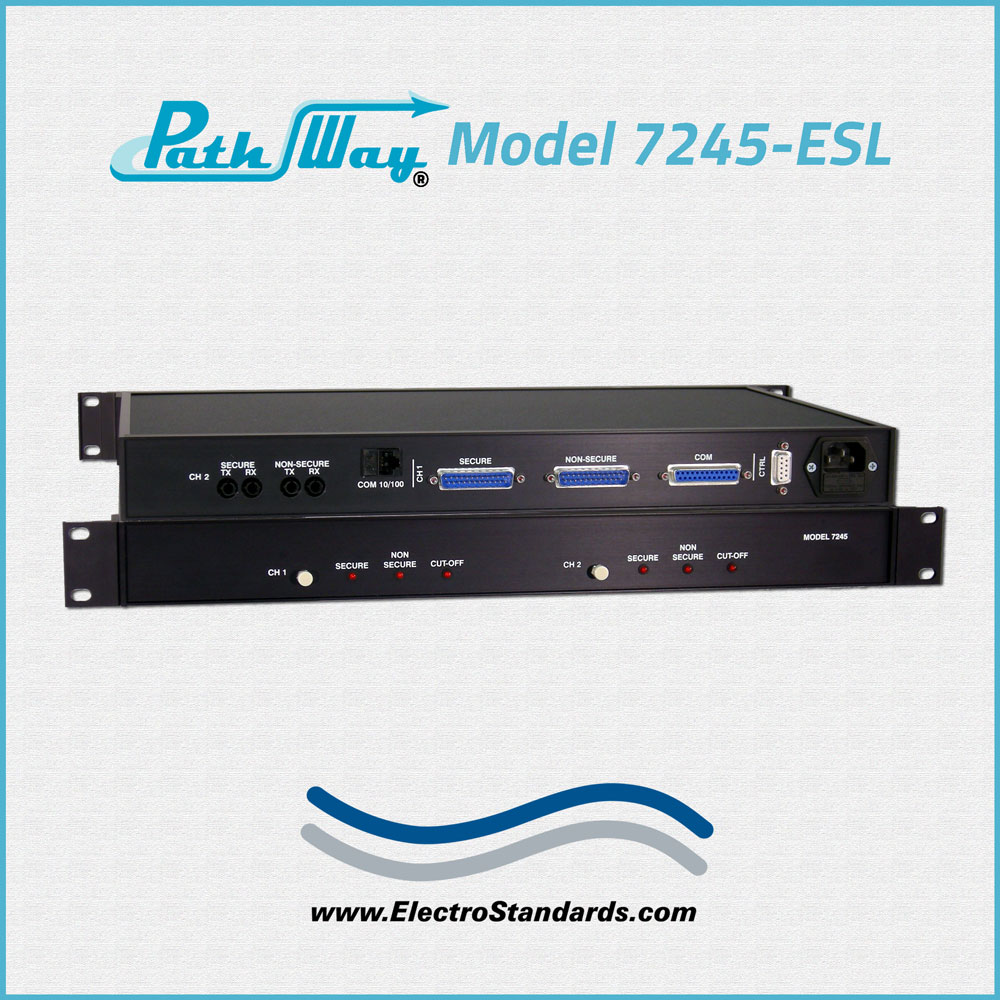

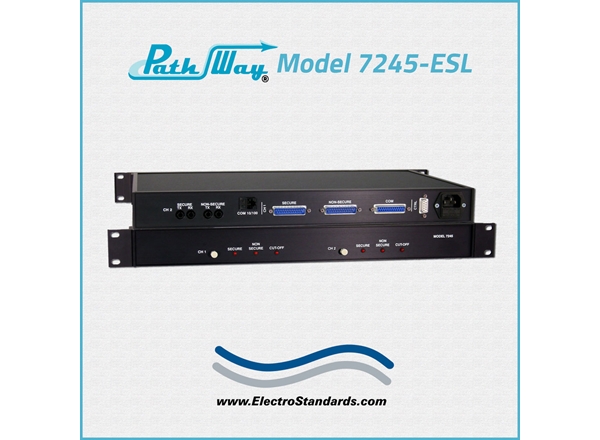

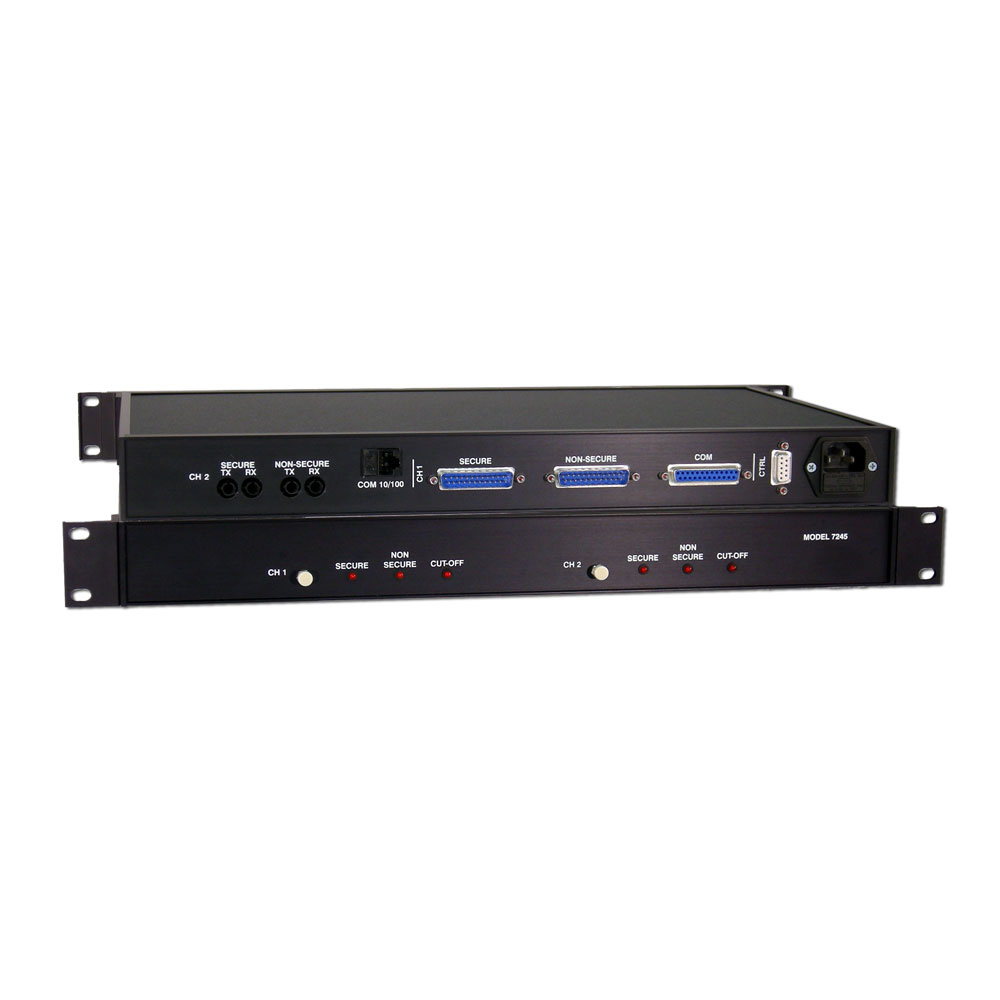

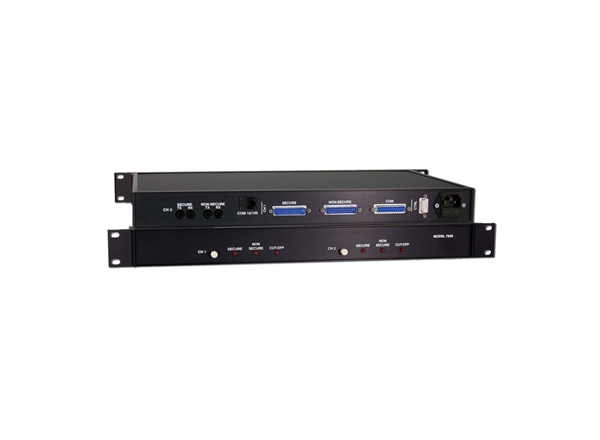

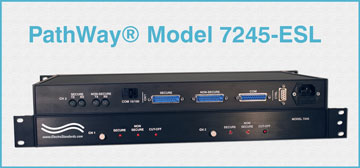

Model 7245-ESL Dual Channel RS530 Secure/Non-Secure w/Cutoff & Fiber Optic ST Duplex Secure/Non-Secure Switch/Converter w/Cutoff

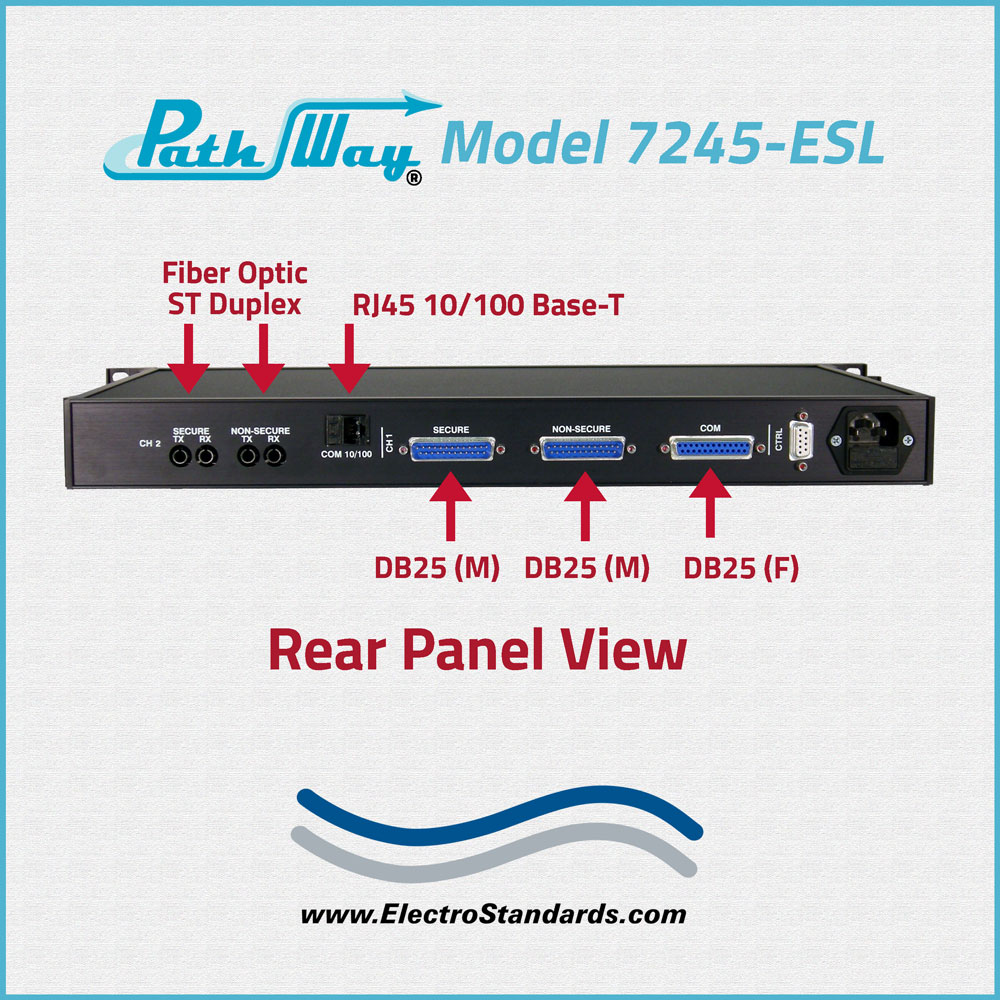

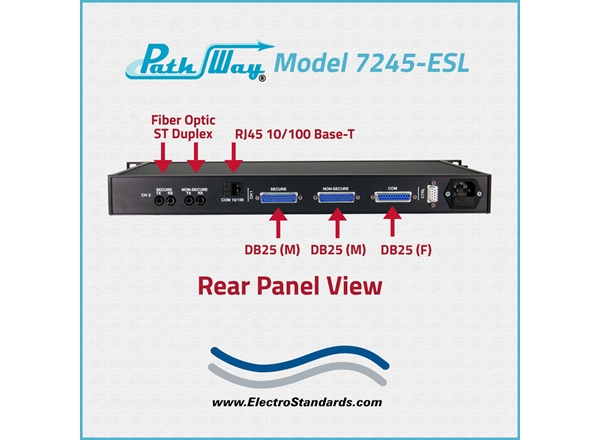

  • CHANNEL 1 PORT CONNECTORS: (3) DB25 (M/M/F) connectors labeled SECURE, NON-SECURE and COMMON, respectively.
  • CHANNEL 2 PORT CONNECTORS: (2) Fiber optic ST Duplex connectors labeled SECURE and NON-SECURE, (1) RJ45 (F) connector labeled COMMON.

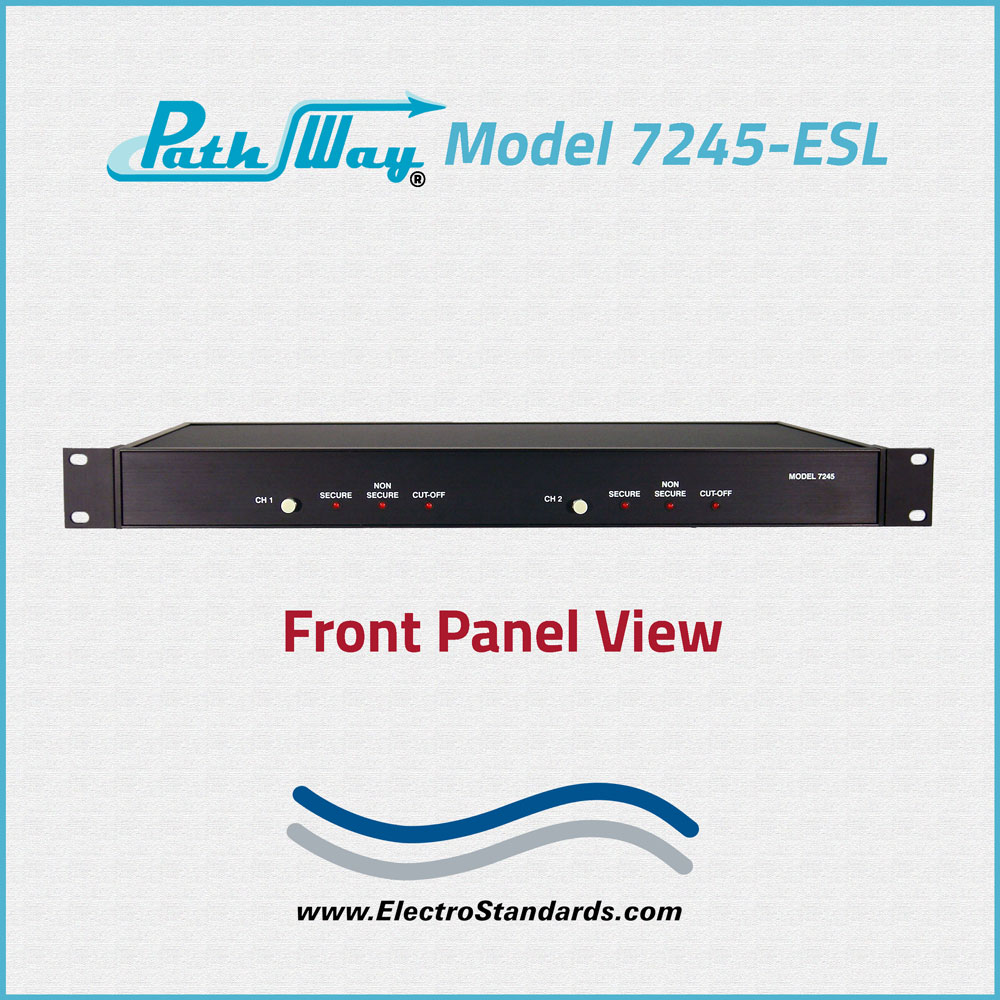

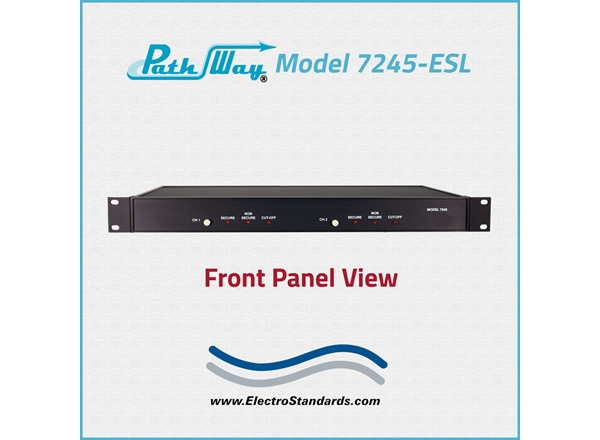

  • FRONT PANEL CONTROLS: (2) Manual pushbuttons allow local switch of channels 1 and 2.
  • REMOTE CONTROL: DB9 female connector on rear panel accepts contact closure or RS232 serial data.
  • LOCAL DISPLAY: (6) LEDs on front panel display switch position and power presence.
  • POWER: 115 VAC, 60 Hz wall mount supply.
  • DIMENSIONS: 19.0” W x 1.75” H x 8.0” D. [48.3 X 4.5 X 20.3 cm]
  • WEIGHT: 4.5 lbs. [2.1 kg]

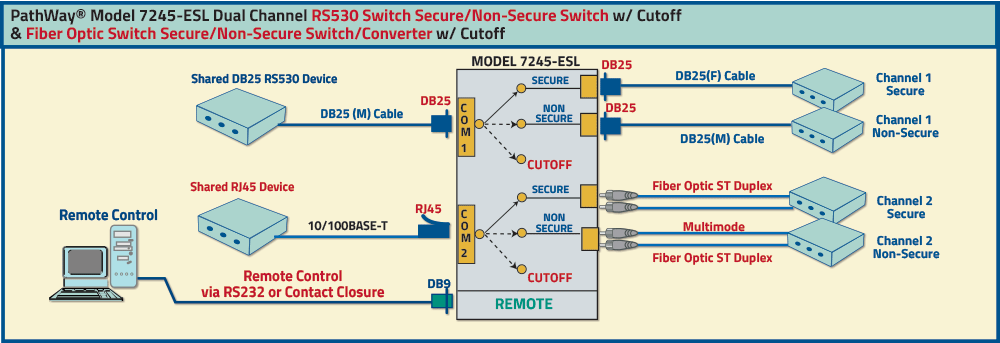

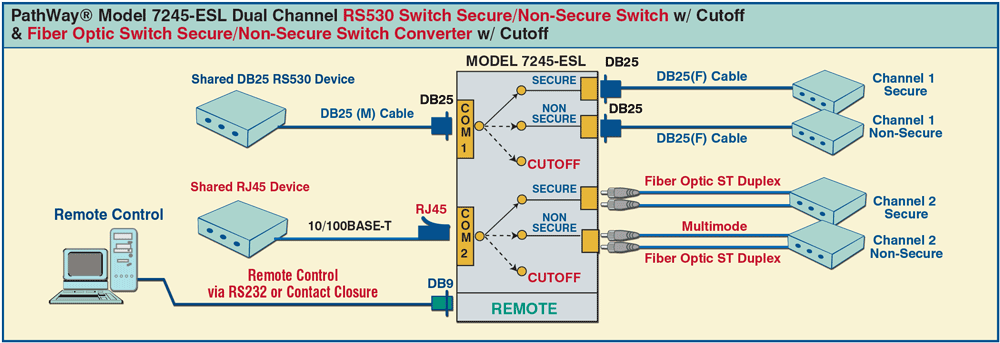

PathWay® Model 7245-ESL Dual Channel RS530 SECURE/NON-SECURE Switch w/CUTOFF & Fiber Optic ST Duplex SECURE/NON-SECURE Switch/Converter W/CUTOFF Application:

  • Channel 1: RS530 DB25 SECURE/NON-SECURE and CUTOFF positions Switch.
    • A DB25 interface COMMON device is connected to the DB25 COMMON port with access to two DB25 interface devices, connected to DB25 ports labeled SECURE and NON-SECURE.
  • Channel 2: RJ45 10/100Base-T / Fiber Optic ST Duplex SECURE/NON-SECURE and CUTOFF positions Switch/ Converter.
    • An RJ45 device is connected to the RJ45 10/100Base-T port with access to two ST Duplex devices connected to the Fiber Optic ST ports labeled SECURE and NON-SECURE
    • Provides Copper to glass ST Fiber Optic conversion.
  • Channel 1 and Channel 2: Select SECURE, NON-SECURE or CUTOFF positions. Control channel via Remote Control commands.
  • DB9 Remote Control: Accepts RS232 ASCII Serial commands or Contact Closure Signaling.

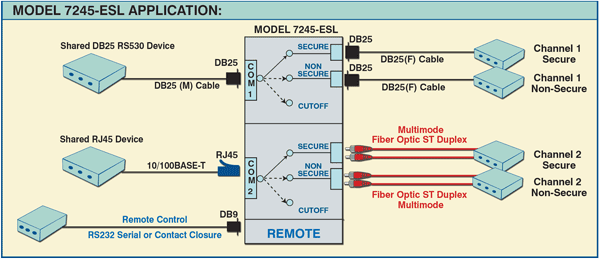

PathWay® Model 7245-ESL Dual Channel; RS530 Secure/Non-Secure w/Cutoff & Fiber optic Secure/Non-Secure switch converter w/ Cutoff application


  • Both Channels offer SECURE / NON-SECURE / CUTOFF switch positions with Remote Control.
  • Channel One is RS530 compatible. All 25 pins are switched.
  • Channel Two is Fiber Optic ST Duplex, multimode.
  • Wavelength 1300 nm, fiber size 62.5/125 micron, 100 Meg data rate.
  • Remote switching via DB9 Remote port on rear panel.
  • Local switching via two front panel pushbuttons.
  • Local switch change sends ASCII text over the RS232 interface to notify the user of the new switch position.
  • All ports are located on the rear panel.
  • Status LED’s on the front panel indicate the switch position & power status.
  • Either channel can be set to “CUTOFF” position, which stops any, and all data throughput for the switch.

The PathWay® Model 7245-ESL Dual Channel RS530 and ST Duplex (1300nm wavelength) Fiber Optic Secure/Non-Secure Switch/Converter with Cutoff provides two-channel switching. The Model 7245-ESL is enclosed in a 1U, full rack size, all metal, black chassis designed to fit in a standard 19” rack.

Channel One allows the user the capability of sharing a single DB25(F) interface device connected to the “COMMON” port among two other DB25(M) devices connected to the “SECURE” AND “NON-SECURE” DB25 ports.

Channel Two allows the user the capability of sharing a 10/100 Base-T device connected to the “COMMON” port among two ST Duplex (1300nm wavelength) Fiber Optic devices connected to the “SECURE” and “NON-SECURE” Fiber Optic ports. Both channels allow the user to set the switches to the “CUTOFF” position, which stops any, and all data throughput for the switch.

The switches may be controlled locally by manually operating the front panel pushbuttons or remotely from the DB9 Control port located on the rear of the unit using either Contact Closure Signaling or an RS232 Command Interface. The front panel LED’s display switch position and power status.

All ports (“SECURE”, “NON-SECURE”, and “COMMON”) are transparent to all data. If power to the PathWay® Model 7245-ESL is removed, both switches will automatically move to the “CUTOFF” position. When power is restored, each switch will move to the programmed default position.
