304217 - 4215 2-Channel Load Cell Indicator

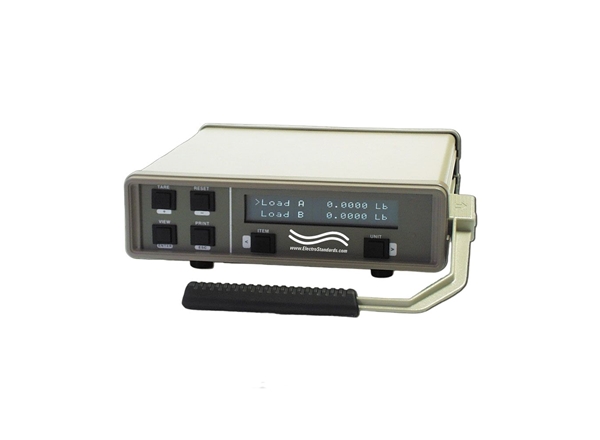

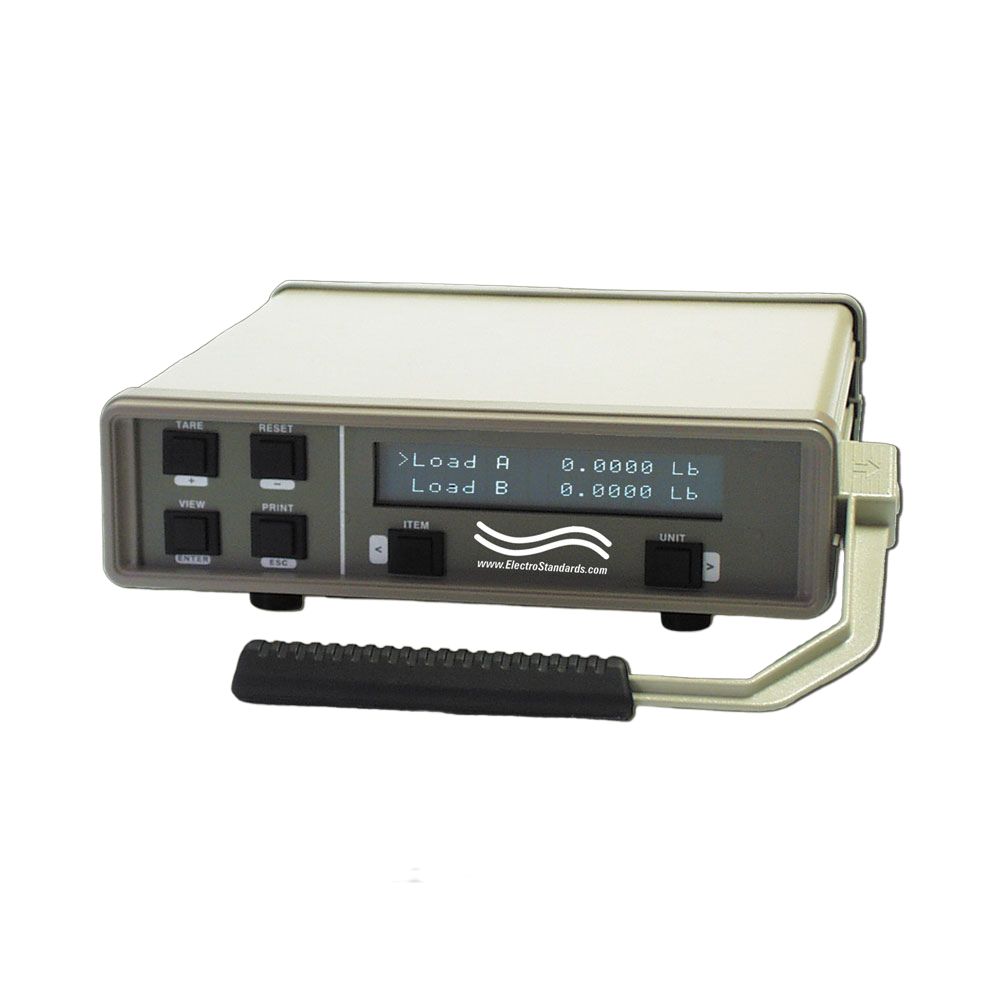

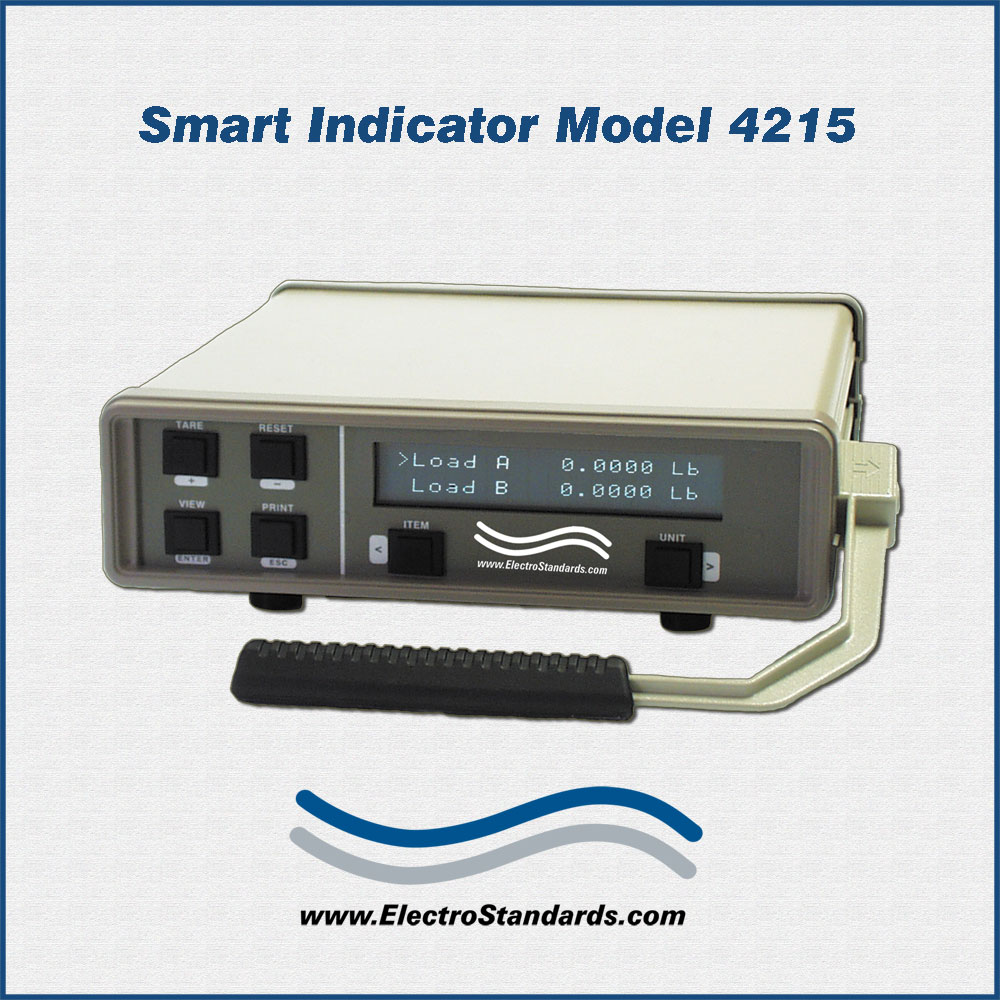

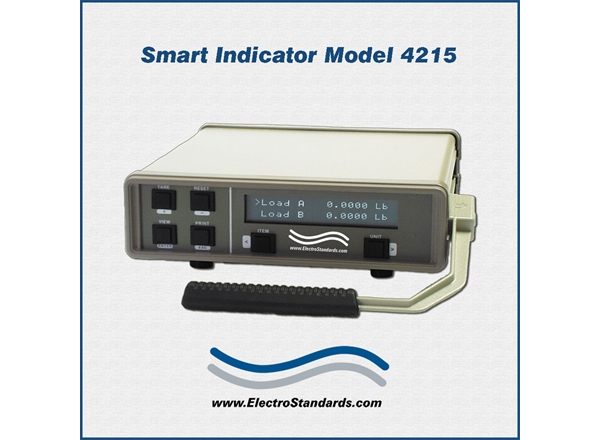

    Model 4215 Smart Indicator
Click image to enlarge
Base Price:
$2,490.00
Catalog No: 304217
Model No: 4215-2
D/A Output-Analog:Scalable +/-10V - 4/20mA Optional
Display Range:+/-999,999 Cts.
Excitation:5 or 10 VDC
Input Range:+/-4.5mV/V
Quad Limits Output:Independent, Isolated Solid State Relays control AC or DC signals
Resolution:24-bit
Serial Port:RS232/485 - USB Optional

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

Model 4215A-204-1, Cat No 304217

Dual Channel Smart Indicator
Calibration Quality Load Cell Electronics

The Model 4215A-204-1 Dual Channel Strain Gage Indicator is an intelligent microprocessor based instrument designed for the measurement and control of strain gage transducer based systems. It combines the force channels, encoder position channels, print capabilities, and RS232/485 serial communications into a versatile platform that can be customized to deliver the most powerful and affordable instrumentation in its class.

The Model 4215 is compatible with most tensile testers, load cells, extensometers, torque transducers, pressure sensors and position encoders. Whether upgrading an existing system or implementing a new one, the Model 4215 strain gage indicator delivers the accuracy, reliability, and repeatability needed to meet the most demanding applications.

Features:

  • USB Communications Port
  • TEDS-Tag®
  • Provides strain amplifier and signal conditioning for strain gages, load cells, and transducers.
  • Provides for calibration and data storage of strain gages, load cells and transducers.
  • The Model 4215 can be used as a Thrust System Indicator applicable to the testing of jet engines.
  • The Model 4215 is compatible with most tensile testers, load cells, extensometers, torque transducers, pressure sensors and position encoders.
  • Model 4215 Dual Channel Load Cell Indicator (For Model 4215 Single Channel Load Cell Indicator, See Related Products)

 Standard Features:

  • Fully Bipolar Range /-999,999 display.
  • 24-bit resolution.
  • Nonlinearity 0.005%.
  • 2-line X 20-character vacuum fluorescent display.
  • TEDS-Tag® Auto Load Cell Identification.
  • User input text display on second line of display.
  • Auto setup for 25 load cells.
  • Front panel shunt calibration with 2 selectable resistors.
  • Functions include: peak / valley / hold / tracking / peak reset.
  • Quad limits output: independent, isolated solid state relays, controls AC or DC signals.
  • Six user-selectable filters.
  • Tri-state limit display: on, off, disabled.
  • Automatic display unit conversation: Lb, Kg, N, Psi, Mpa, Klb, Kn, t.
  • D/A output:  /-10V std; /-5V, 0-5V, 0-10V std. per request.
  • Direct analog amplifier output.
  • RS-232/RS422, RS485 communication standard.
  • Full operation and calibration via RS232.
  • 5-point linearization.
  • Quadrature encoder channel for position and rate readout.
  • Dual Channel Load Cell indicator

Available Features:

  • 4 - 20 mA output
  • Rugged carry handle
  • Two channel option available
  • Two channel units are standard with simultaneous read
  • Two channel unit has two independent lines of 20 character display for simultaneous viewing of both channels (standard for 2-channel unit)
  • USB communications port.
  • 10-Point Linearization.
  • Second D/A Output.

dataView Software Ready!

Main panel of dataView software showing real-time graphing while running a test.

  • Standard unit is dataView ready for graphical user interface and connection to a PC.
  • dataView software operates at full speed for single and dual-channel unit real time data acquisition.
  • dataView software is catalog number 511040.



Model 4215 connects to a wide variety of tensile testers, extensometers, torque transducers, and other strain gage transducers.
 Model 4215 connects to a wide variety of tensile testers, torque transducers, and other strain gage transducers.



Transducer Interface:

  • Input: /-4.5 mV/V (Other ranges are available)
  • Excitation: Selectable 5 or 10 VDC
  • Current Drive: 180mA Strain Gage Compatible

Digital Interface:

  • Vacuum Tube Fluorescent Display
  • Automatic Span Adjustment and Scaling
  • Automatic Decimal Point Adjustment
  • Maximum Display Count /-999,999 standard
  • Resolution: 24 Bits
  • Linearity: 0.01%

Six Smart Pushbuttons (All menu buttons have alternate functions for setup menus):

  • Two buttons for displayed item and displayed units selection
  • Tare
  • Peak and Hold Reset
  • Print

Serial Port Interface

  • RS232/422 and 485

Limit Switches

  • Digital Outputs for Over/Under Limits
  • Solid State Relay Interface

Calibration

  • Shunt Check, mV/V, Known Load

Analog Output

  • D/A analog Output
  • Scalable /-10 V, 4-20mA optional

Position Encoder Interface

  • Quadrature Encoder (4 x number of lines)
  • Single-ended or Differential Signals
  • 12 VDC or 5 VDC Power

Transducer Channels

  • 1 to 2, 1 Std, 2nd Channel optional

Hardware Auto Identification

  • Hardware Auto Identification for 25 transducers

Remote Operation

  • Full Remote Operation via Serial Port
  • Basic Control via Digital Inputs
  • Optional DataView Software link for PC

Programmed Operations include:

  • Peak Hold and Tracking
  • Programmable Math and Function Channels
  • Programmable Limits
  • Variety of Engineering Units (including lbs, kg, N, Psi)
  • Position Indication
  • Velocity Indication
  • Accepts User-Parameter Inputs
  • Menu Scrolling
  • Auto Zero

Network Applicaton for Model 4215A-204-1 Dual Channel Indicators

APPLICATION NOTE: How to make your own Plug and Play Load Cell System!
Order Cat No 501574, TEDS-Tag® ID Component to make your Plug and Play Load Cell System!
