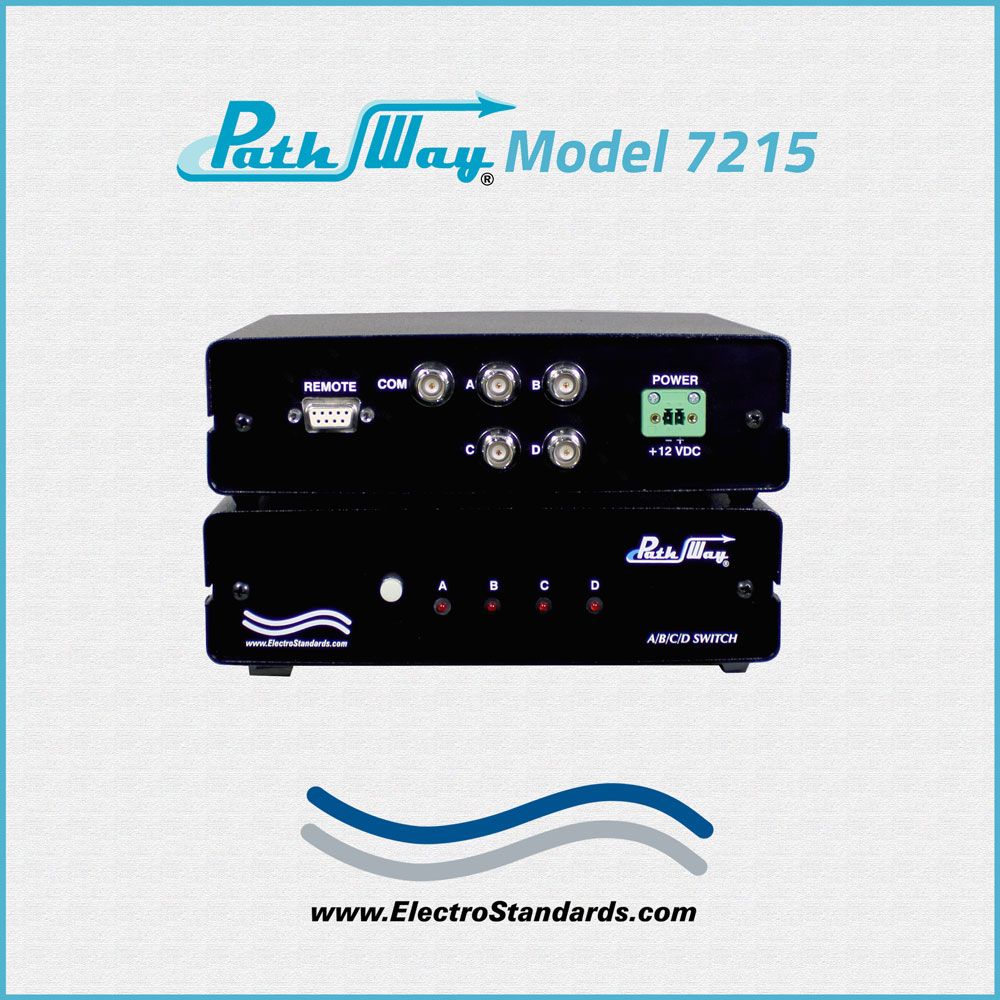

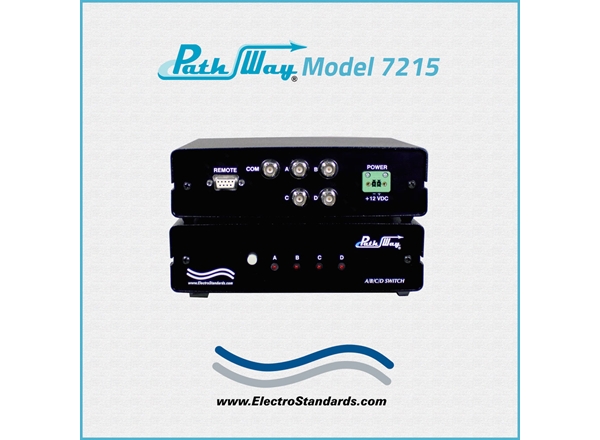

Catalog # 304141 - Model 7215 BNC 4-Position Switch

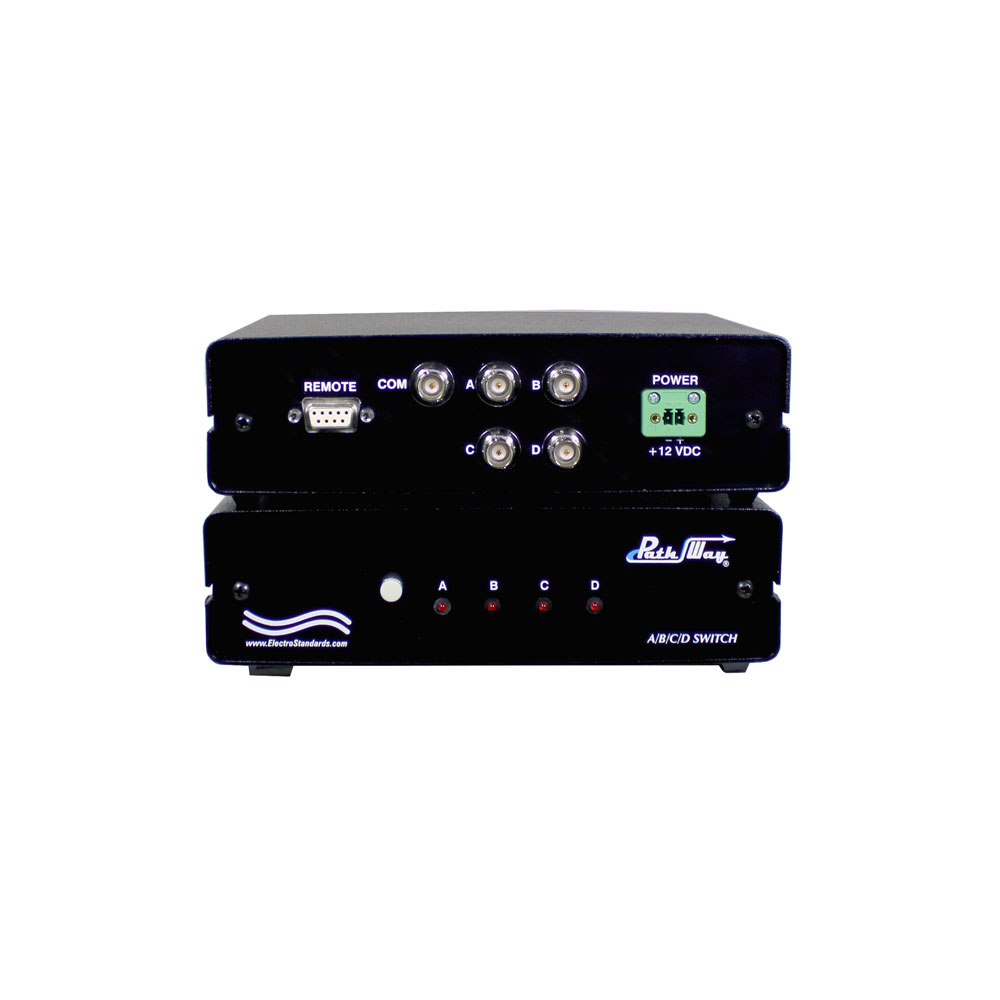

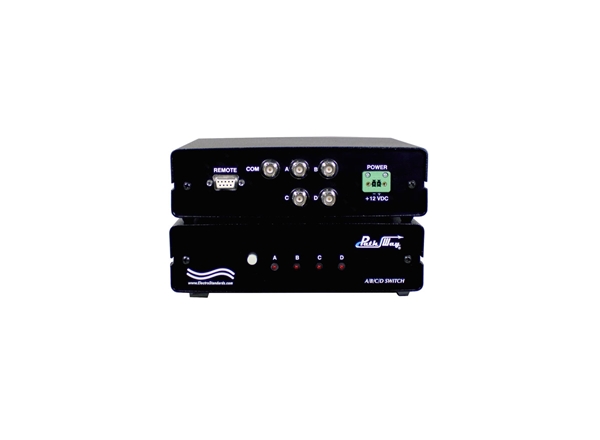

    Isolated BNC 4-Position SwitchIsolated BNC 4-Position SwitchIsolated BNC 4-Position Switch
Click image to enlarge
    • Isolated BNC 4-Position Switch
    • Isolated BNC 4-Position Switch
    • Isolated BNC 4-Position Switch
Base Price:
$605.00
Catalog No: 304141
Model No: 7215
Feature:BNCs switched via relays
Product Type:Switches: Copper
Positions:4
Cable Type/Port Connector:Coax Switch Ports
Channels per Switch Chassis:1
Electronic Switches/Power Required:PathWay® Copper
Remote Control:RS232 Serial
Configuration:Desktop
Remote Port:DB9
Local Control:Pushbutton

UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview


Path Way Remotely Controllable Network Switch, BNC Coaxial
Model 7215 A/B/C/D BNC Switch with Remote Control, Desktop

  • Ideal for sharing laboratory test equipment having a BNC coaxial cable interface.

  • Reliable and Field Proven in many Scientific Research Laboratory Applications.

  • Flexible Remote Control Capabilities

SPECIFICATIONS:

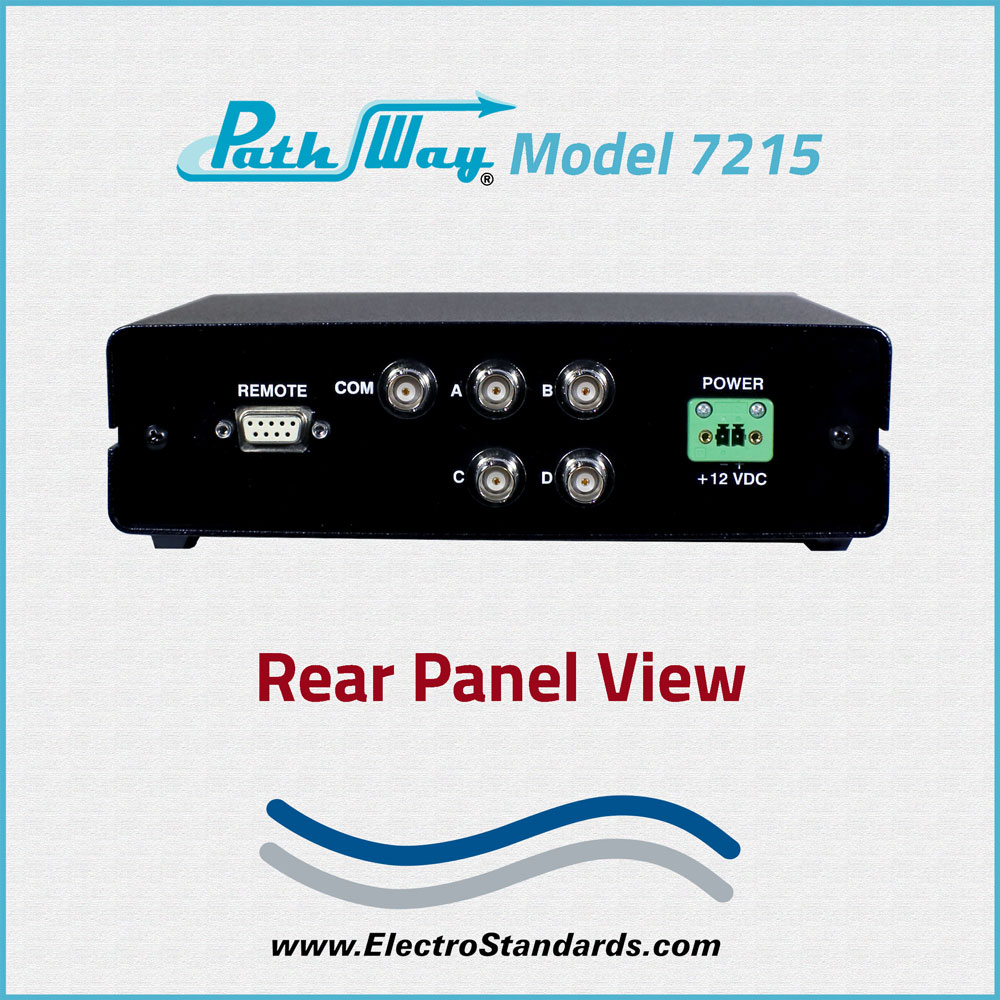

  • PORT CONNECTORS: (5) Isolated  BNC (F) connectors labeled A, B,C, D, and Common.

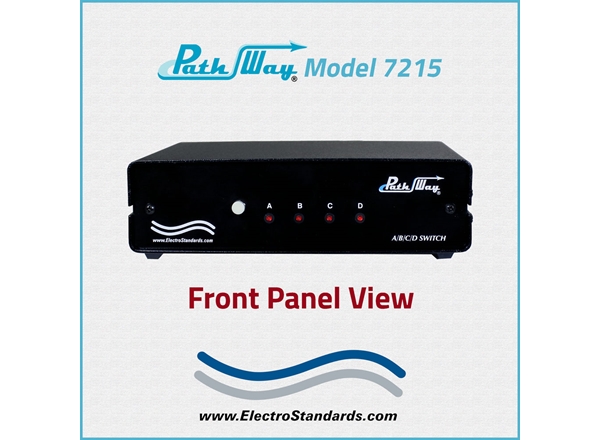

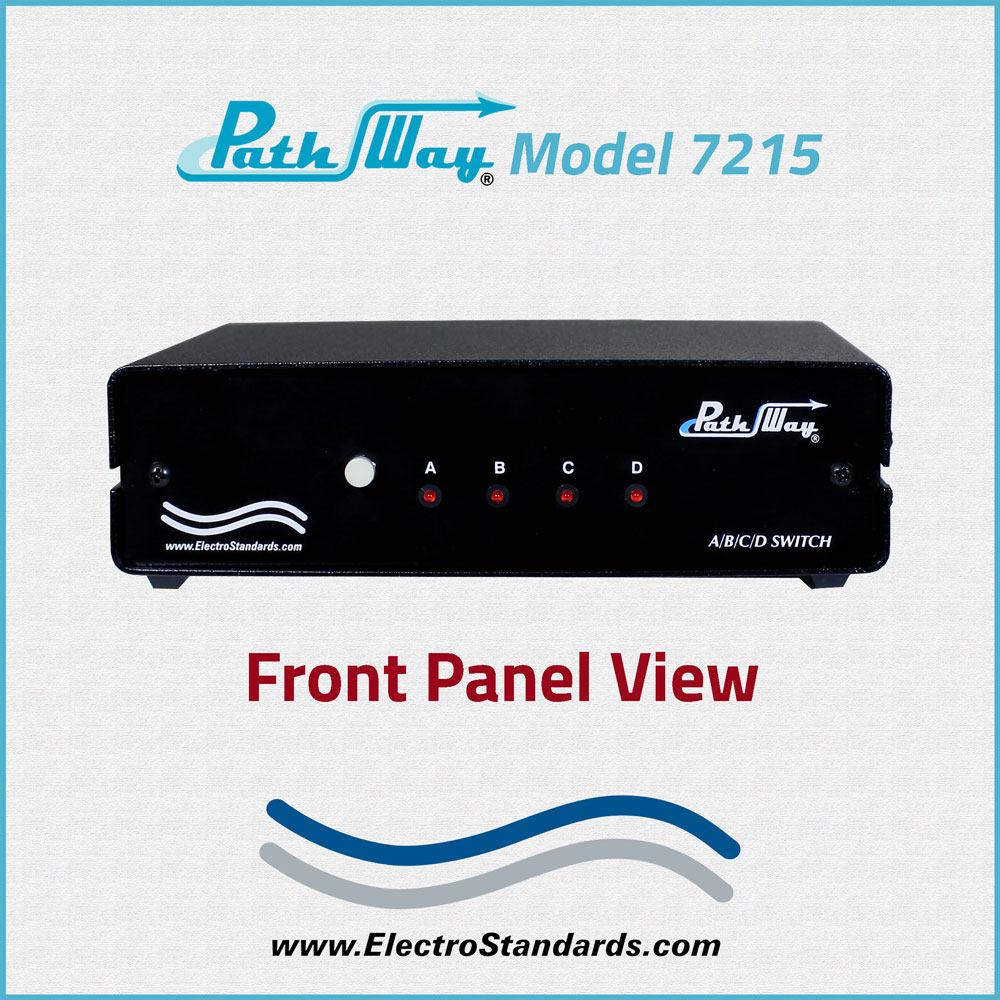

  • FRONT PANEL CONTROL: (1) Manual pushbutton allows local switching.
  • DISPLAY: (4) Front panel LED's display switch position and power status.
  • REMOTE CONTROL: (1) DB9(F) REMOTE connector on rear panel accepts ASCII RS232 Serial Data.
  • POWER: UL approved 100VAC/240VAC, 50Hz/60Hz wall mount power module supplies 12VDC, 500mA to the unit. Has a 2-prong, US, non-polarized plug.
  • DIMENSIONS: Desktop 5.25" W x 7.25" D x 2.0"H. (13.3 x 18.4 x 5.1 cm)
  • WEIGHT: Approximately 1.3 lbs (0.6 kg)

A/B/C/D BNC NETWORK APPLICATION w/RS232 REMOTE:

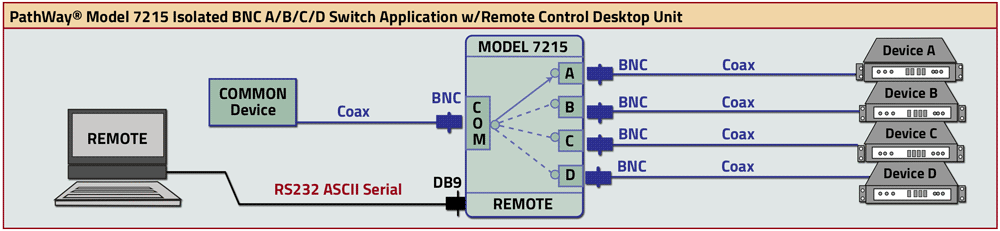

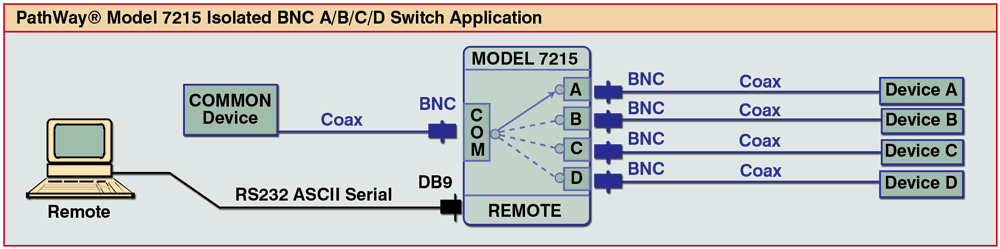

The drawing illustrates a COMMON device connected to the COM port accessing one of four ports, A, B, C, and D connected to four other devices.  It also illustrates a DB9 REMOTE Control that users can remotely control the Model 7215 via ASCII RS232 Serial data commands to control switch position and obtain switch status.

PathWay® Model 7215 Isolated BNC A/B/C/D Switch Application drawing

FEATURES:

  • The switch ports are transparent to all data.

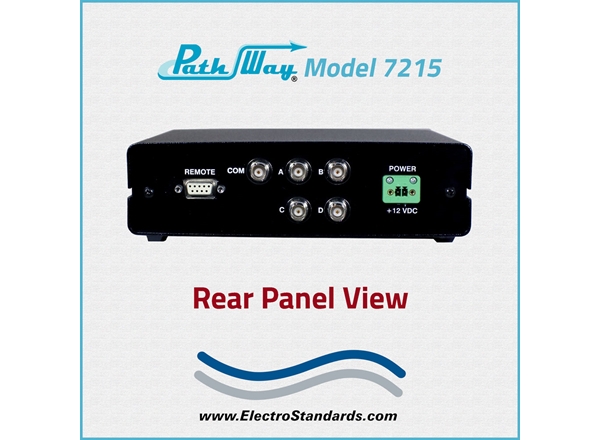

  • (5) Isolated BNC connectors on rear panel.
  • Both center pin and shell are switched via break-before-make electromechanical relays.
  • The unit maintains last set position on power loss and continues to pass data.
  • Front panel pushbutton control
  • Remote RS232 ASCII commands that allow the user to control switch position and obtain switch status.
  • Front panel LEDs display the present position and the power status.

The PathWay® Model 7215 A/B/C/D BNC Switch with RS232 Remote Control allows the user the capability of sharing a single BNC interface device connected to the Common port among four other devices connected to the "A", "B", "C", and "D" ports. The Model 7215 is packaged in a slim desktop style enclosure.

The Model 7215 can be switched locally by using its front panel push button or remotely from the DB9 RS232 serial interface remote port located on the rear of the unit. The front panel LED display indicates the switch position and unit power status.

OPTION: WIDE RANGE POWER MODULE (Cat. No. 517277) CE, RoHS, and UL listed table mount power module, 100VAC/240VAC, 50Hz-60Hz for use in place of the standard power module that is included with the unit.  Has IEC 60320 C14 inlet.  Ideal for international applications.

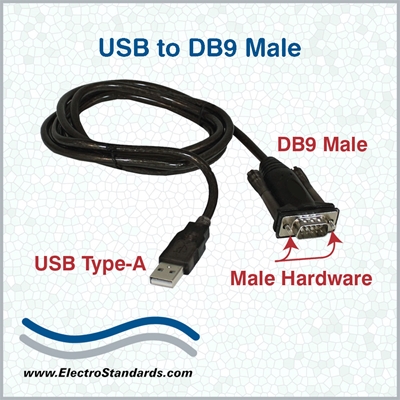

SPECIFICATIONS: USB to DB9 Serial Converter Cable Available! If only USB ports are available on the computer or if a USB port is chosen to be used for any reason, a USB to DB9 serial converter cable will be needed.  This cable can be provided by ESL under part number 528693.

Custom length cables are available for quick delivery!

Suggested cables for use with Model 7215 Switch
Part Number  Description

990136-006
990136-010
890426-006
890426-010

RG58 Coaxial Cable, 50 ohm, 6ft.
RG58 Coaxial, 50 ohm, 10ft.
Thinnet RG58 Coaxial Cable, 50 ohm, 6ft
Thinnet RG58 Coaxial Cable, 50 ohm, 10ft

 See Accessories below for pricing.

Electro Standards can supply all your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
