Model 800, Cat# 301300 HSSI SCSI Breakout Box / Analyzer Tests HSSI SCSI-2 Interfaces

    HSSI (SCSI-2)Breakout Box / AnalyzerHSSI (SCSI-2)Breakout Box / AnalyzerHSSI (SCSI-2)Breakout Box / AnalyzerSCSI-2 50-Pin Male CableSCSi-2 50-Pin FemaleHSSI (SCSI-2)Breakout Box / Analyzer
Click image to enlarge
    • HSSI (SCSI-2)Breakout Box / Analyzer
    • HSSI (SCSI-2)Breakout Box / Analyzer
    • HSSI (SCSI-2)Breakout Box / Analyzer
    • SCSI-2 50-Pin Male Cable
    • SCSi-2 50-Pin Female
    • HSSI (SCSI-2)Breakout Box / Analyzer
Base Price:
$560.00
Catalog No: 301300
Model No: 800
Description:High Speed Serial Interface (HSSI)
Display:None
Feature:50 pins on front panel allow access to all interface signals
Product Type:Breakout Boxes/Interface Analyzer
Interface:HSSI (SCSI-2)
Application:Connect in Series with Interconnected SCSI Interface Devices
Ruggedized:Virtually indestructable

  • Cable Interface Diagnostic tools.
  • Cable Interface Testing.
UPS

Shipping Terms

Shipments are made via UPS Ground, unless otherwise specified. Freight charges are prepaid and added to your invoice. We can estimate the freight costs for you.

We can ship freight collect on your account, just provide your UPS Account Number.

We can also ship via the carrier of your choice. Provide the details and your account number.

Products shall be shipped F.O.B. Electro Standards' facility. Title to and risk of loss or damage to the products shall pass to you upon Electro Standards delivery of the products to a carrier for shipment. Title to software will remain with the applicable licensor. Electro Standards' prices do not include shipping and handling charges. Electro Standards reserves the right to use its own discretion in the manner and routing of shipments. Electro Standards shall be permitted to deliver products in separate lots.

Shipping Return Policy

  • To return an item, contact Electro Standards at 401-943-1164 to obtain a Return Material Authorization (RMA) number. RMA numbers are valid for 30 days after the date of the shipment and cannot be extended or re-issued. We are unable to accept returns without an RMA number.
  • All returns except those of defective product are subject to a 15% restocking fee, and additional charges for handling or freight are refunded only in cases of defective products.
  • Return freight must be shipped prepaid. We recommend that you insure the package as you are responsible for risk of loss on all returned packages. We recommend that all cartons are properly packed as Electro Standards is not responsible for product damaged en route. We do not issue call tags for product returns.
  • Returned product must be clean, undamaged, and complete with all manuals, accessories, documents and packaging. The items must be in a resalable condition.
  • The product must have with it a copy of the original invoice or packing slip and the appropriate RMA paperwork.
  • If your item is not working properly, please contact Electro Standards at 401-943-1164 for help in trouble-shooting your application.
  • If the product is defective, Electro Standards will repair or replace that item (at our discretion) upon receipt and evaluation of the original product.
  • Electro Standards reserves the right to authorize product returns after 30 days from the invoice date in some cases. If the product is accepted after 30 days, credit will be issued toward future pruchases only and some additional restocking charges may be applied.
  • All credits from RMAs must be used within one calendar year of issue.

Ask a Question

Protected Document Request



Overview

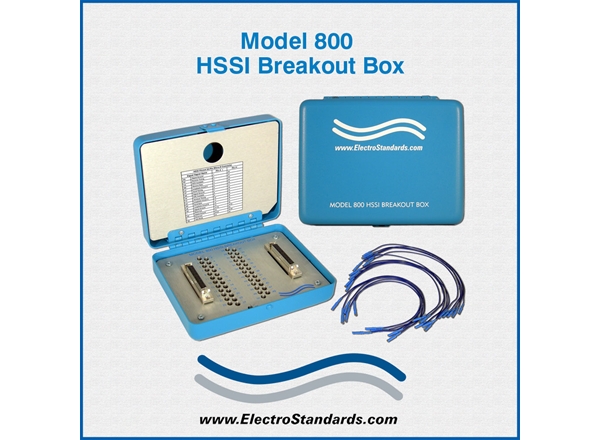

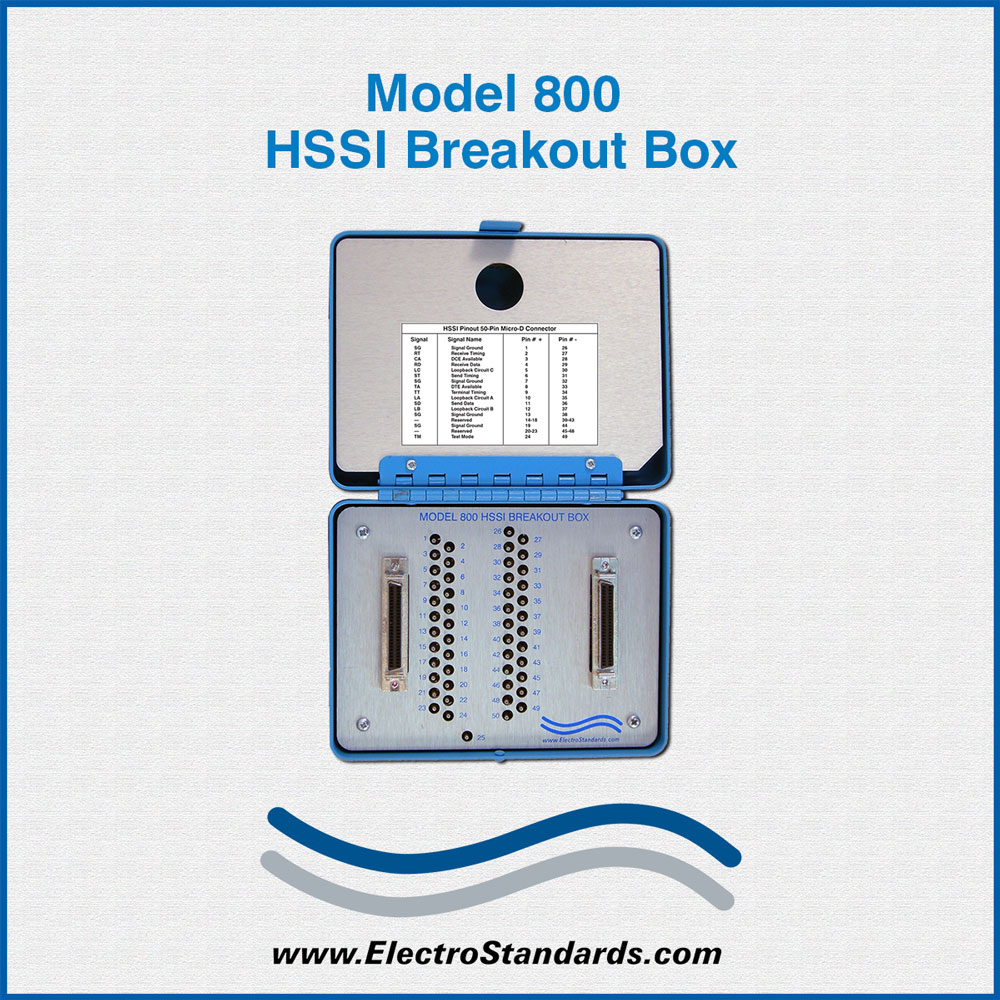

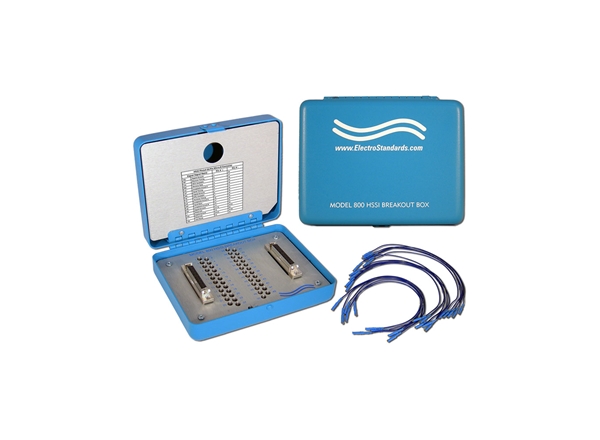

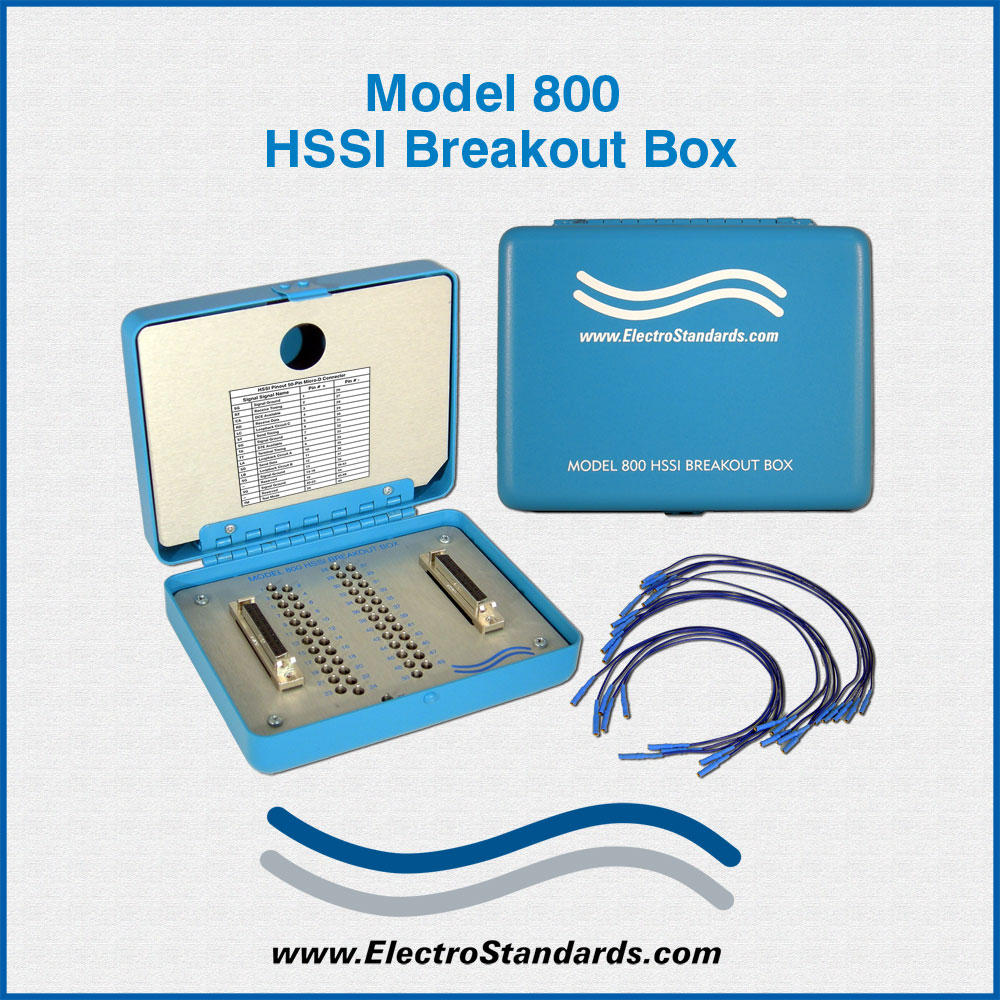

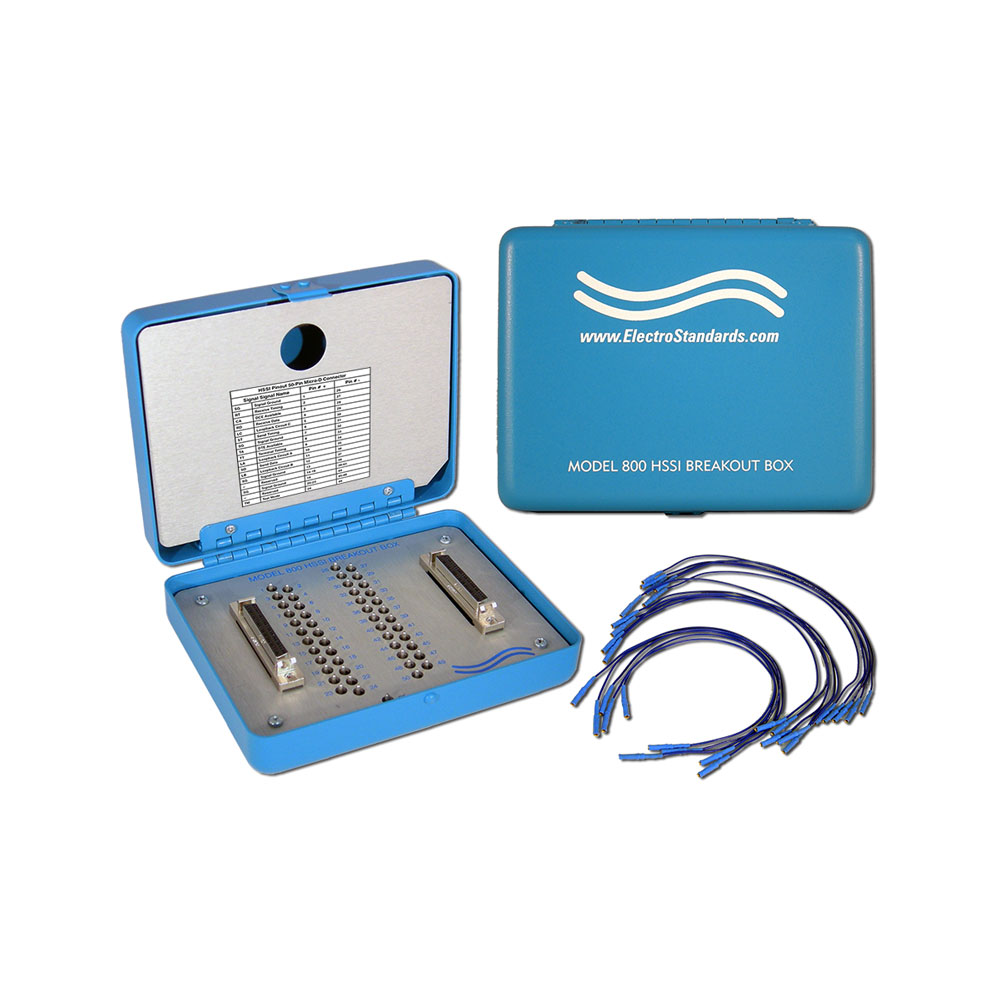

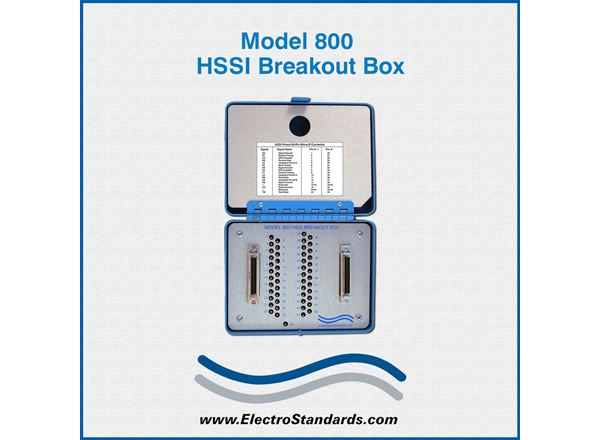

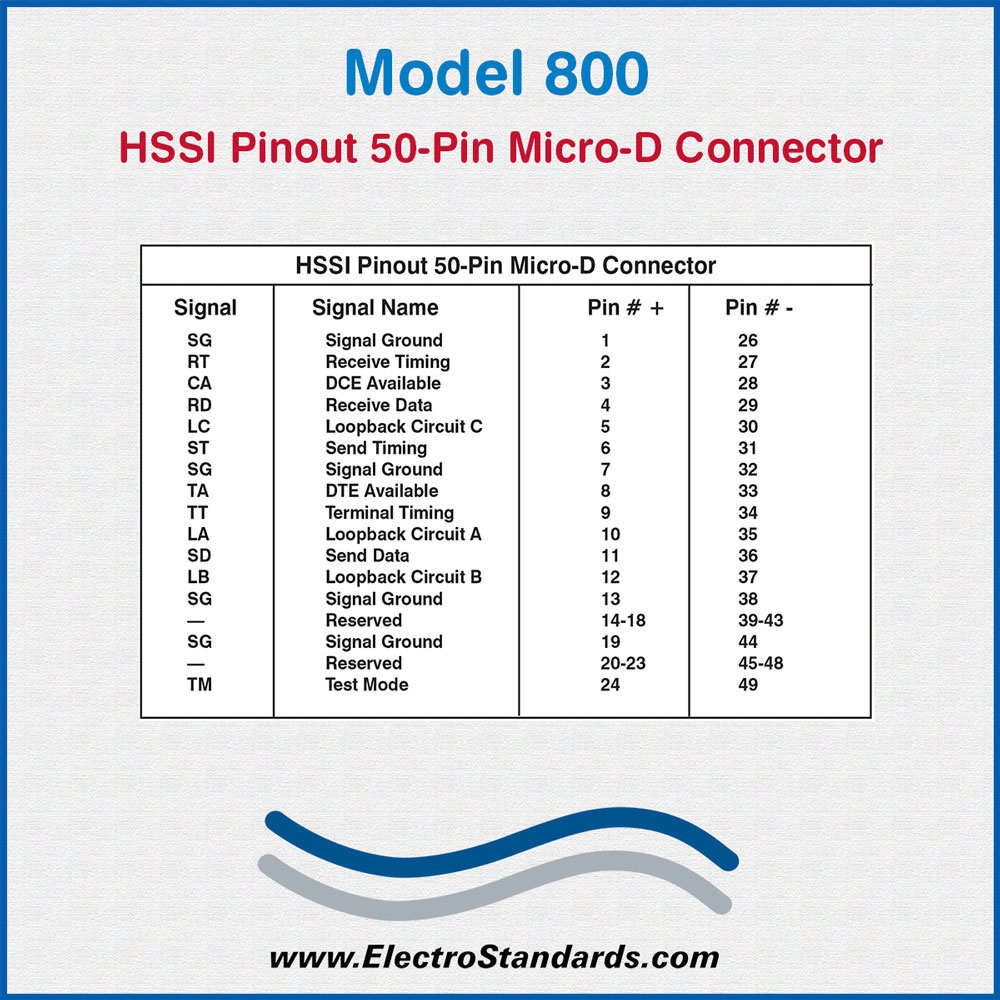

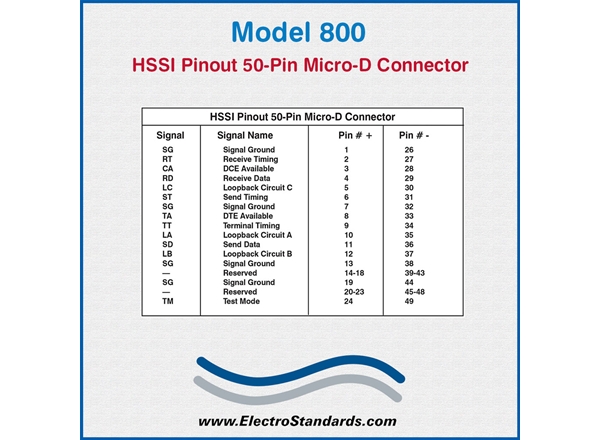

Model 800 HSSI (SCSI-2) Interface Breakout Box

  • Small Computer System Interface (SCSI)

  • High Speed Serial Interface (HSSI)

FEATURES:

  • Connect in series with interconnected SCSI interface devices.
  • Input/output connectors are female 50-Pin SCSI-2 (Mini-50).
  • Test points for all 50 connector pins.
  • Ample supply of mini-patchcords.
  • Rugged aluminum case with sturdy metal hinge and latch.
  • Lightweight and pocket-sized.
  • Compact size: 4.0” x 5.25” x 1.75”. (10.2 X 13.3 X 4.4 cm)
  • Cable Interface Diagnostic tools.
  • Cable Interface Testing.

Model 800 Monitor and Test Application:

Diagram of Model 800 HSSI (SCSI-2) Interface Breakout Box Network Application

The drawing illustrates Daisy-Chained SCSI-2 peripherals, HSSI devices connected to the Model 800 HSSI (SCSI-2) Interface Breakout box.

Diagram of Model 800 HSSI (SCSI-2) Interface Breakout Box Network Application

      INTRODUCTION

      The Model 800 HSSI (SCSI-2) Interface Breakout Box is a tool designed for use to monitor all signals of the SCSI-2 interface.  It is simply inserted in series between SCSI interface devices to provide access to and monitoring of all data, timing, and control signals. 15 one-foot mini patch cords that plug into the test points on the box are provided to facilitate access to signals passing through between connected devices.

      There are fifty numbered test points on the unit.  They are connected directly to the 50 pins of both HSSI/SCSI-2 connectors. Test points serve as access points for signals that are being passed between connected devices.  The mini patch cords allow easy access to the corresponding connector pin, which can in turn be connected to a scope probe, data analyzer, voltage meter, or other diagnostic instrument!

      HSSI: High Speed Serial Interface

      HSSI is a short distance communications interface that is commonly used to interconnect routing and switching devices on local area networks with the higher speed lines of wide area networks.

      SCSI: Small Computer System Interface

      SCSI is a hardware interface that allows for the connection of up to 15 peripheral devices to a single PCI board called a “SCSI host adapter”.  SCSI uses a bus structure and functions like a mini-LAN connecting 16 devices, with the host adapter counting as one device.

      SCSI-2 Cable

      Both ends of the cable use a 50-Pin male plug which can plug directly into the Model 800 (SCSI-2) HSSI Breakout Box

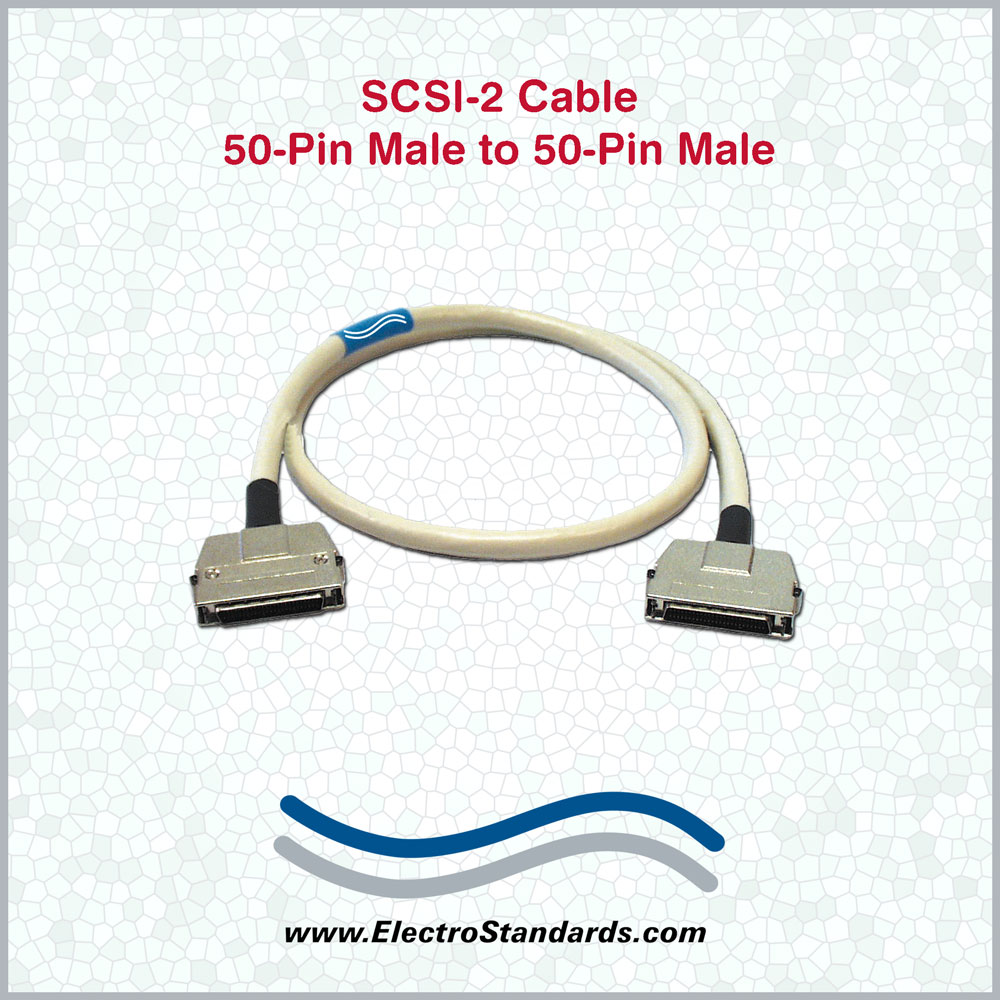

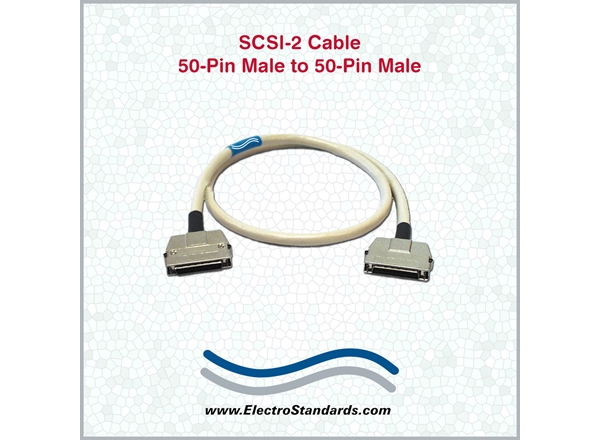

      Male 50-Pin cable ends

      SCSI-2 Sockets

      The sockets on the typical host adapter and devices are 50-Pin female.

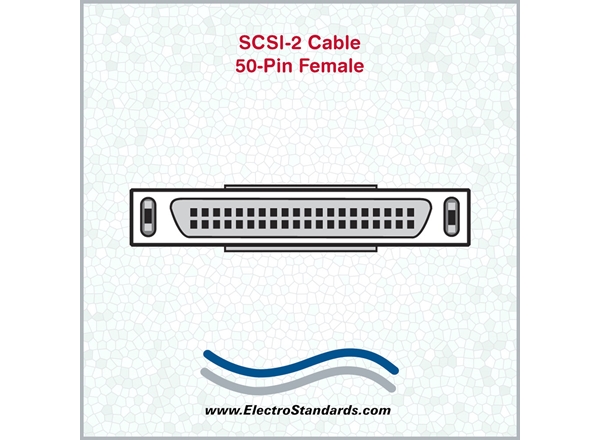

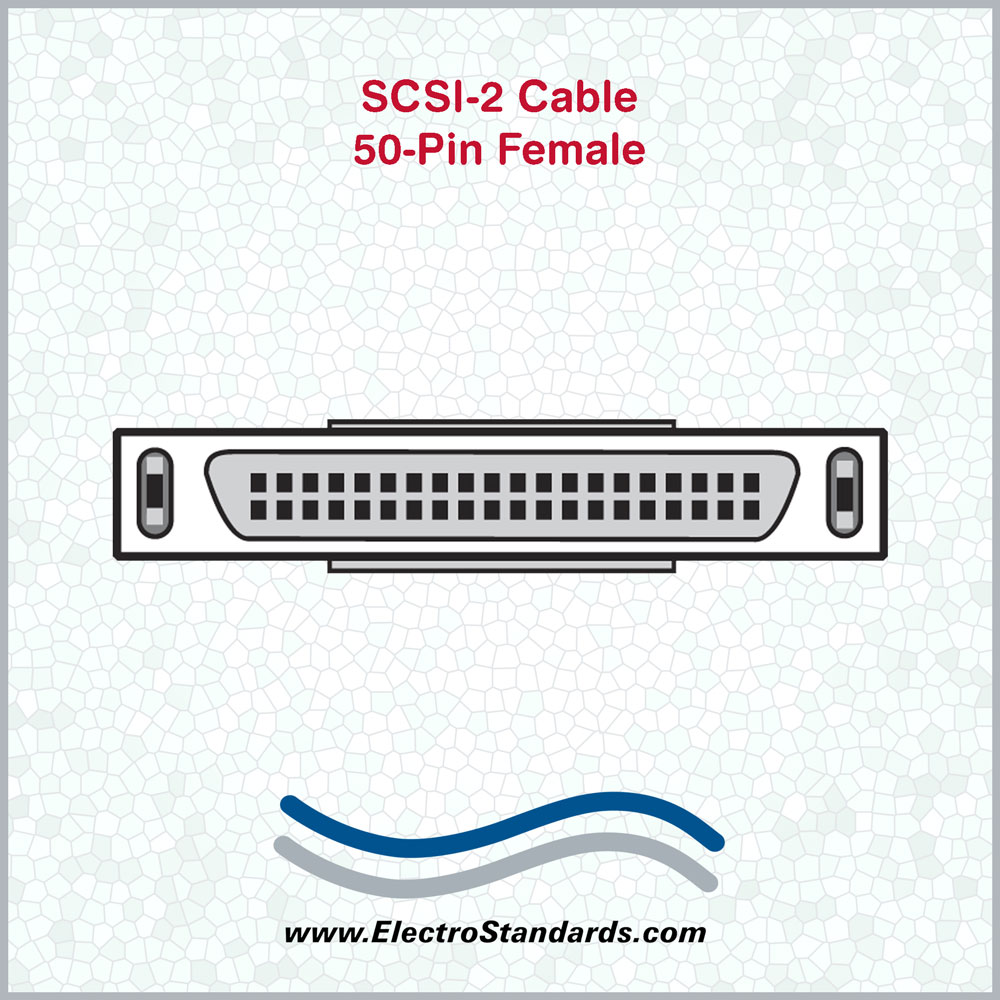

      Female 50-Pin SCSI-2
