QuickSwitch® Fiber Optic Network Switch / Converter
QuickSwitch® 4193 8-Way Fiber Optic Switch / Converter
QuickSwitch® 4193 8-Way Fiber Optic Switch / Converter allows the user to access any one of eight separate fiber optic devices or networks via ports 1/2/3/4/5/6/7/8, from a workstation or device connected to the COMMON 10/100 Base-TX port. All eight of the fiber optic ports are 1300nm, 100Mbps ST duplex multimode ports. The built in electronics will automatically convert the common port to 10/100 Base-T twisted pair media. SC Duplex is available. Custom configurations are available.
QuickSwitch® 4193 can be controlled from front panel pushbuttons only. Front panel control is as simple as pushing the button on the desired network port. LED indicators display the switch position status, as well as the presence of the fiber optic link.
QuickSwitch® 4193 Features:
- QuickSwitch® 4193 fiber optic network switch/converter allows
access to any one of eight separate fiber optic networks
from one computer.
- Simple pushbutton switching eliminates plugging and unplugging
fiber optic patchcords, minimizing connector wear and increasing
system reliability.
- All eight network ports are 1300nm 100 Mbps ST duplex multimode
fiber optic ports.
- The COMMON port converts the selected fiber optic network port
to the 100BaseTX interface.
- Internal circuitry insures isolation between networks / devices.
- Acts as a signal source, no optical signal loss.
- LED display indicates switch position and fiber link presence
at a glance.
- Spare power supply available, P/N 522586.
- Other fiber optic interface network ports are available.
- A 4-port model is available. See Model 4189, Cat. No. 30318
QuickSwitch® Specifications:
- CONNECTORS: Ports 1 - 8 are 100 Base FX fiber optic
ST duplex ports. COMMON port is 100 Base-T RJ45.
- FIBER OPTIC INTERFACE: Wavelength 1300 nm, speed 100 Mbps,
multimode fiber, full duplex transmission.
- CONTROLS: (8) Pushbuttons to select network port. (No remote port).
- DISPLAY: (8) Status red LED's; (8) Link red LED's.
- POWER: UL approved 100-240VAC / 50/60HZ wall mount power
module supplies power to the unit, P/N 522586.
- DIMENSIONS: 11" W x 2.7" h x 8.5" D (27.9 x 6.9 x 21.6 cm)
- WEIGHT: Approximately 5 lbs (2.3 kg)

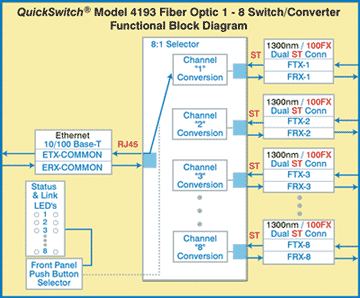

FUNCTION BLOCK DIAGRAM: Fiber Optic 1-8 Switch Converter with ST Duplex Multimode
and an RJ45 Ethernet port (10/100BASE-T).
-
This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.
Electro Standards can supply all of your Fiber Optic Cable requirements. Please click here to reach our Fiber Optic Cable Categories Webpage:
http://www.electrostandards.com/Products-By-Category/?catid=33&category=Cables%2C+Fiber+Optic+Network&filter=
QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.
QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.
For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form: http://www.electrostandards.com/Products-Custom/Fiber-Switch/
All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
