QuickSwitch® Fiber Optic Network Switch, LC Duplex
QuickSwitch® 6293 Fiber Optic Mirror A/B/C Switch, Single Mode LC Duplex, with Remote Serial Access
- Remotely controllable from Terminal Server connection to switch serial CONTROL port.
- Ideal for Dynamic Backup Applications!
- WAVELENGTH: 1310 nm.
- PORT CONNECTORS: (4) LC Duplex connectors labeled A, B, C, and COMMON.
- CONTROL: (1) Pushbutton allows selection of switch position.
- DISPLAY: (3) Red LED's display switch position and power status.
- SUPERVISORY REMOTE PORT: (1) RJ45 (F) connector accepts ASCII RS232 serial data.
- POWER: Connector on rear panel accepts customer supplied -48 VDC, 500 mA power input. A mating connector is included along with wiring instructions.
- DIMENSIONS: Standard rackmount, 19.0" W x 1.75" H x 8.0" D.
- WEIGHT: Approximately 4.5 lbs.

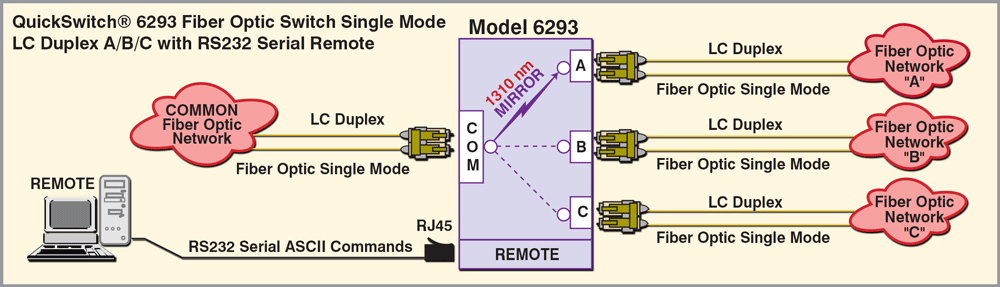

APPLICATION: The block diagram is an example of a fiber optic switch with a Remote port which can be used to lockout the front-panel pushbutton with ASCII commands.
The QuickSwitch® Model 6293 Fiber Optic Mirror A/B/C switch with Single Mode LC Duplex and Remote Serial Access allows the user the capability of sharing a Fiber Optic LC Duplex pair connected to the COMMON port among three other sets of LC Duplex pairs connected to the A, B, and C ports with local and remote access functionality. This Remote access can be accomplished using an RJ45 connection and ASCII commands.
- The switch ports are transparent to all data.
- All switched signals are passed via mirror relays that maintain their position and continuity even in the event of a power loss or failure.
- Supports single mode fiber (SMF-28), 9/125 micron fiber with a wavelength of 1310 nm.
- Control of the switch position from an RJ5 serial port or alternatively, the front panel push button.
- Remote ASCII command interface that allows user to control switch position and obtain switch status.
- Front panel push button may be "locked out" using the remote ASCII commands.
- MEMS mirror switch supports OC12 speeds of 622 Mbps.
- Requires customer supplied -48 VDC, 500 mA power input.
