QuickSwitch® Fiber Optic Network Switch / Converter
QuickSwitch® 4189 4-Way Fiber Optic Switch / Converter

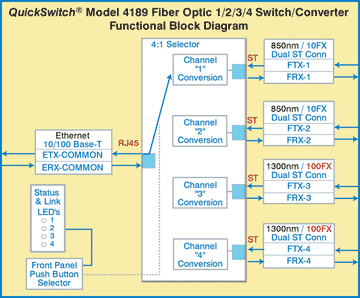

QuickSwitch® 4189 4-Way Fiber Optic Switch/Converter can access any one of four separate fiber optic networks from one computer.
QuickSwitch® 4189 Features:
- Access any one of four separate fiber optic networks from one computer
- Simple pushbutton switching
- Network ports 1 & 2 are 850nm 10 Mbps ST duplex multimode fiber optic ports. Network ports 3 & 4 are 1300nm 100 Mbps ST duplex multimode fiber optic ports. ST duplex shown. SC is available.
- Based on the selected port, the COMMON port will automatically convert to the proper 10 BASE-T or 100 BASE-T speed.
- Internal circuitry insures isolation between networks/devices
- Acts as a signal source, no optical signal loss
- LED display indicates switch position and fiber link presence
- Spare power supply available, P/N 520943.
| QuickSwitch® Specifications: |
|
CONNECTORS: Ports 1, 2 are 10 Base FL fiber optic ports, dual ST; ports 3, 4 are
100 Base FX fiber optic ST duplex ports; COMMON port is 10/100 Base-TX, RJ45.
|
FIBER OPTIC PORT INTERFACE: Ports 1, 2 are 850 nm, speed 10 Mbps,
full duplex; Ports 3,4 are 1300 nm, speed 100 Mbps, full duplex |
| CONTROLS: (4) Pushbuttons to select network port. |
| DISPLAY: (4) Status red LED's; (4) Link red LED's. |
POWER: UL approved 110-240VAC / 47-63Hz wall mount power module
supplies power to the unit, P/N 520943 |
| DIMENSIONS: 11" W x 2.7" H x 8.5" D, wt. 3 lbs. |
This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.
TO READ THE ARTICLE: "HOW TO DETERMINING THE RIGHT FIBER OPTIC NETWORK BACKUP SWITCH FOR YOUR APPLICATION", click link to read as a pdf.
You need Acrobat Reader to view this file.
Electro Standards can supply all of your Fiber Optic Cable requirements. Please click here to reach our Fiber Optic Cable Categories Webpage:
http://www.electrostandards.com/Products-By-Category/?catid=33&category=Cables%2C+Fiber+Optic+Network&filter=
QuickSwitch® ® is a registered trademark of Electro Standards Laboratories.
QuickSwitch® Fiber Optic Switches are available in many configurations: auto fallback, switch/converters, multimode & single mode, and secure off-line positions. Interfaces include: SC, ST, LC, and ESCON. Check out our complete line of QuickSwitch® fiber optic switches.
For custom fiber optic network switches contact our friendly sales support staff at 401-943-1164; or email: eslab@electrostandards.com, or complete our On-Line Custom Fiber Optic Switch Form: http://www.electrostandards.com/Products-Custom/Fiber-Switch/
All data switch boxes, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
