4129 HP Fiber to RS485 Converter

Base Price $310.00 /Ea
Catalog No. 304129
Model No. 4129
Cable Type 1mm Plastic Optical Film
Configuration Compact Module
Connectors HP/Agilent Versatile Link, RJ45
Convert From RS485/RS422 Serial Comm Interface
Convert To HP Versatile Link Plastic Core Cable
Speed >20 Kbps
Wavelength Nano 660 nm (red)
Quantity

Description Accessories Related Products Recently Viewed
 Fiber 485® Model 4129 HP Versalink Fiber to RS485 Interface Converter

  • Allow Connection of HP Fiber Optic Linked Terminals to RS485 Port of Controller
  • Provides Electrical-to-Optical, Optical to Electrical Conversion
  • Ideal for Casino Networks linking Video Lottery Terminals & Video Gaming Machines.

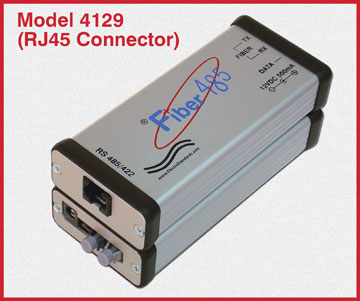

Model 4129 HP Fiber to RS485 Converter with RJ45 connector

 HP Fiber to RS485 Converters Specifications:

  • Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
  • RS485/422 Transmission Distance: Greater than 300 m (1000 ft.).
  • Optical Fiber Connectors: HP/Agilent Versatile Link
  • RS485/RS422 Connector:
    • DB15 Female on Model 4127,
    • RJ45 Female on Model 4129.
  • Optical Cable Type: 1mm plastic optical film.
  • Optical Wavelength: 660 nm (red).
  • External Power Supply: 120 VAC, 60 Hz.
  • Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
  • Weight: 0.5 lb. (226 grams).
  • Status Display: Red LED.

The RS-485 / HP Versalink Fiber Interface Converters are used to connect fiber optic linked Video Lottery Terminals to a controller having an RS-485/RS-422 interface port.  While RS485 is a versatile communication standard, able to communicate over long distances and at fast data rates, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields.  Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variations) that often exist between them.

HP FIBER / RS 485 CONVERTER APPLICATION FOR CASINO NETWORKS LINKING VIDEO LOTTERY TERMINALS & VIDEO GAMING MACHINES. The illustration shows a Controller connected to the Model 4129 RJ45 port and Video Gaming Machines linked to the HP/Agilent Versatile Link connectors via HP Versatile Link Plastic Core Cables.

HP Fiber to RS485 converter application for Models 4129

  HP Fiber to RS485 Converter Features:

  • RS485/RS422 connection via a RJ45 connector.
  • ESL's Media Converters convert  RS485/RS422 Serial Communication Interface to HP Versatile Link plastic core cable.
  • Copper interface features ESD and Transient Voltage protection.
  • ESL's Fiber Optic Interface Converters provide full galvanic isolation (no metallic connection) between connected devices.
  • Full duplex connection between HP Versatile Link fiber optic interface device or network and an RS485 interface device.
  • Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS485/RS422 interface.
  • Data transfer rate up to 1 Mbps.
  • Fiber connections via two standard Versatile Link connectors.
  • Configurable for use at DCE or DTE (specify with order).
  • Maximum Link Distance: greater than 500 meters (1640 feet) with 2.00 mm Hard Clad Silicon fibre cable.
  • Provided with external wall-mount power supply, UL approved.
  • This Fiber Converter is Ideal for casino data networks.
  • Municipalities, schools, government: This product is on GSA Schedule!

RS485 / 422 Signals
 Model 4127  Model 4129  Signal  Signal Direction

 DB15 Pin#

 RJ45 Pin#
 4  4  RX+  ← IN
 11  6  RX-  ← IN
 2  1  TX+  → OUT
 9  7  TX-  → OUT
 7  5  REF/GND

 Model 4127 (Cat No 304128) HP Versatile Link Fiber to RS-485 Interface Converter via a DB-15 connector.

 Please check out our HP Versalink Plastic Core Cables on our Related Products tab.

Please check out our HP Versalink Plastic Core Cables and Interface Converters on our Related products tab.
HP VERSATILE LINK PLASTIC CORE CABLES
 LENGTH  CATALOG NUMBER
 10 FEET  986625-010
 20 FEET  986625-020
 30 FEET  986625-030
 40 FEET  986625-040
 Custom length HP Fiber Cables Available
 Order: Catalog Number 986625 - Length (in feet)

This high-quality network switch is available to city, state, and federal government purchasers at a discounted price and favorable payment and shipping terms via GSA Schedule GS-35F-0286V. Click here or on GSA icon for details.

Models 4127/4129 specifications are translated into Cantonese below. To download the Cantonese spec sheet click here:  Model 4127/4129 in Cantonese
