1050 Current Sensor Board, Three Channel

Base Price $275.00 /Ea
Catalog No. 516532
Model No. 1050
Amps 50A
Channels 3
Current Range 0,+/-70A
Resistance 12V - 91 Ohms
Supply Voltage (+/-5%) +/-12V, +/-15V
Quantity

Description Accessories Related Products Recently Viewed

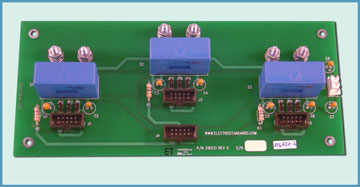

Three Channel Current Sensor Board (50 Amp x 3)

Model 1050 Three Channel Closed Loop (compensated) Current Sensor Board uses Hall effect

The Model 1050 is a three channel closed loop (compensated) current sensor board which uses the Hall effect.  The board contains three independent 50 amp current sensors, which can either be independently powered or bussed together by means of jumper settings.  Sensor full scale can be scaled by applying wire turns through the sensor body.

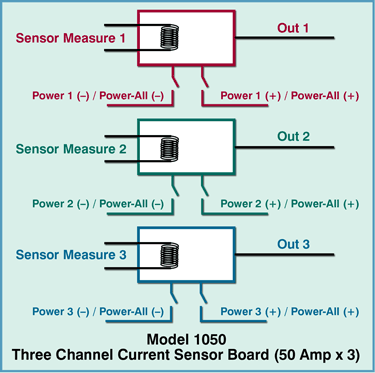

Application diagram of three channel closed loop (compensated) current sensor board using Hall effect.

SPECIFICATIONS:

General Data:
Primary Nominal RMS current 50A
Primary Current Measurement Range 0, +/-70A
Supply Voltage (+/-5%) +/-12V, +/-15V
Measuring resistance @ 12 V - 91 Ohms
Secondary nominal RMS current 50mA
Conversion Ratio 1:1000

Accuracy (@ +/-15V) +/-0.45%
               (@ +/-12V) +/-0.70%

Reaction Time @10% of IPN - <500ns
Response Time @90% of IPN - <1µs
Frequency Bandwidth (- dB) - DC, 200 kHz
Ambient operating temperature -41 to +85°C

Mechanical (Board Only):
Model / Cat No: 1050 / 516532
Size: 8.0" x 3.5" x 1.27" (20.3 x 8.9 x 3.2 cm)
Weight: 4.6 oz (130.41g)
Mounting: Four 0.15" Mounting Holes

OPTIONAL: Mating Connector Kit
To Order use Cat No 517258

  • (4) 10-Position (5 x 2) IDC connector with strain relief.
  • (1) 20C, 28 AWG rainbow ribbon cable, 4 foot length.
  • (1) 3-Position 0.156" spacing, female connector housing.
  • (3) Female crimp contacts for 0.156" connector (for 12-18 AWG wire).
  • (9) 0.1" spacing, shunt clips.

Optional Mating Connector Kit Cat No 517258

Custom Network Switches are available. Contact us by phone, email, or complete the Online Custom Products Form. /Products-Custom/Copper-Switch/

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

*Prices online are subject to change and verification.
All ESL Network Switches are available for export


















Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

For custom network switches call our friendly customer support staff at 401-943-1164, email eslab@electrostandards.com, or complete our online form: /Products-Custom/Copper-Switch/

All data switches, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.

All ESL products are available for export. Electro Standards welcomes International inquiries: commutateur de données, interruptor de datos, dati interruttore, Przełącznik danych, comutador de dados.

*Prices online are subject to change and verification



Add accessories to this item:

517258 Mating Connector Kit $10.00
