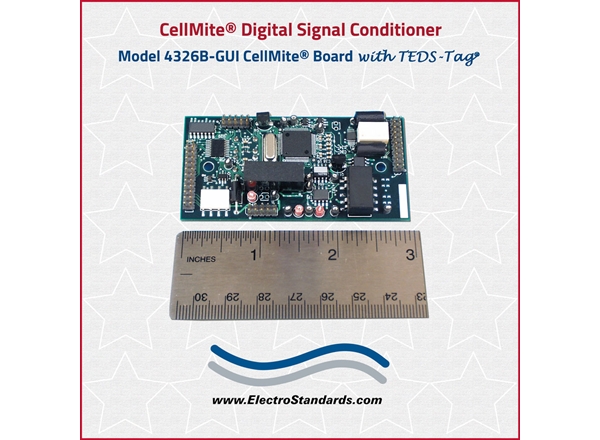

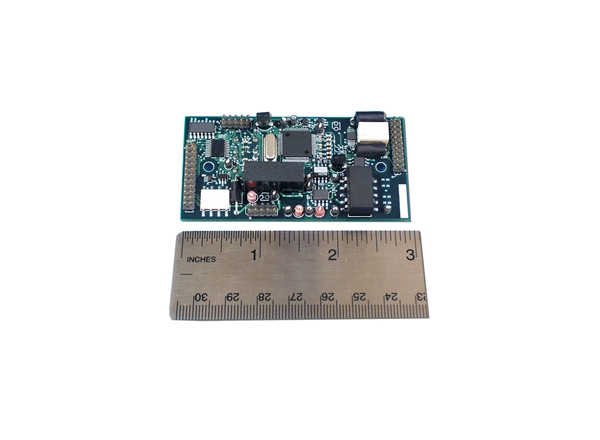

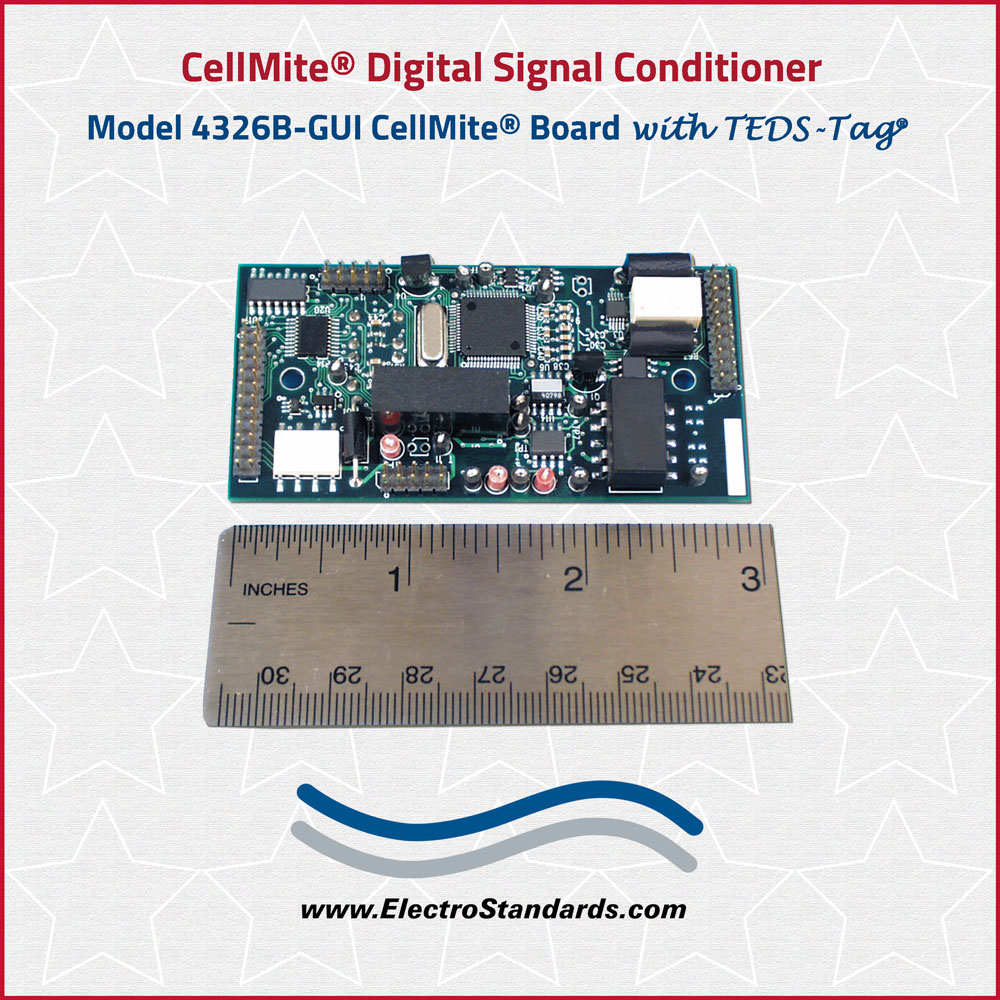

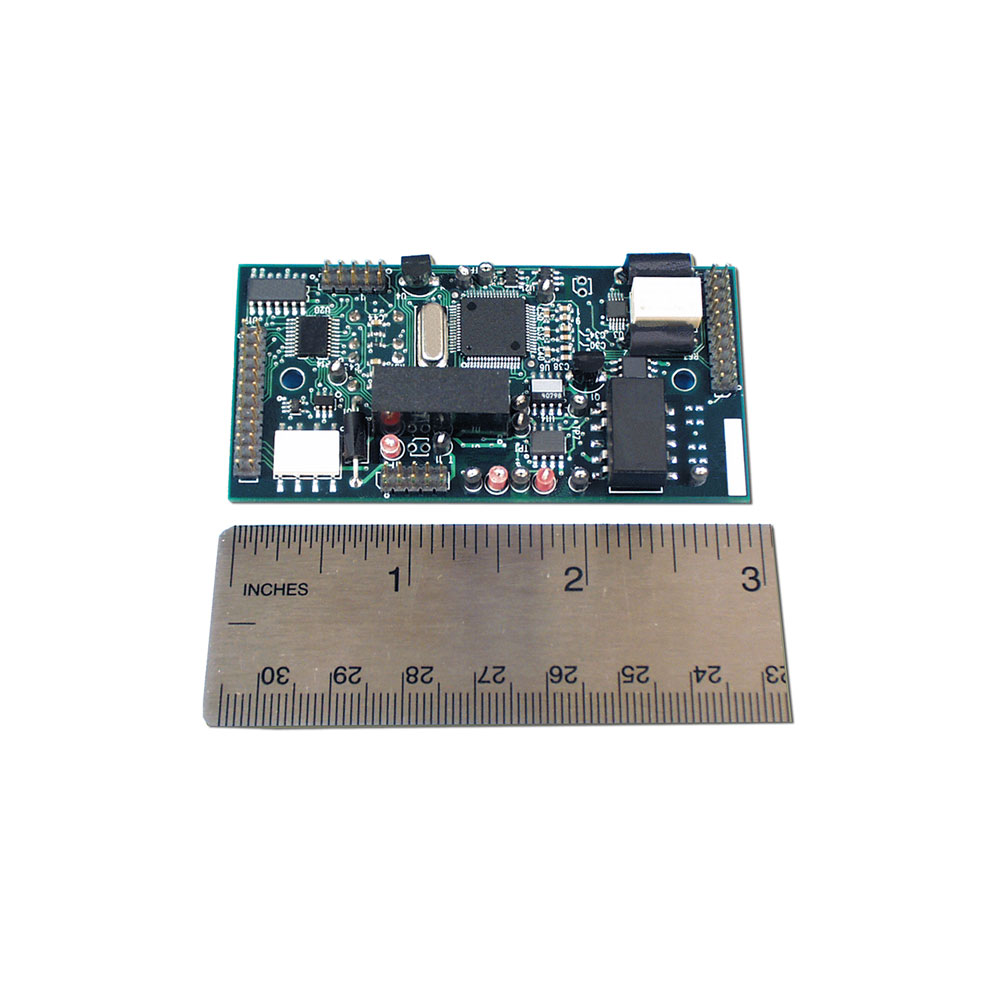

CellMite® 4326B Embedded Digital Signal Conditioner with TEDS-Tag® Auto Identification

CellMite® Model 4326B can be directly integrated into a standard strain gage transducer such as a load cell or extensometer. CellMite® simultaneously generates a serial digital output for connection to a PC as well as a /-10V analog output.

CellMite® Model 4326B compensates for transducer nonlinearities using its integrated 6-point calibration capability not found in standard signal conditioners. Its multi-drop RS232 serial port, unit addressing capabilities, and simple command set allow for connection of multiple units in a serial network configuraton. The TEDS-Tag® auto identification feature with integrated electronic tags allows the CellMite® Model 4326B to automatically select the correct sensor calibration and analog output for scaling for the connected transducer.
CellMite® Model 4326B features a nonvolatile memory for parameter and calibration storage, the ability to select between three transducers, multi-point and mV/V calibration, remote sense excitation, and a 24-bit internal resolution with 16-bit analog output.

CellMite® Model 4326B Features:

  • Single Channel
  • 2-pt mV/V Calibration
  • 6-pt Linearization Calibration
  • Scalable /-10V analog output
  • 16-bit analog output
  • Direct to PC with RS232 data
  • 24-bit resolution
  • Multiple filter selections
  • Storage for 3 calibrated transducers
  • Precision shunt
  • Remote sense excitation
  • Addressable for serial network
  • Tare, peak, valley
  • Unit Support: In, Cm, mm, %, Lb, Kg, N, mV/V, User defined
  • TEDS-Tag® Auto Identification
  • Power Supplies are internally isolated
  • Graphical User Interfaces (GUI) and Software Drivers are sold separately. Select from:
    • CellView Lite GUI (Cat. No. 514569)
    • CellView Multi-Display GUI (Cat. No. 514424)
    • CellView with Graphing GUI (Cat. No. 514358)
    • Software Drivers (Cat. No. 514864)
    • CellMite® Model 4326B Specifications:
  • Excitation:
    • 5 VDC.
    • Load 350 ohms.
  • Operation:
    • Internal resolution: 24-bit
    • Input Range: /-5.5 mV/V
    • Conversion rate: 60 per second.
    • Error: 0/01%, /- 1 count
    • Precision Shunt 60K.
  • Outputs:
    • Analog: 16-bit, Scalable, /-10V.
    • Serial Data: Multi-drop RS-232.
  • Mechanical:
    • Size: 3" x 1.5" x 0.8"
    • Weight: 0.9 oz. (25.5g).
  • Power:
    • 5 VDC, 150mA
  • Included Items;
    • Board Connector Kit
    • Operational Manual on CD ROM.

APPLICATION: Model 4326B CellMite® transforms standard transducer into a smart cell!
Model 4326B is a board only unit for embedded applications.
