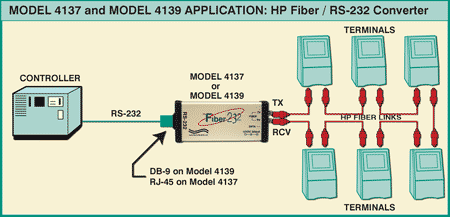

Model 4137 Interface Converter Application:
The HP VersaLink Fiber to RS232 Converters are used to connect fiber optic linked terminals to a controller having an RS-232 interface port. While RS-232 is a versatile communication standard, conversion to a fiber optic communication standard also allows data transmission that is no longer susceptible to electrostatic or electromagnetic fields. Additionally, the ports of the connected terminals are protected from damage by potential differences (ground variatons) that often exist between them.

• RS-232 connection via an RJ-45 connector.
• HP Fiber to RS232 Converters convert RS-232 Serial Communication Interface to HP Versatile Link Plastic Core Cable.
• ESL's Fiber Optic Interface Converters provide full galvanic isolation (no metallic connection) between connected devices.
• Full duplex connection between two devices having RS-232 ports.
• Allows the interference-free fiber optical transfer of data to be utilized by the device having an RS-232 interface.
• Data transfer rate greater than 120 Kbps (enhanced RS-232).
• Fibre connections via two standard Versatile Link connectors.
• Link distance: greater than 500 meters (1640 feet) with 200 mm Hard Clad Silicon Fiber Cable.
• Provided with external wall-mount power supply, UL approved.
• The Model 4137 media converter is ideal for casino data networks.

• Data Transfer Rate: Greater than 120 Kbps (enhanced RS-232).
• Fiber Transmission Distance: 75m (250 ft.) using TC 1000 W type plastic fiber cable.
• RS-232 Transmission Data: Greater than 15 m (50 ft.).
• Optical Fiber Connectors: HP/Agilent Versatile Link
• RS-232 Connector:
  • DB-9 Female on Model 4139,
  • RJ-45 Female on Model 4137.
• Optical Cable Type: 1mm plastic optical film.
• Optical Wavelength: 660 nm (red).
• External Power Supply: 120 VAC, 60 Hz.
• Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
• Weight: 0.5 lb. (226 grams).
• Status Display: Red LED.

Check out our Model 4139 HP Fiber to RS232 Interface Converter with a DB9 Connector:
http://www.electrostandards.com/ProductDetail/?productid=284

Please check out our HP Versalink Plastic Core Cables and Interface Converters on our Related products tab.

 All data switches, media converters, data communication products, fiber optic converters and data acquisition products are subject to a one year warranty against manufacturing defects.  The limit of ESL liability is limited to the cost of the ESL product provided.
