9364-X/Y Intercom Headset Cable w/Volume Control, Custom Length

Base Price Call for Price
Catalog No. 989364-X/Y
Model No. 9364-X/Y
Application For use by people on camera/video
Cable Type Phone and Ear Set Connection
Input (1) Straight, standard 1/4 inch Phone Plug (Male)
Length Custom/Inches
Output (1) 2-Prong Telex Connector (Male)
Quantity

Description Accessories Related Products Recently Viewed
 Model 9364-X/Y Intercom Headset Cable Assembly w/500 Ohm Volume Control, Custom Length

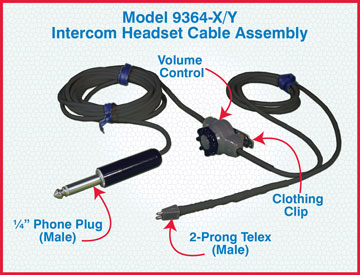

Image of Intercom Headset Cable Assembly w/500 Ohm Volume Control, Custom Length

 SPECIFICATIONS:

  • PHONE CONNECTOR:  (1) Straight, standard 1/4 inch Phone Plug (M)
  • EARSET CONNECTOR: (1) 2-Pront Telex connector (M)
  • CONTROL: 500 Ohm in-line Volume Control
  • LEG LENGTHS: X inches, Y inches

 FEATURES:

  • Connector ends: (1) 1/4 inch Straight Phone Plug to (1) small 2-Prong Telex.
  • Assembly includes: (1) 500 Ohm Volume Control.
  • Clothing Clip attached to volume control.
  • Cable jacket color is black.
  • Length between Phone Plug and center of Volume Control is "X" inches.
  • Length between Volume Control and Telex Connector is "Y" inches.
  • Specify X and Y lengths (in inches) when ordering to completely customize the cable assembly for maximum comfort.
  • Example: If requesting 105 inches between Phone Plug and center of Volume Control, and 43 inches between center of Volume Control and Telex Connector, the Part Number to order would be: Model 9364-105/43, Catalog Number 989364-105/43.

The Model 9364-X/Y Intercom Headset Cable Assembly with Volume Control is provided for use by people on camera. As such, its length can be specified for maximum comfort of the user and, further, to faciliate being clothing-clipped for out-of-sight positioning.  The volume control does not shut off completely at its low end so as not to cause the user to miss hearing the cues.

The overall length is approximately X plus Y inches (X is the length between the center of the Volume Control and the Phone Plug.  Y is the length between the center of the Volume Control and the Telex Connector).  Note: the connectors on ends add an additional 4 inches to the overall length.  See illustrations below.

Specifiy the desired X and Y lengths (in inches) when ordering.  This will now allow you to completely customize the cable assembly length for your maximum comfort.

Application Diagram of Model 9364-X/Y Intercom Headset Cable Assembly with 500 Ohm Volume Control, Custom Length

Electro Standards can supply all of your Network Cable requirements. Click here to reach our CABLES, COPPER NETWORK Webpage.

 *Prices online are subject to change and verification.
All ESL Cable Assemblies are available for export.
