Fiber 232® Model 4154 HP Fiber Repeater with
RS-232 Traffic Monitor Port, RoHS Compliant

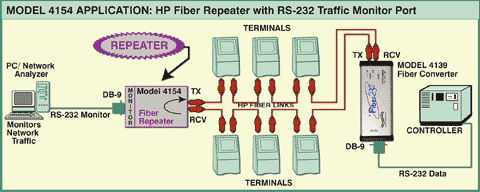

Model 4154 Fiber Optic Repeater Application
The HP Fiber Optic Signal Repeater with RS-232 Monitor Port is used to regenerate
data signals in order to extend the range between optically linked data terminals.
It also has the capability to monitor network traffic via an RS232 Monitor Port.
The fiber optic communication standard also allows data transmission that is no
longer susceptible to electrostatic or electromagnetic fields. Additionally, the
RS-232 monitor port is protected from damage by potential differences (ground
variations) that often exist between them.
Fiber 232® Model 4154 Features:
- RS-232 Traffic Monitor port via a DB9 connector.
- Provides full galvanic isolation (no metallic connection)
between the fiber ports and the RS-232 monitor port.
- Allows the interference-free fiber optical transfer of data to be
regenerated and its range extended.
- Fiber connections via two standard Versatile Link connectors.
- Link distance: greater than 500 meters (1640 feet) with 200 mm
Hard Clad Silicon fiber cable.
- Provided with external wall-mount power supply, UL approved.
- RoHS Compliant
Fiber 232® Model 4154 Specifications:
- Fiber Transmission Distance: 75 m (250 ft.) using TC 1000
W type plastic fiber cable.
- Optical Fiber Connectors: HP/Agilent Versatile Link
- RS-232 Connector: DB-9 female
- Optical Cable Type: 1mm plastic optical film
- Optical Wavelength: 660 nm (red)
- External Power Supply: 120 VAC, 60 Hz
- Dimensions: 5.5" x 2.25" x 1.0" (139mm x 57mm x 25mm).
- Weight: 0.5 Lb. (226 grams)
- Status Display: Red LED
Custom Length HP Fiber Cables Available ORDER:
Catalog Number 986625 - Length (in feet)
| HP VERSATILE LINK PLASTIC CORE CABLES |
| Length |
Catalog No. |
|
10 Feet
|
986625-010
|
|
20 Feet
|
986625-020
|
|
30 Feet
|
986625-030
|
|
40 Feet
|
986625-040
|
All data switches, fiber repeaters, data communication products, and data acquisition products are subject to a one year warranty against manufacturing defects. The limit of ESL liability is limited to the cost of the ESL product provided.
All ESL fiber optic repeaters are available for export.
*Prices online are subject to change and verification.
